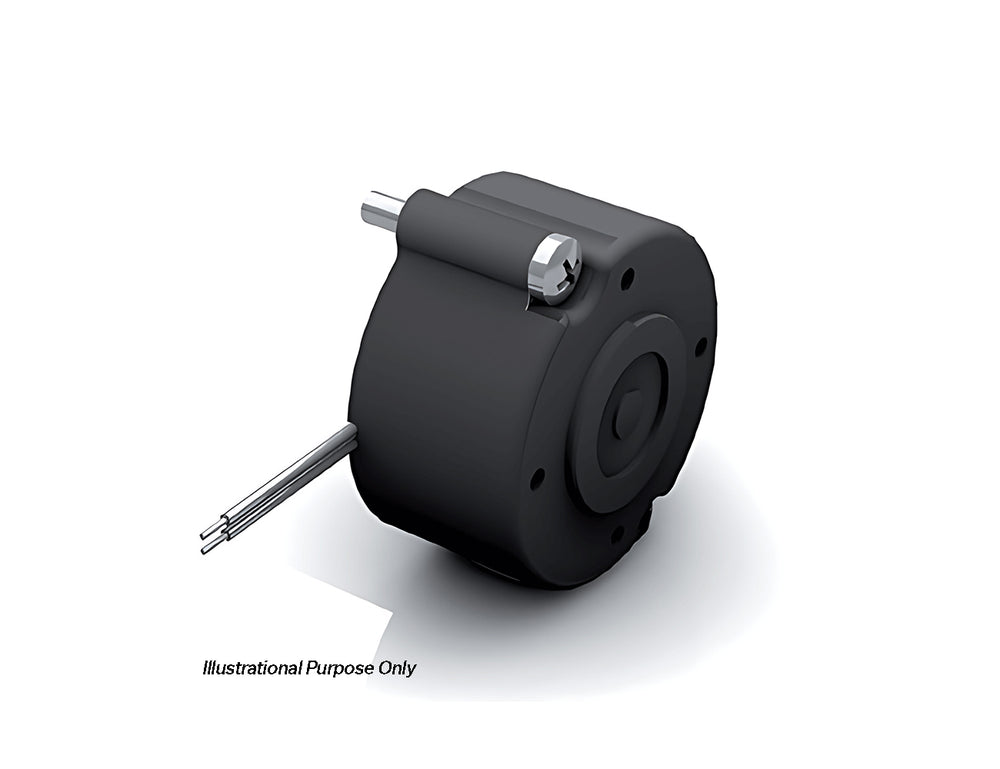

Dunkermotoren E50A Power-On Brake
The Dunkermotoren E50A is a 24 Vdc power-on brake rated at 0.4 Nm nominal torque, with a torque range of 0.25–0.60 Nm over the temperature range. A power-on brake applies torque when it is energised and releases when supply is removed. This is the opposite of the power-off brakes in the Dunkermotoren range. It is specified where braking is a com...
Read MoreThe Dunkermotoren E50A is a 24 Vdc power-on brake rated at 0.4 Nm nominal torque, with a torque range of 0.25–0.60 Nm over the temperature range. A power-on brake applies torque when it is energised and releases when supply is removed. This is the opposite of the power-off brakes in the Dunkermotoren range. It is specified where braking is a commanded function rather than a fail-safe one, since the axis is free when the machine is unpowered.
The E50A draws 0.22 A at 6 W nominal input power, engaging in 5 ms and releasing in 15 ms: the quickest engagement in the power-on series. It measures 39 mm in diameter by 35 mm long, weighs 0.12 kg and runs with low noise. Dunkermotoren rates it IP 30/65, the only brake in the range carrying two protection figures. Connection is by 400 mm leads of 0.25 mm² cross-section, red/green for GND and blue/green for Vdc.
Power-on brakes are supplied on request. All rated values apply in the run-in condition.
Show Less
Features
- 0.4 Nm nominal torque, 0.25–0.60 Nm over temperature
- Power-on operation: applies torque when energised, releases when supply is removed
- 5 ms activation time, the quickest engagement of the power-on series
- 15 ms deactivation time
- 24 Vdc at 0.22 A / 6 W
- Ø39 mm × 35 mm, 0.12 kg
- IP 30/65, the only brake in the range with a dual protection rating
- Low noise operation
- 400 mm leads, 0.25 mm² cross-section, red/green GND / blue/green Vdc
Specifications
| POWER-ON BRAKE SPECIFICATIONS | ||
|---|---|---|
| Nominal voltage | Vdc | 24 |
| Nominal torque(1) | Nm | 0.4 |
| Torque range(1)(2) | Nm | 0.25–0.60 |
| Nominal current(1) | A | 0.22 |
| Nominal input power(1) | W | 6 |
| Activation time | ms | 5 |
| Deactivation time | ms | 15 |
| Protection class | IP | 30/65 |
| Weight | kg | 0.12 |
| Noise | – | low noise |
| Diameter (Ø) | mm | 39 |
| Length (L) | mm | 35 |
| Strand colour GND | – | red/green |
| Strand colour Vdc | – | blue/green |
| Strand length | mm | 400 |
| Strand type / cross section | – | 0.25 mm² |
| (1) Values valid in run-in condition | ||
| (2) Over the temperature | ||
