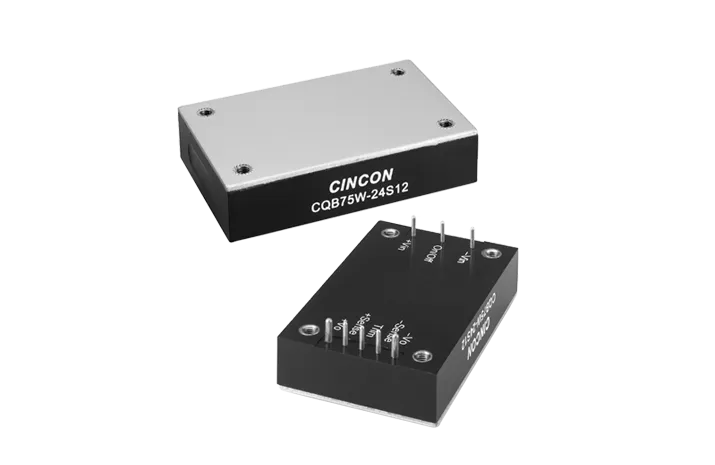

Cincon CQB75W-CM/DIN Series DC/DC Converter
The Cincon CQB75W-CM/DIN Series is a compact and reliable 75 W isolated DC/DC converter designed for regulated DC power delivery in demanding industrial and system-level applications. Built in an industry-standard quarter-brick package with integrated baseplate, the CQB75W series delivers robust electrical and thermal performance under continuou...
Read MoreThe Cincon CQB75W-CM/DIN Series is a compact and reliable 75 W isolated DC/DC converter designed for regulated DC power delivery in demanding industrial and system-level applications. Built in an industry-standard quarter-brick package with integrated baseplate, the CQB75W series delivers robust electrical and thermal performance under continuous operation.
Supporting a 4:1 wide DC input range, the CQB75W series accommodates fluctuating supply voltages while providing fully regulated single-output DC power across multiple output voltage options. With efficiencies of up to 87%, the converters minimise power loss and thermal stress, making them well suited for dense system designs.
The CQB75W range includes comprehensive protection features such as continuous short-circuit protection, over-voltage protection, remote on/off control, and thermal shutdown, ensuring dependable operation in harsh environments. High isolation ratings and compliance with international safety standards make this series suitable for professional power conversion applications.
Available in both chassis-mount (CM) and DIN-rail mount (DIN) variants, the CQB75W series offers installation flexibility for panel-mounted equipment and control cabinet systems.
Show Less
Features
- Input voltage range: 9-36 Vdc (24V) or 18-75 Vdc (48V)
- Output voltage options: 12 ,15 ,24 Vdc
- Output current: Up to 6.25A, depending on output voltage
- Industry-standard quarter-brick package with baseplate
- Remote on/off control and output trim ±10%
- Operating case temperature: −40 °C to +100 °C
- High efficiency up to 87%
Specifications
| INPUT SPECIFICATIONS | ||
|---|---|---|
| Input Voltage Range | 24V 48V |
9-36V 18-75V |
| Input Surge Voltage (100ms max.) | 24V 48V |
50Vdc max. 100Vdc max. |
| Under Voltage Lockout |
24Vin Power Up |
8.8V |
| Positive Logic Remote On/Off *(note 4&5) Input Filter |
PI Type | |
| *Please Refer to The Notes Table Below | ||
| OUTPUT SPECIFICATIONS | ||
|---|---|---|
| Voltage Accuracy | ±1.0% max. 24(48)S33 |
±1.5% max. |
| Transient Response: 75% to 100% Step Load Change | ||
| Error Band |
±5% Vout |
|
| Recover Time |
<500us |
|
| External Trim Adj. Range | ±10% | |
| Ripple & Noise, 20MHz BW *(note 3) | 3.3V & 5V | 40mV RMS, max. 100mV pk-pk, max. |
| 12V & 15V | 60mV RMS, max. 150mV pk-pk, max. |
|
| 24V | 100mV RMS, max. 240mV pk-pk max. |
|
| Temperature Coefficient | ±0.03%/°C max. | |
| Short Circuit Protection | Continuous | |
| Line Regulation *(note1) | ±0.2% max. | |
| Load Regulation *(note2) | ±0.2% max. | |
| Over Voltage Protection Trip Range, %Vo Nom. | 115-140% | |
| Current Limit | 110%-150% Nominal Output | |
| Start up Time | 20ms typ. | |
| *Please Refer to The Notes Table Below | ||
| GENERAL SPECIFICATIONS | ||
|---|---|---|
| Efficiency | See Table | |
| Isolation Voltage | Input/Output | 1500Vdc min. |
| Input/Case | 1500Vdc min. | |
| Output/Case | 1500Vdc min. | |
| Isolation Resistance |
10⁷ Ohm min. |
|
| Isolation Capacitance |
1000pF typ. |
|
| Switching Frequency | 300KHz typ. | |
| Operating Case Temperature | -40℃ to 100℃ | |
| Storage Temperature | -55℃ to +105℃ | |
| Humidity | 95% RH max. Non Condensing | |
| MTBF | MIL-HDBK-217F, GB, 25℃, Full Load | 850Khrs typ. |
| Thermal Shutdown, Case Temp. | 105℃ typ. | |
| Dimensions | 1.45 x 2.28 x 0.50 Inches(36.8 x 57.9 x 12.7 mm) | |
| Case Material | Aluminum Base-plate with Plastic Case | |
| Weight | 63g | |
| NOTES |
|---|
| 1. Measured from high line to low line. |
| 2. Measured from full load to zero load. |
| 3. Output ripple and noise measured with 10uF tantalum and 1uF ceramic capacitor across output. |
| 4. Logic Compatibility: Open Collector ref. to -Input Module on: >3.5Vdc to 75Vdc or Open Circuit Module off: 0 to < 1.8Vdc |
| 5. Suffix "N" to the model number with negative logic remote on/off Module on: 0 to < 1.8Vdc Module off: >3.5Vdc to 75Vdc or open circuit |
| 6. Suffix “-C” to the model number with clear mounting insert (3.1mm DIA.). |
Selection Table
| MODEL NUMBER | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | INPUT CURRENT | % EFF. | CAPACITOR LOAD MAX | ||
|---|---|---|---|---|---|---|---|---|
| MIN. | MAX. | NO LOAD | FULL LOAD | |||||
| CQB75W-24S12-CM | 9-36 Vdc | 12 Vdc | 0 mA | 6.25 A | 50 mA | 3634 mA | 86 | 6250uF |
| CQB75W-24S12-DIN | 9-36 Vdc | 12 Vdc | 0 mA | 6.25 A | 50 mA | 3634 mA | 86 | 6250uF |
| CQB75W-24S15-CM | 9-36 Vdc | 15 Vdc | 0 mA | 5 A | 50 mA | 3634 mA | 86 | 4400uF |
| CQB75W-24S15-DIN | 9-36 Vdc | 15 Vdc | 0 mA | 5 A | 50 mA | 3634 mA | 86 | 4400uF |
| CQB75W-24S24-CM | 9-36 Vdc | 24 Vdc | 0 mA | 3.12 A | 50 mA | 3628 mA | 86 | 1500uF |
| CQB75W-24S24-DIN | 9-36 Vdc | 24 Vdc | 0 mA | 3.12 A | 50 mA | 3628 mA | 86 | 1500uF |
| CQB75W-48S12-CM | 18-75 Vdc | 12 Vdc | 0 mA | 6.25 A | 30 mA | 1817 mA | 86 | 6250uF |
| CQB75W-48S12-DIN | 18-75 Vdc | 12 Vdc | 0 mA | 6.25 A | 30 mA | 1817 mA | 86 | 6250uF |
| CQB75W-48S15-CM |
18-75 Vdc |
15 Vdc | 0 mA | 5 A | 30 mA | 1796 mA | 87 | 4400uF |
| CQB75W-48S15-DIN |
18-75 Vdc |
15 Vdc | 0 mA | 5 A | 30 mA | 1796 mA | 87 | 4400uF |
| CQB75W-48S24-CM |
18-75 Vdc |
24 Vdc | 0 mA | 3.12 A | 30 mA | 1796 mA | 87 | 1500uF |
| CQB75W-48S24-DIN |
18-75 Vdc |
24 Vdc | 0 mA | 3.12 A | 30 mA | 1796 mA | 87 | 1500uF |
|
NOTE: |
||||||||

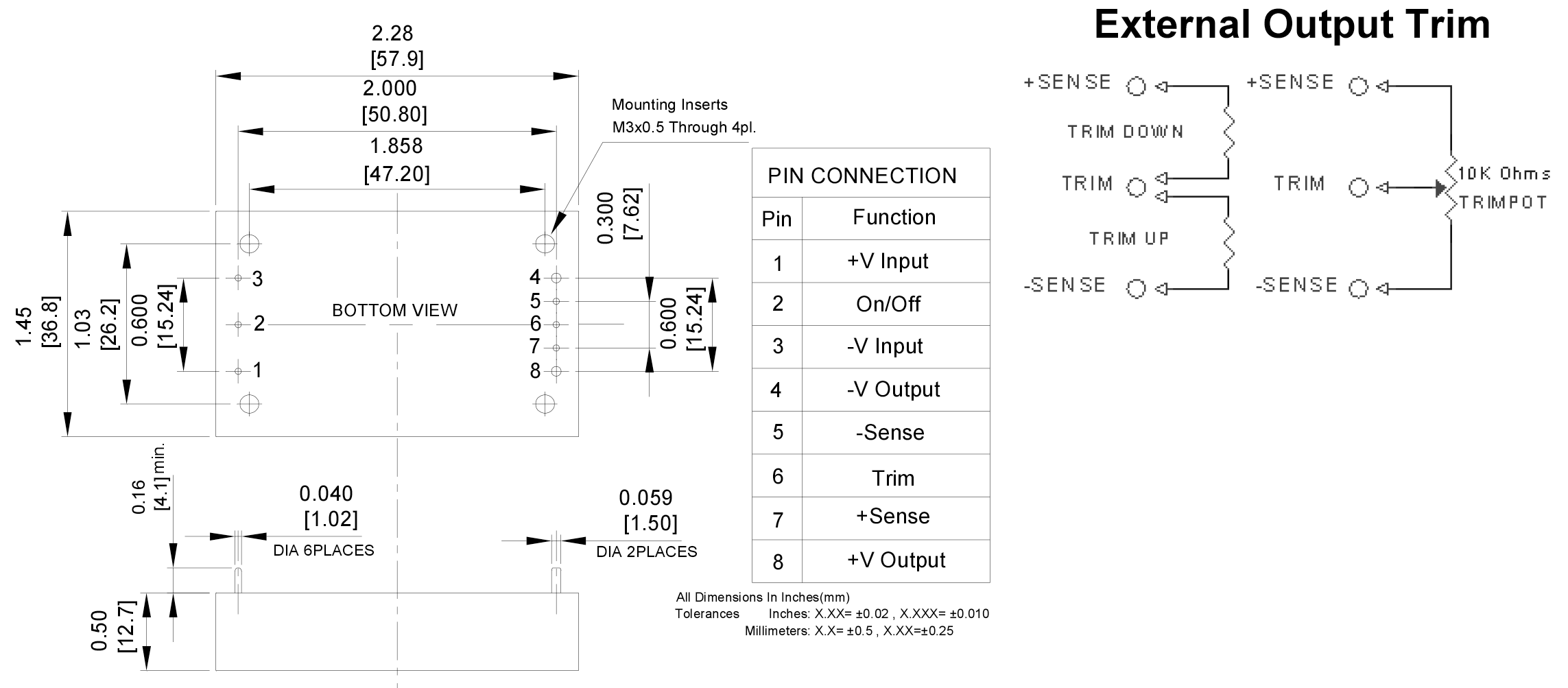

Technical Drawings
