Cincon CQB100W-CM/DIN Series DC/DC Converter

The CQB100W Series is a high-performance range of isolated 100 W DC/DC converters designed for industrial, transportation, and embedded power applications requiring reliable regulation and wide input flexibility. Built in a compact quarter-brick package, the CQB100W series features a 4:1 wide input voltage range and fully regulated single output...

Read More

The CQB100W Series is a high-performance range of isolated 100 W DC/DC converters designed for industrial, transportation, and embedded power applications requiring reliable regulation and wide input flexibility.

Built in a compact quarter-brick package, the CQB100W series features a 4:1 wide input voltage range and fully regulated single outputs, ensuring stable performance across fluctuating supply conditions. With efficiencies up to 88 %, robust protection functions, and 1500 VDC isolation, these converters deliver dependable operation in demanding environments.

The series supports multiple standard output voltages and includes remote on/off control, output trim functionality, and comprehensive protection against under-voltage, over-temperature, over-voltage, and over-current conditions. Compliance with IEC/EN/UL 62368-1 safety standards makes the CQB100W series suitable for globally deployed systems.

Show Less

Unit Price
or send a quick enquiry about this product only

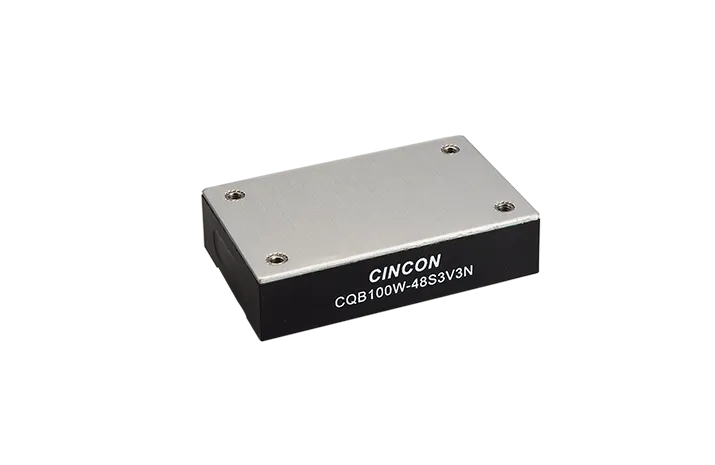

CINCON_CQB100W_Series
Features
  • Wide DC Input Range – 9-36 Vdc (24V nominal) or 18-75 Vdc (48V nominal)
  • Single Regulated Output Options – 12 Vdc, 15 Vdc, and 24 Vdc
  • Output Current Capability – Up to 8.3 A (model dependent)
  • 100W isolated output power
  • High efficiency up to 88%
  • Over voltage protection (115–140% Vo)
  • Over temperature protection (thermal shutdown at 110°C typ)
  • Low ripple & noise (as low as 150mV pk-pk on 12V & 15V models)
  • Operating case temperature range: -40°C to +100°C
  • Safety compliance: IEC/EN/UL 62368-1
Specifications
INPUT SPECIFICATIONS
Input Voltage Range 24V
48V
9-36V
18-75V
Input Surge Voltage (100ms max.) 24V
48V
50Vdc max.
100Vdc max.
Under Voltage Lockout

24Vin Power Up
24Vin Power Down
48Vin Power Up
48Vin Power Down

8.8V typ.
8.0V typ.
17V typ.
16V typ.

Input Filter PI Type
Positive Logic Remote On/Off *(note 4&5)
*Please Refer to The Notes Table Below
OUTPUT SPECIFICATIONS
Voltage Accuracy ±1.0% max.
  24(48)S33 ±1.5% max.
Transient Response: 75% to 100% Step Load Change
Error Band 3.3V±7% Vout, Others ±5% Vout
Recover Time

<500us

External Trim Adj. Range *(note6) ±10%
Ripple & Noise, 20MHz BW *(note3) 3.3V & 5V 40mV RMS, max.
100mV pk-pk, max.
12V & 15V 60mV RMS, max.
150mV pk-pk, max.
24V 100mV RMS, max.
240mV pk-pk max.
Temperature Coefficient ±0.03%/°C max.
Short Circuit Protection Continuous
Line Regulation *(note1) ±0.2% max.
Load Regulation *(note2) ±0.2% max.
Over Voltage Protection Trip Range, %Vo Nom. 115-140%
Current Limit 110%-160% Nominal Output
Start up Time 120ms typ.
*Please Refer to The Notes Table Below
GENERAL SPECIFICATIONS
Efficiency See Table
Isolation Voltage Input/Output 1500Vdc min.
Input/Case 1500Vdc min.
Output/Case 1500Vdc min.
Isolation Resistance

10⁷ Ohm min.

Isolation Capacitance

1000pF typ.

Switching Frequency 48Vin 250KHz typ.
24Vin 220KHz typ.
Operating Case Temperature -40℃ to 100℃
Storage Temperature -40℃ to +105℃
Humidity 95% RH max. Non Condensing
MTBF MIL-HDBK-217F, GB, 25℃, Full Load 600Khrs typ.
Thermal Shutdown, Case Temp. 110℃ typ.
Dimensions 1.45 x 2.28 x 0.50 Inches s(36.8 x 57.9 x 12.7 mm)
Case Material Aluminum Base-plate with Plastic Case
Weight 66g
NOTES
1. Measured from high line to low line.
2. Measured from full load to zero load.
3. Output ripple and noise measured with 10uF tantalum and 1uF ceramic capacitor across output.
4. Logic Compatibility: Open Collector ref. to -Input
Module on: >3.5Vdc to 75Vdc or Open Circuit
Module off: 0 to < 1.2Vdc
5. Suffix "N" to the model number with negative logic remote on/off
Module on: 0 to < 1.2Vdc
Module off: >3.5Vdc to 75Vdc or Open Circuit

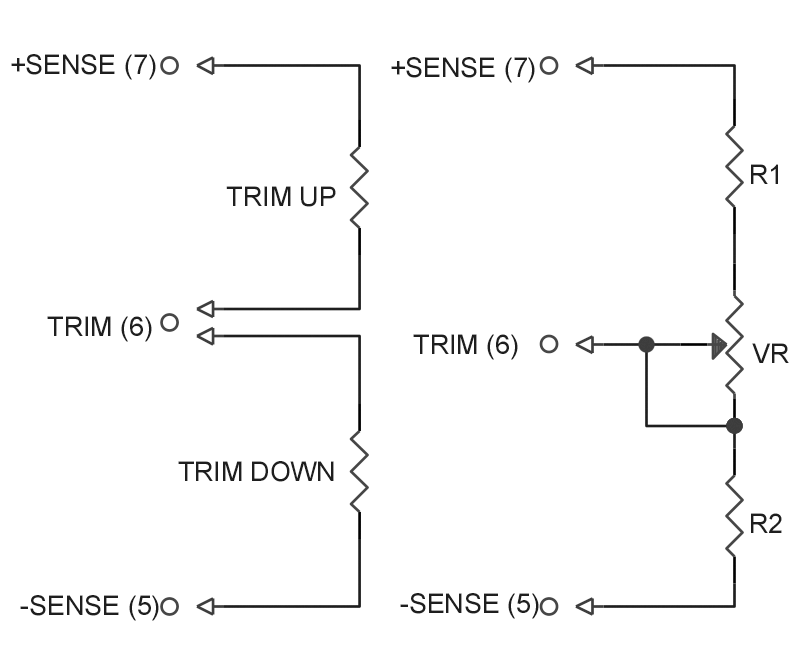

6. Trim-up: Connect a resistor between the trim pin and +Sense
Trimp-down: Connect a resistor between the trim pin and -Sense
7. Suffix “-C” to the model number with clear mounting insert (3.2mm DIA.).
8. An external input capacitor 47uF for 48Vin models and 100uF for 24Vin models are recommended to reduce input ripple voltage.
Selection Table
MODEL NUMBER INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT INPUT CURRENT % EFF. CAPACITOR LOAD MAX
MIN. MAX. NO LOAD FULL LOAD
CQB100W-24S12-CM 9-36 Vdc 12 Vdc 0 mA 8.3 A 50 mA 3634 mA 86 6250uF
CQB100W-24S12-DIN 9-36 Vdc 12 Vdc 0 mA 8.3 A 50 mA 3634 mA 86 6250uF
CQB100W-24S15-CM 9-36 Vdc 15 Vdc 0 mA 6.7 A 50 mA 3634 mA 86 4400uF
CQB100W-24S15-DIN 9-36 Vdc 15 Vdc 0 mA 6.7 A 50 mA 3634 mA 86 4400uF
CQB100W-24S24-CM 9-36 Vdc 24 Vdc 0 mA 4.17 A 50 mA 3628 mA 86 1500uF
CQB100W-24S24-DIN 9-36 Vdc 24 Vdc 0 mA 4.17 A 50 mA 3628 mA 86 1500uF
CQB100W-48S12-CM 18-75 Vdc 12 Vdc 0 mA 8.3 A 30 mA 1817 mA 86 6250uF
CQB100W-48S12-DIN 18-75 Vdc 12 Vdc 0 mA 8.3 A 30 mA 1817 mA 86 6250uF
CQB100W-48S15-CM

18-75 Vdc

15 Vdc 0 mA 6.7 A 30 mA 1796 mA 87 4400uF
CQB100W-48S15-DIN

18-75 Vdc

15 Vdc 0 mA 6.7 A 30 mA 1796 mA 87 4400uF
CQB100W-48S24-CM

18-75 Vdc

24 Vdc 0 mA 4.17 A 30 mA 1796 mA 87 1500uF
CQB100W-48S24-DIN

18-75 Vdc

24 Vdc 0 mA 4.17 A 30 mA 1796 mA 87 1500uF
NOTE: 1. Nominal input voltage 24, 48 Vdc

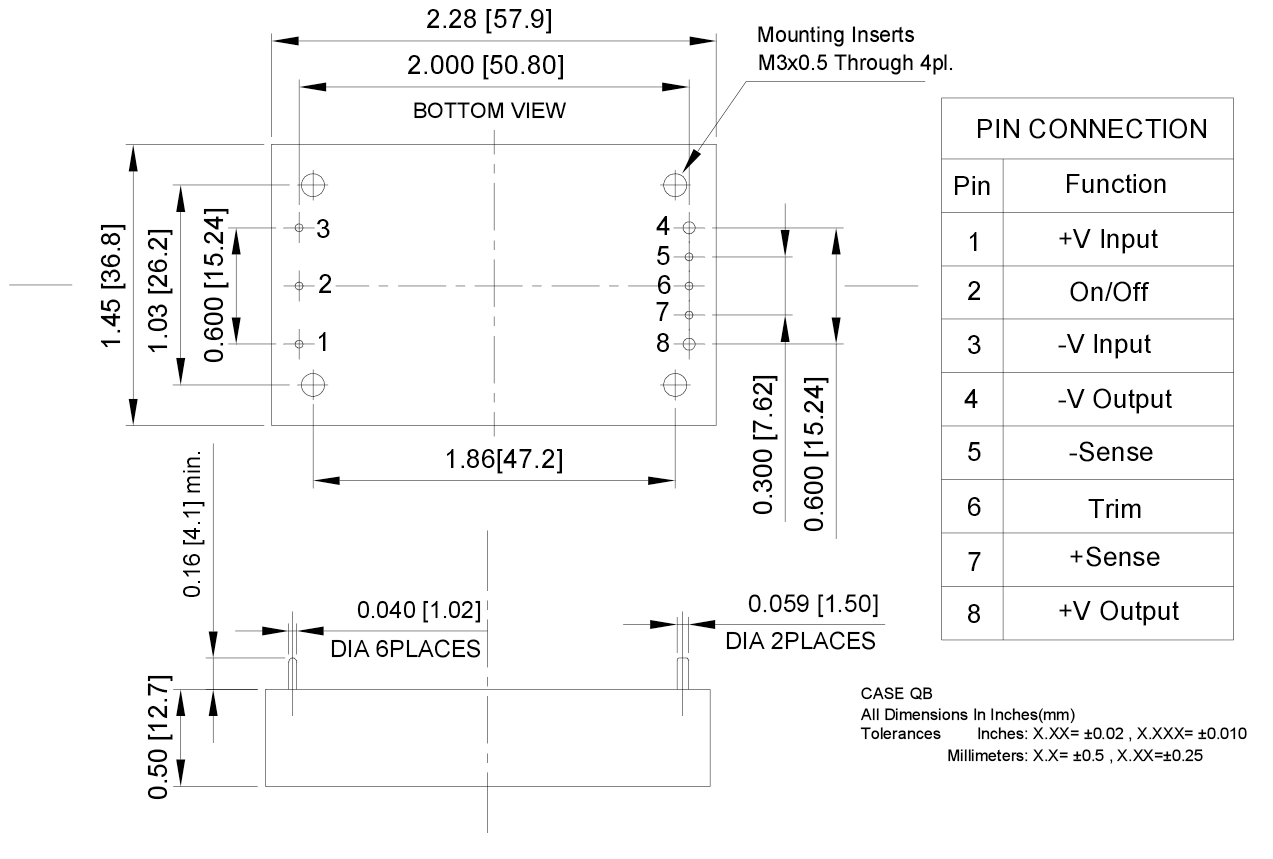

Technical Drawings
GA_Drawing-CQB100W-1 GA_Drawing-CQB100W-2
Downloads
Datasheet-CQB100W_Series_PDF.pdf
Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
