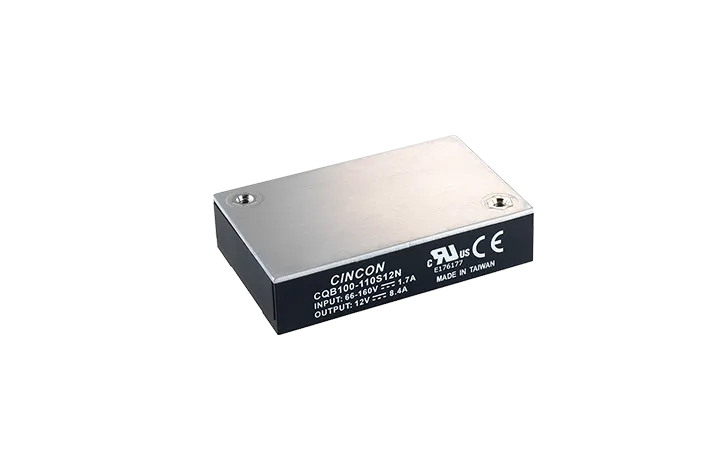

Cincon CQB100-110S-CM/DIN Series DC/DC Converter

The Cincon CQB100-110S Series is a high-performance 100W isolated DC/DC converter designed for demanding railway, industrial, and high-voltage DC applications. Featuring a wide 3:1 input range of 66–160VDC (110VDC nominal), this quarter-brick module delivers tightly regulated output voltages with efficiency up to 92%.

View Models

Features

Input Voltage Range 66-160Vdc (110Vdc nominal, 3:1 input range)
Output Voltage Options: 12Vdc and 24Vdc
Output Current: up to 8.4A
Switching Frequency 200kHz (typ.)
Load Regulation ±0.2% max.
Over Voltage Protection (115–140% Vo nom.)

Specifications

INPUT SPECIFICATIONS
Input Voltage Range	110V	66-160V
Input Surge Voltage (100ms max.)	180Vdc max.
Under Voltage Lockout	Power Up Power Down	62V 56V
Positive Logic Remote On/Off:
Logic Compatibility	Open Collector ref to -Input
Module ON Module OFF	> 3.5Vdc to 75Vdc or Open Circuit < 1.8Vdc
Input Filter	PI Type

OUTPUT SPECIFICATIONS
Voltage Accuracy		±1.5% max.
Transient Response: 25% Step Load Change		<200u sec.
External Trim Adj. Range		±10%
Ripple & Noise, 20MHz BW *(note 3)		<500us
	12V	60mV RMS, 150mV pk-pk max
	24V	100mV RMS, 240mV pk-pk max.
Temperature Coefficient		±0.03%/°C
Short Circuit Protection		Continuous
Line Regulation *(note 1)		±0.03%/°C max.
Short Circuit Protection		Continuous
Line Regulation *(note1)		±0.2% max.
Load Regulation *(note2)		±0.2% max.
Over Voltage Protection Trip Range, %Vo Nom.		115-140%
Current Limit		110%-180% Nominal Output
Start up Time		45ms typ.
*Please Refer to The Notes Table Below

GENERAL SPECIFICATIONS
Efficiency	See Table
Isolation Voltage	Input/Output	2250Vdc min.
	Input/Case	2250Vdc min.
	Output/Case	1500Vdc min.
Isolation Resistance	10⁷ Ohm min.
Isolation Capacitance	1000pF typ.
Switching Frequency	200KHz typ.
Operating Case Temperature	-40℃ to 100℃
Storage Temperature	-55℃ to +105℃
Thermal Shutdown, Case Temp.	105℃ typ.
Humidity	95% RH max. Non Condensing
MTBF	MIL-HDBK-217F, GB, 25℃, Full Load	TBD hrs typ.
Safety	UL60950-1 2nd(Basic insulation), Approval
EMC *(note 7)	meet EN50155(EN50121-3-2) with external filter
Shock/Vibration	meet EN50155(EN61373)
Environmental	meet EN50155(EN60068-2-1)
Dimensions	2.28×1.45x0.50 inches (57.9x36.8×12.7 mm)
Case Material	Aluminum Base-plate with Plastic Case
Weight	61.5g

NOTES
1. Measured from high line to low line.
2. Measured from full load to zero load.
3. Output ripple and noise measured with 10uF tantalum and 1uF ceramic capacitor across output.
4. Suffix "N" to the model number with negative logic remote on/off Module on: < 1.8Vdc Module off: >3.5Vdc to 75Vdc or Open Circuit
5. Suffix “-C” to the model number with clear mounting insert (3.2mm DIA.).
6. An external input capacitor 120uF for all models are recommended to reduce input ripple voltage.
7. Design meet EN50155 and RIA12 refer to Application Note

Selection Table

MODEL NUMBER	INPUT VOLTAGE	OUTPUT VOLTAGE	OUTPUT CURRENT		INPUT CURRENT		% EFF.	CAPACITOR LOAD MAX
MODEL NUMBER	INPUT VOLTAGE	OUTPUT VOLTAGE	MIN.	MAX.	NO LOAD	FULL LOAD	% EFF.	CAPACITOR LOAD MAX
CQB100-110S12-CM	66-160 Vdc	12 Vdc	0 mA	8.4 A	40 mA	993 mA	92	8800µF
CQB100-110S12-DIN	66-160 Vdc	12 Vdc	0 mA	8.4 A	40 mA	993 mA	92	8800µF
CQB100-110S24-CM	66-160 Vdc	24 Vdc	0 mA	4.2 A	60 mA	1030 mA	91	1500µF
CQB100-110S24-DIN	66-160 Vdc	24 Vdc	0 mA	4.2 A	60 mA	1030 mA	91	1500µF
CQB100-110S12N-CM	66-160 Vdc	12 Vdc	0 mA	8.4 A	40 mA	993 mA	92	8800µF
CQB100-110S12N-DIN	66-160 Vdc	12 Vdc	0 mA	8.4 A	40 mA	993 mA	92	8800µF
CQB100-110S24N-CM	66-160 Vdc	24 Vdc	0 mA	4.2 A	60 mA	1030 mA	91	1500µF
CQB100-110S24N-DIN	66-160 Vdc	24 Vdc	0 mA	4.2 A	60 mA	1030 mA	91	1500µF
NOTE: 1. Nominal input voltage 110 Vdc

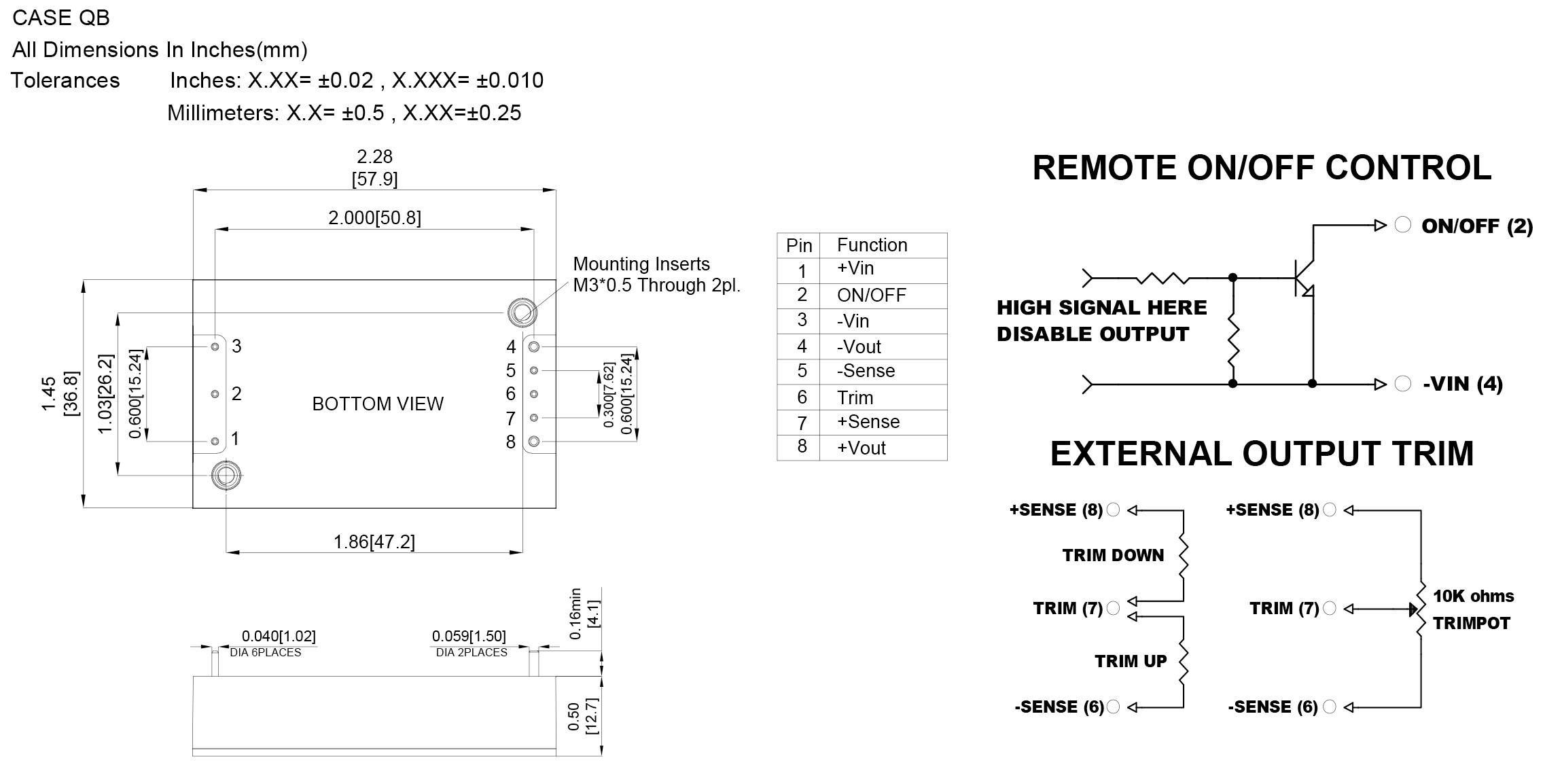

Technical Illustrations

Downloads

CQB100-110S_Series_Datasheet.pdf
