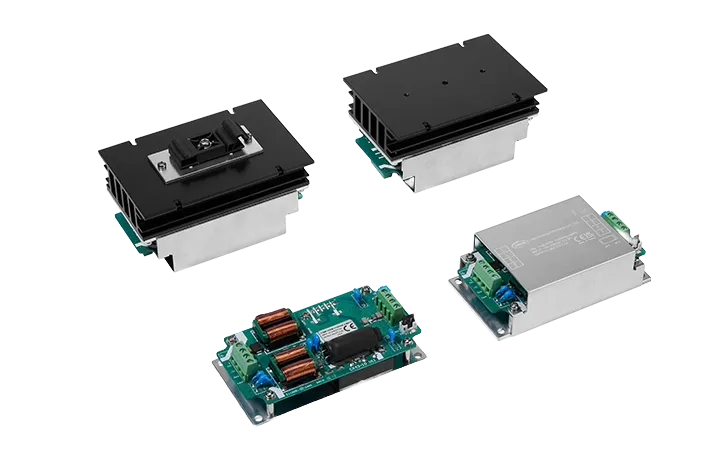

Cincon CQB150W-110SXX-CMFC(D) Series DC/DC Converter
The Cincon CQB150W-110S CMFC(D) Series is a high-performance 150W isolated DC/DC converter designed for demanding DC power systems operating from wide-range 110Vdc battery buses. With a 4:1 input voltage range (43–160Vdc), this series delivers stable, regulated DC output across varying supply conditions. Featuring high efficiency up to 91%, rein...
Read MoreThe Cincon CQB150W-110S CMFC(D) Series is a high-performance 150W isolated DC/DC converter designed for demanding DC power systems operating from wide-range 110Vdc battery buses. With a 4:1 input voltage range (43–160Vdc), this series delivers stable, regulated DC output across varying supply conditions.
Featuring high efficiency up to 91%, reinforced 3000Vdc isolation, and comprehensive protection functions, the CQB150W-110S series is well suited to mission-critical applications where reliability, safety, and long service life are essential. The chassis-mount design with baseplate cooling supports operation in harsh thermal environments, while compliance with EN 50155, EN 45545-2, and IEC/EN/UL safety standards makes it suitable for rail and industrial power systems.
Multiple single-output voltage options are available, allowing system designers to select the optimal configuration for control, communications, and auxiliary power loads.
Show Less
Features
- Wide DC Input Range: 43–160 Vdc (4:1 ratio) for stable operation on 110 Vdc battery systems
- Single Regulated Output: Available in 12V, 15V, 24V, 28V, and 48V variants
- Output current up to 12.5A
- High Efficiency: Up to 91% at full load, reducing heat and power losses
- Isolation Rating: 3000 Vdc input-to-output isolation
- Comprehensive Protection: OCP, OVP, OTP, UVLO, and short-circuit protection with auto-recovery
- Remote On/Off Control: Positive or negative logic options
- Baseplate-Cooled Design: Supports operation from -40 °C to +100 °C case temperature
- Standards Compliance: IEC/EN/UL 62368-1, EN 50155, EN 61373 (shock & vibration), EN 45545-2 (fire & smoke)
- Chassis Mount Construction: Open-frame or covered versions with optional heatsink or DIN-rail mounting
Specifications
| ABSOLUTE MAXIMUM RATINGS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Input Voltage | Continuous | All | -0.3 | 160 | Vdc | |
| Input Surge Voltage | 100ms max. | All | 200 | Vdc | ||
| Operating Case Temperature | At the center part of base plate | All | -40 | 100 | ℃ | |
| Storage Temperature | All | -40 | 105 | ℃ | ||
| INPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Operating Input Voltage | All | 43 | 110 | 160 | Vdc | |
| Input Under Voltage Lockout | ||||||
| Turn-On Voltage Threshold | Full Load | All | 40.5 | 41.5 | 42.5 | Vdc |
| Turn-Off Voltage Threshold | Full Load | All | 37.5 | 38.5 | 39.5 | Vdc |
| Lockout Hysteresis Voltage | Full Load | All | 3 | Vdc | ||
| Maximum Input Current | Vᵢₙ=43V, Full load | Others | 4 | A | ||
| No-Load Input Current | Vᵢₙ=110V, Iₒ=0A | See Model Number Table | mA | |||
| OUTPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Voltage Set Point Accuracy | Vᵢₙ=110V, Full load, Tc=25℃ | All | -1.0 | +1.0 | % | |
| Output Voltage Regulation | ||||||
| Load Regulation | Full load to no load | Others | ±0.2 | % | ||
| Line Regulation | v=High line to low line, full load | All | ±0.2 | % | ||
| Temperature Coefficient | Tc=-40℃ to 105℃ | All | ±0.02 | %/℃ | ||
| Output Voltage Ripple and Noise (5Hz to 20MHz bandwidth) | ||||||
|
Peak-to-Peak
RMS. |
Full load, 1uF ceramic capacitors |
12Vo 12Vo |
100 40 |
mV | ||
| Output Current Range | Vᵢₙ= 43 to 160V | See Model Number Table | A | |||
| Over Current Protection | Hiccup Mode. Auto recovery | All | 110 | 125 | 160 | % |
| Short Circuit Protection | All | Continuous, Auto Recovery. | ||||
| External Load Capacitance | Full load (resistive) | See Model Number Table | uF | |||
| Output Voltage Trim Range | Po≦max. rated power, Iₒ ≦ Iₒ_ₘₐₓ. | All | -10 | +10 | % | |
| Output Voltage Remote Sense Range | Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ. % of nominal Vo |
All | +10 | % | ||
| Over Voltage Protection | Limited voltage, % of nominal Vo | All | 115 | 125 | 140 | % |
| EFFICIENCY | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| 100% Load | Vᵢₙ=110V | See Model Number Table | % | |||
| DYNAMIC CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Output Voltage Current Transient | ||||||
| Error Band | 75% to 100% of Io_max step load change di/dt=0.1A/us (within 1% Vout nominal) |
All | ±5 | % | ||
| Recovery Time | 250 | us | ||||
| Turn-On Delay and Rise Time | Full load (Constant resistive load) | |||||
| Turn-On Delay Time, From On/Off Control |
Vₒₙ/ₒff to 10%Vₒ_ₛₑₜ, Remote on | All | 50 | ms | ||
| Turn-On Delay Time, From Input | Vᵢₙ_ₘᵢₙ to 10%Vₒ_ₛₑₜ, Power up | All | 50 | ms | ||
| Output Voltage Rise Time | 10%Vₒ_ₛₑₜ to 90%Vₒ_ₛₑₜ | All | 50 | ms | ||
| ISOLATION CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Isolation Voltage (100% factory Hi-Pot tested @2sec.) |
1 Minute; Input to output 1 Minute; Input to case (base plate) 1 Minute; Output to case (base plate) |
All | 3000 2500 500 |
Vdc |
||
| Isolation Resistance | Input to output | All | 100 | MΩ | ||
| Isolation Capacitance | Input to output |
12Vo 15Vo 24Vo 28Vo 48Vo |
1560 1560 1000 1000 1560 |
pF | ||
| Input to case (base plate) | 12Vo 15Vo 24Vo 28Vo 48Vo |
7680 4580 4800 6040 5820 |
||||
| Output to case (base plate) | 12Vo 15Vo 24Vo 28Vo 48Vo |
15500 19400 6700 6200 15500 |
||||
| FEATURE CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Switching Frequency | Pulse wide modulation (PWM), Fixed | All | 270 | 300 | 330 | KHz |
| On/Off Control, Remote On/Off Logic, Refer to –Vin pin | ||||||
| Logic High (Module Off) | Vₒₙ/ₒff at Iₒₙ/ₒff=0.0uA, Pin open=off | All | 0 | 1.2 | V | |
| Logic Low (Module On) | Vₒₙ/ₒff at Iₒₙ/ₒff=1.0mA | All | 3.5 or Open Circuit |
160 | ||
| On/Off Control, Negative Remote On/Off Logic, Refer to -Vin Pin | ||||||
| Logic High (Module Off) | VVₒₙ/ₒff at Iₒₙ/ₒff=1.0mA | All | 3.5 or Open Circuit |
160 | V | |
| Logic Low (Module On) | Vₒₙ/ₒff at Iₒₙ/ₒff=0.0uA, Pin open=on | 0 | 1.2 | |||
| On/Off Current (for both remote on/off logic) | Iₒₙ/ₒff at Vₒₙ/ₒff=0.0V | All | 0.3 | 1 | mA | |
| Off Converter Input Current | Shutdown input idle current | All | 5 | 10 | mA | |
| Over Temperature Shutdown | Temperature at the center part of base plate, non-latching (DC Module) | All | 105 | ℃ | ||
| Over Temperature Recovery | 100 | |||||
| GENERAL SPECIFICATIONS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| MTBF | Iₒ=100% of Iₒ_ₘₐₓ; MIL-HDBK - 217F_Notice 1, GB, 25℃ |
12Vo |
567 608 662 600 603 |
K hours |
||
| Weight |
-CMFC |
222 |
|
grams | ||
| Base plate Material | Aluminum | |||||
| Potting Material | UL 94V-0 (DC Module) | |||||
| Shock/Vibration | EN 50155 (EN61373) Compliant | |||||
| Humidity | 95% RH max. Non Condensing | |||||
| Altitude | 3000m Operating Altitude, 12000m Transport Altitude | |||||
| Thermal Shock | MIL-STD-810F | |||||
| Fire & Smoke | EN 45545-2 Compliant | |||||
| EMI | EN 50155 Compliant (external filter required for EN 50121-3-2) | Class A | ||||
| ESD | EN 61000-4-2 | Perf. Criteria A | ||||
| Radiated immunity | EN 61000-4-3 | Perf. Criteria A | ||||
| Fast Transient | EN 61000-4-4 | Perf. Criteria A | ||||
| Surge | EN 61000-4-5 | Perf. Criteria A | ||||
| Conducted immunity | EN 61000-4-6 | Perf. Criteria A | ||||
| Interruptions of Voltage Supply | EN 50155 | Perf. Criteria A | ||||
| Supply Change Over | EN 50155 | Perf. Criteria B | ||||
| Application Note Link CQB150W-110S CMFC(D) Series App Notes Packaging Information Link Packaging Information |
||||||
| IMMUNITY TO ENVIRONMENTAL CONDITIONS | ||||
|---|---|---|---|---|
| Phenomenon | Reference Clause(s) |
Reference Standard |
Test Conditions |
Result |
| Low Temperature Start-up test |
13.4.4 | EN 60068-2-1 | Class OT6 Temperature: -40℃ Duration: 2 hrs |
Pass |
| Dry Heat Test | 13.4.5 | EN 60068-2-2 |
Class OT6 & ST0 |
Pass |
| Low Temperature Storage Test |
13.4.6 | EN 60068-2-1 | Temperature: -40℃ Duration: 16 hrs |
Pass |
| Cyclic Damp Heat Test | 13.4.7 | EN 60068-2-30 | Temperature: 25℃-55℃ Humidity: 90% RH Duration: 48 hrs |
Pass |
| Random Vibration Test | 13.4.11 | EN 61373 | Temperature: 25℃±10℃ Humidity: 50% ±25% RH Frequency range: 5 ~ 150 Hz Vertical: 1.01 𝑚𝑠⁄2 Transverse: 0.450 𝑚𝑠⁄2 Longitudinal: 0.700 𝑚𝑠⁄2 Duration: 10 min / axis |
Pass |
| Simulated Long Life Test at Increased Random Vibration Levels |
13.4.11 | EN 61373 | Temperature: 25℃±10℃ Humidity: 50% ±25% RH Frequency range: 5 ~ 150 Hz Vertical: 5.72 𝑚𝑠⁄2 Transverse: 2.55 ms⁄2 Longitudinal: 3.96 𝑚𝑠⁄2 Duration: 5 hrs / axis |
Pass |
| Shock Test | 13.4.11 | EN 61373 | Temperature: 25℃±0℃ Humidity: 50% ±25% RH Frequency range: 5 ~ 150 Hz ±Vertical: 30 ms⁄2 ±Transverse: 30 𝑚𝑠⁄2 ±Longitudinal: 50 𝑚𝑠⁄2 Duration: 30ms x18 (Each axis 3 shocks) |
Pass |
| EN45545-2 FIRE & SMOKE TEST CONDITIONS | |||
|---|---|---|---|
| Item | Notes and Conditions |
Standard |
Hazard Level |
| R22 | Oxygen Index Test | EN 45545-2: 2013 EN ISO 4589-2: 2006 |
HL1, HL2, HL3 |
| Smoke Density Test | EN 45545-2: 2013 EN ISO 5659-2: 2013 |
HL1, HL2, HL3 | |
| Smoke Toxicity Test | EN 45545-2: 2013 NF X70-100: 2006 |
HL1, HL2, HL3 | |
| R23 | Oxygen Index Test | EN 45545-2: 2013 EN ISO 4589-2: 2006 |
HL1, HL2, HL3 |
| Smoke Density Test | EN 45545-2: 2013 EN ISO 5659-2: 2013 |
HL1, HL2, HL3 |
|
| Smoke Toxicity Test | EN 45545-2: 2013 NF X70-100: 2006 |
HL1, HL2, HL3 |
|
| R24 | Oxygen Index Test | EN 45545-2: 2013 EN ISO 4589-2 |
HL1, HL2, HL3 |
| R25 | Glow - Wire Test | EN 45545-2:2013 EN 60695-2-11:2001 |
HL1, HL2, HL3 |
| R26 | Vertical Flame Test | EN 45545-2: 2013 EN 60695-11-10: 2013 |
HL1, HL2, HL3 |
Selection Table
| MODEL NUMBER | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | INPUT CURRENT | % EFF. | CAPACITOR LOAD MAX | ||
|---|---|---|---|---|---|---|---|---|
| MIN. | MAX. | NO LOAD | FULL LOAD | |||||
| CQB150W-110S12☐-CMFD |
43-160 VDC |
12 VDC |
0 mA | 12.5 A | 15 mA | 1500 mA | 91 | 12500uF |
| CQB150W-110S15☐-CMFD |
43-160 VDC |
15 VDC |
0 mA | 10 A | 15 mA | 1500 mA | 91 | 10000uF |
| CQB150W-110S24☐-CMFD |
43-160 VDC |
24 VDC |
0 mA | 6.3 A | 15 mA | 1560 mA | 88 | 6300μF |
| CQB150W-110S28☐-CMFD |
43-160 VDC |
28 VDC |
0 mA | 5.4 A | 15 mA | 1560 mA | 88 | 5400μF |
| CQB150W-110S48☐-CMFD |
43-160 VDC |
48 VDC |
0 mA | 3.2 A | 15 mA | 1560 mA | 89.5 | 1000μF |
NOTE:
1. Nominal input voltage 110 VDC.
2. ☐ = N or none
3. VR1 is used for output voltage adjustment.
4. Refer to application note for thermal resistance and derating information.
5. TVS is included for input surge voltage protection.
6. Recommend an external fuse for input reverse polarity protection (shunt diode is included inside).
7. Output connector CN3 wafer with TAIWAN KING pin terminal P110I series and mate with JST housing PH series or equivalent.
8. CN1 & CN2 connection: DINKLE EK500V-04P series or equivalent, suitable electric wire: 24~12AWG (IEC 0.5~2.5mm2).
PART NUMBER
| SERIES | NOMINAL INPUT VOLTAGE | NUMBER OF OUTPUTS | NOMINAL OUTPUT VOLTAGE | REMOTE ON/OFF LOGIC | CHASSIS MOUNT TYPE | HEATSINK | |
|---|---|---|---|---|---|---|---|
| CQB150W- | II | O | XX | L | -YYY | Z | +WWW |
| CQB150W |
110 : 110 VDC |
S：Single |
12 : 12VDC |
None : Positive N：Negative |
CMF : Chassis Mount Built in Filter |
C： |
None：Blank HS：Heatsink HD：Heatsink+Din Rail |
Part Number Example:
CQB150W-110S12N-CMFD: Chassis Mount, 150W, 4:1 43-160Vdc Input, Single 12Vdc Output, Negative Logic, with cover.

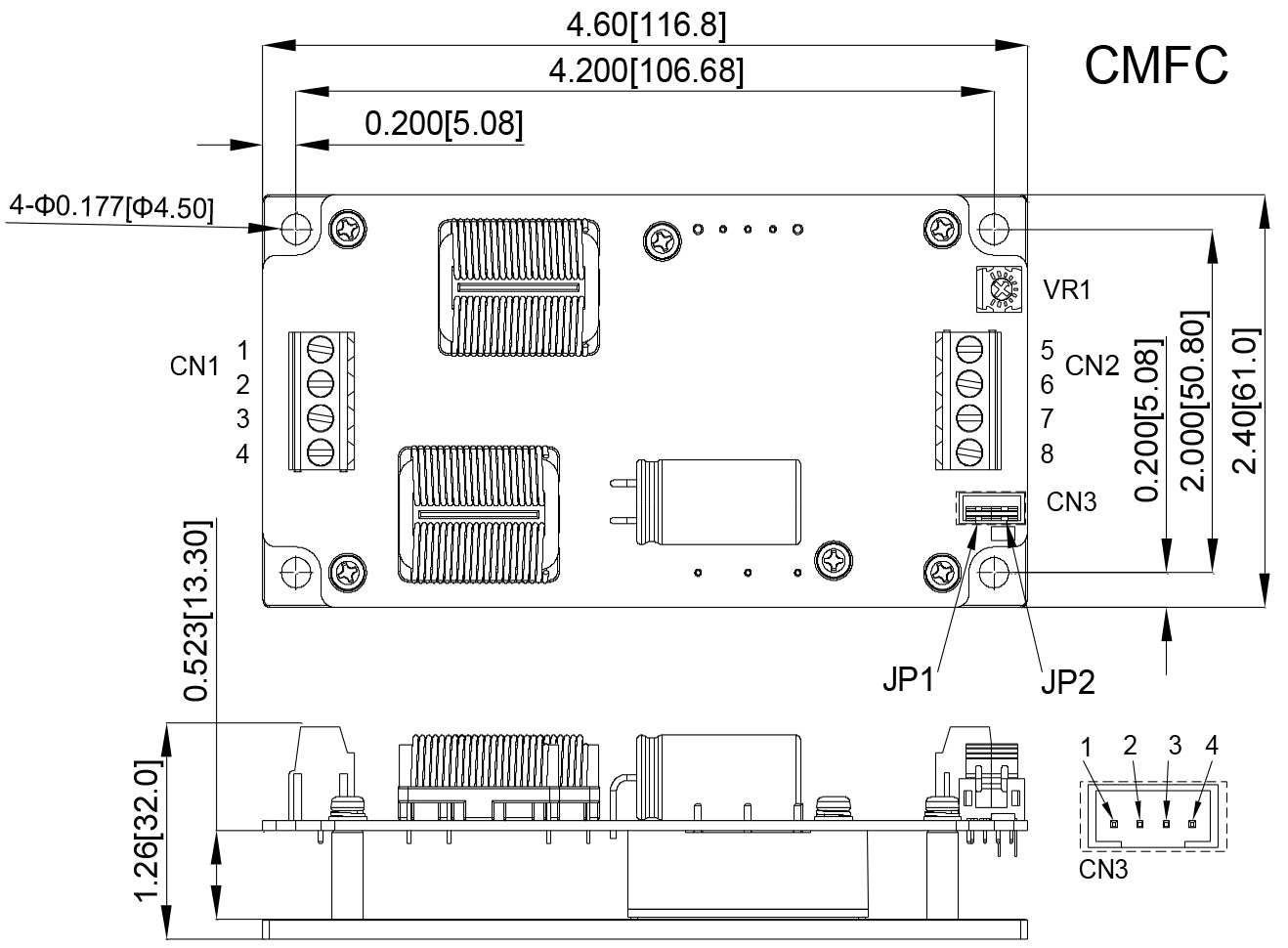

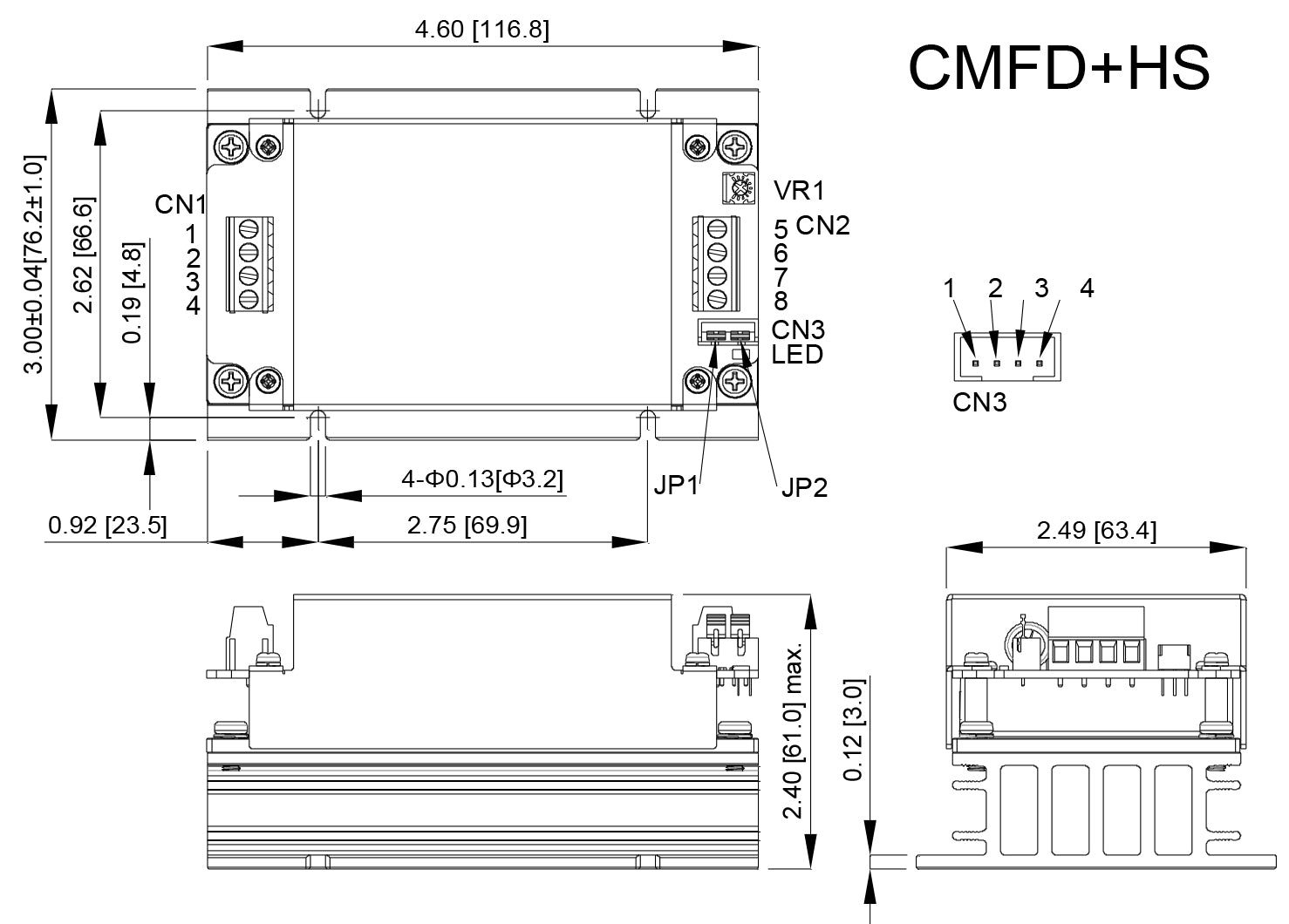

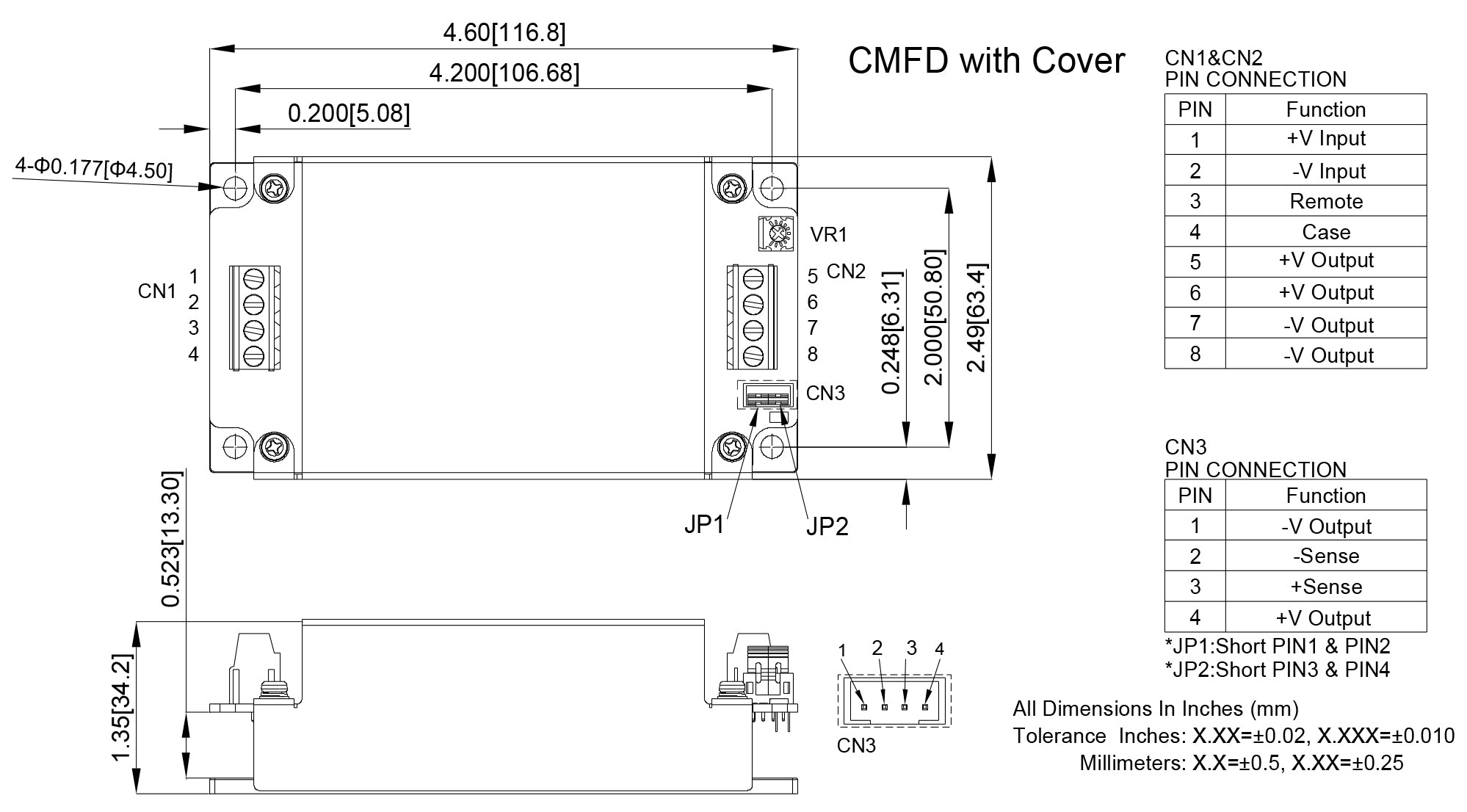

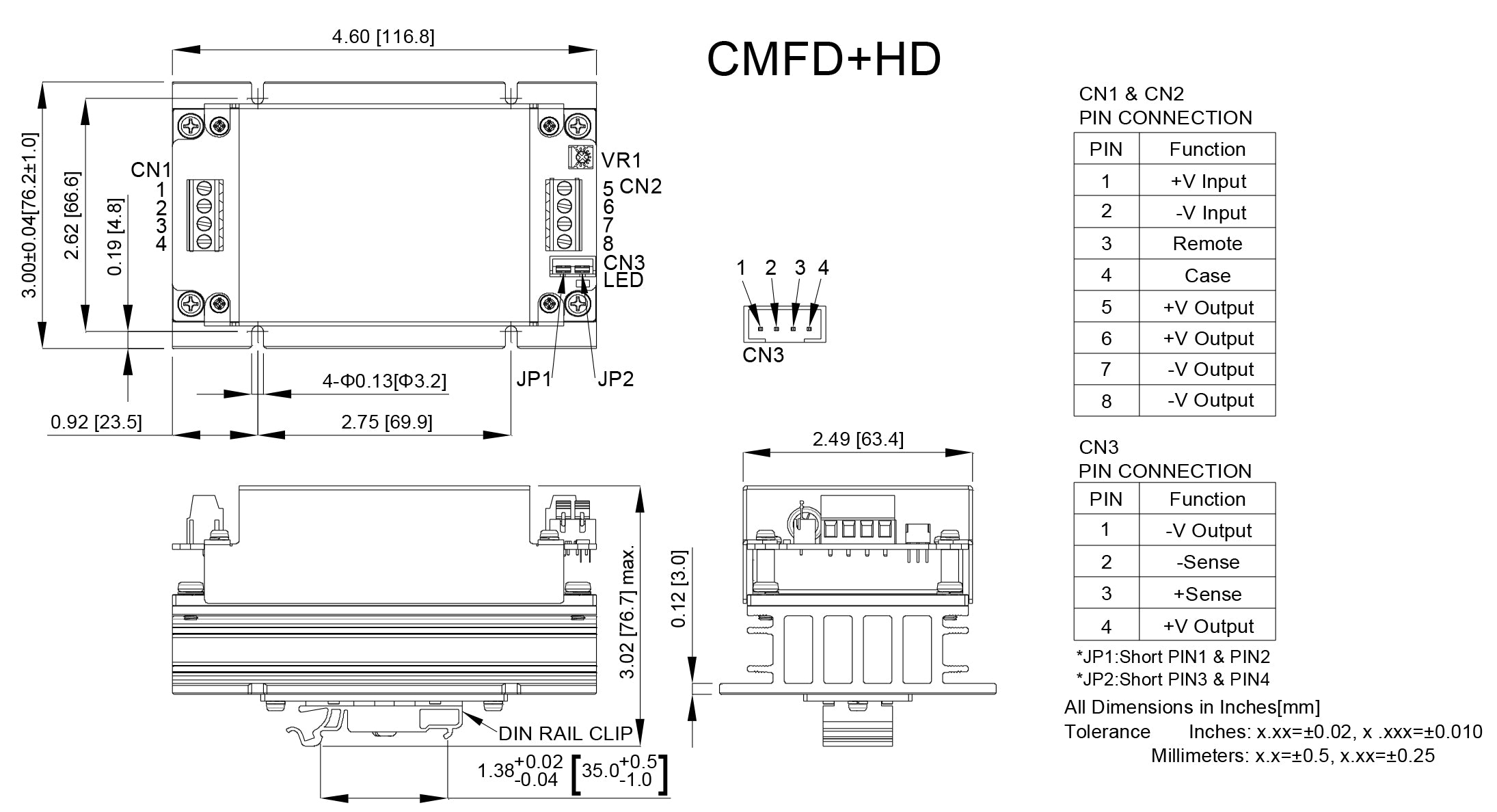

Technical Drawings
