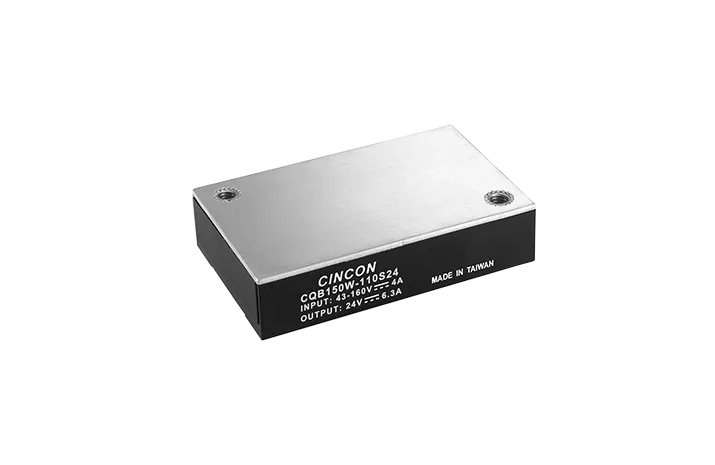

Cincon CQB150W-110S-CM/DIN Series DC/DC Converter
The Cincon CQB150W-110S Series is a high-performance 150W isolated DC-DC converter designed for demanding industrial, railway, and high-voltage DC applications. Featuring a wide 4:1 input range (43–160VDC) and delivering tightly regulated single outputs, this quarter-brick converter provides reliable and efficient power conversion in harsh envir...
Read MoreThe Cincon CQB150W-110S Series is a high-performance 150W isolated DC-DC converter designed for demanding industrial, railway, and high-voltage DC applications. Featuring a wide 4:1 input range (43–160VDC) and delivering tightly regulated single outputs, this quarter-brick converter provides reliable and efficient power conversion in harsh environments.
With efficiency up to 92%, 3000VDC isolation, and comprehensive protection functions including OCP, OVP, OTP, and UVLO, the CQB150W-110S Series ensures safe and stable operation even in mission-critical systems. The module complies with EN 50155 (with external circuits), EN 45545-2 fire & smoke standards, and meets IEC/EN/UL 62368-1 safety requirements.
Housed in an industry-standard Quarter Brick (2.28” x 1.45” x 0.5”) package, the CQB150W-110S is ideal for railway systems, industrial automation, transportation, battery-powered equipment, and high-voltage DC bus architectures requiring robust isolated conversion.
Show Lessor send a quick enquiry about this product only
Features
- Input Voltage Range 43-160Vdc (110Vdc nominal, 4:1 input range)
- Output Voltage Options: 12, 15, 24, 28, 48Vdc
- Output Current: up to 12.5A
- Fixed switching frequency (270–330kHz)
- Over Current Protection : Hiccup mode, auto recovery
- Safety to IEC/EN/UL 62368-1
- EN 45545-2 fire & smoke compliant
- Operating case temperature: -40°C to +105°C
Specifications
| ABSOLUTE MAXIMUM RATINGS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Input Voltage | Continuous | All | -0.3 | 160 | Vdc | |
| Input Surge Voltage | 100ms | All | 200 | Vdc | ||
| Operating Ambient Temperature | At the center part of case plate (with derating) Suffix “-M2” (with Derating) |
All | -40 | 105 | ℃ | |
| Storage Temperature | All | -55 | 125 | ℃ | ||
| INPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device | Min. |
Typ. |
Max. |
Units |
| Operating Input Voltage | All | 43 | 110 | 160 | Vdc | |
| Input Under Voltage Lockout | ||||||
| Turn-On Voltage Threshold | All | 40.5 | 41.5 | 42.5 | Vdc | |
| Turn-Off Voltage Threshold | All | 37 | 38 | 39 | Vdc | |
| Lockout Hysteresis Voltage | All | 3.5 | Vdc | |||
| Maximum Input Current | Vᵢₙ=43V, Full load | All | 4 | A | ||
| No-Load Input Current | Vᵢₙ=110, 48, Iₒ=0A | All | 10 | mA | ||
| Input Filter | Pi filter | All | ||||
| Inrush Current (I²t) | As per ETS300 132-2. | All | 0.1 | A²s | ||
| put Reflected Ripple Current | P-P thru 12uH inductor, 5Hz to 20MHz | All | 30 | mA | ||
| OUTPUT CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. | Max. |
Units |
| Voltage Set Point Accuracy | Vᵢₙ=100V, Full load, T꜀=25℃ | All | -1.0 | +1.0 | % | |
| Output Voltage Regulation | ||||||
| Load Regulation | Full load to no load | All | ±0.2 | % | ||
| Line Regulation | Vᵢₙ=High line to low line, full load | All | ±0.2 | % | ||
| Temperature Coefficient | T꜀=-40℃ to 105℃ | All | ±0.02 | %/℃ | ||
| Output Voltage Ripple and Noise (5Hz to 20MHz bandwidth) | ||||||
| Peak-to-Peak RMS. |
Full load, 10uF tantalum and 1.0uF ceramic capacitors (for Vo: 48V: Full load 10uF aluminum and 1uF ceramic) |
12Vo 12Vo |
150 60 |
mV | ||
| Output Current Range | Vᵢₙ= 43V to 160V | See Model Number Table | A | |||
| Over Current Protection | Hiccup Mode. Auto recovery | All | 110 | 125 | 160 | % |
| Over Voltage Protection | Limited voltage, % of nominal Vₒ | All | 115 | 125 | 140 | % |
| Short Circuit Protection | All | Continuous, Auto Recovery. | ||||
| External Load Capacitance | Full load (resistive) | See Model Number Table | uF | |||
| Output Voltage Trim Range | Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ. |
15Vo Others |
-20 -10 |
+10 +10 |
% | |
| Output Voltage Remote Sense Range | Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ. % of nominal Vₒ |
All | +10 | % | ||
| EFFICIENCY | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| 100% Load | Vᵢₙ= 110V | See Model Number Table | % | |||
| DYNAMIC CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Output Voltage Current Transient | ||||||
| Error Band | 75% to 100% of Iₒ_ₘₐₓ step load change dᵢ/dₜ=0.1A/us (within 1% Vout nominal) |
All | ±5 | % | ||
| Recovery Time | 250 | us | ||||
| Turn-On Delay and Rise Time | Full load (Constant resistive load) | |||||
| Turn-On Delay Time, From On/Off Control |
Vₒₙ/ₒff to 10%Vₒ_ₛₑₜ | All | 30 | ms | ||
| Turn-On Delay Time, From Input | Vᵢₙ_ₘᵢₙ to 10%Vₒ_ₛₑₜ | All | 30 | ms | ||
| Output Voltage Rise Time | 10%Vₒ_ₛₑₜ to 90%Vₒ_ₛₑₜ | All | 30 | ms | ||
| ISOLATION CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Isolation Voltage | 1 Minute; Input to output 1 Minute; Input to case 1 Minute; Output to case |
All | 3000 2250 500 |
Vdc | ||
| Isolation Resistance | Input to output | All | 100 | MΩ | ||
| Isolation Capacitance | Output to case | 12Vo 15Vo 24Vo 28Vo 48Vo |
10000 |
pF | ||
| FEATURE CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Switching Frequency | Pulse wide modulation (PWM), Fixed | All | 270 | 300 | 330 | KHz |
| On/Off Control, Remote On/Off Logic, Refer to –Vin Pin | ||||||
| Logic Low (Module Off) | Vₒₙ/ₒff at Iₒₙ/ₒff=1.0mA | All | 0 | 1.2 | V | |
| Logic High (Module On) | Vₒₙ/ₒff at Iₒₙ/ₒff=0.0uA | All | 3.5 or Open Circuit | 160 | ||
| On/Off Control, Negative Remote On/Off Logic, Refer to -Vin Pin | ||||||
| Logic High (Module Off) | Vₒₙ/ₒff at Iₒₙ/ₒff=0.0uA | All | 3.5 or Open Circuit | 160 | V | |
| Logic Low (Module On) | Vₒₙ/ₒff at Iₒₙ/ₒff=1.0mA | All | 0 | 1.2 | ||
| On/Off Current (for both remote on/off logic) | Iₒₙ/ₒff at Vₒₙ/ₒff=0V | All | 0.3 | 1 | mA | |
| Leakage Current (for both remote on/off logic) | Logic high, Vₒₙ/ₒff=15V | All | 30 | uA | ||
| Off Converter Input Current | Shutdown input idle current | All | 5 | 10 | mA | |
| GENERAL SPECIFICATIONS | ||||||
|---|---|---|---|---|---|---|
| Parameter | Notes and Conditions |
Device |
Min. |
Typ. |
Max. |
Units |
| Over Temperature Shutdown | Temperature at the center part of base plate, non-latching |
All |
110 | ℃ | ||
| Over Temperature Recovery | 100 | |||||
| MTBF | Iₒ=100% of Iₒ_ₘₐₓ; MIL-HDBK - 217F_Notice 1, GB, 25℃ |
12Vo |
720 |
K hours |
||
| Weight |
All |
68 |
|
grams | ||
| Case Material | Plastic, DAP | |||||
| Base plate Material | Aluminum | |||||
| Potting Material | UL 94V-0 | |||||
| Pin Material | Base: Copper Plating: Nickel with Matte Tin |
|||||
| Shock/Vibration | MIL-STD-810F/EN61373 Compliant | |||||
| Humidity | 95% RH max. Non Condensing | |||||
| Altitude | 3000m Operating Altitude, 12000m Transport Altitude | |||||
| Thermal Shock | MIL-STD-810F | |||||
| Fire & Smoke | EN 45545-2 Compliant | |||||
| EMI | Meets EN55011, EN55032 & EN50155 Compliant (with external filter) | Class A | ||||
| ESD | EN 61000-4-2 | Level 3: Air ±8kV, Contact ±6kV | Perf. Criteria A | |||
| Radiated immunity | EN 61000-4-3 | Level 3: 80~1000MHz, 20V/m Level 2: 80~1000MHz, 3V/m for EN 55035:2017 |
Perf. Criteria A | |||
| Fast Transient | EN 61000-4-4 | Level 3: On power input port, ±2kV, external capacitor required Level 1: On power input port, ±0.5kV, external input capacitor required, for EN55035:2017 |
Perf. Criteria A | |||
| Surge | EN 61000-4-5 | Level 4: Line to earth, ±4kV, Line to line, ±2kV (EN 50155) Level 1: Line to earth, ±0.5kV, for EN55035:2017 external components required |
Perf. Criteria A | |||
| Conducted immunity | EN 61000-4-6 | Level 3: 0.15~80MHz, 10V Level 2: 0.15~30MHz, 3V, 30~80MHz, 1V for EN 55035:2017 |
Perf. Criteria A | |||
| Magnetic Immunity | EN 61000-4-8 | Level 1: 50Hz, 1A/m for EN55035:2017 | Perf. Criteria A | |||
| Interruptions of Voltage Supply | EN 50155 | Class S2: 10ms interruptions | Perf. Criteria B | |||
| Supply Change Over | EN 50155 | Class C2: During a supply break of 30 ms | Perf. Criteria B | |||
| Application Note Link CQB150W-110S Series App Notes Packaging Information Link Packaging Information |
||||||
| IMMUNITY TO ENVIRONMENTAL CONDITIONS | ||||
|---|---|---|---|---|
| Phenomenon | EN50155; 2017 Reference Clause(s) |
Reference Standard |
Test Conditions |
Result |
| Low Temperature Start-up test |
13.4.4 | EN 60068-2-1 | Class OT6 Temperature: -40℃ Duration: 2 hrs |
Pass |
| Dry Heat Test | 13.4.5 | EN 60068-2-2 |
Class OT6 & ST2 |
Pass |
| Low Temperature Storage Test |
13.4.6 | EN 60068-2-1 | Temperature: -40℃ Duration: 16 hrs |
Pass |
| Cyclic Damp Heat Test | 13.4.7 | EN 60068-2-30 | Temperature: 25℃ - 55℃ Humidity: 90% RH Duration: 48 hrs |
Pass |
| Random Vibration Test | 13.4.11 | EN 61373 | Temperature: 25℃±10℃ Humidity: 50% ±25% RH Frequency range: 5 ~ 150 Hz Vertical: 1.01 𝑚⁄𝑠² Transverse: 0.450 𝑚⁄𝑠² Longitudinal: 0.700 𝑚⁄𝑠² Duration: 10 min / axis |
Pass |
| Simulated Long Life Test at Increased Random Vibration Levels |
13.4.11 | EN 61373 | Temperature: 25℃±10℃ Humidity: 50% ±25% RH Frequency range: 5 ~ 150 Hz Vertical: 5.72 𝑚/𝑠² Transverse: 2.55 𝑚/𝑠² Longitudinal: 3.96 𝑚/𝑠² Duration: 5 hrs / axis |
Pass |
| Shock Test | 13.4.11 | EN 61373 | Temperature: 25℃±10℃ Humidity: 50% ℃25% RH Frequency range: 5 ~ 150 Hz ±Vertical: 30 𝑚/𝑠² ±Transverse: 30 𝑚/𝑠² ±Longitudinal: 50 𝑚/𝑠² Duration: 30ms x18 (Each axis 3 shocks) |
Pass |
| EN45545-2 FIRE & SMOKE TEST CONDITIONS | |||
|---|---|---|---|
| Item | Notes and Conditions |
Standard |
Hazard Level |
| R22 | Oxygen Index Test | EN 45545-2: 2013+A1:2015 EN ISO 4589-2: 2017 |
HL1, HL2, HL3 |
| Smoke Density Test | EN 45545-2: 2013+A1:2015 EN ISO 5659-2: 2017 |
HL1, HL2, HL3 | |
| Smoke Toxicity Test | EN 45545-2: 2013+A1:2015 NF X70-100-1 and -2: 2006 |
HL1, HL2, HL3 | |
| R23 | Oxygen Index Test | EN 45545-2: 2013+A1:2015 EN ISO 4589-2: 2017 |
HL1, HL2, HL3 |
| Smoke Density Test |
EN 45545-2: 2013+A1:2015
EN ISO 5659-2: 2013
|
HL1, HL2, HL3 |
|
| Smoke Toxicity Test | EN 45545-2: 2013+A1:2015 NF X70-100-1 and -2: 2006 |
HL1, HL2, HL3 |
|
| R24 | Oxygen Index Test | EN 45545-2: 2013 EN ISO 4589-2 |
HL1, HL2, HL3 |
| R25 | Glow - Wire Test | EN 45545-2+A1:2016 EN 60695-2-11:2014 |
HL1, HL2, HL3 |
| R26 | Vertical Flame Test | EN 45545-2: 2013 EN 60695-11-10: 2013 |
HL1, HL2, HL3 |
Selection Table
| MODEL NUMBER | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | INPUT CURRENT | % EFF. | CAPACITOR LOAD MAX | ||
|---|---|---|---|---|---|---|---|---|
| MIN. | MAX. | NO LOAD | FULL LOAD | |||||
| CQB150W-110S12-CM |
43-160 Vdc |
12 Vdc |
0 mA | 12.5 A | 10 mA | 1.48 A | 92 | 12500μF |
| CQB150W-110S12-DIN |
43-160 Vdc |
12 Vdc |
0 mA | 12.5 A | 10 mA | 1.48 A | 92 | 12500μF |
| CQB150W-110S15-CM |
43-160 Vdc |
15 Vdc |
0 mA | 10 A | 10 mA | 1.50 A | 91 | 10000μF |
| CQB150W-110S15-DIN |
43-160 Vdc |
15 Vdc |
0 mA | 10 A | 10 mA | 1.50 A | 91 | 10000μF |
| CQB150W-110S24-CM |
43-160 Vdc |
24 Vdc |
0 mA | 6.3 A | 10 mA | 1.54 A |
89 |
6300μF |
| CQB150W-110S24-DIN |
43-160 Vdc |
24 Vdc |
0 mA | 6.3 A | 10 mA | 1.54 A | 89 | 6300μF |
| CQB150W-110S28-CM |
43-160 Vdc |
28 Vdc |
0 mA | 5.4 A | 10 mA | 1.54 A | 89 | 5400μF |
| CQB150W-110S28-DIN |
43-160 Vdc |
28 Vdc |
0 mA | 5.4 A | 10 mA | 1.54 A | 89 | 5400μF |
| CQB150W-110S48-CM |
43-160 Vdc |
48 Vdc |
0 mA | 3.2 A | 10 mA | 1.54 A | 90.5 | 1000μF |
| CQB150W-110S48-DIN |
43-160 Vdc |
48 Vdc |
0 mA | 3.2 A | 10 mA | 1.54 A | 90.5 | 1000μF |
| NOTE: 1. Nominal Input Voltage 110 Vdc 2. An External Input Capacitor 220uF for All Models are Recommended to Reduce Input Ripple Voltage. 3. To Meet EN50155 and RIA12 refer to Application Note. |
||||||||
PART NUMBER
| SERIES | NOMINAL INPUT VOLTAGE | NUMBER OF OUTPUTS | NOMINAL OUTPUT VOLTAGE | REMOTE ON/OFF LOGIC | CHASSIS MOUNT TYPE |
|---|---|---|---|---|---|
| CQB150W- | II | O | XX | L | -YYY (Option) |
| CQB150W |
110 : 110 Vdc |
S：Single |
12 : 12Vdc |
None : Positive N：Negative |
None：M3x0.5 Mounting Inserts -C：Clear Mounting Insert (3.2mm DIA.) |
| Part Number Example: CQB150W-110S12N-C: Quarter Brick, 100W, 4:1 43-160Vdc Input, Single 12Vdc Output, Negative Logic, Clear Mounting Insert |
|||||

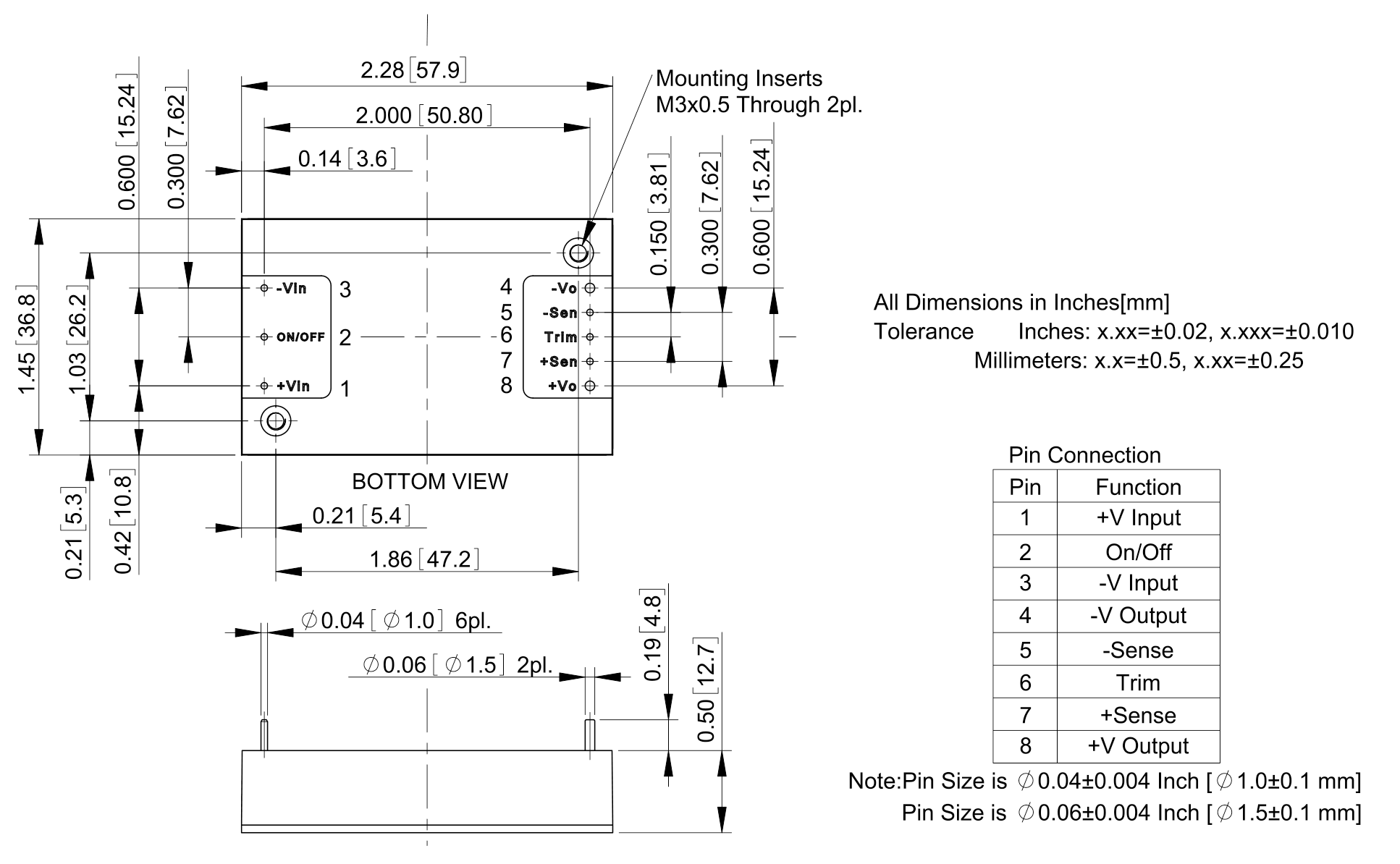

Technical Drawings
