Cincon CQB100W-110SXX-CMFC(D) Series DC/DC Converter

The Cincon CQB100W-110S CMFC(D) Series is a high-performance range of 100W isolated DC/DC converters designed to deliver stable, regulated DC power from wide and fluctuating high-voltage DC sources. With a 4:1 input voltage range and fully regulated single outputs, the series provides dependable power conversion for demanding system environments.

Read More

View Models

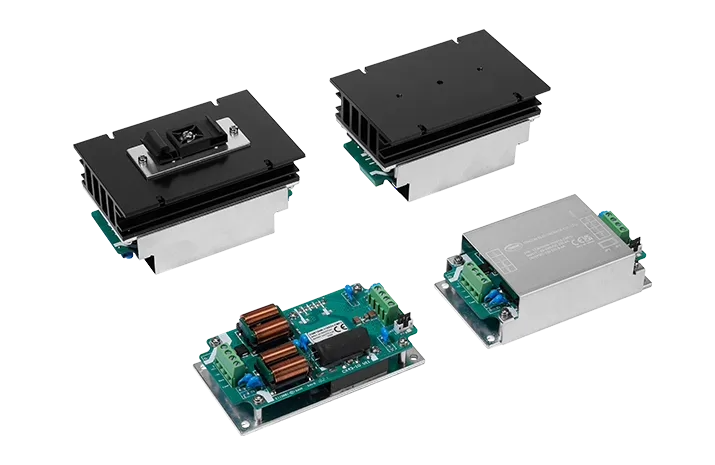

CinconCQB100W-110SXX-CMFC_D_Series_IMG

Features

  • Input voltage: 43-160Vdc (110 Vdc nominal, 4:1 input range)
  • Output voltage options: 12Vdc, 15Vdc, 24Vdc, 28Vdc, or 48Vdc (single output)
  • Output current up to 8.4A
  • Output Power: 100W maximum
  • High Efficiency: Up to 91%
  • Isolation Voltage: 3000VDC input to output
Specifications
ABSOLUTE MAXIMUM RATINGS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Input Voltage Continuous All -0.3   160 Vdc
Input Surge Voltage 100ms max. All     200 Vdc
Operating Case Temperature At the center part of base plate All -40   100 ℃
Storage Temperature   All -40   105 ℃
INPUT CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Operating Input Voltage   All 43 110 160 Vdc
Input Under Voltage Lockout
Turn-On Voltage Threshold Full Load All 40.5 41.5 42.5 Vdc
Turn-Off Voltage Threshold Full Load All 37.5 38.5 39.5 Vdc
Lockout Hysteresis Voltage Full Load All   3   Vdc
Maximum Input Current Vᵢₙ=43V, Full load All   2.6   A
No-Load Input Current Vᵢₙ=110V, Iₒ=0A See Model Number Table mA
OUTPUT CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Voltage Set Point Accuracy Vᵢₙ=110V, Full load, T꜀=25℃ All -1.0   +1.0 %
Output Voltage Regulation
Load Regulation Full load to no load All     ±0.2 %
Line Regulation Vᵢₙ=High line to low line, full load All     ±0.2 %
Temperature Coefficient T꜀=-40℃ to 105℃ All     ±0.02 %/℃
Output Voltage Ripple and Noise (5Hz to 20MHz bandwidth)
Peak-to-Peak





RMS.		 Full load, 1uF ceramic capacitors

12Vo
15Vo
24Vo
28Vo
48Vo

12Vo
15Vo
24Vo
28Vo
48Vo



100
100
200
200
300

40
40
100
100
150

 mV
Output Current Range Vᵢₙ= 43 to 160V See Model Number Table  A
Over Current Protection Hiccup Mode. Auto recovery All 110 125 160 %
Short Circuit Protection   All Continuous, Auto Recovery.
External Load Capacitance Full load (resistive) See Model Number Table uF
Output Voltage Trim Range Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ. 15Vo
Others		 -20
-10		   +10
+10		 %
Output Voltage Remote Sense Range Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ.
% of nominal Vo		 All     +10 %
Over Voltage Protection Limited voltage, % of nominal Vo All 115 125 140 %
EFFICIENCY
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
100% Load Vin=110V See Model Number Table %
DYNAMIC CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Output Voltage Current Transient
Error Band 75% to 100% of Io_max step load change
di/dt=0.1A/us
(within 1% Vout nominal)		 All     ±5 %
Recovery Time     250 us
Turn-On Delay and Rise Time Full load (Constant resistive load)
Turn-On Delay Time, From
On/Off Control		 Vₒₙ/ₒff to 10%Vₒ_ₛₑₜ, Remote on All   50   ms
Turn-On Delay Time, From Input Vᵢₙ_ₘᵢₙ to 10%Vₒ_ₛₑₜ, Power up All   50   ms
Output Voltage Rise Time 10%Vₒ_ₛₑₜ to 90%Vₒ_ₛₑₜ All   50   ms
ISOLATION CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Isolation Voltage
(100% factory Hi-Pot tested @2sec.)		 1 Minute; Input to output
1 Minute; Input to case (base plate)
1 Minute; Output to case (base plate)		 All     3000
2500
500		 Vac
Vac
Vac
Isolation Resistance Input to output All 100     MΩ
Isolation Capacitance Input to output


 12Vo
15Vo
24Vo
28Vo
48Vo		   1500
1500
1500
1500
1500		   pF
  Input to case (base plate) 12Vo
15Vo
24Vo
28Vo
48Vo		   7680
4580
4800
6040
5820
  Output to case (base plate) 12Vo
15Vo
24Vo
28Vo
48Vo		   15500
19400
6700
6200
10200
FEATURE CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Switching Frequency Pulse wide modulation (PWM), Fixed All 270 300 330 KHz
On/Off Control, Remote On/Off Logic, Refer to –Vin pin
Logic Low (Module Off) Vₒₙ/ₒff at Iₒₙ/ₒff=0.0uA, Pin open=off All 0   1.2 V
Logic High (Module On) Vₒₙ/ₒff at Iₒₙ/ₒff=1.0mA All 3.5 or Open Circuit   160
On/Off Control, Negative Remote On/Off Logic, Refer to -Vin Pin
Logic High (Module Off) Vₒₙ/ₒff at Iₒₙ/ₒff=1.0mA All 3.5 or Open Circuit   160 V
Logic Low (Module On) Vₒₙ/ₒff at Iₒₙ/ₒff=0.0uA, Pin open=on All 0   1.2
On/Off Current (for both remote on/off logic) Iₒₙ/ₒff at Vₒₙ/ₒff=0.0V All   0.3 1 mA
Off Converter Input Current Shutdown input idle current All   5 10 mA
Over Temperature Shutdown Temperature at the center part of base plate, non-latching (DC module) All   105   ℃
Over Temperature Recovery   100
GENERAL SPECIFICATIONS
Parameter Notes and Conditions
 Device
 Min. Typ.
 Max.
 Units
MTBF Iₒ=100% of Iₒ_ₘₐₓ;
MIL-HDBK - 217F_Notice 1, GB, 25℃

12Vo
15Vo
24Vo
28Vo
48Vo

   552
611
728
618
750		   K
hours
Weight

-CMFC
-CMFD
-CMFD+HS
-CMFD+HD



222
246
487
504



 grams
Base plate Material Aluminum
Potting Material UL 94V-0 (DC Module)
Shock/Vibration EN 50155 (EN61373) Compliant
Humidity 95% RH max. Non Condensing
Altitude 3000m Operating Altitude, 12000m Transport Altitude
Thermal Shock MIL-STD-810F
Fire & Smoke EN 45545-2 Compliant
EMI EN 50155 Compliant (external filter required for EN 50121-3-2) Class A
ESD EN 61000-4-2     Level 3: Air ±8kV, Contact ±6kV  Perf. Criteria A
Radiated immunity EN 61000-4-3    Level 3: 80~1000MHz, 20V/m  Perf. Criteria A
Fast Transient EN 61000-4-4    Level 3: On power input port, ±2kV  Perf. Criteria A
Surge EN 61000-4-5   Level 4: Line to earth, ±4kV, Line to line, ±2kV  Perf. Criteria A
Conducted immunity EN 61000-4-6    Level 3: 0.15~80MHz, 10V  Perf. Criteria A
Interruptions of Voltage Supply EN 50155           Class S2: 10ms interruptions, with external hold up circuit and capacitor required  Perf. Criteria A
Supply Change Over EN 50155            Class C2: During a supply break of 30ms, with external hold up circuit and capacitor required  Perf. Criteria B
Application Note Link                                                                                        CQB100W-110S CMFC(D) Series App Notes
Packaging Information Link                                                                                                                  Packaging Information
IMMUNITY TO ENVIRONMENTAL CONDITIONS
Phenomenon Reference Clause(s)
 Reference Standard
 Test Conditions
 Test Conditions
Low Temperature
Start-up test		 13.4.4 EN 60068-2-1 Class OT6
Temperature: -40℃
Duration: 2 hrs		 Pass
Dry Heat Test 13.4.5 EN 60068-2-2

Class OT6 & ST0
Temperature: 85℃
Duration: 6 hrs

 Pass
Low Temperature
Storage Test		 13.4.6 EN 60068-2-1 Temperature: -40℃
Duration: 16 hrs		 Pass
Cyclic Damp Heat Test 13.4.7 EN 60068-2-30 Temperature: 25℃-55℃
Humidity: 90% RH
Duration: 48 hrs		 Pass
Random Vibration Test 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH
Frequency range: 5 ~ 150 Hz
Vertical: 1.01 𝑚/𝑠²
Transverse: 0.450 𝑚/𝑠²
Longitudinal: 0.700 𝑚/𝑠²
Duration: 10 min / axis		 Pass
Simulated Long Life Test at Increased Random Vibration Levels 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH
Frequency range: 5 ~ 150 Hz
Vertical: 5.72 𝑚/𝑠²
Transverse: 2.55 𝑚/𝑠²
Longitudinal: 3.96 𝑚/𝑠²
Duration: 5 hrs / axis		 Pass
Shock Test 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH
Frequency range: 5 ~ 150 Hz
±Vertical: 30 𝑚/𝑠²
±Transverse: 30 𝑚/𝑠²
±Longitudinal: 50 𝑚/𝑠²
Duration: 30ms x18 (Each axis 3 shocks)		 Pass
EN45545-2 FIRE & SMOKE TEST CONDITIONS
Item Notes and Conditions
 Standard
 Hazard Level
R22 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2: 2006		 HL1, HL2, HL3
Smoke Density Test EN 45545-2: 2013
EN ISO 5659-2: 2013		 HL1, HL2, HL3
Smoke Toxicity Test EN 45545-2: 2013
NF X70-100: 2006		 HL1, HL2, HL3
R23 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2: 2006

HL1, HL2, HL3
Smoke Density Test EN 45545-2: 2013
EN ISO 5659-2: 2013

HL1, HL2, HL3
Smoke Toxicity Test EN 45545-2: 2013
NF X70-100: 2006

HL1, HL2, HL3
R24 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2		 HL1, HL2, HL3
R25 Glow - Wire Test EN 45545-2:2013
EN 60695-2-11:2001		 HL1, HL2, HL3
R26 Vertical Flame Test EN 45545-2: 2013
EN 60695-11-10: 2013		 HL1, HL2, HL3
Selection Table
MODEL NUMBER INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT INPUT CURRENT % EFF. CAPACITOR LOAD MAX
MIN. MAX. NO LOAD FULL LOAD
CQB100W-110S12☐-CMFD

43-160 VDC

12 VDC

 0 mA 8.4 A 15 mA 1010 mA 91 8400uF
CQB100W-110S15☐-CMFD

43-160 VDC

15 VDC

 0 mA 6.7 A 15 mA 1010 mA 91 6700uF
CQB100W-110S24☐-CMFD

43-160 VDC

24 VDC

 0 mA 4.2 A 15 mA 1040 mA 88 4200μF
CQB100W-110S28☐-CMFD

43-160 VDC

28 VDC

 0 mA 3.6 A 15 mA 1040 mA 88 3600μF
CQB100W-110S48☐-CMFD

43-160 VDC

48 VDC

 0 mA 2.1 A 15 mA 1020 mA 89.5 1000μF

NOTE:
1. Nominal input voltage 110 VDC.
2. ☐ = N or none
3. VR1 is used for output voltage adjustment.
4. Refer to application note for thermal resistance and derating information.
5. TVS is included for input surge voltage protection.
6. Recommend an external fuse for input reverse polarity protection (shunt diode is included inside).
7. Output connector CN3 wafer with TAIWAN KING pin terminal P110I series and mate with JST housing PH series or equivalent.
8. CN1 & CN2 connection: DINKLE EK500V-04P series or equivalent, suitable electric wire: 24~12AWG (IEC 0.5~2.5mm2).

PART NUMBER

SERIES NOMINAL INPUT VOLTAGE NUMBER OF OUTPUTS NOMINAL OUTPUT VOLTAGE REMOTE ON/OFF LOGIC CHASSIS MOUNT TYPE HEATSINK
CQB100W- II O XX L -YYY Z +WWW
CQB100W

110 : 110 VDC

S：Single

12 : 12VDC
15 : 15VDC
24 : 24VDC
28 : 28VDC
48 : 48VDC

 None : Positive
N：Negative		 CMF : Chassis Mount Built in Filter

C：
Open Frame

D：
With Cover

 None：Blank

HS：Heatsink

HD：Heatsink+Din Rail

Part Number Example:
CQB100W-110S12N-CMFD: Chassis Mount, 100W, 4:1 43-160Vdc Input, Single 12Vdc Output, Negative Logic, with cover.

Technical Illustrations
GA_Drawing-CQB100W-110S-CMFC-D-series-01 GA_Drawing-CQB100W-110S-CMFC-D-series-02 GA_Drawing-CQB100W-110S-CMFC-D-series-03 GA_Drawing-CQB100W-110S-CMFC-D-series-04
Downloads
Datasheet-CQB100W-110S-CMFC-D-series.pdf
ABSOLUTE MAXIMUM RATINGS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Input Voltage Continuous All -0.3   160 Vdc
Input Surge Voltage 100ms max. All     200 Vdc
Operating Case Temperature At the center part of base plate All -40   100 ℃
Storage Temperature   All -40   105 ℃
INPUT CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Operating Input Voltage   All 43 110 160 Vdc
Input Under Voltage Lockout
Turn-On Voltage Threshold Full Load All 40.5 41.5 42.5 Vdc
Turn-Off Voltage Threshold Full Load All 37.5 38.5 39.5 Vdc
Lockout Hysteresis Voltage Full Load All   3   Vdc
Maximum Input Current Vᵢₙ=43V, Full load All   2.6   A
No-Load Input Current Vᵢₙ=110V, Iₒ=0A See Model Number Table mA
OUTPUT CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Voltage Set Point Accuracy Vᵢₙ=110V, Full load, T꜀=25℃ All -1.0   +1.0 %
Output Voltage Regulation
Load Regulation Full load to no load All     ±0.2 %
Line Regulation Vᵢₙ=High line to low line, full load All     ±0.2 %
Temperature Coefficient T꜀=-40℃ to 105℃ All     ±0.02 %/℃
Output Voltage Ripple and Noise (5Hz to 20MHz bandwidth)
Peak-to-Peak





RMS.		 Full load, 1uF ceramic capacitors

12Vo
15Vo
24Vo
28Vo
48Vo

12Vo
15Vo
24Vo
28Vo
48Vo



100
100
200
200
300

40
40
100
100
150

 mV
Output Current Range Vᵢₙ= 43 to 160V See Model Number Table  A
Over Current Protection Hiccup Mode. Auto recovery All 110 125 160 %
Short Circuit Protection   All Continuous, Auto Recovery.
External Load Capacitance Full load (resistive) See Model Number Table uF
Output Voltage Trim Range Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ. 15Vo
Others		 -20
-10		   +10
+10		 %
Output Voltage Remote Sense Range Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ.
% of nominal Vo		 All     +10 %
Over Voltage Protection Limited voltage, % of nominal Vo All 115 125 140 %
EFFICIENCY
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
100% Load Vin=110V See Model Number Table %
DYNAMIC CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Output Voltage Current Transient
Error Band 75% to 100% of Io_max step load change
di/dt=0.1A/us
(within 1% Vout nominal)		 All     ±5 %
Recovery Time     250 us
Turn-On Delay and Rise Time Full load (Constant resistive load)
Turn-On Delay Time, From
On/Off Control		 Vₒₙ/ₒff to 10%Vₒ_ₛₑₜ, Remote on All   50   ms
Turn-On Delay Time, From Input Vᵢₙ_ₘᵢₙ to 10%Vₒ_ₛₑₜ, Power up All   50   ms
Output Voltage Rise Time 10%Vₒ_ₛₑₜ to 90%Vₒ_ₛₑₜ All   50   ms
ISOLATION CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Isolation Voltage
(100% factory Hi-Pot tested @2sec.)		 1 Minute; Input to output
1 Minute; Input to case (base plate)
1 Minute; Output to case (base plate)		 All     3000
2500
500		 Vac
Vac
Vac
Isolation Resistance Input to output All 100     MΩ
Isolation Capacitance Input to output


 12Vo
15Vo
24Vo
28Vo
48Vo		   1500
1500
1500
1500
1500		   pF
  Input to case (base plate) 12Vo
15Vo
24Vo
28Vo
48Vo		   7680
4580
4800
6040
5820
  Output to case (base plate) 12Vo
15Vo
24Vo
28Vo
48Vo		   15500
19400
6700
6200
10200
FEATURE CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Switching Frequency Pulse wide modulation (PWM), Fixed All 270 300 330 KHz
On/Off Control, Remote On/Off Logic, Refer to –Vin pin
Logic Low (Module Off) Vₒₙ/ₒff at Iₒₙ/ₒff=0.0uA, Pin open=off All 0   1.2 V
Logic High (Module On) Vₒₙ/ₒff at Iₒₙ/ₒff=1.0mA All 3.5 or Open Circuit   160
On/Off Control, Negative Remote On/Off Logic, Refer to -Vin Pin
Logic High (Module Off) Vₒₙ/ₒff at Iₒₙ/ₒff=1.0mA All 3.5 or Open Circuit   160 V
Logic Low (Module On) Vₒₙ/ₒff at Iₒₙ/ₒff=0.0uA, Pin open=on All 0   1.2
On/Off Current (for both remote on/off logic) Iₒₙ/ₒff at Vₒₙ/ₒff=0.0V All   0.3 1 mA
Off Converter Input Current Shutdown input idle current All   5 10 mA
Over Temperature Shutdown Temperature at the center part of base plate, non-latching (DC module) All   105   ℃
Over Temperature Recovery   100
GENERAL SPECIFICATIONS
Parameter Notes and Conditions
 Device
 Min. Typ.
 Max.
 Units
MTBF Iₒ=100% of Iₒ_ₘₐₓ;
MIL-HDBK - 217F_Notice 1, GB, 25℃

12Vo
15Vo
24Vo
28Vo
48Vo

   552
611
728
618
750		   K
hours
Weight

-CMFC
-CMFD
-CMFD+HS
-CMFD+HD



222
246
487
504



 grams
Base plate Material Aluminum
Potting Material UL 94V-0 (DC Module)
Shock/Vibration EN 50155 (EN61373) Compliant
Humidity 95% RH max. Non Condensing
Altitude 3000m Operating Altitude, 12000m Transport Altitude
Thermal Shock MIL-STD-810F
Fire & Smoke EN 45545-2 Compliant
EMI EN 50155 Compliant (external filter required for EN 50121-3-2) Class A
ESD EN 61000-4-2     Level 3: Air ±8kV, Contact ±6kV  Perf. Criteria A
Radiated immunity EN 61000-4-3    Level 3: 80~1000MHz, 20V/m  Perf. Criteria A
Fast Transient EN 61000-4-4    Level 3: On power input port, ±2kV  Perf. Criteria A
Surge EN 61000-4-5   Level 4: Line to earth, ±4kV, Line to line, ±2kV  Perf. Criteria A
Conducted immunity EN 61000-4-6    Level 3: 0.15~80MHz, 10V  Perf. Criteria A
Interruptions of Voltage Supply EN 50155           Class S2: 10ms interruptions, with external hold up circuit and capacitor required  Perf. Criteria A
Supply Change Over EN 50155            Class C2: During a supply break of 30ms, with external hold up circuit and capacitor required  Perf. Criteria B
Application Note Link                                                                                        CQB100W-110S CMFC(D) Series App Notes
Packaging Information Link                                                                                                                  Packaging Information
IMMUNITY TO ENVIRONMENTAL CONDITIONS
Phenomenon Reference Clause(s)
 Reference Standard
 Test Conditions
 Test Conditions
Low Temperature
Start-up test		 13.4.4 EN 60068-2-1 Class OT6
Temperature: -40℃
Duration: 2 hrs		 Pass
Dry Heat Test 13.4.5 EN 60068-2-2

Class OT6 & ST0
Temperature: 85℃
Duration: 6 hrs

 Pass
Low Temperature
Storage Test		 13.4.6 EN 60068-2-1 Temperature: -40℃
Duration: 16 hrs		 Pass
Cyclic Damp Heat Test 13.4.7 EN 60068-2-30 Temperature: 25℃-55℃
Humidity: 90% RH
Duration: 48 hrs		 Pass
Random Vibration Test 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH
Frequency range: 5 ~ 150 Hz
Vertical: 1.01 𝑚/𝑠²
Transverse: 0.450 𝑚/𝑠²
Longitudinal: 0.700 𝑚/𝑠²
Duration: 10 min / axis		 Pass
Simulated Long Life Test at Increased Random Vibration Levels 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH
Frequency range: 5 ~ 150 Hz
Vertical: 5.72 𝑚/𝑠²
Transverse: 2.55 𝑚/𝑠²
Longitudinal: 3.96 𝑚/𝑠²
Duration: 5 hrs / axis		 Pass
Shock Test 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH
Frequency range: 5 ~ 150 Hz
±Vertical: 30 𝑚/𝑠²
±Transverse: 30 𝑚/𝑠²
±Longitudinal: 50 𝑚/𝑠²
Duration: 30ms x18 (Each axis 3 shocks)		 Pass
EN45545-2 FIRE & SMOKE TEST CONDITIONS
Item Notes and Conditions
 Standard
 Hazard Level
R22 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2: 2006		 HL1, HL2, HL3
Smoke Density Test EN 45545-2: 2013
EN ISO 5659-2: 2013		 HL1, HL2, HL3
Smoke Toxicity Test EN 45545-2: 2013
NF X70-100: 2006		 HL1, HL2, HL3
R23 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2: 2006

HL1, HL2, HL3
Smoke Density Test EN 45545-2: 2013
EN ISO 5659-2: 2013

HL1, HL2, HL3
Smoke Toxicity Test EN 45545-2: 2013
NF X70-100: 2006

HL1, HL2, HL3
R24 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2		 HL1, HL2, HL3
R25 Glow - Wire Test EN 45545-2:2013
EN 60695-2-11:2001		 HL1, HL2, HL3
R26 Vertical Flame Test EN 45545-2: 2013
EN 60695-11-10: 2013		 HL1, HL2, HL3
MODEL NUMBER INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT INPUT CURRENT % EFF. CAPACITOR LOAD MAX
MIN. MAX. NO LOAD FULL LOAD
CQB100W-110S12☐-CMFD

43-160 VDC

12 VDC

 0 mA 8.4 A 15 mA 1010 mA 91 8400uF
CQB100W-110S15☐-CMFD

43-160 VDC

15 VDC

 0 mA 6.7 A 15 mA 1010 mA 91 6700uF
CQB100W-110S24☐-CMFD

43-160 VDC

24 VDC

 0 mA 4.2 A 15 mA 1040 mA 88 4200μF
CQB100W-110S28☐-CMFD

43-160 VDC

28 VDC

 0 mA 3.6 A 15 mA 1040 mA 88 3600μF
CQB100W-110S48☐-CMFD

43-160 VDC

48 VDC

 0 mA 2.1 A 15 mA 1020 mA 89.5 1000μF

NOTE:
1. Nominal input voltage 110 VDC.
2. ☐ = N or none
3. VR1 is used for output voltage adjustment.
4. Refer to application note for thermal resistance and derating information.
5. TVS is included for input surge voltage protection.
6. Recommend an external fuse for input reverse polarity protection (shunt diode is included inside).
7. Output connector CN3 wafer with TAIWAN KING pin terminal P110I series and mate with JST housing PH series or equivalent.
8. CN1 & CN2 connection: DINKLE EK500V-04P series or equivalent, suitable electric wire: 24~12AWG (IEC 0.5~2.5mm2).

PART NUMBER

SERIES NOMINAL INPUT VOLTAGE NUMBER OF OUTPUTS NOMINAL OUTPUT VOLTAGE REMOTE ON/OFF LOGIC CHASSIS MOUNT TYPE HEATSINK
CQB100W- II O XX L -YYY Z +WWW
CQB100W

110 : 110 VDC

S：Single

12 : 12VDC
15 : 15VDC
24 : 24VDC
28 : 28VDC
48 : 48VDC

 None : Positive
N：Negative		 CMF : Chassis Mount Built in Filter

C：
Open Frame

D：
With Cover

 None：Blank

HS：Heatsink

HD：Heatsink+Din Rail

Part Number Example:
CQB100W-110S12N-CMFD: Chassis Mount, 100W, 4:1 43-160Vdc Input, Single 12Vdc Output, Negative Logic, with cover.

GA_Drawing-CQB100W-110S-CMFC-D-series-01 GA_Drawing-CQB100W-110S-CMFC-D-series-02 GA_Drawing-CQB100W-110S-CMFC-D-series-03 GA_Drawing-CQB100W-110S-CMFC-D-series-04
Datasheet-CQB100W-110S-CMFC-D-series.pdf

Find the Right Model

Model Number Input Voltage (Vdc) Output Voltage (Vdc) Output Current (A)
product variant CQB100W-110S12-CMFD 43~160Vdc 12Vdc 8.4A
product variant CQB100W-110S15-CMFD 43~160Vdc 15Vdc 6.7A
product variant CQB100W-110S24-CMFD 43~160Vdc 24Vdc 4.2A
product variant CQB100W-110S28-CMFD 43~160Vdc 28Vdc 3.6A
product variant CQB100W-110S48-CMFD 43~160Vdc 48Vdc 2.1A

Need help finding the right product model?
