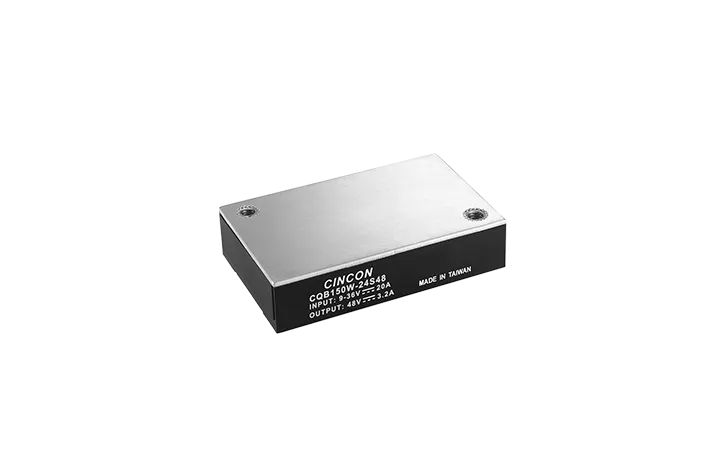

Cincon CQB150W-CM/DIN Series DC/DC Converter

The Cincon CQB150W Series is a high-performance 150W isolated DC-DC converter featuring a wide 4:1 input range, high efficiency up to 92%, and full industrial and railway compliance. Designed in an industry-standard quarter brick package (2.28” x 1.45” x 0.5”), the CQB150W delivers regulated single outputs with robust protection including OCP, O...

Read More

The Cincon CQB150W Series is a high-performance 150W isolated DC-DC converter featuring a wide 4:1 input range, high efficiency up to 92%, and full industrial and railway compliance.

Designed in an industry-standard quarter brick package (2.28” x 1.45” x 0.5”), the CQB150W delivers regulated single outputs with robust protection including OCP, OVP, OTP and UVLO. With 2250Vdc input-to-output isolation, operation up to 3000m altitude, and compliance to EN50155 (with external circuits), this series is ideal for railway, transportation, industrial automation, and harsh-environment applications.

The series supports nominal 24V and 48V systems with output voltage options from 12V to 48V, delivering up to 12.5A output current depending on model.

Show Less
Unit Price
—
or send a quick enquiry about this product only
Cincon_CQB150W_CMDIN
Features
  • Nominal input options: 24Vdc & 48Vdc (4:1 wide input range)
  • Single output voltage options: 12 Vdc, 15Vdc, 24Vdc, 28Vdc, and 48Vdc (Model dependent)
  • Output current: Up to 12.5A, depending on output voltage
  • Over Current Protection (hiccup mode, auto recovery)
  • High efficiency up to 92%
  • Over Temperature Protection (non-latching)
  • Operating case temperature: -40°C to +105°C, Optional -55°C to +105°C (Suffix “-M2”)
  • Over temperature shutdown at 110°C
  • EN45545-2 Fire & Smoke compliant
Specifications
ABSOLUTE MAXIMUM RATINGS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Input Voltage Continuous 24Vin
48Vin		 -0.3
-0.3		   36
75		 Vdc
Input Surge Voltage 100ms max. 24Vin
48Vin		     50
100		 Vdc
Operating Ambient Temperature At the center part of case plate (with derating)
Suffix “-M2” (with Derating)		 All
-M2		 -40
-55		   105
105		 ℃
Maximum case Temperature   All     110 ℃
Storage Temperature   All -55   125 ℃
INPUT CHARACTERISTICS
Parameter Notes and Conditions
 Device Min.
 Typ.
 Max.
 Units
Operating Input Voltage   24Vin
48Vin		 9
18		 24
48		 35
75		 Vdc
Input Under Voltage Lockout
Turn-On Voltage Threshold   24Vin
48Vin		 8
16.5		 8.5
17		 8.8
17.5		 Vdc
Turn-Off Voltage Threshold   24Vin
48Vin		 7.7
15.5		 8
16		 8.3
16.5		 Vdc
Lockout Hysteresis Voltage   24Vin
48Vin		   0.6
0.9		   Vdc
Maximum Input Current Vᵢₙ=9V, Full load
Vᵢₙ=18V, Full load		 24Vin
48Vin		   20
1-		   A
No-Load Input Current Vᵢₙ=24, 48, Iₒ=0A See Model Number Table mA
Input Filter Pi filter All
Inrush Current (I²t) As per ETS300 132-2. All     0.1 A²s
put Reflected Ripple Current P-P thru 12uH inductor, 5Hz to 20MHz All   30   mA
OUTPUT CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ. Max.
 Units
Voltage Set Point Accuracy Vᵢₙ=24, 48, Full load, T꜀=25℃ All -1.0   +1.0 %
Output Voltage Regulation
Load Regulation Full load to no load All     ±0.2 %
Line Regulation Vᵢₙ=High line to low line, full load All     ±0.2 %
Temperature Coefficient T꜀=-40℃ to 105℃ All     ±0.02 %/℃
Output Voltage Ripple and Noise (5Hz to 20MHz bandwidth)

Peak-to-Peak





RMS.

 Full load, 10uF tantalum and 1.0uF ceramic capacitors (for Vo: 48V: Full load 10uF aluminum and 1uF ceramic)

12Vo
15Vo
48Vo
Others

12Vo
15Vo
48Vo
Others



150
150
480
280

60
60
200
100

 mV
Output Current Range Vᵢₙ= 9 to 36V, 18 to 75V See Model Number Table  A
Over Current Protection Hiccup Mode. Auto recovery All 110 125 160 %
Over Voltage Protection Limited voltage All 110 125 140 %
Short Circuit Protection   All Continuous, Auto Recovery.
External Load Capacitance Full load (resistive) See Model Number Table uF
Auxiliary Output Voltage   All 7 10 13 V
Auxiliary Output Current   All     20 mA
Output Voltage Trim Range
Pₒ≦ₘₐₓ. rated power, Iₒ ≦ Iₒ_ₘₐₓ.

 15Vo
Others		 -20
-10		   +10
+10		 %
EFFICIENCY
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
100% Load Vᵢₙ= 24V, 48V See Model Number Table %
DYNAMIC CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Output Voltage Current Transient
Error Band 75% to 100% of Iₒ_ₘₐₓ step load change
dᵢ/dₜ=0.1A/us
(within 1% Vout nominal)		 All     ±5 %
Recovery Time     250 us
Turn-On Delay and Rise Time Full load (Constant resistive load)
Turn-On Delay Time, From
On/Off Control		 Vₒₙ/ₒff to 10%Vₒ_ₛₑₜ, Remote on All   30   ms
Turn-On Delay Time, From Input Vᵢₙ_ₘᵢₙ to 10%Vₒ_ₛₑₜ, Power up All   30   ms
Output Voltage Rise Time 10%Vₒ_ₛₑₜ to 90%Vₒ_ₛₑₜ All   30   ms
ISOLATION CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Isolation Voltage
(100% factory Hi-Pot tested @2sec.)		 1 Minute; Input to output
1 Minute; Input to case
1 Minute; Output to case		 All     2250
2250
2250		 Vdc
Isolation Resistance Input to output All 100     MΩ
Isolation Capacitance Input to output
Input to case
Output to case		 All

1500
NC
NC

   pF
 FEATURE CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Switching Frequency Pulse wide modulation (PWM), Fixed 48S12
Others		 260
270		 285
300		 320
330		 KHz
On/Off Control, Remote On/Off Logic, Refer to –Vin Pin
Logic Low (Module Off) Vₒₙ/ₒff at Iₒₙ/ₒff=1.0mA -M2
Others		 0
0		   1.0
1.2		 V
Logic High (Module On) Vₒₙ/ₒff at Iₒₙ/ₒff=0.0uA, Pin open=On All 3.5   75
On/Off Control, Negative Remote On/Off Logic, Refer to -Vin Pin
Logic High (Module Off) Vₒₙ/ₒff at Iₒₙ/ₒff=0.0uA, Pin open=Off All 3.5   75 V
Logic Low (Module On) Vₒₙ/ₒff at Iₒₙ/ₒff=1.0mA All 0
0		   1.0
1.2
On/Off Current (for both remote on/off logic) Iₒₙ/ₒff at Vₒₙ/ₒff=0V All   0.3 1 mA
Leakage Current (for both remote on/off logic) Logic high, Vₒₙ/ₒff=15V All     30 uA
Off Converter Input Current Shutdown input idle current All   5 10 mA
Over Temperature Shutdown Temperature at the center part of base plate, non-latching All   110   ℃
Over Temperature Recovery   100
GENERAL SPECIFICATIONS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
MTBF Iₒ=100% of Iₒ_ₘₐₓ;
MIL-HDBK - 217F_Notice 1, GB,  25℃

12Vo
15Vo
24Vo
28Vo
48Vo

   331
354
563
550
667		   K
hours
Weight

All



68



 grams
Case Material Plastic, DAP, UL 94V-0
Base plate Material Aluminum
Potting Material UL 94V-0
Pin Material Base: Copper
Plating: Nickel with Matte Tin
Shock/Vibration MIL-STD-810F/EN61373 Compliant
Humidity 95% RH max. Non Condensing
Altitude 3000m Operating Altitude, 12000m Transport Altitude
Thermal Shock MIL-STD-810F
Fire & Smoke EN 45545-2 Compliant
EMI Meets EN55032 & EN50155 Compliant (with external filter) Class A
ESD EN 61000-4-2  Level 3: Air ±8kV, Contact ±6kV Perf. Criteria A
Radiated immunity EN 61000-4-3  Level 3: 80~1000MHz, 20V/m Perf. Criteria A
Fast Transient EN 61000-4-4  Level 3: On power input port, ±2kV, external capacitor required Perf. Criteria A
Surge EN 61000-4-5  Level 4: Line to earth, ±4kV, Line to line, ±2kV Perf. Criteria A
Conducted immunity EN 61000-4-6  Level 3: 0.15~80MHz, 10V Perf. Criteria A
Interruptions of Voltage Supply EN 50155       Class S3: 20ms interruptions, external input capacitor required Perf. Criteria A
Supply Change Over EN 50155      Class C2: During a supply break of 30 ms, with external hold up circuit and capacitor required Perf. Criteria A
Application Note Link                                                                                                                   CQB150W Series App Notes
Packaging Information Link                                                                                                                   Packaging Information
IMMUNITY TO ENVIRONMENTAL CONDITIONS
Phenomenon EN50155; 2017 Reference Clause(s)
 Reference Standard
 Test Conditions
 Result
Low Temperature
Start-up test		 13.4.4 EN 60068-2-1 Class OT6
Temperature: -40℃
Duration: 2 hrs		 Pass
Dry Heat Test 13.4.5 EN 60068-2-2

Class OT6 & ST2
Temperature: 85℃
Duration: 6 hrs
Extended temperature: 100℃
Extended Duration: 10min

 Pass
Low Temperature
Storage Test		 13.4.6 EN 60068-2-1 Temperature: -40℃
Duration: 16 hrs		 Pass
Cyclic Damp Heat Test 13.4.7 EN 60068-2-30 Temperature: 25℃ - 55℃
Humidity: 90% RH
Duration: 48 hrs		 Pass
Random Vibration Test 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH
Frequency range: 5 ~ 150 Hz
Vertical: 1.01 𝑚⁄𝑠²
Transverse: 0.450 𝑚⁄𝑠²
Longitudinal: 0.700 𝑚⁄𝑠²
Duration: 10 min / axis		 Pass
Simulated Long Life Test at
Increased Random Vibration
Levels		 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH
Frequency range: 5 ~ 150 Hz
Vertical: 5.72 𝑚/𝑠²
Transverse: 2.55 𝑚/𝑠²
Longitudinal: 3.96 𝑚/𝑠²
Duration: 5 hrs / axis		 Pass
Shock Test 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ℃25% RH
Frequency range: 5 ~ 150 Hz
±Vertical: 30 𝑚/𝑠²
±Transverse: 30 𝑚/𝑠²
±Longitudinal: 50 𝑚/𝑠²
Duration: 30ms x18 (Each axis 3 shocks)		 Pass
EN45545-2 FIRE & SMOKE TEST CONDITIONS
Item Notes and Conditions
 Standard
 Hazard Level
R22 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2: 2006		 HL1, HL2, HL3
Smoke Density Test EN 45545-2: 2013
EN ISO 5659-2: 2013		 HL1, HL2
Smoke Toxicity Test EN 45545-2: 2013
NF X70-100: 2006		 HL1, HL2, HL3
R23 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2: 2006

HL1, HL2, HL3
Smoke Density Test EN 45545-2: 2013
EN ISO 5659-2: 2013

HL1, HL2, HL3
Smoke Toxicity Test EN 45545-2: 2013
NF X70-100: 2006

HL1, HL2, HL3
R24 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2		 HL1, HL2, HL3
R25 Glow - Wire Test EN 45545-2:2013
EN 60695-2-11:2001		 HL1, HL2, HL3
R26 Vertical Flame Test EN 45545-2: 2013
EN 60695-11-10: 2013		 HL1, HL2, HL3
Selection Table
MODEL NUMBER INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT INPUT CURRENT % EFF. CAPACITOR LOAD MAX
MIN. MAX. NO LOAD FULL LOAD
CQB150W-24S12-CM

9-36 Vdc

12 Vdc

 0 mA 12.5 A 10 mA 7.02 A 91 12500μF
CQB150W-24S12-DIN

9-36 Vdc

12 Vdc

 0 mA 12.5 A 10 mA 7.02 A 91 12500μF
CQB150W-24S15-CM

9-36 Vdc

15 Vdc

 0 mA 10 A 10 mA 7.02 A 91.5 10000μF
CQB150W-24S15-DIN

9-36 Vdc

15 Vdc

 0 mA 10 A 10 mA 7.02 A 91.5 10000μF
CQB150W-24S24-CM

9-36 Vdc

24 Vdc

 0 mA 6.3 A  10 mA 7.08 A 89.5 6300μF
CQB150W-24S24-DIN

9-36 Vdc

24 Vdc

 0 mA 6.3 A  10 mA 7.08 A 89.5 6300μF
CQB150W-24S28-CM

9-36 Vdc

28 Vdc

 0 mA 5.4 A 10 mA 7.08 A 90 5400μF
CQB150W-24S28-DIN

9-36 Vdc

28 Vdc

 0 mA 5.4 A 10 mA 7.08 A 90 5400μF
CQB150W-24S48-CM

9-36 Vdc

48 Vdc

 0 mA 3.2 A 10 mA 7.19 A 90.5 30000μF
CQB150W-24S48-DIN

9-36 Vdc

48 Vdc

 0 mA 3.2 A 10 mA 7.19 A 90.5 30000μF
CQB150W-48S12-CM

18-75 Vdc

12 Vdc

 0 mA 12.5 A 8 mA 3.47 A 91 12500μF
CQB150W-48S12-DIN

18-75 Vdc

12 Vdc

 0 mA 12.5 A 8 mA 3.47 A 91 12500μF
CQB150W-48S15-CM

18-75 Vdc

15 Vdc

 0 mA 10 A 8 mA 3.47 A 91 10000μF
CQB150W-48S15-DIN

18-75 Vdc

15 Vdc

 0 mA 10 A 8 mA 3.47 A 91 10000μF
CQB150W-48S24-CM 18-75 Vdc

24 Vdc

 0 mA 6.3 A 8 mA 3.50 A 90.5 6300μF
CQB150W-48S24-DIN 18-75 Vdc

24 Vdc

 0 mA 6.3 A 8 mA 3.50 A 90.5 6300μF
CQB150W-48S28-CM

18-75 Vdc

28 Vdc

 0 mA 5.4 A 8 mA 3.50 A 90.5 5400μF
CQB150W-48S28-DIN

18-75 Vdc

28 Vdc

 0 mA 5.4 A 8 mA 3.50 A 90.5 5400μF
CQB150W-48S48-CM

18-75 Vdc

48 Vdc

 0 mA 3.2 A 8 mA 3.56 A 91.5 1000μF
CQB150W-48S48-DIN

18-75 Vdc

48 Vdc

 0 mA 3.2 A 8 mA 3.56 A 91.5 1000μF

NOTE:
1. Nominal input voltage 24, 48VDC
2. Measured at Nominal Input Voltage
3. Measured at 12VDC for 24Vin, 24VDC for 48Vin
4. -55℃ Start-up Screen per MIL-STD105E S1 Sampling Procedure for “-M2” Version

PART NUMBER

SERIES NOMINAL INPUT VOLTAGE NUMBER OF OUTPUTS NOMINAL OUTPUT VOLTAGE REMOTE ON/OFF LOGIC CHASSIS MOUNT TYPE
CQB150W- II O XX L -YYY Z
CQB150W

24： 24 Vdc
48： 48 Vdc

S：Single

12 : 12Vdc
15 : 15Vdc
24 : 24Vdc
28 : 28Vdc
48 : 48Vdc

 None : Positive
N：Negative		 None：M3x0.5 Mounting
Inserts
-C：Clear Mounting
Insert (3.2mm
DIA.)

None：-40~105℃
-M2：-55~105℃
Part Number Example:
CQB150W-48S12N-C-M2: Quarter Brick, 150W, 4:1 18-75Vdc Input, Single 12Vdc Output, Negative Logic, Clear Mounting Insert
-55~105℃ Operating Case Temp. Range

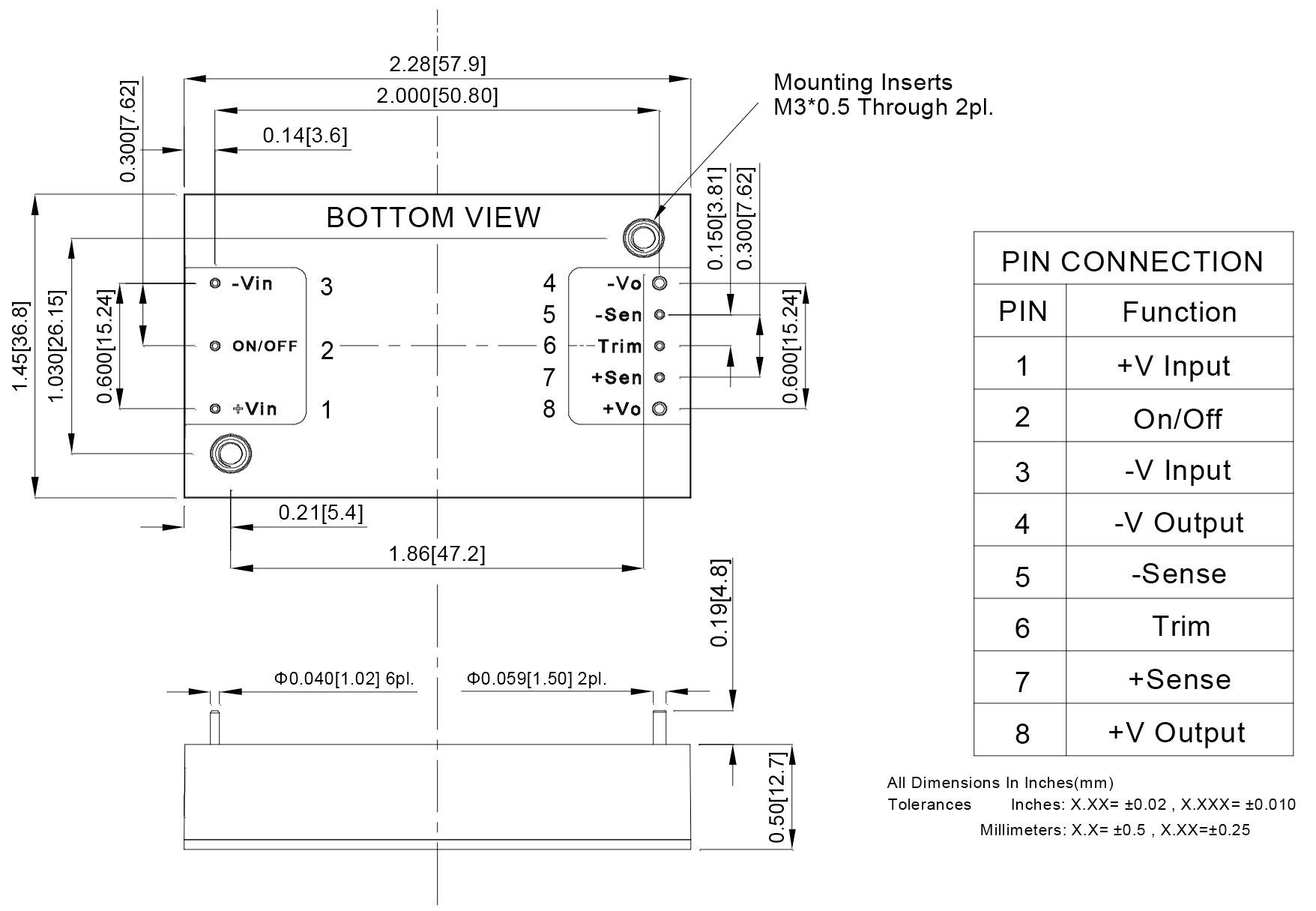

Technical Drawings
GA_Drawing-CQB150W-series
Downloads
Datasheet_CQB150W_CMDIN_series.pdf
Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
