Cincon CFB600W-110SXX-CMFD Series DC/DC Converter

The CFB600W-110S-CMFD Series is a high-power, isolated DC-DC converter range designed for demanding industrial and transport power systems requiring wide input voltage tolerance, high efficiency, and proven reliability. Delivering up to 600 W of continuous output power, this series supports single regulated outputs of 12 Vdc, 24 Vdc, 28 Vdc, or 48 Vdc from a wide 4:1 input range of 43–160 Vdc.

Read More

View Models

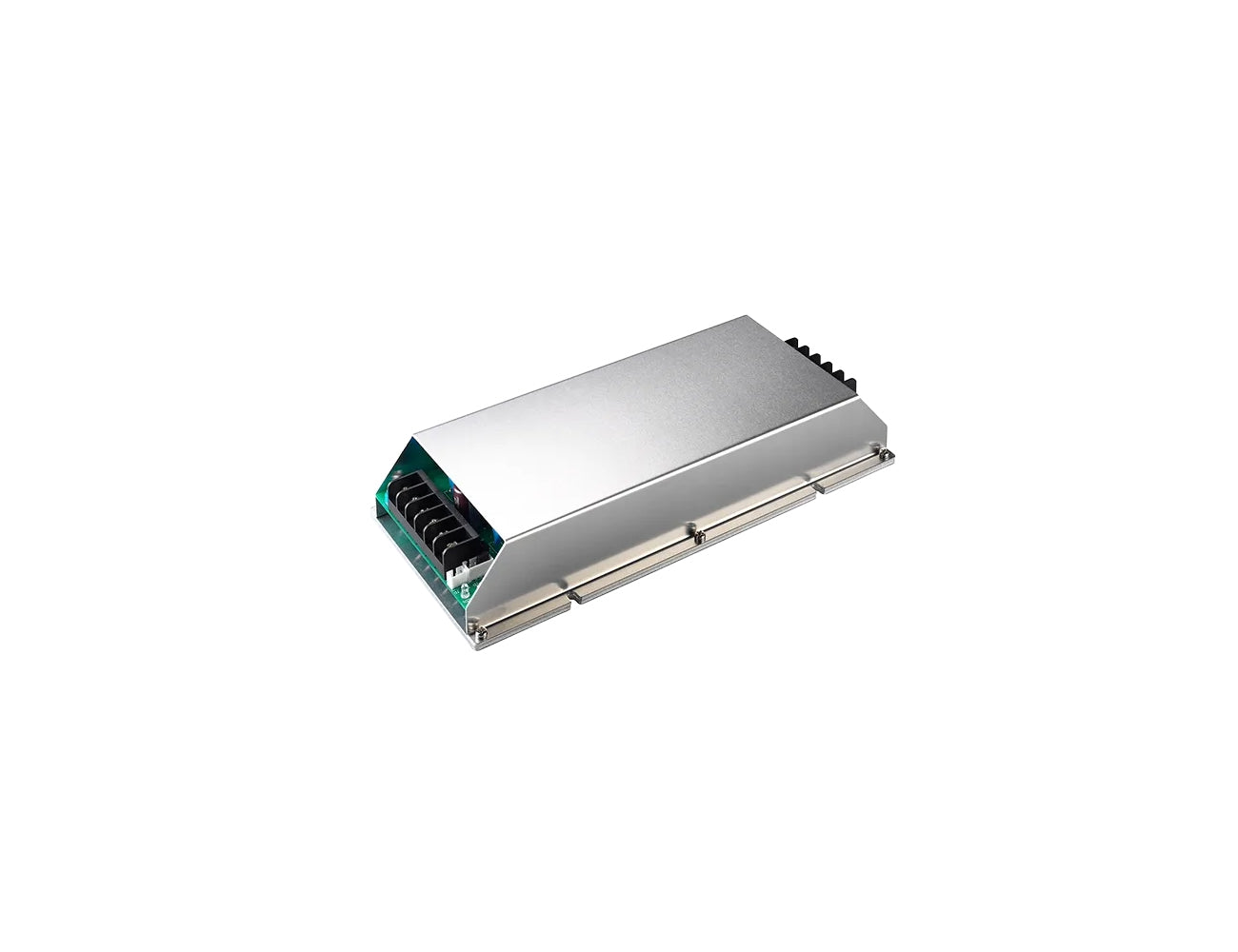

CinconCFB600W-110SXX-CMFDSeries_IMG

Features

  • Wide DC Input Range – 43–160 Vdc (4:1 input ratio)
  • Single Regulated Output Options – 12 Vdc, 24 Vdc, 28 Vdc, or 48 Vdc
  • High Output Current Capability – Up to 50 A depending on output voltage
  • High Efficiency – Up to 88% typical
  • Baseplate-Cooled, Chassis-Mount Design – Optimised for thermal performance
  • Fixed Switching Frequency – Predictable EMI behaviour
Specifications
ABSOLUTE MAXIMUM RATINGS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Input Voltage Continuous All -0.3   160 Vdc
Input Surge Voltage 100ms max. All     180 Vdc
Operating Case Temperature At the center part of base plate All -40   100 ℃
Storage Temperature   All -40   105 ℃
INPUT CHARACTERISTICS
Parameter Notes and Conditions
 Device Min.
 Typ.
 Max.
 Units
Operating Input Voltage   All 43 110 160 Vdc
Input Under Voltage Lockout
Turn-On Voltage Threshold Full Load All 41 42 43 Vdc
Turn-Off Voltage Threshold Full Load All 38 40 41 Vdc
Lockout Hysteresis Voltage Full Load All   2   Vdc
Maximum Input Current Vin=43V, Full load All   17   A
No-Load Input Current Vin=110V, Io=0A See Model Number Table mA
OUTPUT CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ. Max.
 Units
Voltage Set Point Accuracy Vin=110V, Full load, Tc=25℃ All -1.0   +1.0 %
Output Voltage Regulation
Load Regulation Full load to no load All     ±2.0 %
Line Regulation Vin=High line to low line, full load All     ±0.2 %
Temperature Coefficient Tc=-40℃ to 100℃ All     ±0.03 %/℃
Output Voltage Ripple and Noise (5Hz to 20MHz bandwidth)

Peak-to-Peak





RMS.

 Full load, 1uF ceramic capacitors

12Vo
24Vo
28Vo
48Vo

12Vo
24Vo
28Vo
48Vo



120
240
280
480

60
100
100
200

 mV
Output Current Range Vin= 43 to 160V See Model Number Table  A
Over Current Protection Continuous current, Auto recovery All 105 120 150 %
Over Voltage Protection Limited voltage, % of nominal Vo All 115 125 140 %
Short Circuit Protection   All Continuous, Auto Recovery.
External Load Capacitance Full load (resistive) See Model Number Table uF
Auxiliary Output Voltage   All 7 10 13 V
Auxiliary Output Current   All     20 mA
Power Good Signal (IOG) Vout ready: Low level, sink current
Vout not ready: Open drain output, applied voltage		 All     20
50
Output Voltage Trim Range Po≦max. rated power, Io ≦ Io_max. (by VR1)
Po≦max. rated power, Io ≦ Io_max.

 All -10
-40		   +10
+10
Output Voltage Remote Sense Range Po≦max. rated power, Io≦Io_max. All     +10 %
Load Share Accuracy
(50%-100% Load)		 The condition is to use two modules. If you use more modules, please contact cincon All -10   +10
EFFICIENCY
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
100% Load Vin=110Vdc See Model Number Table %
DYNAMIC CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Output Voltage Current Transient
Error Band 75% to 100% of Io_max step load change
di/dt=0.1A/us
(within 1% Vout nominal)		 All     ±5 %
Recovery Time     500 us
Turn-On Delay and Rise Time Full load (Constant resistive load)
Turn-On Delay Time, From
On/Off Control		 Von/off to 10%Vo_set, Remote on All   135   ms
Turn-On Delay Time, From Input Vin_min to 10%Vo_set, Power up All   135   ms
Output Voltage Rise Time 10%Vo_set to 90%Vo_set All   25   ms
ISOLATION CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Isolation Voltage
(100% factory Hi-Pot tested @2sec.)		 1 Minute; Input to output
1 Minute; Input to case (base plate)
1 Minute; Output to case (base plate)		 All     2250
2250
1500		 Vdc
Isolation Resistance Input to output All 20     MΩ
Isolation Capacitance Input to output
Input to case (base plate)
Output to case (base plate)		 All

12000
14000
22000

   pF
FEATURE CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Switching Frequency Pulse wide modulation (PWM), Fixed All 225 250 275 KHz
On/Off Control, Remote On/Off Logic, Refer to –Vin pin
Logic Low (Module Off) CN1 On/Off JP All Short
Logic High (Module On) CN1 On/Off JP All Open
On/Off Control, Negative Remote On/Off Logic, Refer to -Vin Pin
Logic High (Module Off) CN1 On/Off JP All Open
Logic Low (Module On) CN1 On/Off JP All Short
On/Off Current (for both remote on/off logic) Ion/off at Von/off=0.0V All     1.72 mA
Off Converter Input Current Shutdown input idle current All     50 mA
Over Temperature Shutdown Temperature at the center part of base plate, non-latching (DC module) All   110   ℃
Over Temperature Recovery   90
GENERAL SPECIFICATIONS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
MTBF Io=100% of Io_max;
MIL-HDBK - 217F_Notice 1, GB, 25℃

12Vo
24Vo
28Vo
48Vo

   296
292
275
281		   K
hours
Weight

-CMFD



995



 grams
Base plate Material Aluminum
Potting Material UL 94V-0 (DC Module)
Shock/Vibration EN 50155 (EN61373) Compliant
Humidity 95% RH max. Non Condensing
Altitude 2000m Operating Altitude, 12000m Transport Altitude
Thermal Shock MIL-STD-810F
Fire & Smoke EN 45545-2 Compliant
EMI EN 50155 (EN 50121-3-2) Compliant (with external output filter)
ESD EN 61000-4-2     Level 3: Air ±8kV, Contact ±6kV Perf. Criteria B
Radiated immunity EN 61000-4-3    Level 3: 80~1000MHz, 20V/m Perf. Criteria A
Fast Transient EN 61000-4-4    Level 3: On power input port, ±2kV, external capacitor required Perf. Criteria A
Surge EN 61000-4-5   Level 2: Line to earth, ±2kV, Line to line, ±1kV Perf. Criteria B
Conducted immunity EN 61000-4-6    Level 3: 0.15~80MHz, 10V Perf. Criteria A
Interruptions of Voltage Supply EN 50155           Class S2: 10ms interruptions, with external hold up circuit and capacitor required Perf. Criteria A
Supply Change Over EN 50155            Class C2: During a supply break of 30 ms, with external hold up circuit and capacitor required Perf. Criteria A
Application Note Link                                                                                                CFB600W-110S CMFD Series App Notes
Packaging Information Link                                                                                                                   Packaging Information
IMMUNITY TO ENVIRONMENTAL CONDITIONS
Phenomenon EN 50155; 2021 Reference Clause(s)
 Reference Standard
 Test Conditions
 Result
Low Temperature
Start-up test		 13.4.4 EN 60068-2-1 Class OT4
Temperature: -40℃
Duration: 2 hrs		 Pass
Dry Heat Test 13.4.5 EN 60068-2-2

Class OT4
Temperature: 70℃
Dry heat thermal test Cycle A

 Pass
Low Temperature
Storage Test		 13.4.6 EN 60068-2-1 Temperature: -40℃
Duration: 16 hrs		 Pass
Cyclic Damp Heat Test 13.4.7 EN 60068-2-30 Temperature: +55℃ and +25℃
Humidity: 90~96% RH
Duration: 48 hrs		 Pass
Random Vibration Test 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH
Frequency range: 5 ~ 150 Hz
X axis: 0.45 𝑚/𝑠²
Y axis: 0.70 𝑚/𝑠²
Z axis: 1.01 𝑚/𝑠²
Duration: 10 min / axis		 Pass
Simulated Long Life Test at
Increased Random Vibration
Levels		 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH
Frequency range: 5 ~ 150 Hz
X axis: 2.55 𝑚/𝑠²
Y axis: 3.96 𝑚/𝑠²
Z axis: 5.72 𝑚/𝑠²
Duration: 5 hrs / axis		 Pass
Shock Test 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH

a.Test Condition 1 (±Y axes)
Units are operating.
Pulse shape: Half-sine waveform
Impact acceleration: 50 m/s2
Duration Time: 30 ms
Vibration Axial:3 Axis，6 Faces
Shock Time :3 times
Total Time:18 times

b.Test Condition 2 (±X and ±Z axes)
Units are non-operating.
Pulse shape : Half-sine waveform
Impact acceleration : 30 m/s2
Duration Time : 30 ms
Vibration Axial:3 Axis，6 Faces
Shock Time :3 times
Total Time:18 times		 Pass
EN45545-2 FIRE & SMOKE TEST CONDITIONS
Item Notes and Conditions
 Standard
 Hazard Level
R22 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2: 2006		 HL1, HL2, HL3
Smoke Density Test EN 45545-2: 2013
EN ISO 5659-2: 2013		 HL1, HL2, HL3
Smoke Toxicity Test EN 45545-2: 2013
NF X70-100: 2006		 HL1, HL2, HL3
R23 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2: 2006

HL1, HL2, HL3
Smoke Density Test EN 45545-2: 2013
EN ISO 5659-2: 2013

HL1, HL2, HL3
Smoke Toxicity Test EN 45545-2: 2013
NF X70-100: 2006

HL1, HL2, HL3
R24 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2		 HL1, HL2, HL3
R25 Glow - Wire Test EN 45545-2:2013
EN 60695-2-11:2001		 HL1, HL2, HL3
R26 Vertical Flame Test EN 45545-2: 2013
EN 60695-11-10: 2013		 HL1, HL2, HL3
Selection Table
MODEL NUMBER INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT INPUT CURRENT % EFF. CAPACITOR LOAD MAX
MIN. MAX. NO LOAD FULL LOAD
CFB600W-110S12☐-CMFD

43-160 VDC

12 VDC

 0 mA 50 A 25 mA 6.3 A 87 10000μF
CFB600W-110S24☐-CMFD

43-160 VDC

24 VDC

 0 mA 25 A 25 mA 6.2 A 88 10000μF
CFB600W-110S28☐-CMFD

43-160 VDC

28 VDC

 0 mA 21.4 A 25 mA 6.2 A 88 10000μF
CFB600W-110S48☐-CMFD

43-160 VDC

48 VDC

 0 mA 12.5 A 25 mA 6.2 A 88 10000μF
NOTE:
1. Nominal input voltage 110 VDC.
2. ☐ = P or none
3. VR1 is used for output voltage adjustment.
4. Refer to application note for thermal resistance and derating information.
5. TVS is included for input surge voltage protection.
6. Recommend an external fuse for input reverse polarity protection (shunt diode is included inside).
7.Output connector CN3 wafer with CHIA-SOON TERMINAL B3B-PH-K-S series or equivalent.
8.CN1 wafer with TAIWAN KING PIN TERMINAL 8822-02 series or equivalent.
9. CN2 wafer with CHYAO SHIUNN TERMINAL JS-1001-04(K) series or equivalent.

PART NUMBER

SERIES NOMINAL INPUT VOLTAGE NUMBER OF OUTPUTS NOMINAL OUTPUT VOLTAGE REMOTE ON/OFF LOGIC CHASSIS MOUNT TYPE
CFB600W- II O XX L -YYY Z
CFB600W

110 : 110 VDC

S：Single

12 : 12VDC
24 : 24VDC
28 : 28VDC
48 : 48VDC

 None : Positive
N：Negative		 CMF : Chassis Mount Built in Filter

D：
With Cover
Part Number Example:
CFB600W-110S12-CMFD: Chassis Mount, 600W, 4:1 43-160Vdc Input, Single 12Vdc Output, Negative Logic, With Cover



Technical Illustrations
GA_Drawing-CFB600W-110S-CMFD-series
Downloads
Datasheet-CFB600W-110S-CMFD-series.pdf
ABSOLUTE MAXIMUM RATINGS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Input Voltage Continuous All -0.3   160 Vdc
Input Surge Voltage 100ms max. All     180 Vdc
Operating Case Temperature At the center part of base plate All -40   100 ℃
Storage Temperature   All -40   105 ℃
INPUT CHARACTERISTICS
Parameter Notes and Conditions
 Device Min.
 Typ.
 Max.
 Units
Operating Input Voltage   All 43 110 160 Vdc
Input Under Voltage Lockout
Turn-On Voltage Threshold Full Load All 41 42 43 Vdc
Turn-Off Voltage Threshold Full Load All 38 40 41 Vdc
Lockout Hysteresis Voltage Full Load All   2   Vdc
Maximum Input Current Vin=43V, Full load All   17   A
No-Load Input Current Vin=110V, Io=0A See Model Number Table mA
OUTPUT CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ. Max.
 Units
Voltage Set Point Accuracy Vin=110V, Full load, Tc=25℃ All -1.0   +1.0 %
Output Voltage Regulation
Load Regulation Full load to no load All     ±2.0 %
Line Regulation Vin=High line to low line, full load All     ±0.2 %
Temperature Coefficient Tc=-40℃ to 100℃ All     ±0.03 %/℃
Output Voltage Ripple and Noise (5Hz to 20MHz bandwidth)

Peak-to-Peak





RMS.

 Full load, 1uF ceramic capacitors

12Vo
24Vo
28Vo
48Vo

12Vo
24Vo
28Vo
48Vo



120
240
280
480

60
100
100
200

 mV
Output Current Range Vin= 43 to 160V See Model Number Table  A
Over Current Protection Continuous current, Auto recovery All 105 120 150 %
Over Voltage Protection Limited voltage, % of nominal Vo All 115 125 140 %
Short Circuit Protection   All Continuous, Auto Recovery.
External Load Capacitance Full load (resistive) See Model Number Table uF
Auxiliary Output Voltage   All 7 10 13 V
Auxiliary Output Current   All     20 mA
Power Good Signal (IOG) Vout ready: Low level, sink current
Vout not ready: Open drain output, applied voltage		 All     20
50
Output Voltage Trim Range Po≦max. rated power, Io ≦ Io_max. (by VR1)
Po≦max. rated power, Io ≦ Io_max.

 All -10
-40		   +10
+10
Output Voltage Remote Sense Range Po≦max. rated power, Io≦Io_max. All     +10 %
Load Share Accuracy
(50%-100% Load)		 The condition is to use two modules. If you use more modules, please contact cincon All -10   +10
EFFICIENCY
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
100% Load Vin=110Vdc See Model Number Table %
DYNAMIC CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Output Voltage Current Transient
Error Band 75% to 100% of Io_max step load change
di/dt=0.1A/us
(within 1% Vout nominal)		 All     ±5 %
Recovery Time     500 us
Turn-On Delay and Rise Time Full load (Constant resistive load)
Turn-On Delay Time, From
On/Off Control		 Von/off to 10%Vo_set, Remote on All   135   ms
Turn-On Delay Time, From Input Vin_min to 10%Vo_set, Power up All   135   ms
Output Voltage Rise Time 10%Vo_set to 90%Vo_set All   25   ms
ISOLATION CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Isolation Voltage
(100% factory Hi-Pot tested @2sec.)		 1 Minute; Input to output
1 Minute; Input to case (base plate)
1 Minute; Output to case (base plate)		 All     2250
2250
1500		 Vdc
Isolation Resistance Input to output All 20     MΩ
Isolation Capacitance Input to output
Input to case (base plate)
Output to case (base plate)		 All

12000
14000
22000

   pF
FEATURE CHARACTERISTICS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
Switching Frequency Pulse wide modulation (PWM), Fixed All 225 250 275 KHz
On/Off Control, Remote On/Off Logic, Refer to –Vin pin
Logic Low (Module Off) CN1 On/Off JP All Short
Logic High (Module On) CN1 On/Off JP All Open
On/Off Control, Negative Remote On/Off Logic, Refer to -Vin Pin
Logic High (Module Off) CN1 On/Off JP All Open
Logic Low (Module On) CN1 On/Off JP All Short
On/Off Current (for both remote on/off logic) Ion/off at Von/off=0.0V All     1.72 mA
Off Converter Input Current Shutdown input idle current All     50 mA
Over Temperature Shutdown Temperature at the center part of base plate, non-latching (DC module) All   110   ℃
Over Temperature Recovery   90
GENERAL SPECIFICATIONS
Parameter Notes and Conditions
 Device
 Min.
 Typ.
 Max.
 Units
MTBF Io=100% of Io_max;
MIL-HDBK - 217F_Notice 1, GB, 25℃

12Vo
24Vo
28Vo
48Vo

   296
292
275
281		   K
hours
Weight

-CMFD



995



 grams
Base plate Material Aluminum
Potting Material UL 94V-0 (DC Module)
Shock/Vibration EN 50155 (EN61373) Compliant
Humidity 95% RH max. Non Condensing
Altitude 2000m Operating Altitude, 12000m Transport Altitude
Thermal Shock MIL-STD-810F
Fire & Smoke EN 45545-2 Compliant
EMI EN 50155 (EN 50121-3-2) Compliant (with external output filter)
ESD EN 61000-4-2     Level 3: Air ±8kV, Contact ±6kV Perf. Criteria B
Radiated immunity EN 61000-4-3    Level 3: 80~1000MHz, 20V/m Perf. Criteria A
Fast Transient EN 61000-4-4    Level 3: On power input port, ±2kV, external capacitor required Perf. Criteria A
Surge EN 61000-4-5   Level 2: Line to earth, ±2kV, Line to line, ±1kV Perf. Criteria B
Conducted immunity EN 61000-4-6    Level 3: 0.15~80MHz, 10V Perf. Criteria A
Interruptions of Voltage Supply EN 50155           Class S2: 10ms interruptions, with external hold up circuit and capacitor required Perf. Criteria A
Supply Change Over EN 50155            Class C2: During a supply break of 30 ms, with external hold up circuit and capacitor required Perf. Criteria A
Application Note Link                                                                                                CFB600W-110S CMFD Series App Notes
Packaging Information Link                                                                                                                   Packaging Information
IMMUNITY TO ENVIRONMENTAL CONDITIONS
Phenomenon EN 50155; 2021 Reference Clause(s)
 Reference Standard
 Test Conditions
 Result
Low Temperature
Start-up test		 13.4.4 EN 60068-2-1 Class OT4
Temperature: -40℃
Duration: 2 hrs		 Pass
Dry Heat Test 13.4.5 EN 60068-2-2

Class OT4
Temperature: 70℃
Dry heat thermal test Cycle A

 Pass
Low Temperature
Storage Test		 13.4.6 EN 60068-2-1 Temperature: -40℃
Duration: 16 hrs		 Pass
Cyclic Damp Heat Test 13.4.7 EN 60068-2-30 Temperature: +55℃ and +25℃
Humidity: 90~96% RH
Duration: 48 hrs		 Pass
Random Vibration Test 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH
Frequency range: 5 ~ 150 Hz
X axis: 0.45 𝑚/𝑠²
Y axis: 0.70 𝑚/𝑠²
Z axis: 1.01 𝑚/𝑠²
Duration: 10 min / axis		 Pass
Simulated Long Life Test at
Increased Random Vibration
Levels		 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH
Frequency range: 5 ~ 150 Hz
X axis: 2.55 𝑚/𝑠²
Y axis: 3.96 𝑚/𝑠²
Z axis: 5.72 𝑚/𝑠²
Duration: 5 hrs / axis		 Pass
Shock Test 13.4.11 EN 61373 Temperature: 25℃±10℃
Humidity: 50% ±25% RH

a.Test Condition 1 (±Y axes)
Units are operating.
Pulse shape: Half-sine waveform
Impact acceleration: 50 m/s2
Duration Time: 30 ms
Vibration Axial:3 Axis，6 Faces
Shock Time :3 times
Total Time:18 times

b.Test Condition 2 (±X and ±Z axes)
Units are non-operating.
Pulse shape : Half-sine waveform
Impact acceleration : 30 m/s2
Duration Time : 30 ms
Vibration Axial:3 Axis，6 Faces
Shock Time :3 times
Total Time:18 times		 Pass
EN45545-2 FIRE & SMOKE TEST CONDITIONS
Item Notes and Conditions
 Standard
 Hazard Level
R22 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2: 2006		 HL1, HL2, HL3
Smoke Density Test EN 45545-2: 2013
EN ISO 5659-2: 2013		 HL1, HL2, HL3
Smoke Toxicity Test EN 45545-2: 2013
NF X70-100: 2006		 HL1, HL2, HL3
R23 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2: 2006

HL1, HL2, HL3
Smoke Density Test EN 45545-2: 2013
EN ISO 5659-2: 2013

HL1, HL2, HL3
Smoke Toxicity Test EN 45545-2: 2013
NF X70-100: 2006

HL1, HL2, HL3
R24 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2		 HL1, HL2, HL3
R25 Glow - Wire Test EN 45545-2:2013
EN 60695-2-11:2001		 HL1, HL2, HL3
R26 Vertical Flame Test EN 45545-2: 2013
EN 60695-11-10: 2013		 HL1, HL2, HL3
MODEL NUMBER INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT INPUT CURRENT % EFF. CAPACITOR LOAD MAX
MIN. MAX. NO LOAD FULL LOAD
CFB600W-110S12☐-CMFD

43-160 VDC

12 VDC

 0 mA 50 A 25 mA 6.3 A 87 10000μF
CFB600W-110S24☐-CMFD

43-160 VDC

24 VDC

 0 mA 25 A 25 mA 6.2 A 88 10000μF
CFB600W-110S28☐-CMFD

43-160 VDC

28 VDC

 0 mA 21.4 A 25 mA 6.2 A 88 10000μF
CFB600W-110S48☐-CMFD

43-160 VDC

48 VDC

 0 mA 12.5 A 25 mA 6.2 A 88 10000μF
NOTE:
1. Nominal input voltage 110 VDC.
2. ☐ = P or none
3. VR1 is used for output voltage adjustment.
4. Refer to application note for thermal resistance and derating information.
5. TVS is included for input surge voltage protection.
6. Recommend an external fuse for input reverse polarity protection (shunt diode is included inside).
7.Output connector CN3 wafer with CHIA-SOON TERMINAL B3B-PH-K-S series or equivalent.
8.CN1 wafer with TAIWAN KING PIN TERMINAL 8822-02 series or equivalent.
9. CN2 wafer with CHYAO SHIUNN TERMINAL JS-1001-04(K) series or equivalent.

PART NUMBER

SERIES NOMINAL INPUT VOLTAGE NUMBER OF OUTPUTS NOMINAL OUTPUT VOLTAGE REMOTE ON/OFF LOGIC CHASSIS MOUNT TYPE
CFB600W- II O XX L -YYY Z
CFB600W

110 : 110 VDC

S：Single

12 : 12VDC
24 : 24VDC
28 : 28VDC
48 : 48VDC

 None : Positive
N：Negative		 CMF : Chassis Mount Built in Filter

D：
With Cover
Part Number Example:
CFB600W-110S12-CMFD: Chassis Mount, 600W, 4:1 43-160Vdc Input, Single 12Vdc Output, Negative Logic, With Cover



GA_Drawing-CFB600W-110S-CMFD-series
Datasheet-CFB600W-110S-CMFD-series.pdf

Find the Right Model

Model Number Input Voltage (Vdc) Output Voltage (Vdc) Output Current (A)
product variant CFB600W-110S12-CMFD 43~160Vdc 12Vdc 50A
product variant CFB600W-110S24-CMFD 43~160Vdc 24Vdc 25A
product variant CFB600W-110S28-CMFD 43~160Vdc 28Vdc 21.4A
product variant CFB600W-110S48-CMFD 43~160Vdc 48Vdc 12.5A
product variant CFB600W-110S12P-CMFD 43~160Vdc 12Vdc 50A
product variant CFB600W-110S24P-CMFD 43~160Vdc 24Vdc 25A
product variant CFB600W-110S28P-CMFD 43~160Vdc 28Vdc 21.4A
product variant CFB600W-110S48P-CMFD 43~160Vdc 48Vdc 12.5A

Need help finding the right product model?
