Cincon CQB50W8-36SXX-CMFC(D) Series DC/DC Converter

The Cincon CQB50W8 CMFC(D) Series is a rugged range of 50 W isolated DC/DC converters designed to deliver reliable auxiliary power from wide and fluctuating DC input sources. Featuring an 8:1 ultra-wide input range, the series provides stable, fully regulated DC output even under challenging supply conditions. Operating from a 9.5–75 Vdc input r...

Read More

The Cincon CQB50W8 CMFC(D) Series is a rugged range of 50 W isolated DC/DC converters designed to deliver reliable auxiliary power from wide and fluctuating DC input sources. Featuring an 8:1 ultra-wide input range, the series provides stable, fully regulated DC output even under challenging supply conditions.

Operating from a 9.5–75 Vdc input range (36 Vdc nominal), the CQB50W8 series is available with single output voltage options from 12 Vdc to 48 Vdc, offering flexibility across a variety of low-voltage power requirements. High efficiency of up to 90%, combined with low no-load power consumption, helps minimise heat generation and improve overall system efficiency.

The converters use a chassis-mount, baseplate-cooled design for completely fanless operation and long service life. Comprehensive electrical protection, high isolation strength, and compliance with international safety and EMC standards make the CQB50W8 CMFC(D) Series a dependable choice for demanding power conversion applications.

Show Less

Unit Price
or send a quick enquiry about this product only

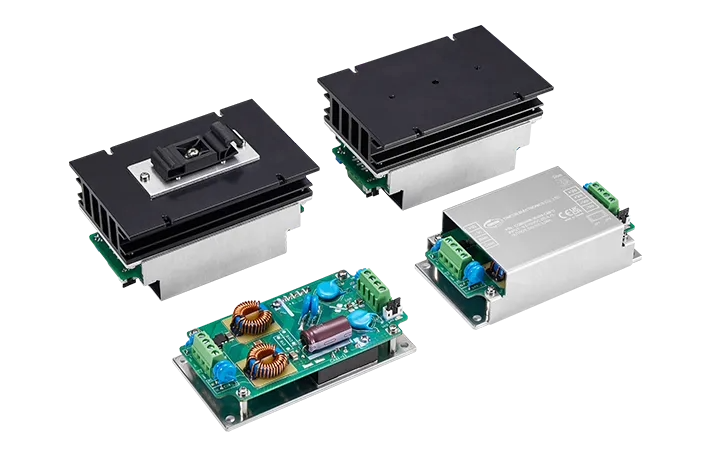

CinconCQB50W8-36SXX-CMFC_D_Series_IMG
Features
  • Input voltage: 9.5–75 Vdc (36 Vdc nominal, 8:1 input range)
  • Output voltage options: 12 Vdc, 15 Vdc, 24 Vdc, 28 Vdc, or 48 Vdc (single output)
  • Output current up to 4.17A
  • Galvanically isolated input and output (3000 Vac I/O isolation)
  • High efficiency: up to 90%
  • Chassis-mount, baseplate-cooled design (fanless)
  • Wide operating case temperature: –40 °C to +105 °C
  • Remote On/Off control (positive or negative logic)
  • Safety approvals: IEC/EN/UL 62368-1 (reinforced insulation)
  • Fire & smoke compliance: EN 45545-2 (HL1–HL3)
Specifications
ABSOLUTE MAXIMUM RATINGS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Input Voltage Continuous All -0.3   75 Vdc
Input Surge Voltage 100ms max. All     100 Vdc
Operating Case Temperature At the center part of base plate All -40   105
Storage Temperature   All -40   105
INPUT CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Operating Input Voltage   All 9.5 36 75 Vdc
Input Under Voltage Lockout
Turn-On Voltage Threshold Full Load All 8.4 8.8 9.3 Vdc
Turn-Off Voltage Threshold Full Load All 7.5 7.9 8.4 Vdc
Lockout Hysteresis Voltage Full Load All   0.9   Vdc
Maximum Input Current Vᵢₙ=9.5V, Full load All   6.7   A
No-Load Input Current Vᵢₙ=36V, Io=0A See Model Number Table mA
OUTPUT CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Voltage Set Point Accuracy Vᵢₙ=36V, Full load, Tc=25℃ All -1.0   +1.0 %
Output Voltage Regulation
Load Regulation Full load to no load All     ±0.2 %
Line Regulation Vᵢₙ=High line to low line, full load All     ±0.2 %
Temperature Coefficient Tc=-40℃ to 105℃ All     ±0.02 %/℃
Output Voltage Ripple and Noise (5Hz to 20MHz bandwidth)

Peak-to-Peak






RMS.

Full load, 1uF ceramic capacitor 12Vo
15Vo
24Vo
28Vo
48Vo

12Vo
15Vo
24Vo
28Vo
48Vo


150
150
240
240
480

80
80
120
120
220

mV
Output Current Range Vᵢₙ= 9.5 to 75V See Model Number Table  A
Over Current Protection Hiccup Mode. Auto recovery All 110 150 210 %
Short Circuit Protection   All Continuous, Auto Recovery.
External Load Capacitance Full load (resistive) See Model Number Table uF
Output Voltage Trim Range Po≦max. rated power, Iₒ≦Iₒ_ₘₐₓ. All -20   +15 %
Output Voltage Remote Sense Range Po≦max. rated power, Iₒ≦Iₒ_ₘₐₓ.
% of nominal Vₒ
All     +15 %
Over Voltage Protection Limited voltage, % of nominal Vₒ All 117 125 140 %
EFFICIENCY
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
100% Load Vᵢₙ=36V See Model Number Table %
DYNAMIC CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Output Voltage Current Transient
Error Band 75% to 100% of Io_max step load change
di/dt=0.1A/us
(within 1% Vout nominal)
All     ±5 %
Recovery Time     250 us
Turn-On Delay and Rise Time Full load (Constant resistive load)
Turn-On Delay Time, From
On/Off Control
Vₒₙ/ₒff to 10%Vₒ_ₛₑₜ, Remote on All   20   ms
Turn-On Delay Time, From Input Vᵢₙ_ₘᵢₙ to 10%Vₒ_ₛₑₜ, Power up All   20   ms
Output Voltage Rise Time 10%Vₒ_ₛₑₜ to 90%Vₒ_ₛₑₜ All   10   ms
ISOLATION CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
Isolation Voltage
(100% factory Hi-Pot tested @2sec.)
1 Minute; Input to output All     3000 Vac
    4200
1 Minute; Input to case (base plate)     2100
    3000
1 Minute; Output to case (base plate)     1500
    2100
Isolation Resistance Input to output All 100
Isolation Capacitance Input to output
Input to case (base plate)
Output to case (base plate)
All   15000
16000
23000
  pF
FEATURE CHARACTERISTICS
Parameter Notes and Conditions
Device
Min.
Typ
Max.
Units
Switching Frequency Pulse wide modulation (PWM), Fixed All 180 200 220 KHz
On/Off Control, Remote On/Off Logic, Refer to –Vin pin
Logic Low (Module Off) Vₒₙ/ₒff at Iₒₙ/ₒff>1.0mA All 0   1.0 V
Logic High (Module On) Vₒₙ/ₒff atIₒₙ/ₒff=0.0uA, Pin open=on All 4.0   7.5
On/Off Control, Negative Remote On/Off Logic, Refer to -Vin Pin
Logic High (Module Off) Vₒₙ/ₒff at Iₒₙ/ₒff=0.0uA, Pin open=off All 4.0   7.5 V
Logic Low (Module On) Vₒₙ/ₒff at Iₒₙ/ₒff=1.0mA 0   1.0
On/Off Current (for both remote on/off logic) Iₒₙ/ₒff at Vₒₙ/ₒff=0V All   0.3 1 mA
Leakage Current (for Both Remote On/Off Logic) Logic high, Vₒₙ/ₒff=15V All     30 uA
Off Converter Input Current Shutdown input idle current All   5 10 mA
Over Temperature Shutdown Temperature at the center part of base plate, non-latching All   110
Over Temperature Recovery   100
GENERAL SPECIFICATIONS
Parameter Notes and Conditions
Device
Min.
Typ.
Max.
Units
MTBF Iₒ=100% of Iₒ_ₘₐₓ;
MIL-HDBK - 217F_Notice 1, GB, 25℃
36S12
36S15
36S24
36S28
36S48
561
612
612
603
610
K
hours
Weight

-CMFC
-CMFD
-CMFD+HS
-CMFD+HD

215
250
470
490

grams
Base plate Material Aluminum
Potting Material UL 94V-0 (DC Module)
Shock/Vibration EN 50155 (EN 61373) Compliant (Except -HD)
Humidity 95% RH max. Non Condensing
Altitude 5000m Operating Altitude, 12000m Transport Altitude
Thermal Shock MIL-STD-810F
Fire & Smoke EN 45545-2 Compliant
EMI EN 55032 & EN 50155 Compliant Class A
ESD EN 61000-4-2     Level 3: Air ±8kV, Contact ±6kV Perf. Criteria A
Radiated immunity EN 61000-4-3   Level 3: 80~1000MHz, 20V/m Perf. Criteria A
Fast Transient EN 61000-4-4   Level 3: On power input port, ±2kV Perf. Criteria A
Surge EN 61000-4-5   Level 4: Line to earth, ±4kV, Line to line, ±2kV Perf. Criteria A
Conducted immunity EN 61000-4-6    Level 3: 0.15~80MHz, 10V Perf. Criteria A
Interruptions of Voltage Supply EN 50155            Class S3: 20ms interruptions Perf. Criteria A
Supply Change Over EN 50155           Class C2: During a supply break of 30 ms Perf. Criteria A
Application Note Link                                                                                             CQB50W8-36S CMFC(D) Series App Notes
Packaging Information Link                                                                                                                   Packaging Information
IMMUNITY TO ENVIRONMENTAL CONDITIONS
Phenomenon EN 50155; 2021
Reference Clause(s)
Reference Standard
Test Conditions
Result
Low Temperature
Start-up test
13.4.4 EN 60068-2-1 Class OT4
Temperature: -40℃
Duration: 2 hrs
Pass
Dry Heat Test 13.4.5 EN 60068-2-2

Class OT6 & Cycle A
Temperature: 85℃
Duration: 6 hrs

Pass
Low Temperature
Storage Test
13.4.6 EN 60068-2-1 Temperature: -40℃
Duration: 16 hrs
Pass
Cyclic Damp Heat Test 13.4.8 EN 60068-2-30 Temperature: 25℃ - 55℃
Humidity: 90% RH
Duration: 48 hrs
Pass
Functional Random Vibration Test 13.4.10 EN 61373 Frequency range: 5 ~ 150 Hz
Vertical: 1.01 𝑚⁄𝑠²
Transverse: 0.450 𝑚⁄𝑠²
Longitudinal: 0.700 𝑚⁄𝑠²
Duration: 10 min / axis
Pass
Simulated Long Life Test at
Increased Random Vibration
Levels
13.4.10 EN 61373 Frequency range: 5 ~ 150 Hz
Vertical: 5.72 𝑚⁄𝑠²
Transverse: 2.55 𝑚⁄𝑠²
Longitudinal: 3.96 𝑚⁄𝑠²
Duration: 5 hrs / axis
Pass
Shock Test 13.4.10 EN 61373 ±Vertical: 30 𝑚⁄𝑠²
±Transverse: 30 𝑚⁄𝑠²
±Longitudinal: 50 𝑚⁄𝑠²
Duration: 30ms x18 (Each axis 3 shocks)
Pass
EN45545-2 FIRE & SMOKE TEST CONDITIONS
Item Notes and Conditions
Standard
Hazard Level
R22 Oxygen Index Test EN 45545-2: 2013+A1:2015
EN ISO 4589-2: 2017
HL1, HL2, HL3
Smoke Density Test EN 45545-2: 2013+A1:2015
EN ISO 5659-2: 2017
HL1, HL2, HL3
Smoke Toxicity Test EN 45545-2: 2013+A1:2015
NF X70-100-1&2: 2006
HL1, HL2, HL3
R23 Oxygen Index Test EN 45545-2: 2013+A1:2015
EN ISO 4589-2: 2017

HL1, HL2, HL3

Smoke Density Test EN 45545-2: 2013+A1:2015
EN ISO 5659-2: 2017

HL1, HL2, HL3

Smoke Toxicity Test EN 45545-2: 2013+A1:2015
NF X70-100-1&2: 2006

HL1, HL2, HL3

R24 Oxygen Index Test EN 45545-2: 2013
EN ISO 4589-2
HL1, HL2, HL3
R25 Glow - Wire Test EN 45545-2:2020+A1:2023
EN 60695-2-11:2014
HL1, HL2, HL3
R26 Vertical Flame Test EN 45545-2: 2013+A1:2015
EN 60695-11-10: 2013
HL1, HL2, HL3
Selection Table
MODEL NUMBER INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT INPUT CURRENT % EFF. CAPACITOR LOAD MAX
MIN. MAX. NO LOAD FULL LOAD
CQB50W8-36S12☐-CMFD

9.5-75 VDC

12 VDC

0 mA 4.17 A 10 mA 1544mA 90 80000uF
CQB50W8-36S15☐-CMFD

9.5-75 VDC

15 VDC

0 mA 3.33 A 10 mA 1542mA 90 6800uF
CQB50W8-36S24☐-CMFD

9.5-75 VDC

24 VDC

0 mA 2.08 A 12 mA 1541mA 90 2350μF
CQB50W8-36S28☐-CMFD

9.5-75 VDC

28 VDC

0 mA 1.79 A 12 mA 1547mA 90 2350μF
CQB50W8-36S48☐-CMFD

9.5-75 VDC

48 VDC

0 mA 1.05 A 12 mA 1556mA 90 700μF

NOTE:
1. Nominal input voltage 36 VDC.
2. ☐ = N or none.
3. VR1 is used for output voltage adjustment.
4. Refer to application note for thermal resistance and derating information.
5. TVS is included for input surge voltage protection.
6. Recommend an external fuse for input reverse polarity protection (shunt diode is included inside).
7. Output connector CN3 wafer with TAIWAN KING pin terminal P110I series and mate with JST housing PH series or equivalent.
8. CN1 & CN2 connection: DINKLE EK500V-04P series or equivalent, suitable electric wire: 24~12AWG (IEC 0.5~2.5mm2).

PART NUMBER

SERIES NOMINAL INPUT VOLTAGE NUMBER OF OUTPUTS NOMINAL OUTPUT VOLTAGE REMOTE ON/OFF LOGIC CHASSIS MOUNT TYPE HEATSINK
CQB50W8- II O XX L -YYY Z +WWW
CQB50W8

36 : 36 VDC

S:Single

12 : 12VDC
24 : 24VDC
28 : 28VDC
48 : 48VDC

None : Positive
N:Negative
CMF : Chassis Mount Built in Filter

C:
Open Frame

D:
With Cover

None:Blank

HS:Heatsink
HD:Heatsink+Din Rail

Part Number Example:
CQB50W8-36S12N-CMFD: Chassis Mount, 50W, 8:1 9.5-75Vdc Input, Single 12Vdc Output, Negative Logic, with cover.

Technical Drawings

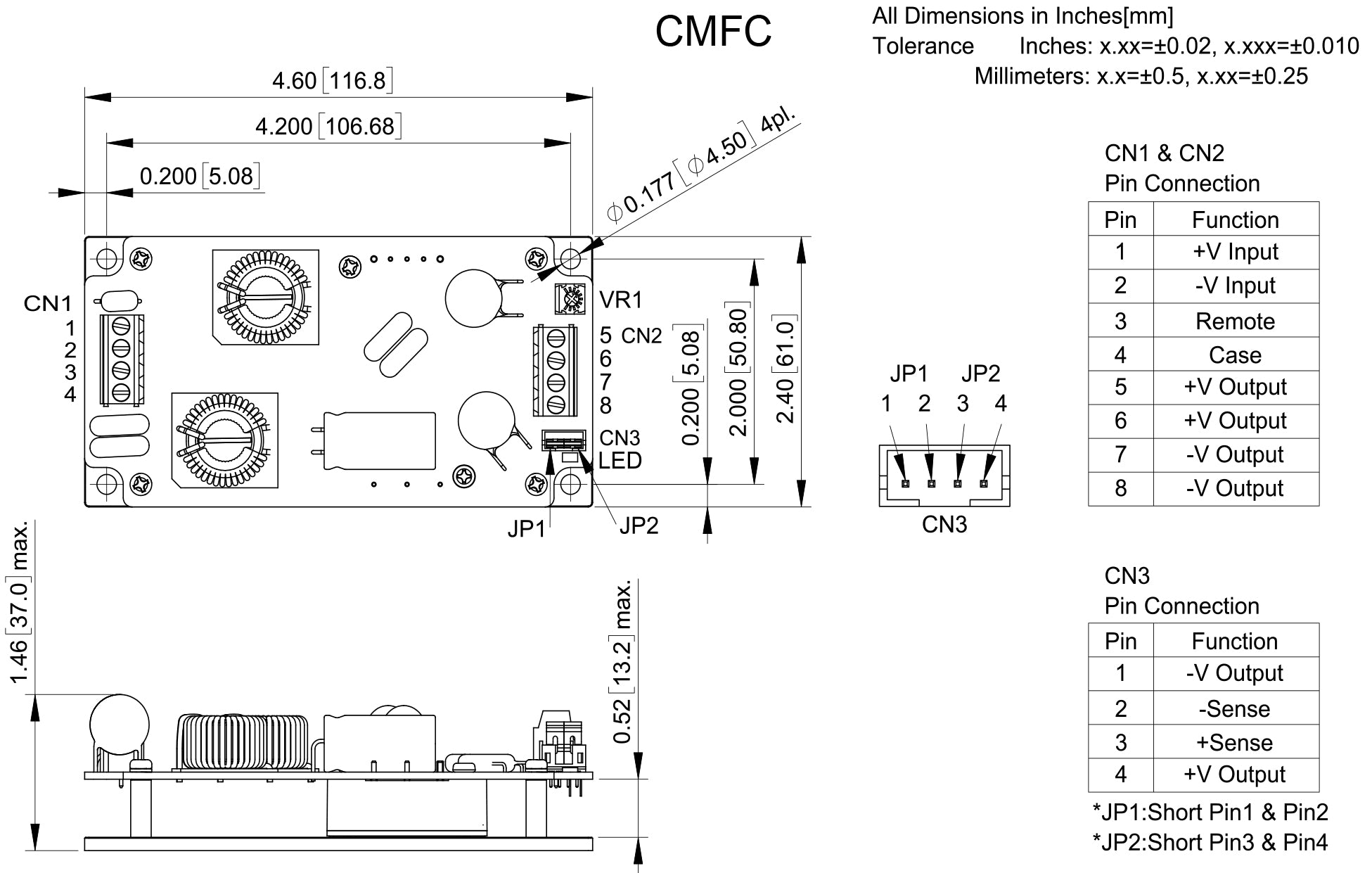

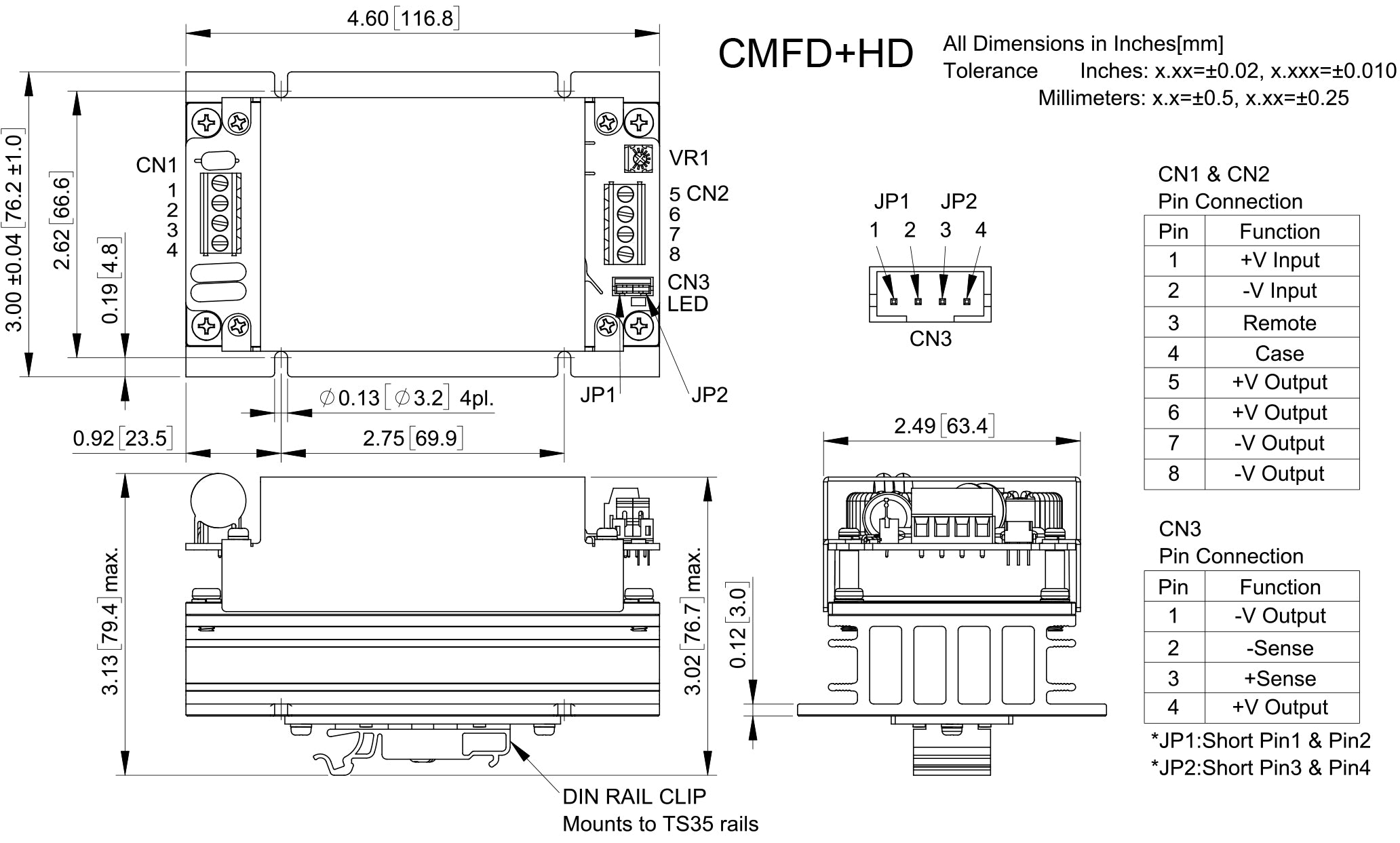

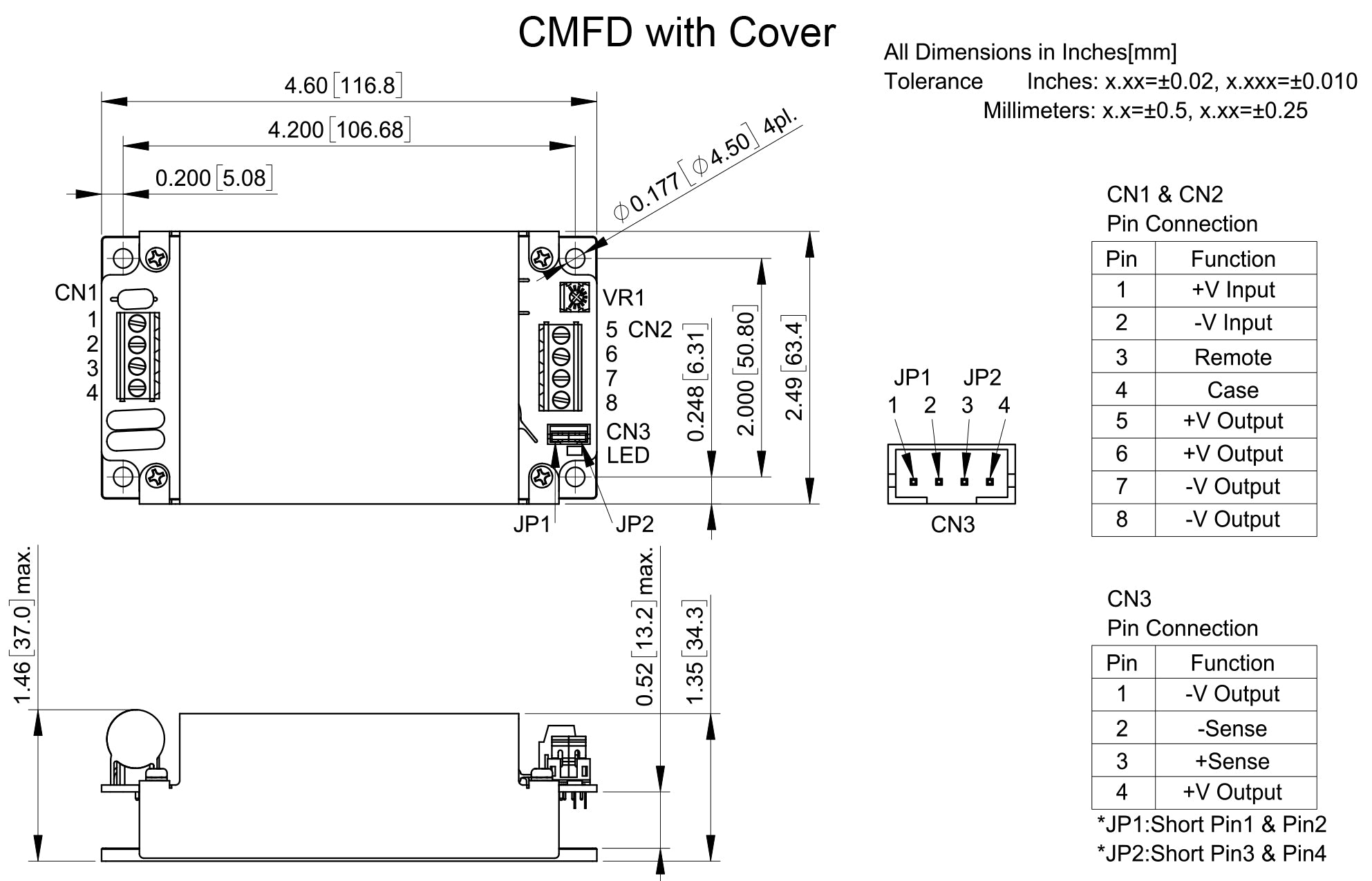

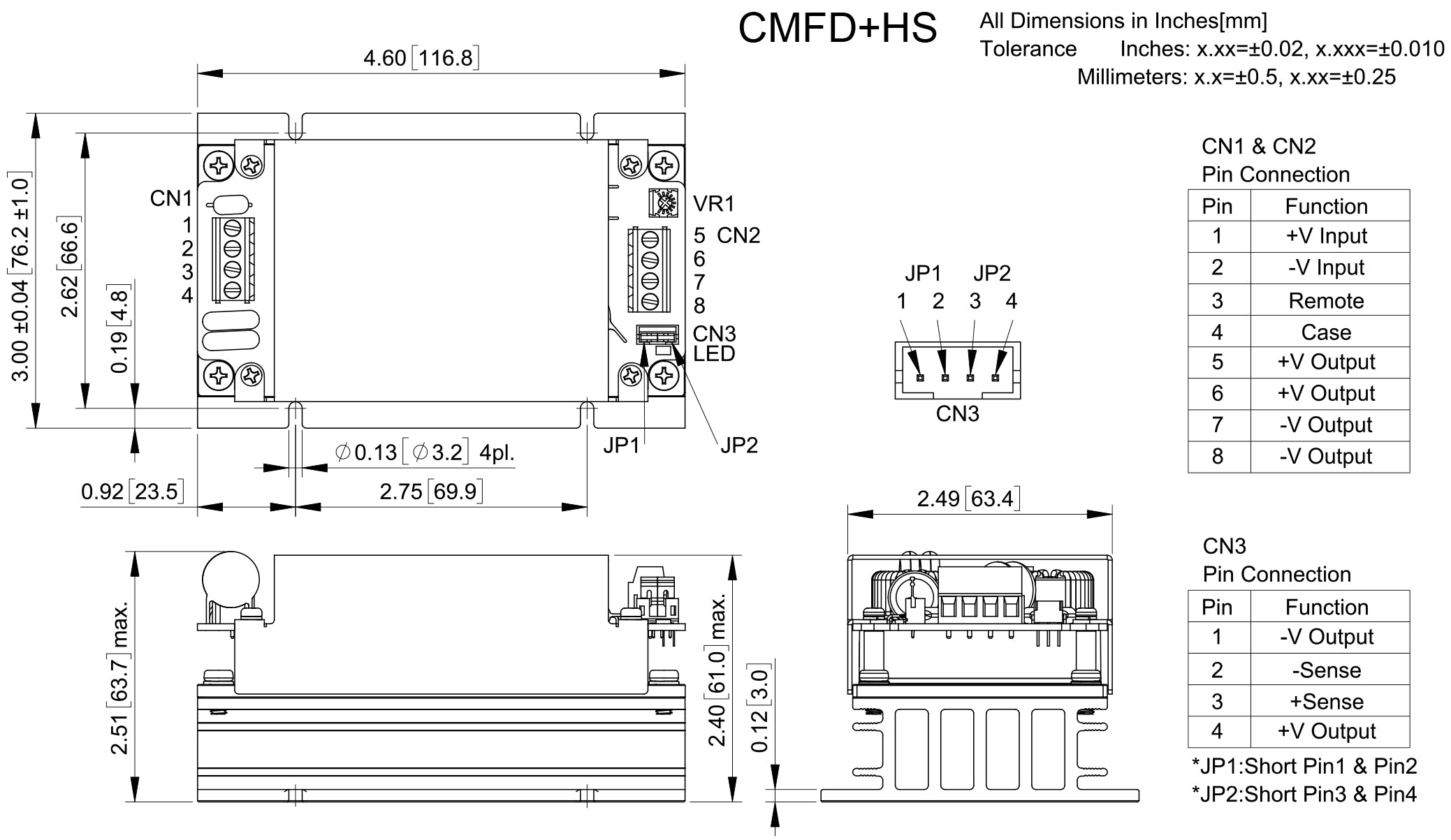

GA_Drawing-CQB50W8-CMFC-D-series-01 GA_Drawing-CQB50W8-CMFC-D-series-02 GA_Drawing-CQB50W8-CMFC-D-series-03 GA_Drawing-CQB50W8-CMFC-D-series-04
