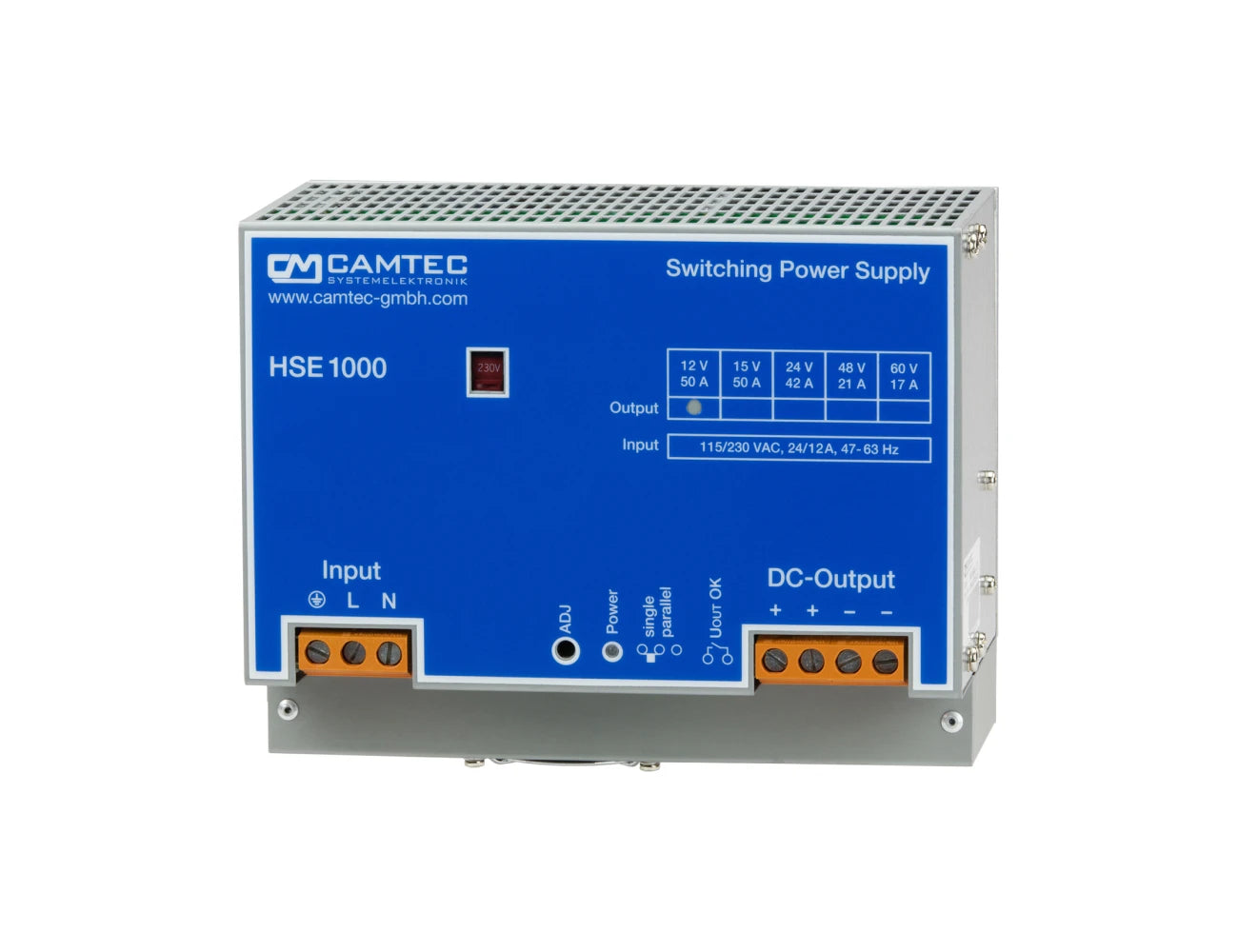

Camtec HSE10001 SERIES AC/DC Power Supply

The Camtec HSE10001 Series AC/DC Power Supply delivers exceptional power performance for demanding industrial environments, making it an ideal choice for complex loads, battery charging, and high dynamic applications. Engineered with precision in Germany, this 1000W power supply features cutting-edge technology, including up to 91% energy efficiency and advanced thermal management using a high-performance EBM Pabst fan. The robust construction and superior components ensure reliable operation even under full load conditions.

Read More

View Models
Camtec HSE10001 SERIES AC/DC Power Supply

Features

  • 1008 Watts Supply
  • TS35mm DIN-Rail. Metal housing
  • Up to 91% efficiency
  • -20°C...+60°C full output power
  • Free air convection
  • Galvanic insulated
Specifications
GENERAL
Output Voltage See selection table
AC Input Voltage 85..132Vac / 184..265Vac
AC Input 115Vac <16.8A 230Vac <9.0A
DC Input Voltage 250…375Vdc
Tolerance ± 1%
Load regulation < ± 0.5% 10-100%, 100-10%
Switching Frequency 100KHz typical
Minimum Load 0 A
Efficiency Up to 91%
Load Protection 1,1x Irated ,auto recovery
Voltage Protection 140% of Uout , auto recovery
Short Circuit Protection Continuous
Temperature Control Yes
Hold Up Time > 30ms 230Vac
Inrush Current < 81A (230Vac)
Suggested MCB C16A
Softstart 100ms typical
STANDARDS AND APPROVALS
EMI EN55022 class B
EMS EN61000-6-2,3
Safety EN60950-1, EN60204-1
Safety class 1(A) VDE0805, VDE0100
RELIABILITY
Air & Surface Leakage Paths > 8mm
Input/Output

AC-Input/DC-Output : 3KV,

Input/GND 2KV,

Output/GND 500Vdc
Power Good Relay (opener) <48Vdc/500mA (galv. insulated)
MTBF IEC61709 499092h
MTTF IEC60050 127116h (40°C/230Vac/75%)
ROHS 2011/65/EG confirmed
REACH EG No. 1907/2006 confirmed
ENVIRONMENTAL
Cooling Natural convection
Ambient Temperature - 20°C…+70°C
Storage Temperature - 40°C…+85°C
Humidity Operation 95% non condensing @ 25°C
Klimatic Class 3K3
Pollution Degree II A
Operation Altitude 3000m above sea level
MECHANICAL
Dimensions (HxWxD) 156x200x118,5mm
Weight 3000g
Screw Connectors (AC & DC AWG20...AWG6
Selection Table
MODEL HSE10001.12T HSE10001.15T HSE10001.24T HSE10001.36T HSE10001.48T
Rated DC Voltage 12Vdc 15Vdc 24Vdc 36Vdc 48Vdc
DC Adjust 11,4-14,4Vdc 14,2-18Vdc 22,8-28,8Vdc 34,2-43,2Vdc 45,6-52,8V dc
DC Continuous Current 50.0A 50.0A 42.0A 28.0A 21.0A
Boost ≤60 Seconds 55.0A 55.0A 46.2A 31A 23A

Ripple [mVpp]

(230Vac/20MHz)

 50mVpp 50mVpp 50mVpp 100mVpp 120mVpp

Notes:

Coating Option add 'C' to model number, eg HSE10001.24T

We offer the HSE optional coating. It is to be used in e.g. dusty, dirty, high humidity, or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. It is procured with a robotics varnishing machine. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0

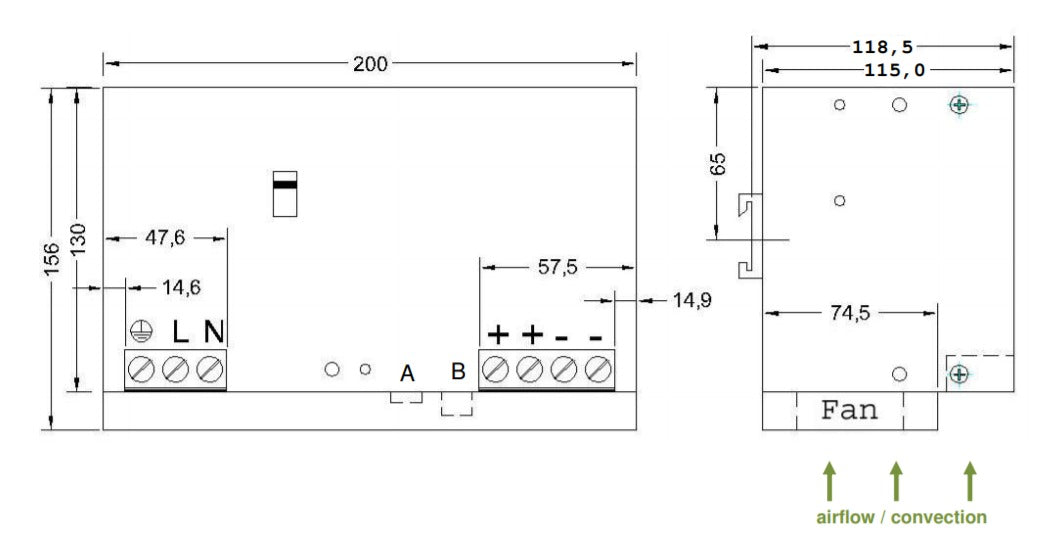

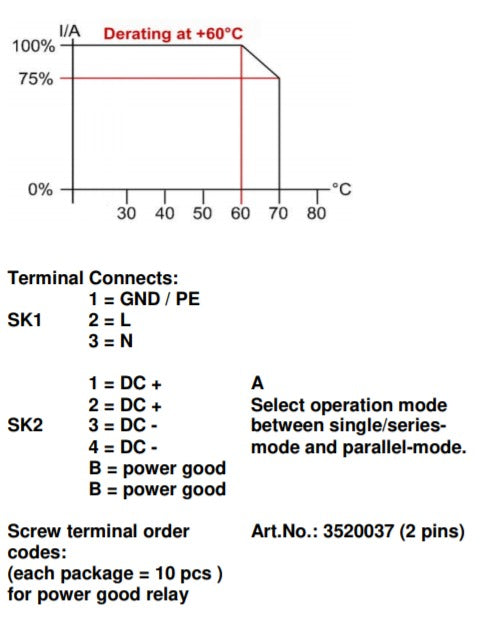

Technical Illustrations
Downloads
camtec-hse10001-032022-00-0_datasheet.pdf
GENERAL
Output Voltage See selection table
AC Input Voltage 85..132Vac / 184..265Vac
AC Input 115Vac <16.8A 230Vac <9.0A
DC Input Voltage 250…375Vdc
Tolerance ± 1%
Load regulation < ± 0.5% 10-100%, 100-10%
Switching Frequency 100KHz typical
Minimum Load 0 A
Efficiency Up to 91%
Load Protection 1,1x Irated ,auto recovery
Voltage Protection 140% of Uout , auto recovery
Short Circuit Protection Continuous
Temperature Control Yes
Hold Up Time > 30ms 230Vac
Inrush Current < 81A (230Vac)
Suggested MCB C16A
Softstart 100ms typical
STANDARDS AND APPROVALS
EMI EN55022 class B
EMS EN61000-6-2,3
Safety EN60950-1, EN60204-1
Safety class 1(A) VDE0805, VDE0100
RELIABILITY
Air & Surface Leakage Paths > 8mm
Input/Output

AC-Input/DC-Output : 3KV,

Input/GND 2KV,

Output/GND 500Vdc
Power Good Relay (opener) <48Vdc/500mA (galv. insulated)
MTBF IEC61709 499092h
MTTF IEC60050 127116h (40°C/230Vac/75%)
ROHS 2011/65/EG confirmed
REACH EG No. 1907/2006 confirmed
ENVIRONMENTAL
Cooling Natural convection
Ambient Temperature - 20°C…+70°C
Storage Temperature - 40°C…+85°C
Humidity Operation 95% non condensing @ 25°C
Klimatic Class 3K3
Pollution Degree II A
Operation Altitude 3000m above sea level
MECHANICAL
Dimensions (HxWxD) 156x200x118,5mm
Weight 3000g
Screw Connectors (AC & DC AWG20...AWG6
MODEL HSE10001.12T HSE10001.15T HSE10001.24T HSE10001.36T HSE10001.48T
Rated DC Voltage 12Vdc 15Vdc 24Vdc 36Vdc 48Vdc
DC Adjust 11,4-14,4Vdc 14,2-18Vdc 22,8-28,8Vdc 34,2-43,2Vdc 45,6-52,8V dc
DC Continuous Current 50.0A 50.0A 42.0A 28.0A 21.0A
Boost ≤60 Seconds 55.0A 55.0A 46.2A 31A 23A

Ripple [mVpp]

(230Vac/20MHz)

 50mVpp 50mVpp 50mVpp 100mVpp 120mVpp

Notes:

Coating Option add 'C' to model number, eg HSE10001.24T

We offer the HSE optional coating. It is to be used in e.g. dusty, dirty, high humidity, or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. It is procured with a robotics varnishing machine. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0
camtec-hse10001-032022-00-0_datasheet.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant HSE10001.12T(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 12Vdc (Adj. 11.4 - 14.4Vdc) 50A
product variant HSE10001.15T(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 15Vdc (Adj. 14.2 - 18.0Vdc) 50A
product variant HSE10001.24T(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 24Vdc (Adj. 22.8 - 28.8Vdc) 42A
product variant HSE10001.36T(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 36Vdc (Adj. 34.2 - 43.2Vdc) 28A
product variant HSE10001.48T(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 48Vdc (Adj. 45.6 - 52.8Vdc) 21A

Need help finding the right product model?
