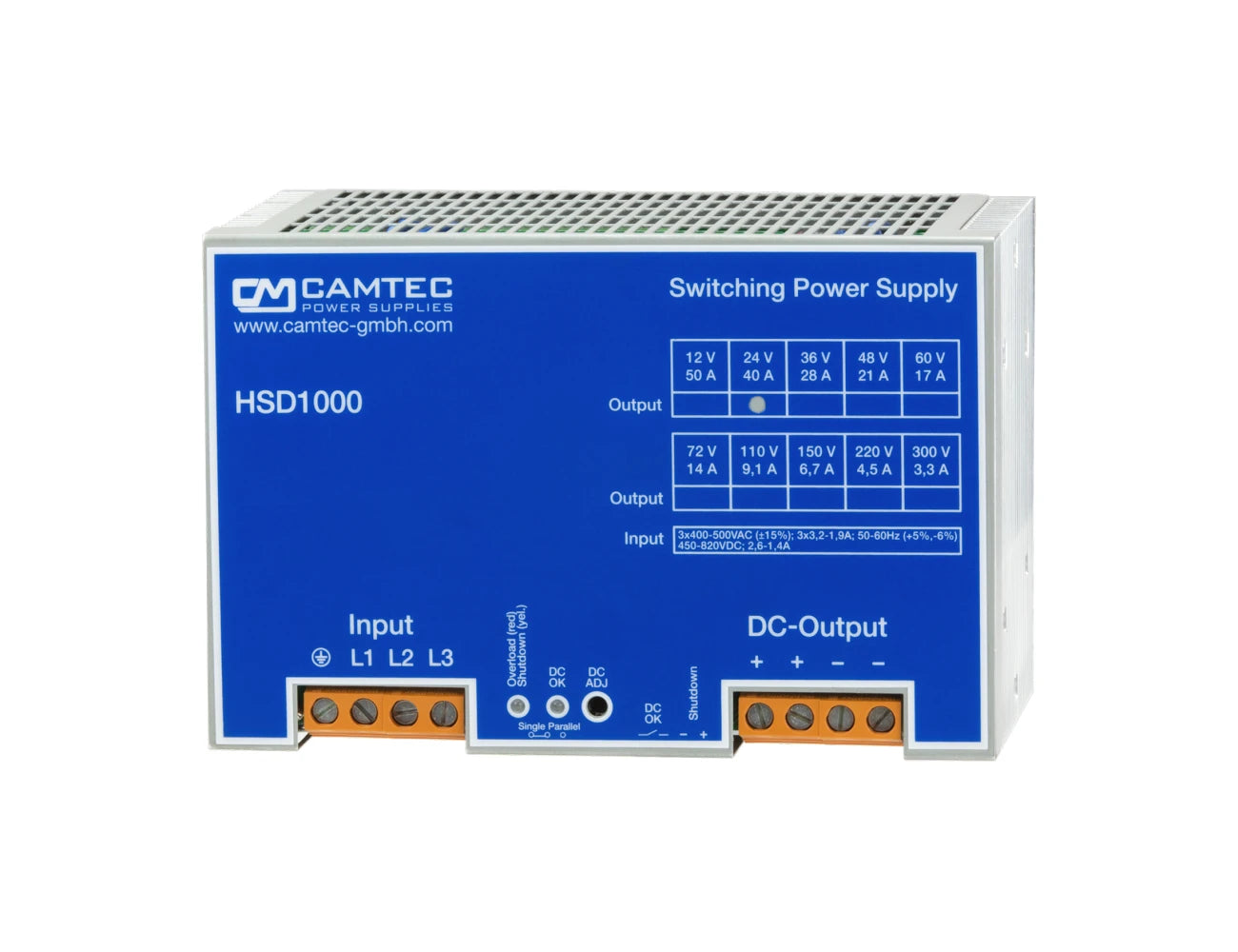

Camtec HSD10001 SERIES AC/DC Power Supply
The Camtec HSD10001 Series AC/DC Power Supply is a high-performance solution for industrial applications that demand exceptional efficiency and reliability. Delivering up to 1000W of continuous power, this DIN-rail mounted unit features advanced three-phase input capability (400-500Vac) and can also operate with a two-phase setup. Engineered in ...
Read MoreThe Camtec HSD10001 Series AC/DC Power Supply is a high-performance solution for industrial applications that demand exceptional efficiency and reliability. Delivering up to 1000W of continuous power, this DIN-rail mounted unit features advanced three-phase input capability (400-500Vac) and can also operate with a two-phase setup. Engineered in Germany, the HSD10001 Series is designed for complex loads, DC drives, and battery charging, making it a dependable choice for demanding industrial environments.
With efficiency rates of up to 92%, robust metal housing, and natural convection cooling, this power supply ensures long-lasting, energy-efficient operation. The HSD10001 Series includes essential features such as overvoltage protection, continuous short-circuit protection, and an active inrush current limiter for enhanced safety. Its power boost functionality provides additional power for critical loads, while precise load response ensures stable performance even under dynamic conditions.
Available in output voltages from 12Vdc to 72Vdc, the HSD10001 Series also includes N+1 parallel operation for redundancy and scalability. The integrated DC-ok relay and remote shutdown feature add to its versatility and reliability. Fully compliant with EMI/EMS standards (EN55032 Class B, EN61000-6-2/3) and safety certifications (EN61010-1, EN62368-1), the Camtec HSD10001 Series is the ideal choice for industrial applications requiring robust and efficient power solutions.
Show Less
Features
- 1000W DIN-Rail Power Supply 3-Phase
- DIN Rail 35mm. Metal housing
- 92% efficiency typ
- -25°C...+70°C ambient. Natural convection
- Continuous short circuit protected
- Overload & low voltage protected
- Soft start & auto-recovery
- EMI/EMS EN61000-6-2/3. EN55022 class B
- PFC: EN61000-3-2
- Low voltage & overload control message
- Remote Shutdown ON/OFF
- Power good relay galvanic insulated
- High reliability. Shock & vibration resistant
- Output Electrolytic Capacitors +125°C
- 2 phase operation 75% rated load
Specifications
| GENERAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Voltage | See selection table | ||||||||||||||||||||||||||||||||||||||||||||||||
| AC Input Voltage |
2PH & 3PH 340...575Vac (2 phase operation 75% rated load max.) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency |
47...63Hz |
||||||||||||||||||||||||||||||||||||||||||||||||
| DC Input Voltage |
450…820Vdc |
||||||||||||||||||||||||||||||||||||||||||||||||
| AC Input Voltage |
400...500Vac (Input Current 3x 3A) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Tolerance ( at Ua adjusted) | ± 0.5% | ||||||||||||||||||||||||||||||||||||||||||||||||
| Transient Time | <1ms (10-100% , 100-10%) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Load | 0 A | ||||||||||||||||||||||||||||||||||||||||||||||||
| Efficiency | 92% typical | ||||||||||||||||||||||||||||||||||||||||||||||||
| Load Protection | 1,2x Irated , auto recovery | ||||||||||||||||||||||||||||||||||||||||||||||||
| Short Circuit Protection | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature Control | Yes (see right graph) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Hold Up Time | > 12ms (400...500Vac input) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Inrush Current Limiter | < 20Apeak 14,4Aeff (400Vac) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Softstart | 50ms typical | ||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARDS AND APPROVALS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EMI | EN55022 class B / EN61000-3-2 | ||||||||||||||||||||||||||||||||||||||||||||||||
| EMS | EN61000-6-2,3 active PFC | ||||||||||||||||||||||||||||||||||||||||||||||||
| Safety | EN60950-1, EN60204-1 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Safety class 1(A) | VDE0805, VDE0100 | ||||||||||||||||||||||||||||||||||||||||||||||||
| RELIABILITY | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Creepage Distance | > 10,5mm | ||||||||||||||||||||||||||||||||||||||||||||||||
| Input/output | Galvanic insulated 3000Vac | ||||||||||||||||||||||||||||||||||||||||||||||||
| Power Good Relay (galv.ins.) | ≤48Vdc/500mA , ≤30Vac/500mA | ||||||||||||||||||||||||||||||||||||||||||||||||
| Pollution Degree | 2 (EN50178) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Climatic Class | 3k3 (EN60721) | ||||||||||||||||||||||||||||||||||||||||||||||||
| MTBF IEC61709 | 500000h | ||||||||||||||||||||||||||||||||||||||||||||||||
| MTTF IEC60050 | 147.524h | ||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling | Natural convection | ||||||||||||||||||||||||||||||||||||||||||||||||
| Ambient Temperature | - 25°C…+70°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | - 40°C…+85°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Relative Humidity | 95% (25°C) non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions (HxWxD) | 131.5x200x124.5mm | ||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 3400g | ||||||||||||||||||||||||||||||||||||||||||||||||
| Connectors (AC & DC) | AWG22...AWG6 (0,5...16mm²) IEC60664-1, IEC61984 | ||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| MODEL | HSD10001.12T | HSD10001.24T | HSD10001.36T | HSD10001.48T | HSD10001.60T | HSD10001.72T |
|---|---|---|---|---|---|---|
| Rated DC Voltage | 12Vdc | 24Vdc | 36Vdc | 48Vdc | 60Vdc | 72Vdc |
| DC Voltage Adjust | 10...17V | 22..30V | 32...43V | 43...53V | 53...72V | 68...86V |
| Voltage Protection | 21Vdc | 32Vdc | 50Vdc | 56Vdc | 84Vdc | 92Vdc |
| Current 60°C* | 50.0A | 40.0A | 28.0A | 21.0A | 17.0A | 14.0A |
| DC Current 40°C* | 55.0A | 44.0A | 30.8A | 23.1A | 18.7A | 15.4A |
| Boost 60s/60°C* | 55.0A | 44.0A | 30.8A | 23.1A | 18.7A | 15.4A |
| Ripple 20MHz | 50mVpp | 50mVpp | 80mVpp | 100mVpp | 100mVpp | 150mVpp |
| Load regulation.* | ±0.5% | ±0.2% | ±0.2% | ) ±0.2% | ±0.2% | ±0.2% |
Optional Coating (option C): We offer the HSD-Series with optional coating. It is to be used in e.g. dusty, dirty, high humidity, or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. It is procured with a robotics varnishing machine. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0, eg HSD10001.24TC , DIN-Rail+Coating
