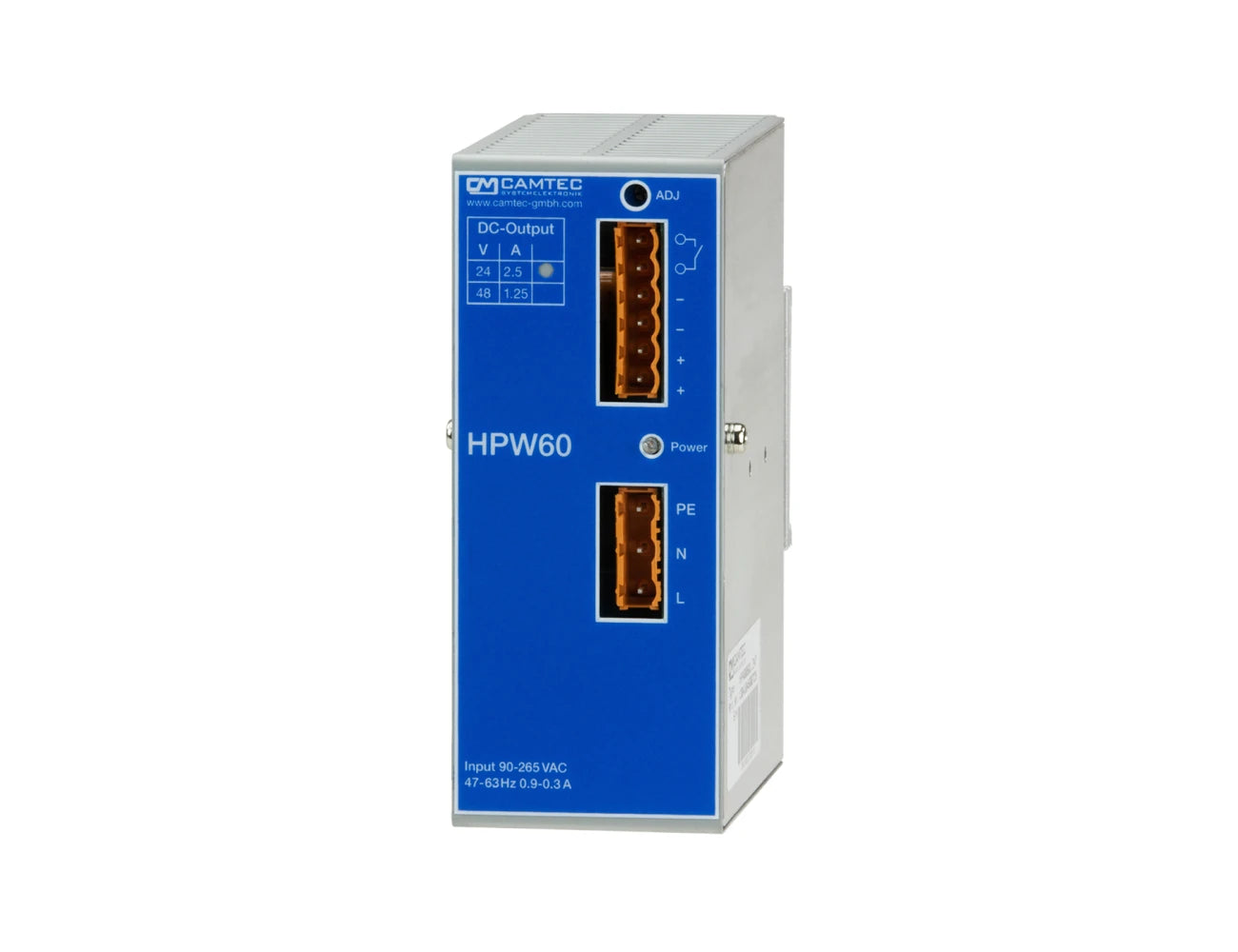

Camtec HPW00601LIRC SERIES AC/DC Power Supply

The HPW00601LIRC by CAMTEC is a 60-watt DIN rail power supply designed for critical temperature conditions, functioning efficiently between -15°C and +75°C. This model boasts up to 86% efficiency with active Power Factor Correction and is highly reliable for use in traffic signs and outdoor control units. It features continuous short circuit pro...

Show Less

Select model number

or send a quick enquiry about this product only

Camtec HPW00601LIRC SERIES AC/DC Power Supply

Specifications

OUTPUT
Rated DC Voltage	24V	48V
Rated DC Current	2.5A	1.25A
Ripple [mVpp] 230Vac	20 (20MHz)	40 (20MHz)
Output adj. Range [V]	22,5...28,5V	40,5V...50,7V
Stability at load switch	± 0,5%	± 0,5%

GENERAL
AC Input Voltage	90-265Vac
Frequency	47-63Hz
DC Input Voltage	120-375Vdc
Input Current	230Vac <800mA 115Vac <1.6A
Load regulation	< ± 0.1% 10-100%, 100-10%
Baseload	Idling proof
Efficiency	86% typ.
Hold Up Time	> 50ms 230Vac @ full load
Inrush Current	< 700mApeak / 495mArms active electronic limiter for 1A CB-A
Soft Start	50ms typical
Power Good Relay	<48Vdc/500mA, galvanic isolation 60Vdc

RELIABILITY
Over Current Protection I(AB)	1.1x Irated
Over Voltage Protection	130% of Uout , auto recovery
Short Circuit Protection	Continuous
Air & Creep Distance	> 8mm
Input / Output Isolation	I/P-O/P:3kVac I/P-G:2kVac O/P-G:1.4kVdc
MTBF EN61709	600000h
MTTF EN61709.SN29500	157680h @ 40°C 24/7, 85% load
Lifetime expected	18 years under 24/7 40°C 85% load conditions

STANDARDS AND APPROVALS
Safety	EN60950-1, EN60204-1
Safety Class (with PE connected)	1, VDE0805, VDE0100, IP20
EMI	EN55022 class B / EN61000-3-2 (harmonics)
EMS	EN61000-6-2, EN61000-6-3 (noise immunity)

MECHANICAL
Dimensions (HxWxD)	124x50x99.5mm
Weight	700g

Selection Table

MODEL	HPW00601.24T	HPW00601.48T
Rated DC Voltage	24Vdc	48Vdc
Nominal Current	8.0A	5.0A
Notes:	AC Input Connector: 3pole terminal connector LS7,5mm AWG26-AWG12, DC Output Connector: 2pole terminal connector LS5,08mm AWG26-AWG12,

MODEL

HPW00601.24T

HPW00601.48T

Rated DC Voltage

24Vdc

48Vdc

Nominal Current

8.0A

5.0A

Notes:

AC Input Connector: 3pole terminal connector LS7,5mm AWG26-AWG12,

DC Output Connector: 2pole terminal connector LS5,08mm AWG26-AWG12,

Technical Drawings

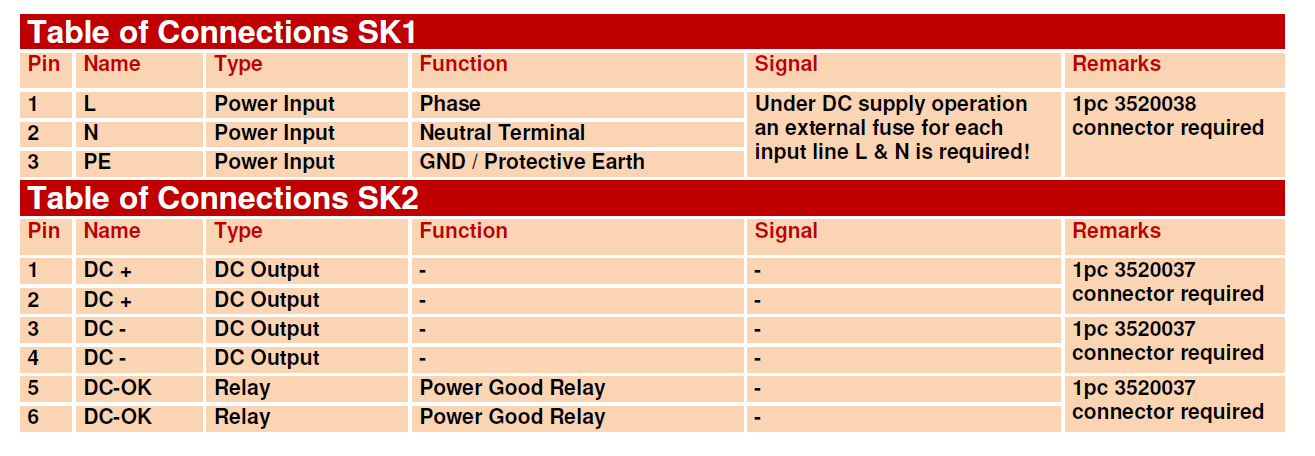

Connection tables SK1 and SK2, listing pinouts and specs.

Derating graph showing current versus temperature.

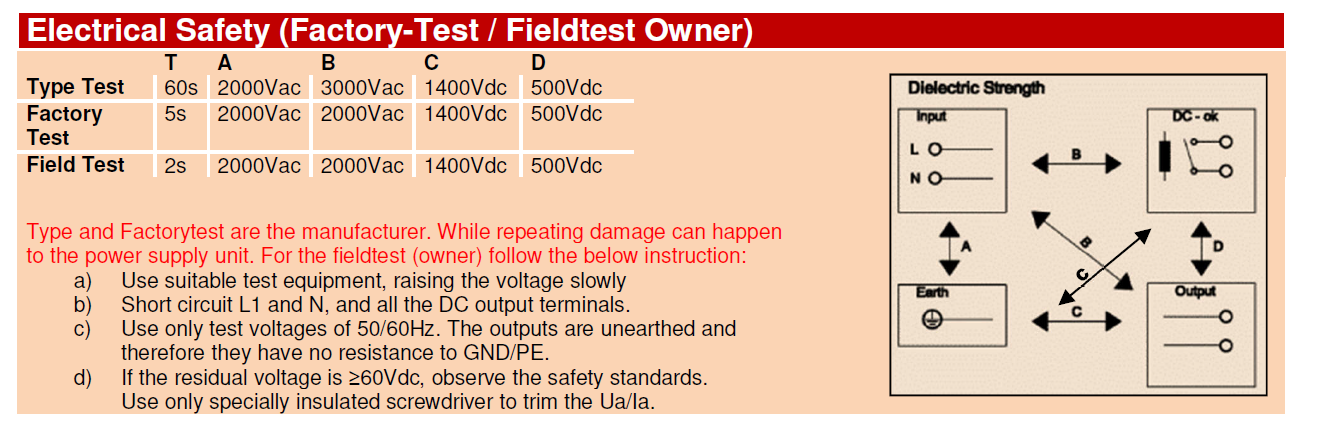

Electrical safety table with test voltages and a circuit diagram.

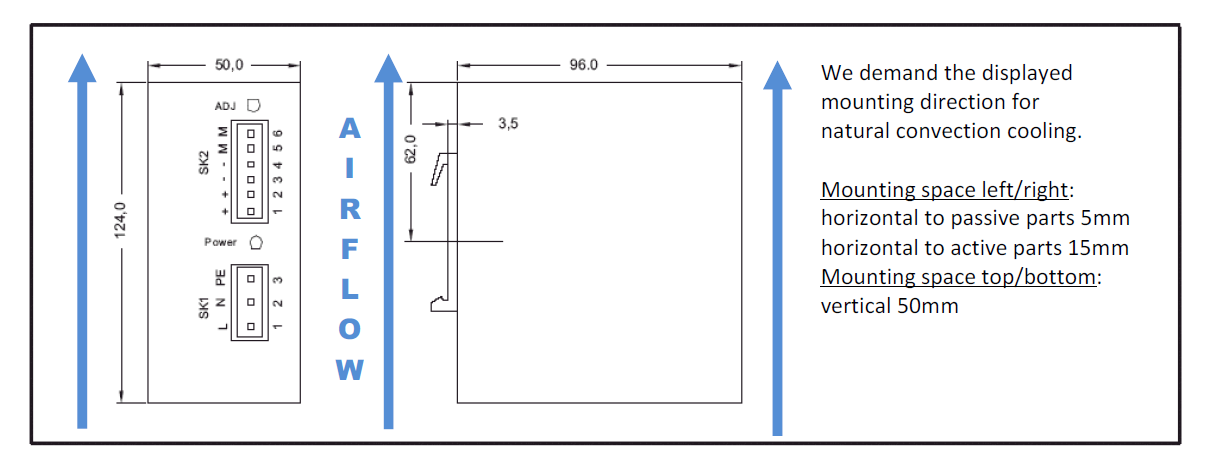

Technical drawing showing mounting specs and airflow direction.

Downloads

camtec_hpw00601lirc_E062016-01-0_PB_v1.0.pdf

Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.

FAQs

What output voltage models are available for the Camtec HPW00601LIRC, and what current does each deliver?

Two models: HPW00601.24T (24Vdc nominal, adj. 22.5–28.5Vdc, rated 8.0A) and HPW00601.48T (48Vdc nominal, adj. 40.5–50.7Vdc, rated 5.0A), both at 60W total output. The LIRC suffix indicates Low Inrush current, auto-Recovery, and Coating option.

What input voltage does the HPW00601LIRC accept, and what is its hold-up time?

It accepts 90–265Vac (47–63Hz) single-phase AC or 120–375Vdc bus input. AC hold-up time exceeds 50ms at full load — suitable for installations with momentary mains interruptions. An active inrush current limiter rated for a 1A circuit breaker is included.

What makes the HPW00601LIRC suited to outdoor and traffic control applications?

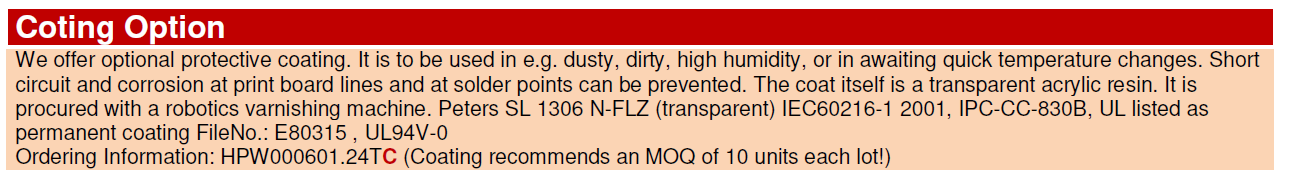

Operating temperature is -15°C to +75°C at full rated load. The active electronic inrush current limiter supports startup on 1A breakers, and optional conformal coating (acrylic resin, UL94V-0, suffix 'C') protects against dust, humidity, and condensation — making it suited to traffic signs, outdoor control units, and unheated enclosures.

What efficiency and protection features does the HPW00601LIRC include?

Efficiency is 86% typical. Protection includes continuous short-circuit protection, OVP at 130% of output voltage with auto-recovery, overload protection at 110% rated current, and a galvanically isolated Power Good relay (≤48Vdc/500mA) for system status monitoring. Soft start is 50ms typical.

What safety and EMC certifications does the HPW00601LIRC comply with?

Safety: EN60950-1, EN60204-1, IP20 protection class. EMC: EN55022 Class B, EN61000-3-2, immunity to EN61000-6-2 and EN61000-6-3. MTBF is 600,000 hours (EN61709). Expected service life is 18 years under 24/7 operation at 40°C and 85% load. Manufactured in Germany by Camtec.

What are the dimensions and mounting format of the HPW00601LIRC?

The unit measures 124×50×99.5mm and mounts on a standard TS35mm DIN rail. An optional conformal coating (suffix 'C') is available for harsh-environment installations. Contact Powerbox at sales@powerbox.com.au for stock and pricing.
