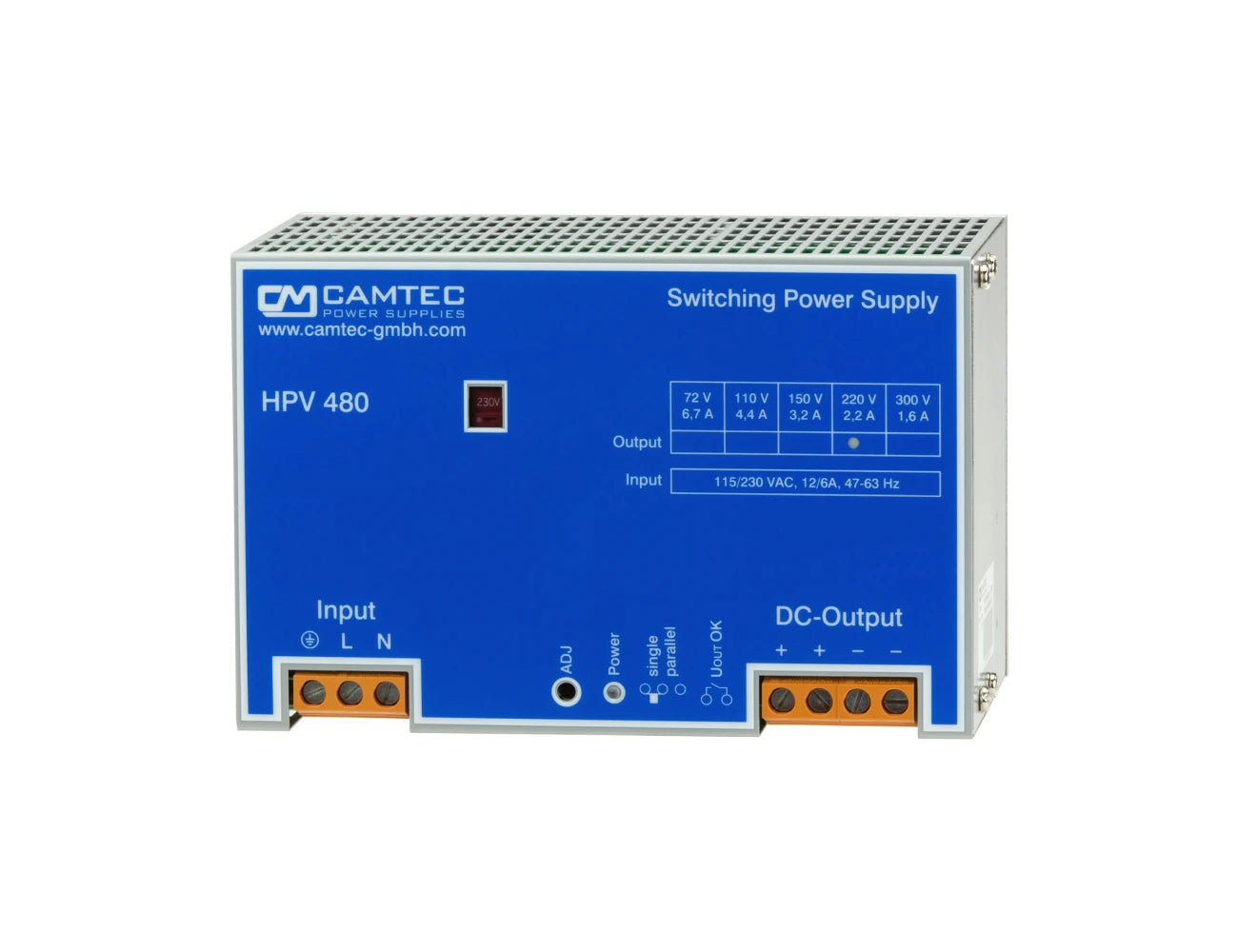

Camtec HPV04801 SERIES AC/DC Power Supply

The Camtec HPV04801 Series AC/DC Power Supply offers reliable, high-efficiency performance for demanding industrial applications. With a maximum output of 480W and up to 93% efficiency, this compact DIN-rail power supply is engineered for applications that require precise and stable power delivery, such as DC drives, professional machine building, and test stands. Manufactured in Germany, the HPV04801 Series is built to withstand the rigors of harsh environments while ensuring long service life.

Read More

View Models
Camtec HPV04801 SERIES AC/DC Power Supply

Features

  • 480W Industrial Power Supply
  • TS35mm DIN-Rail
  • C/V curve down to 0V. No foldback
  • Power Good Relay AC & DC-ok optional
  • Efficiency up to 93%
  • Soft start & auto-recovery
Specifications
GENERAL
Output Voltage See selection table
AC Input Voltage

85..132Vac / 184..265Vac

(115/230Vac input selector, factory setting is 230Vac)
Frequency 47…63Hz
DC Input Voltage

250Vdc – 375Vdc

(input selector set to 230Vac)
AC Input Rating

115Vac<8.8A 230Vac<4.3A

(recommended circuit breaker type B with 16A or larger)
DC Input Rating

250Vdc<2.4A 375Vdc<1.6A

(input selector set to 230Vac rated)
Derating +60°C...+70°C 2.5%/°C
Accuracy < ± 1.5% interface
Load Regulation < ± 0.05% 0-100%
Response to Load Change <1ms 10-100%, 100-10%
Base Load None required (open circuit proof)
Efficiency Up to 93% at 90% load
Short Circuit Protection Continuous
Open Circuit Proof Continuous
Temperature Control Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm)
Hold Up Time >50ms 230Vac
Inrush Current NTC <40A 25°C cold start
Soft Start 100ms typical
STANDARDS AND APPROVALS
ROHS 2011/65/EG confirmed
REACH EG No. 1907/2006 confirmed
EMI EN55022 class B
EMS EN61000-6-2,3
Safety EN60950-1, EN60204-1
Safety class 1(A) VDE0805, VDE0100
RELIABILITY
Isolation paths > 8mm creepage distance & clearance paths
Input to Output Isolation 3000Vac
Input to Case Isolation 2500Vac
Output to Case 2100Vdc
MTBF 400000h (IEC61709)
MTTF 128124h (IEC61709)
ROHS conformity ROHS directive 2011/65/EU
ROHS conformity REACH conformity
ENVIRONMENTAL
Cooling Natural convection
Ambient Operating Temp. - 25°C…+70°C
Ambient Storage Temp. - 40°C…+85°C
Environment Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II
MECHANICAL
Dimensions (HxWxD) 130x200x114,5 mm
Weight 3000g
AC Terminals Input Screw Terminal 3x AWG20 – AWG6 / 0,5 – 16mm² (L,N,PE)
DC Terminals Output Screw Terminal 4x AWG20 – AWG6 / 0,5 – 16mm² (+ + / - - )
Selection Table
MODEL HPV04801.072 HPV04801.110 HPV04801.150 HPV04801.220
Rated DC Voltage 72Vdc 110Vdc 150Vdc 220Vdc

DC Voltage

Setting Range

 58 – 86Vdc 86 – 132Vdc 132 – 180Vdc 180 – 240Vdc

Rated DC Current

 6,7A 4,4A 3,2A 2,2A

Power Boost

 7,4A 4,8A 3,5A 2,4A

Overvoltage Protection

 100Vdc 154Vdc 210Vdc 310Vdc

Ripple Peak

230Vac 20MHz

 150mV 200mV 300mV 400mV



Notes:

OR Failure Relay (option)

Yes, break contact, protective forced isolation to the inputs and the output 3000Vac

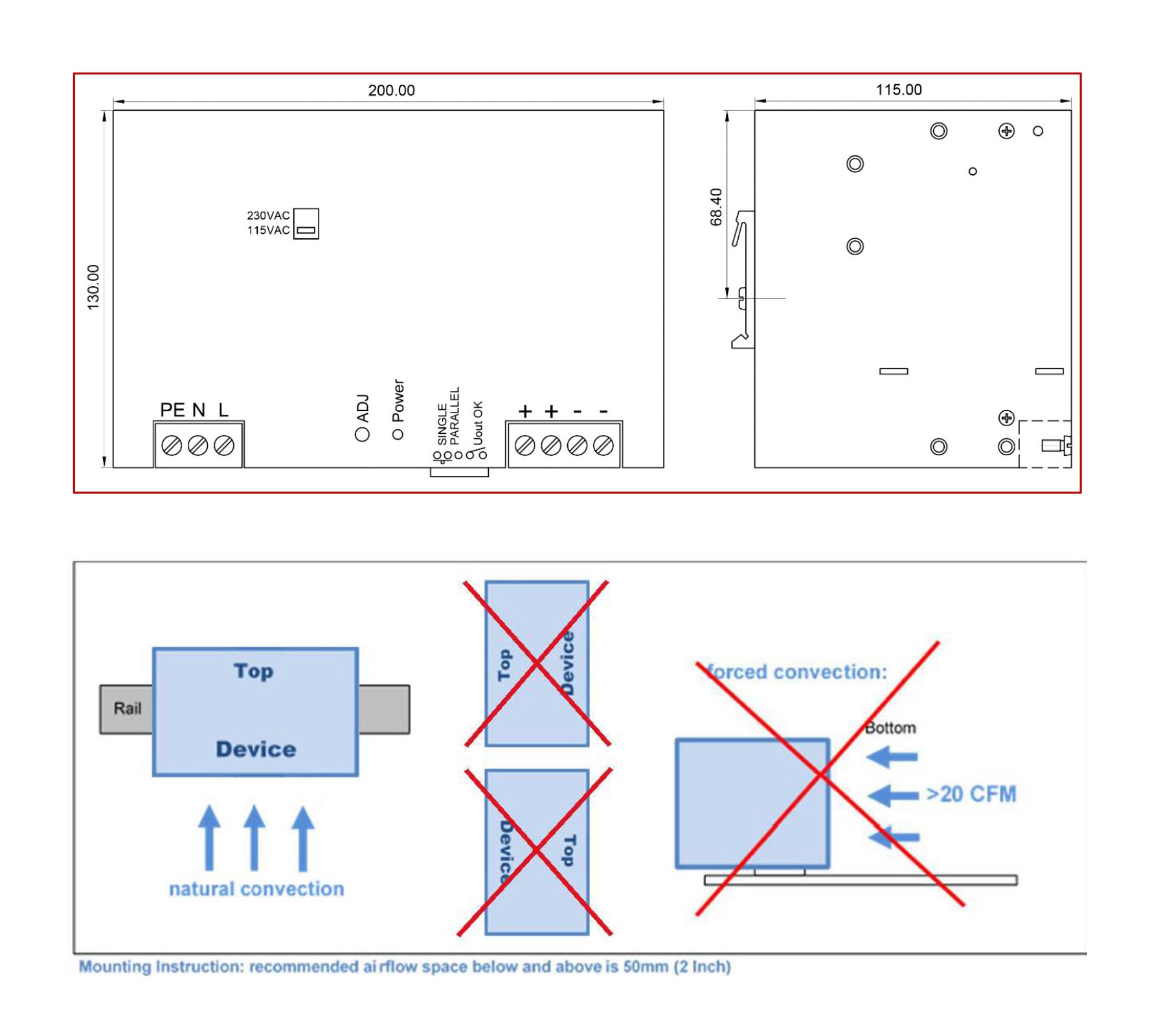

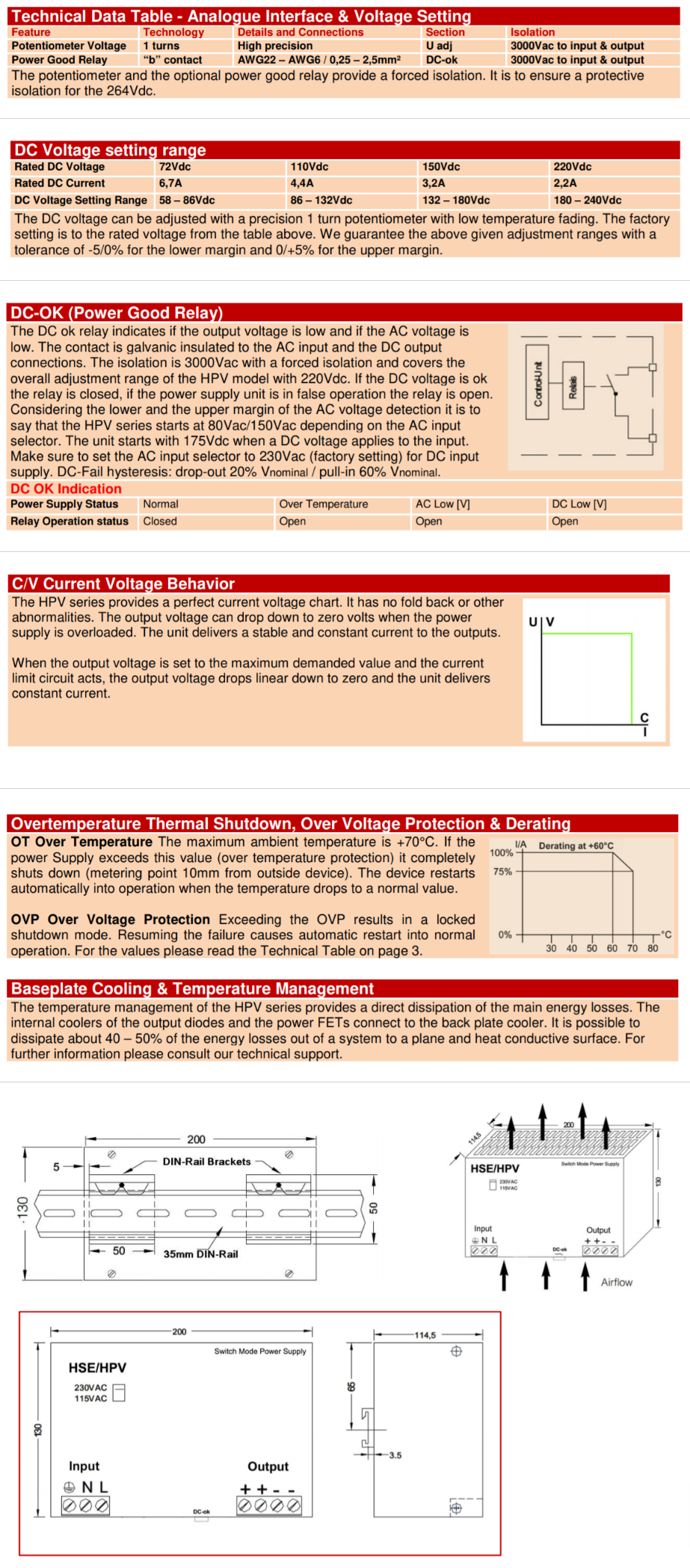

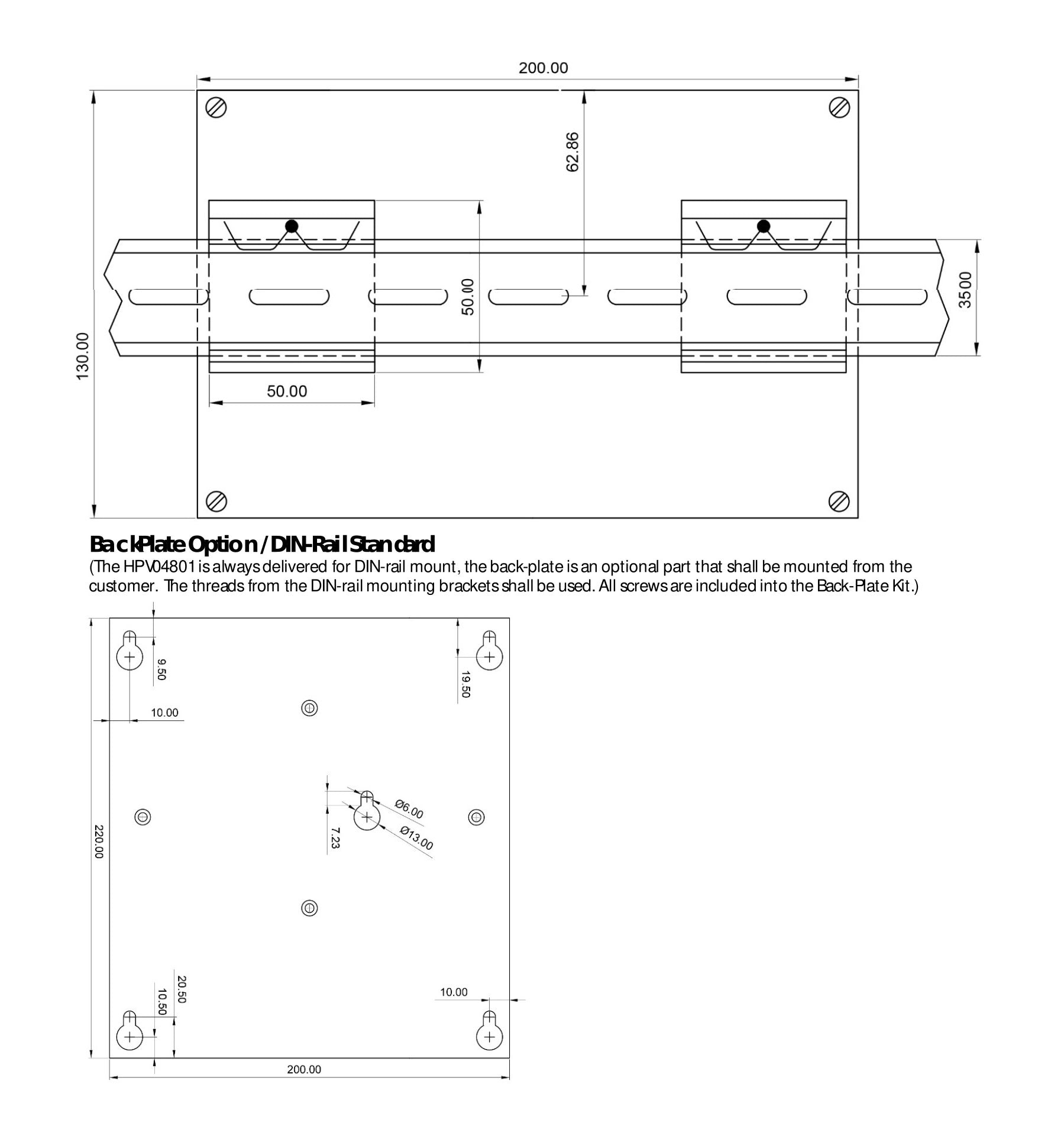

Technical Illustrations
Downloads
camtec-hpv04801-032002-00-0_datasheet.pdf
GENERAL
Output Voltage See selection table
AC Input Voltage

85..132Vac / 184..265Vac

(115/230Vac input selector, factory setting is 230Vac)
Frequency 47…63Hz
DC Input Voltage

250Vdc – 375Vdc

(input selector set to 230Vac)
AC Input Rating

115Vac<8.8A 230Vac<4.3A

(recommended circuit breaker type B with 16A or larger)
DC Input Rating

250Vdc<2.4A 375Vdc<1.6A

(input selector set to 230Vac rated)
Derating +60°C...+70°C 2.5%/°C
Accuracy < ± 1.5% interface
Load Regulation < ± 0.05% 0-100%
Response to Load Change <1ms 10-100%, 100-10%
Base Load None required (open circuit proof)
Efficiency Up to 93% at 90% load
Short Circuit Protection Continuous
Open Circuit Proof Continuous
Temperature Control Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm)
Hold Up Time >50ms 230Vac
Inrush Current NTC <40A 25°C cold start
Soft Start 100ms typical
STANDARDS AND APPROVALS
ROHS 2011/65/EG confirmed
REACH EG No. 1907/2006 confirmed
EMI EN55022 class B
EMS EN61000-6-2,3
Safety EN60950-1, EN60204-1
Safety class 1(A) VDE0805, VDE0100
RELIABILITY
Isolation paths > 8mm creepage distance & clearance paths
Input to Output Isolation 3000Vac
Input to Case Isolation 2500Vac
Output to Case 2100Vdc
MTBF 400000h (IEC61709)
MTTF 128124h (IEC61709)
ROHS conformity ROHS directive 2011/65/EU
ROHS conformity REACH conformity
ENVIRONMENTAL
Cooling Natural convection
Ambient Operating Temp. - 25°C…+70°C
Ambient Storage Temp. - 40°C…+85°C
Environment Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II
MECHANICAL
Dimensions (HxWxD) 130x200x114,5 mm
Weight 3000g
AC Terminals Input Screw Terminal 3x AWG20 – AWG6 / 0,5 – 16mm² (L,N,PE)
DC Terminals Output Screw Terminal 4x AWG20 – AWG6 / 0,5 – 16mm² (+ + / - - )
MODEL HPV04801.072 HPV04801.110 HPV04801.150 HPV04801.220
Rated DC Voltage 72Vdc 110Vdc 150Vdc 220Vdc

DC Voltage

Setting Range

 58 – 86Vdc 86 – 132Vdc 132 – 180Vdc 180 – 240Vdc

Rated DC Current

 6,7A 4,4A 3,2A 2,2A

Power Boost

 7,4A 4,8A 3,5A 2,4A

Overvoltage Protection

 100Vdc 154Vdc 210Vdc 310Vdc

Ripple Peak

230Vac 20MHz

 150mV 200mV 300mV 400mV



Notes:

OR Failure Relay (option)

Yes, break contact, protective forced isolation to the inputs and the output 3000Vac



camtec-hpv04801-032002-00-0_datasheet.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant HPV04801.072(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 72Vdc (Adj. 58 - 86Vdc) 6.7A
product variant HPV04801.110(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 110Vdc (Adj. 86 - 132Vdc) 4.4A
product variant HPV04801.150(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 150Vdc (Adj. 132 - 180Vdc) 3.2A
product variant HPV04801.220(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 220Vdc (Adj. 180 - 240Vdc) 2.2A

Need help finding the right product model?
