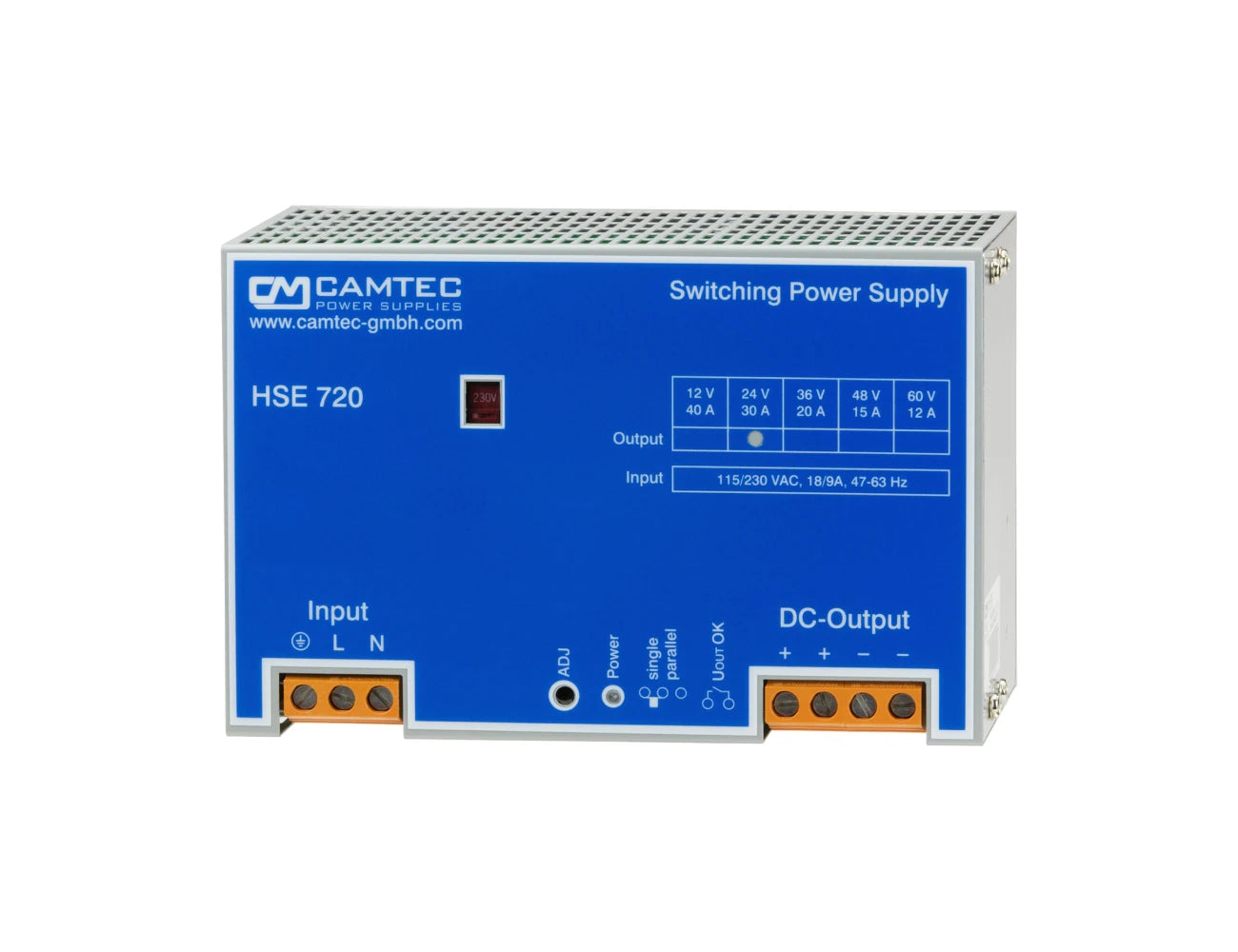

Camtec HSE07201 SERIES AC/DC Power Supply
The Camtec HSE07201 Series AC/DC Power Supply is an industry-leading solution for high-performance and critical industrial applications. Delivering up to 720W of power with 91% efficiency, this compact DIN-rail mounted power supply is built for environments that demand consistent, long-term reliability. Engineered in Germany, the HSE07201 Series...
Read MoreThe Camtec HSE07201 Series AC/DC Power Supply is an industry-leading solution for high-performance and critical industrial applications. Delivering up to 720W of power with 91% efficiency, this compact DIN-rail mounted power supply is built for environments that demand consistent, long-term reliability. Engineered in Germany, the HSE07201 Series is optimised for use in galvanic systems, UPS setups, professional DC drives, and complex load scenarios.
This power supply features natural convection cooling, precision dynamic response to load changes, and a precision current voltage curve that ensures optimal performance. Equipped with advanced safety mechanisms, it offers overvoltage protection, continuous short-circuit protection, and a robust internal filtering system to guard against transients. The HSE07201 Series operates seamlessly with N+1 parallel redundancy and is engineered to handle high stress, utilising long-life, low ESR capacitors to maintain stability under full load.
With a wide AC input range and adjustable output voltages (12Vdc to 60Vdc), the HSE07201 Series provides flexibility to cater to a variety of requirements. It meets strict EMI/EMS standards (EN55032 Class B, EN61000-6-2/3) and is certified for safety (EN61010-1, EN62368-1). Designed with shock and vibration resistance, this power supply ensures durability in even the harshest conditions. Trust the Camtec HSE07201 Series for superior efficiency, reliability, and performance in demanding industrial applications.
Show Less
Features
- 720 Watts Supply
- TS35mm DIN-Rail. Metal housing
- Up to 91% efficiency
- -20°C...+60°C full output power
- Free air convection
- Galvanic insulated
- Continuous short circuit protected
- Overload & low voltage protected
- Soft start & auto-recovery
- EMI/EMS EN61000-6-2/3. EN55022 class B
- High reliability. Shock & vibration resistant
Specifications
| GENERAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Voltage | See selection table | ||||||||||||||||||||||||||||||||||||||||||||||||
| AC Input Voltage | 85..132Vac / 184..265Vac | ||||||||||||||||||||||||||||||||||||||||||||||||
| Tolerance | ± 1% | ||||||||||||||||||||||||||||||||||||||||||||||||
| Load regulation | < ± 0.5% 10-100%, 100-10% | ||||||||||||||||||||||||||||||||||||||||||||||||
| Switching Frequency | 100KHz typical | ||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Load | 0 A | ||||||||||||||||||||||||||||||||||||||||||||||||
| Efficiency | Up to 91% | ||||||||||||||||||||||||||||||||||||||||||||||||
| Load Protection | 1,1x Irated ,auto recovery | ||||||||||||||||||||||||||||||||||||||||||||||||
| Voltage Protection | 140% of Uout , auto recovery | ||||||||||||||||||||||||||||||||||||||||||||||||
| Short Circuit Protection | Continuous | ||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature Control | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||
| Hold Up Time | > 30ms 230Vac | ||||||||||||||||||||||||||||||||||||||||||||||||
| Inrush Current | < 81A (230Vac) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Suggested MCB | C16A | ||||||||||||||||||||||||||||||||||||||||||||||||
| Softstart | 100ms typical | ||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARDS AND APPROVALS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EMI | EN55022 class B | ||||||||||||||||||||||||||||||||||||||||||||||||
| EMS | EN61000-6-2,3 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Safety | EN60950-1, EN60204-1 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Safety class 1(A) | VDE0805, VDE0100 | ||||||||||||||||||||||||||||||||||||||||||||||||
| RELIABILITY | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air & Surface Leakage Paths | > 8mm | ||||||||||||||||||||||||||||||||||||||||||||||||
| Input/Output |
AC-Input/DC-Output : 3KV (4,2KV bei 48V-Version), Input/GND 2KV, Output/GND 500Vdc |
||||||||||||||||||||||||||||||||||||||||||||||||
| Power Good Relay (opener) |
<48Vdc/500mA (galv. insulated) |
||||||||||||||||||||||||||||||||||||||||||||||||
| MTBF IEC61709 |
499.092h (40°C) |
||||||||||||||||||||||||||||||||||||||||||||||||
| MTTF IEC60050 |
127.116h (40°C/230Vac/75%) |
||||||||||||||||||||||||||||||||||||||||||||||||
| ROHS |
2011/65/EG confirmed |
||||||||||||||||||||||||||||||||||||||||||||||||
| REACH |
EG No. 1907/2006 confirmed |
||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling | Natural convection | ||||||||||||||||||||||||||||||||||||||||||||||||
| Ambient Temperature | - 20°C…+70°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | - 40°C…+85°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity Operation |
95% non condensing @ 25°C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Klimatic Class |
3K3 |
||||||||||||||||||||||||||||||||||||||||||||||||
| Pollution Degree |
II A |
||||||||||||||||||||||||||||||||||||||||||||||||
| Operation Altitude |
3000m above sea level |
||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions (HxWxD) |
130x200x118mm |
||||||||||||||||||||||||||||||||||||||||||||||||
| Weight |
3000g |
||||||||||||||||||||||||||||||||||||||||||||||||
| Screw Connectors |
(AC & DC) AWG20...AWG6 |
||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| MODEL | HSE07201.12T | HSE07201.24T | HSE07201.36T | HSE07201.48T | HSE07201.60T |
|---|---|---|---|---|---|
| Rated DC Voltage | 12Vdc | 24Vdc | 36Vdc | 48Vdc | 60Vdc |
| DC Adjust | 11,4-14,4Vdc | 22,8 - 28,8Vdc | 34,2 - 34,2Vdc | 45,6 - 52,8Vdc | 57,0-66,0Vdc |
| DC Continuous Current | 40.0A | 30.0A | 20.0A | 15.0A | 12.0A |
| Boost ≤60 Seconds | 44.0A | 33.0A | 22.0A | 16.5A | 13.2A |
|
Ripple [mVpp] (230Vac/20MHz) |
50mVpp | 50mVpp | 100 mVpp | 100mVpp | 120mVpp |
|
Notes: |
Coating Option add 'C' to model number, eg HSE07201.24TC We offer the HSE optional coating. It is to be used in e.g. dusty, dirty, high humidity, or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. It is procured with a robotics varnishing machine. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0 |
||||

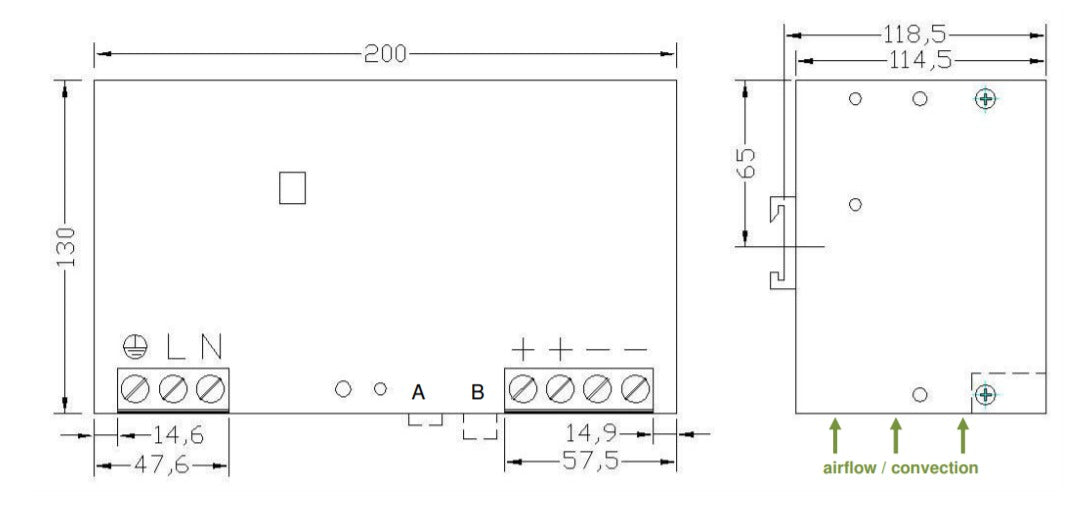

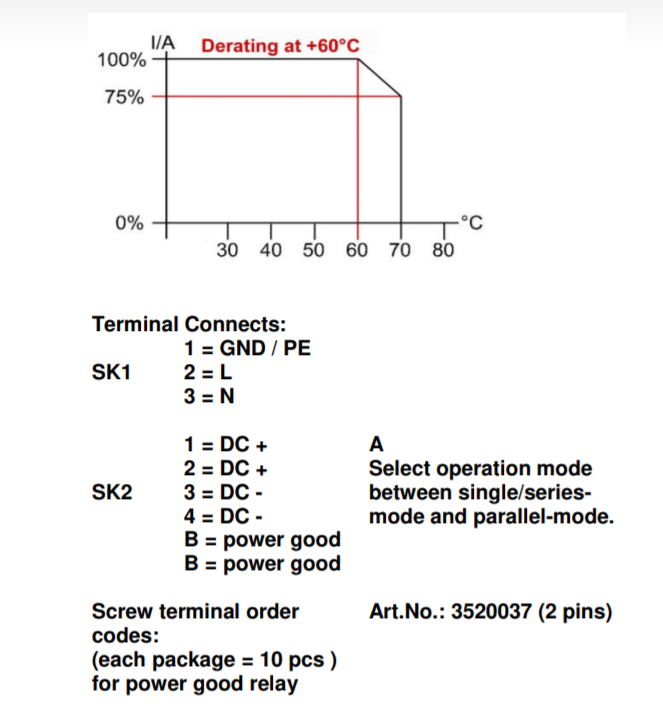

Technical Drawings
