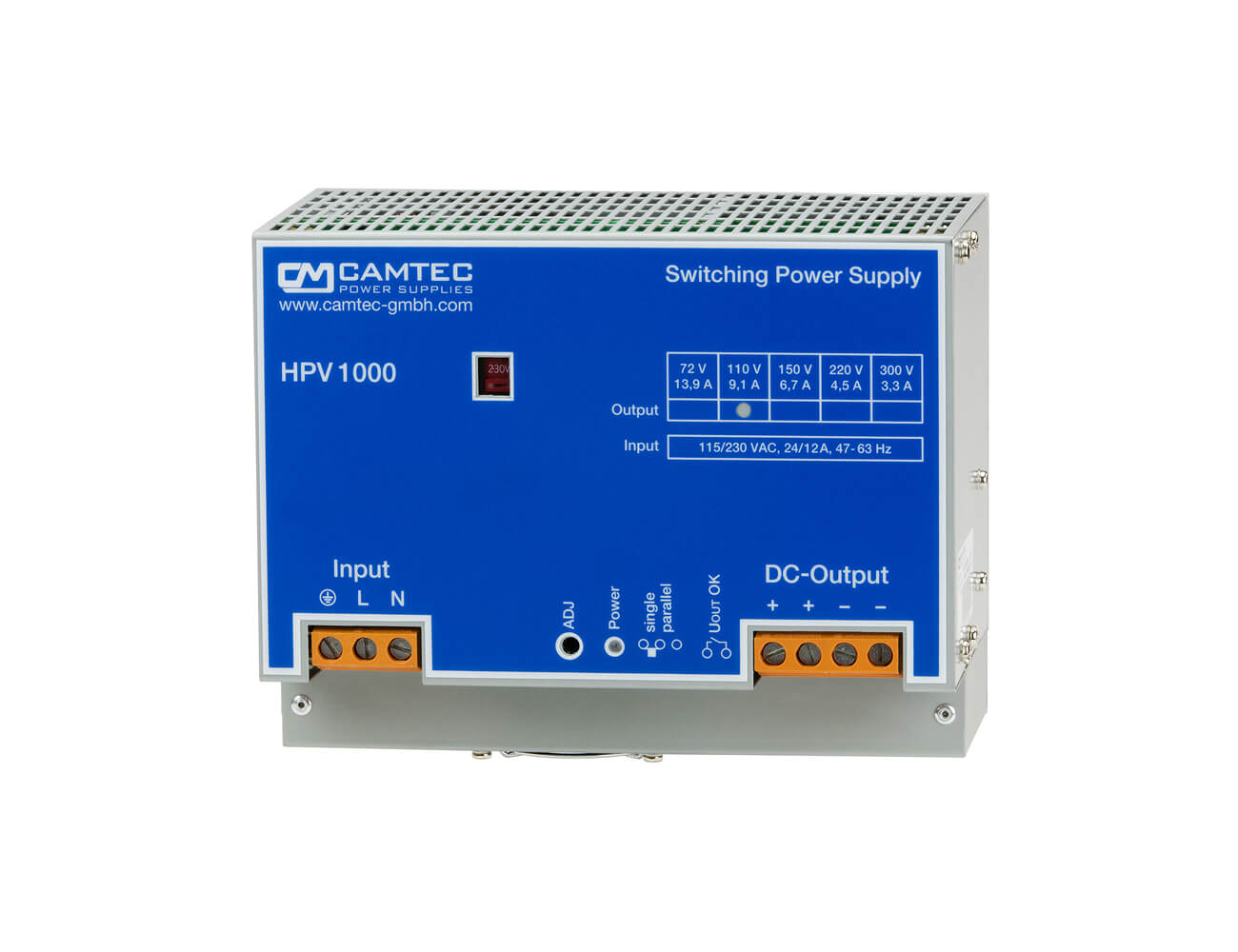

Camtec HPV10001 SERIES AC/DC Power Supply
The Camtec HPV10001 Series AC/DC Power Supply delivers exceptional performance for high-demand industrial applications, providing up to 1008W of continuous power with an impressive efficiency of up to 93%. Engineered in Germany, this robust power supply is designed for DIN-rail mounting and is ideal for applications such as precision DC drives, piezo print heads, professional machine building, and test stands.
Read More
Features
- 1008 Watts Industrial Power Supply
- Mains supply with high output voltage
- TS35mm DIN-Rail
- C/V curve down to 0V. No fold back
- Power Good Relay AC & DC-ok optional
- Efficiency up to 93%
Specifications
Selection Table

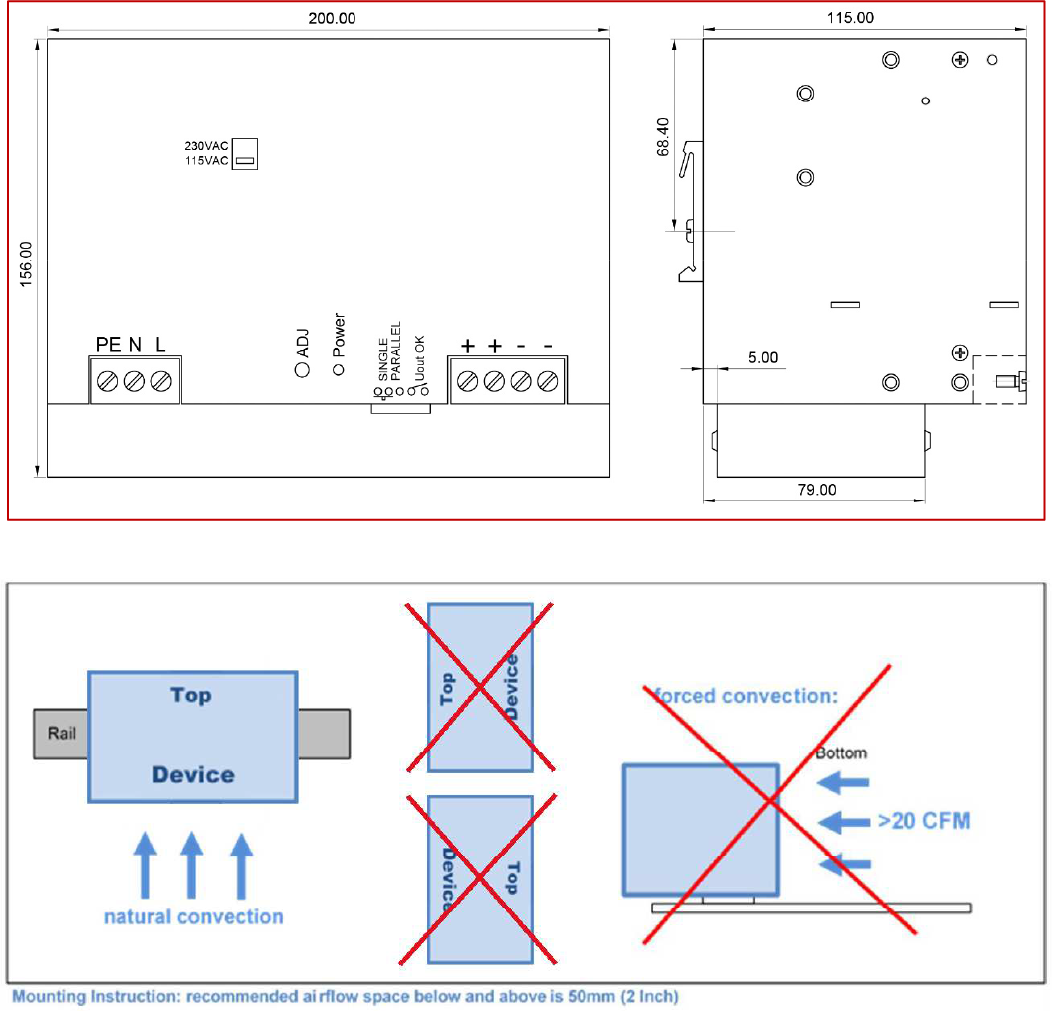

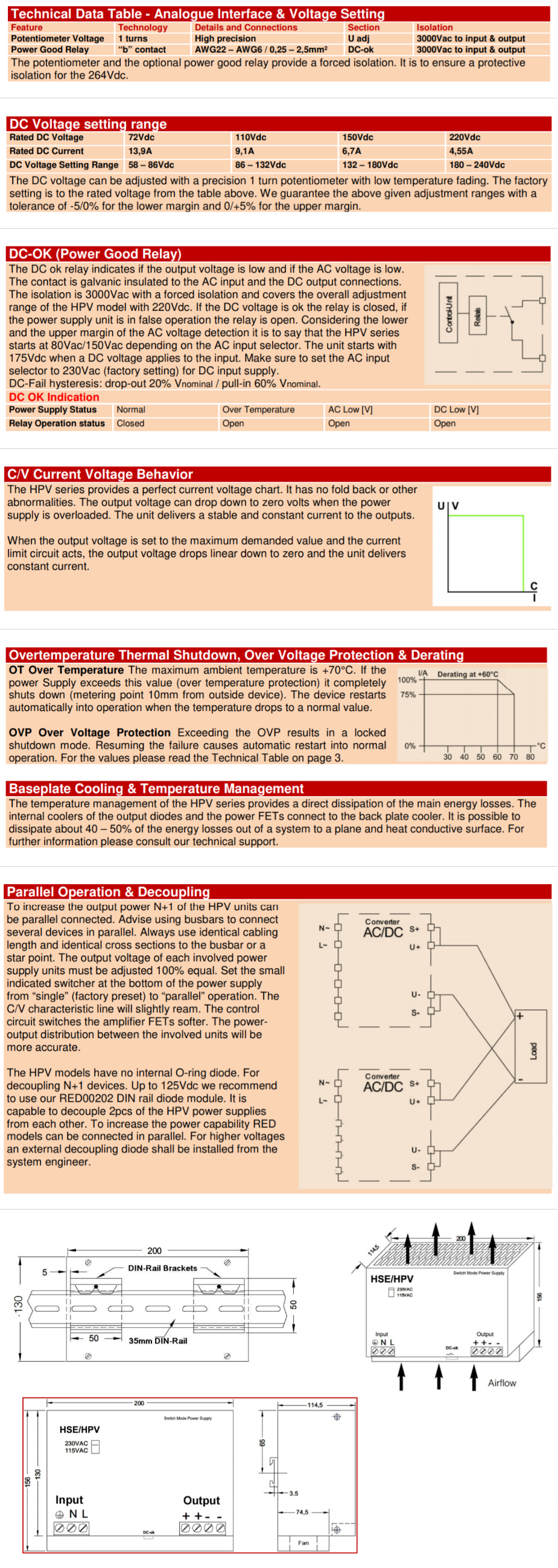

Technical Illustrations
Downloads
| GENERAL | |
|---|---|
| Output Voltage | See selection table |
| AC Input Voltage | 85..132Vac / 184..265Vac (115/230Vac input selector, factory setting is 230Vac) |
| Frequency | 47- 63Hz |
| DC Input Range | 250Vdc - 375Vdc (input selector set to 230Vac) |
| AC Input Rating | 115Vac<16.8A 230Vac<9A (recommended CB type C16A (230Vac) or C20A (115Vac) or larger) |
| DC Input Rating | 250Vdc<5A 375Vdc<3.3A (input selector set to 230Vac rated) |
| OR Failure Relay (option) | Yes, break contact, protective forced isolation to the inputs and the output 3000Vac |
| Derating | +60°C...+70°C 2.5%/°C |
| Accuracy | < ± 1.5% interface |
| Load Regulation | < ± 0.05% 0-100% |
| Response to Load Change | <1ms 10-100%, 100-10% |
| Base Load | None required (open circuit proof) |
| Efficiency 230Vac | Up to 93% at 90% load |
| Short Circuit Protection | Continuous |
| Open Circuit Proof | Continuous |
| Temperature Control | Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm) |
| Hold Up Time | >30ms 230Vac |
| Inrush Current | NTC <84A 25°C cold start |
| Soft Start | 100ms typical |
| RELIABILITY | |
|---|---|
| Isolation paths | > 8mm creepage distance & clearance paths |
| Input to Output Isolation | 3000Vac |
| Input to Case Isolation | 2500Vac |
| Output to Case | 2100Vdc |
| MTBF | 400000h (IEC61709) |
| MTTF | 127196h (IEC61709) |
| ROHS conformity | ROHS directive 2011/65/EU |
| REACH conformity | REACH directive 1907/2006 |
| STANDARDS AND APPROVALS | |
|---|---|
| EMI | EN55022 class B |
| EMS | EN61000-6-2,3 |
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Controlled fan from manufacturer EBM Papst (Germany) |
| Ambient Operating Temp. | - 25°C+70°C |
| Ambient Storage Temp. | - 40°C+85°C |
| Environment | Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 156x200x114,5 mm |
| Weight | 3200g |
| AC Terminals | Input Screw Terminal 3x AWG20 - AWG6 / 0,5 - 16mm² (L,N,PE) |
| DC Terminals | Output Screw Terminal 4x AWG20 - AWG6 / 0,5 - 16mm² (+ + / - - ) |
| MODEL | HPV10001.072 | HPV10001.110 | HPV10001.150 | HPV10001.220 |
|---|---|---|---|---|
| Rated DC Voltage | 72Vdc | 110Vdc | 150Vdc | 220Vdc |
| DC Voltage Range | 58 – 86Vdc | 86 – 132Vdc | 132 – 180Vdc | 180 – 240Vdc |
| Rated DC Current | 13,9A | 9,1A | 6,7A | 4,55A |
| Power Boost | 14,6A | 9,6A | 7A | 4,8A |
| Overvoltage Protection | 100Vdc | 154Vdc | 210Vdc | 310Vdc |
| Ripple Peak 230Vac 20MHz |
200mV | 250mV | 250mV | 300mV |
| Notes: | Coating Option add 'C' to model number, eg HPV10001.110TPGC We offer the HPV series with an optional coating. It is to be used in e.g. dusty, dirty, high humidity area or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0 | |||
| GENERAL | |
|---|---|
| Output Voltage | See selection table |
| AC Input Voltage | 85..132Vac / 184..265Vac (115/230Vac input selector, factory setting is 230Vac) |
| Frequency | 47- 63Hz |
| DC Input Range | 250Vdc - 375Vdc (input selector set to 230Vac) |
| AC Input Rating | 115Vac<16.8A 230Vac<9A (recommended CB type C16A (230Vac) or C20A (115Vac) or larger) |
| DC Input Rating | 250Vdc<5A 375Vdc<3.3A (input selector set to 230Vac rated) |
| OR Failure Relay (option) | Yes, break contact, protective forced isolation to the inputs and the output 3000Vac |
| Derating | +60°C...+70°C 2.5%/°C |
| Accuracy | < ± 1.5% interface |
| Load Regulation | < ± 0.05% 0-100% |
| Response to Load Change | <1ms 10-100%, 100-10% |
| Base Load | None required (open circuit proof) |
| Efficiency 230Vac | Up to 93% at 90% load |
| Short Circuit Protection | Continuous |
| Open Circuit Proof | Continuous |
| Temperature Control | Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm) |
| Hold Up Time | >30ms 230Vac |
| Inrush Current | NTC <84A 25°C cold start |
| Soft Start | 100ms typical |
| RELIABILITY | |
|---|---|
| Isolation paths | > 8mm creepage distance & clearance paths |
| Input to Output Isolation | 3000Vac |
| Input to Case Isolation | 2500Vac |
| Output to Case | 2100Vdc |
| MTBF | 400000h (IEC61709) |
| MTTF | 127196h (IEC61709) |
| ROHS conformity | ROHS directive 2011/65/EU |
| REACH conformity | REACH directive 1907/2006 |
| STANDARDS AND APPROVALS | |
|---|---|
| EMI | EN55022 class B |
| EMS | EN61000-6-2,3 |
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Controlled fan from manufacturer EBM Papst (Germany) |
| Ambient Operating Temp. | - 25°C+70°C |
| Ambient Storage Temp. | - 40°C+85°C |
| Environment | Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 156x200x114,5 mm |
| Weight | 3200g |
| AC Terminals | Input Screw Terminal 3x AWG20 - AWG6 / 0,5 - 16mm² (L,N,PE) |
| DC Terminals | Output Screw Terminal 4x AWG20 - AWG6 / 0,5 - 16mm² (+ + / - - ) |
| MODEL | HPV10001.072 | HPV10001.110 | HPV10001.150 | HPV10001.220 |
|---|---|---|---|---|
| Rated DC Voltage | 72Vdc | 110Vdc | 150Vdc | 220Vdc |
| DC Voltage Range | 58 – 86Vdc | 86 – 132Vdc | 132 – 180Vdc | 180 – 240Vdc |
| Rated DC Current | 13,9A | 9,1A | 6,7A | 4,55A |
| Power Boost | 14,6A | 9,6A | 7A | 4,8A |
| Overvoltage Protection | 100Vdc | 154Vdc | 210Vdc | 310Vdc |
| Ripple Peak 230Vac 20MHz |
200mV | 250mV | 250mV | 300mV |
| Notes: | Coating Option add 'C' to model number, eg HPV10001.110TPGC We offer the HPV series with an optional coating. It is to be used in e.g. dusty, dirty, high humidity area or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0 | |||
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage (Vdc) | Output Current (A) | ||
|---|---|---|---|---|---|
|
HPV10001.072(R2) | 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) | 72Vdc (Adj. 58 - 86Vdc) | 13.9A | |
|
|
HPV10001.110(R2) | 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) | 110Vdc (Adj. 86 - 132Vdc) | 9.1A | |
|
|
HPV10001.150(R2) | 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) | 150Vdc (Adj. 132 - 180Vdc) | 6.7A | |
|
|
HPV10001.220(R2) | 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) | 220Vdc (Adj. 180 - 240Vdc) | 4.6A |
