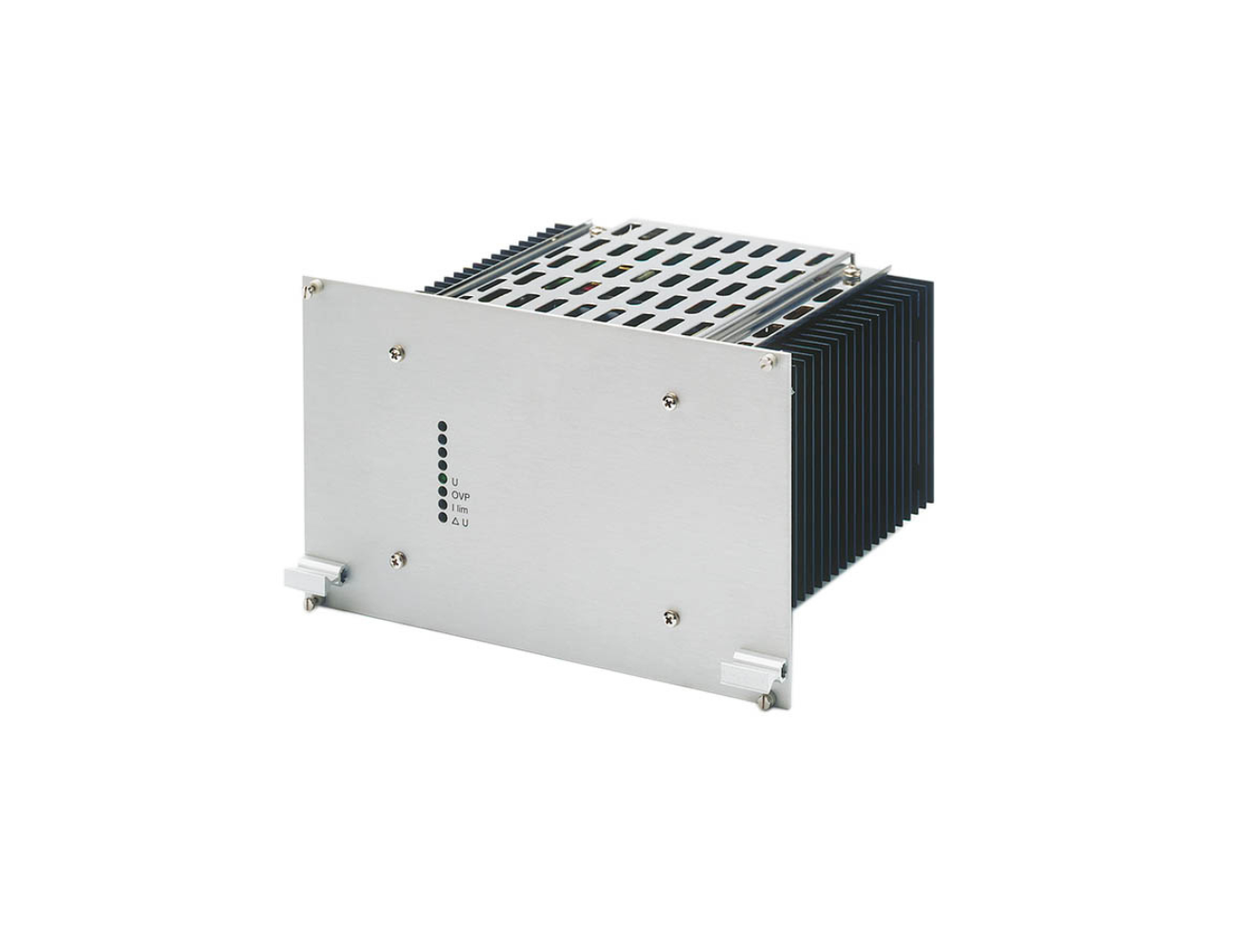

Schaefer S600A SERIES AC/DC Power Supply

The S600A series, part of Schaefer’s Euro Series, is a robust industrial-grade AC/DC power supply that delivers between 200 to 350 watts. This series is particularly noted for its high operational temperature range and configurable options such as hot pluggability and DIN rail mounting, which make it suitable for a wide array of industrial applications. The supply is designed to meet rigorous standards, ensuring high efficiency and reliability with multiple mechanical configurations available to accommodate various installation needs. With its strong build and performance stability, the S600A is engineered to support the most demanding industrial tasks.

View Models
Schaefer S600A SERIES AC/DC Power Supply

Features

  • Industrial Grade AC/DC Power Supply
  • Output Power: 350W
  • AC Input: 1-Phase and 3-Phase Models
  • Wide Range of DC outputs: 5, 9, 12, 15, 24, 28, 48, 60, 110, 220
  • Flexible mounting options via Din, Chassis, Wall or Euro Cassette (19" rackmount)
  • Natural Convection Cooling, with operating up to 75°C
Specifications
INPUT
Input voltage 1ph 115/230Vac
3ph 200/400/480Vac
See selection table
Units will turn off with under or over input voltage.
No-load input power 3-6W model (series dependant)
Inrush current AC input limited by thermistor
Switch on time 1-2 seconds.
Input Options Option au: Autoranging for 115/230Vac input Option pr: Power OK via relay contacts
OUTPUT
Output voltage Voltage range; 5 - 220Vdc See selection table
Output current See selection table.
Ripple & noise 1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 2-3ms typical ±1%
Temperature coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 100mS typical (soft start)
Remote sensing Standard for all series
Efficiency 80%-92% typical
Output Options Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option h: Remote on/off (inhibit)
Option dr: DC OK via relay contacts
PROTECTION
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation
Protection Options Option i: Inrush Current Limiting Option sd: Reverse polarity protection for DC input by Series Diode
MTBF 100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
ENVIRONMENTAL
Operating temperature -20°C to +75°C (optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Environment Options Option c: Extended temperature range to -40°C
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
C-Tick AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529 NEMA or others on request
MECHANICAL
Mounting See technical illustrations Eurocassette, pluggable module for 19" subrack Option w: Wall Mounting
Option cha: Chassis Mounting
Option din: DIN Rail Mounting
Dimensions See Technical illustration
Connector H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options Option ms: Increased Mechanical Strength
Option t: Tropical protection
19" Rack Mounting Options Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration
Selection Table
INPUT 115VAC
± 20%		 INPUT 230VAC +15% - 20% INPUT 115
± 20% 230VAC +15% - 20%		 INPUT 3 X 200VAC
+ 15% - 20%		 COOLING HEATSINK OUTPUT AMPS OUTPUT VOLTAGE. VOLTAGE ADJUSTMENT
S660 S680 S690 S660V H 50 5 4.5 - 5.5
S661 S681 S691 S661V H 32 9 8 - 10
S662 S682 S692 S662V H 26 12 11 - 13
S663 S683 S693 S663V H 22 15 14 - 16
S664 S684 S694 S664V H 14 24 23 - 26
S665 S685 S695 S665V H 12 28 26 - 30
S669 S689 S699 S669V H 6.5 48 45 - 55
S666 S686 S696 S666V H 5.2 60 58 - 68
S667 S687 S697 S667V H 3 110 100 - 130
S668 S688 S698 S668V H 1.5 220 200 - 250

Cooling
H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table

Model configuration options: Add the options to the model number, eg. C560-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow.
19" Rack Mounting Options Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration
Model designation options: Add the designation of options to the model number, eg. S660-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow
INPUT OPTIONS
Option “i” (inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd” (series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad” (anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au” (auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p” (power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r” (relay): A relay instead of a logic signal is provided for failure indication.
Output Options
Option “dd” (decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs” (active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating in parallel.
Option “csi” (current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1” (inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2” (inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco” (reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d” (DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m” (DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac” (AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y" (sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r" (relay): A relay instead of a logic signal is provided for failure indication.
Environment Options
Option "t" (tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c" (extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" (increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.
Mechanical Options
Standard mounting "Eurocassette" pluggable module for 19" sub-racks 8
Option "w" (wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha" (chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din" (DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.

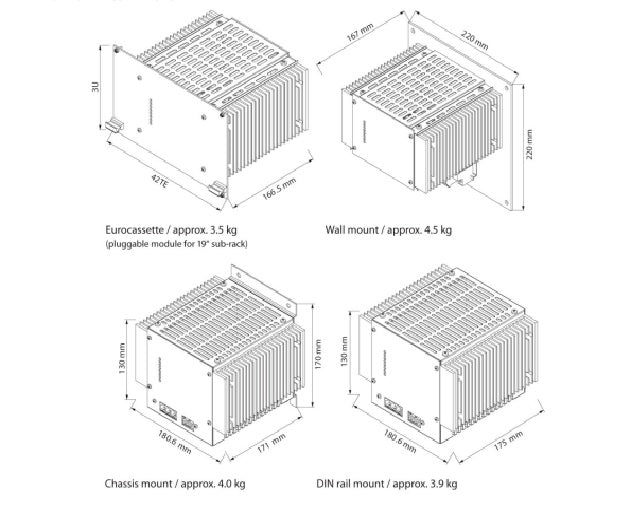

Technical Illustrations

Downloads
Schaefer_s600-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf
INPUT
Input voltage 1ph 115/230Vac
3ph 200/400/480Vac
See selection table
Units will turn off with under or over input voltage.
No-load input power 3-6W model (series dependant)
Inrush current AC input limited by thermistor
Switch on time 1-2 seconds.
Input Options Option au: Autoranging for 115/230Vac input Option pr: Power OK via relay contacts
OUTPUT
Output voltage Voltage range; 5 - 220Vdc See selection table
Output current See selection table.
Ripple & noise 1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 2-3ms typical ±1%
Temperature coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 100mS typical (soft start)
Remote sensing Standard for all series
Efficiency 80%-92% typical
Output Options Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option h: Remote on/off (inhibit)
Option dr: DC OK via relay contacts
PROTECTION
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation
Protection Options Option i: Inrush Current Limiting Option sd: Reverse polarity protection for DC input by Series Diode
MTBF 100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
ENVIRONMENTAL
Operating temperature -20°C to +75°C (optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Environment Options Option c: Extended temperature range to -40°C
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
C-Tick AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529 NEMA or others on request
MECHANICAL
Mounting See technical illustrations Eurocassette, pluggable module for 19" subrack Option w: Wall Mounting
Option cha: Chassis Mounting
Option din: DIN Rail Mounting
Dimensions See Technical illustration
Connector H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options Option ms: Increased Mechanical Strength
Option t: Tropical protection
19" Rack Mounting Options Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration
INPUT 115VAC
± 20%		 INPUT 230VAC +15% - 20% INPUT 115
± 20% 230VAC +15% - 20%		 INPUT 3 X 200VAC
+ 15% - 20%		 COOLING HEATSINK OUTPUT AMPS OUTPUT VOLTAGE. VOLTAGE ADJUSTMENT
S660 S680 S690 S660V H 50 5 4.5 - 5.5
S661 S681 S691 S661V H 32 9 8 - 10
S662 S682 S692 S662V H 26 12 11 - 13
S663 S683 S693 S663V H 22 15 14 - 16
S664 S684 S694 S664V H 14 24 23 - 26
S665 S685 S695 S665V H 12 28 26 - 30
S669 S689 S699 S669V H 6.5 48 45 - 55
S666 S686 S696 S666V H 5.2 60 58 - 68
S667 S687 S697 S667V H 3 110 100 - 130
S668 S688 S698 S668V H 1.5 220 200 - 250

Cooling
H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table

Model configuration options: Add the options to the model number, eg. C560-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow.
19" Rack Mounting Options Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration
Model designation options: Add the designation of options to the model number, eg. S660-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow
INPUT OPTIONS
Option “i” (inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd” (series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad” (anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au” (auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p” (power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r” (relay): A relay instead of a logic signal is provided for failure indication.
Output Options
Option “dd” (decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs” (active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating in parallel.
Option “csi” (current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1” (inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2” (inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco” (reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d” (DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m” (DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac” (AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y" (sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r" (relay): A relay instead of a logic signal is provided for failure indication.
Environment Options
Option "t" (tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c" (extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" (increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.
Mechanical Options
Standard mounting "Eurocassette" pluggable module for 19" sub-racks 8
Option "w" (wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha" (chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din" (DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.
Schaefer_s600-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant S660 115Vac ± 20 % 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 50A
product variant S661 115Vac ± 20 % 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 32A
product variant S662 115Vac ± 20 % 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 26A
product variant S663 115Vac ± 20 % 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 22A
product variant S664 115Vac ± 20 % 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 14A
product variant S665 115Vac ± 20 % 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 12A
product variant S669 115Vac ± 20 % 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 6.5A
product variant S666 115Vac ± 20 % 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 5.2A
product variant S667 115Vac ± 20 % 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 3A
product variant S668 115Vac ± 20 % 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 1.5A
product variant S680 230Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 50A
product variant S681 230Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 32A
product variant S682 230Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 26A
product variant S683 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 22A
product variant S684 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 14A
product variant S685 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 12A
product variant S689 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 6.5A
product variant S686 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 5.2A
product variant S687 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 3A
product variant S688 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 1.5A
product variant S690 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 50A
product variant S691 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 32A
product variant S692 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 26A
product variant S693 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 22A
product variant S694 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 14A
product variant S695 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 12A
product variant S699 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 6.5A
product variant S696 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 5.2A
product variant S697 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 3A
product variant S698 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 1.5A
product variant S660 V 3 x 200Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 50A
product variant S661 V 3 x 200Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 32A
product variant S662 V 3 x 200Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 26A
product variant S663 V 3 x 200Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 22A
product variant S664 V 3 x 200Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 14A
product variant S665 V 3 x 200Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 12A
product variant S669 V 3 x 200Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 6.5A
product variant S666 V 3 x 200Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 5.2A
product variant S667 V 3 x 200Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 3A
product variant S668 V 3 x 200Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 1.5A
