AC/DC Power Supplies

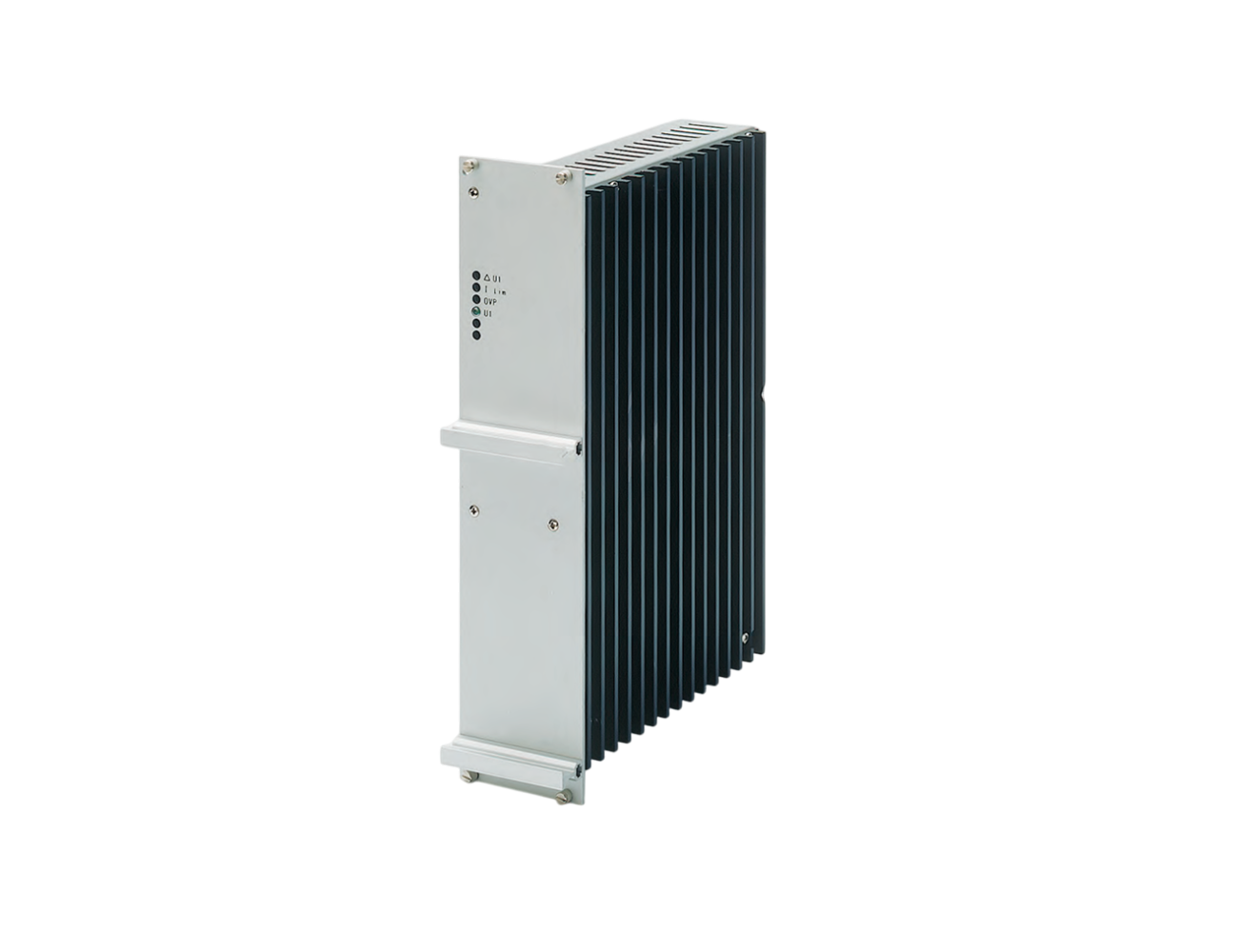

Schaefer C1300A-SERIES AC/DC Power Supply

The Schaefer C1300A Series is a compact and efficient AC/DC power supply, delivering 400W of output power for industrial applications. With a range of DC output voltages from 5Vdc to 220Vdc, the C1300A Series supports flexible system configurations. Its extremely low profile of 14TE allows up to six units to be installed within a 6U subrack, making it ideal for space-constrained environments. Natural convection cooling enhances reliable performance, making the C1300A Series a versatile solution for high-demand applications.

View Models
Schaefer C1300A-SERIES AC/DC Power Supply

Features

  • Industrial Grade 400W AC/DC Power Supply
  • AC Input: 1-Phase and 3-Phase Models
  • Wide Range of DC outputs: 5, 9, 12,15, 24, 28, 48, 60, 110 and 220
  • Extremely narrow profile with flexible mounting options via Chassis, Wall or Euro Cassette (19" rackmount via 6U subrack)
  • Natural Convection Cooling, with temperature operation up to 75 °C
Specifications
INPUT
Input voltage 1ph 115/230Vac
See selection table
Units will turn off with under or over input voltage.
No-load input 5 - 6W typical
Inrush current AC input: limited by thermistor
Hold-up time AC input: 10ms typical @ nom. input voltage
Immunity acc. to EN 61000-6-2
Input Options See selection table for details
Option i: Inrush current limiting
Option ie: Electronic inrush current limiting
Option sd: Reverse polarity protection for DC input by input by series diode
Option ad: Reverse polarity protection for DC input by anti parallel diode
Option au: Auto-ranging
OUTPUT
Output voltage Voltage range; 4.5 - 400Vdc
See selection table
Output power 400W
Output current See selection table
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 2-3ms typical ±1%
Turn on rise time 100mS typical (soft start)
Ripple <1% + 30mVp-p
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation
Remote sense Standard for all series
Temp coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Efficiency 80 - 92% typical
Output Options See selection table for details
Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option csi: Current sharing interrupt (“cs” included)
Option icsi: Current sharing interrupt (“csi” included), galvanically isolated
Option h1: Inhibit by external closing contact, signal referred to input
Option h2: Inhibit by voltage signal, signal referred to output
Option h3: Inhibit by closing contact, signal referred to output
Option rco: Reducing current limiting at over temperature
Option rd: Reverse polarity protection for DC output
Signal Options See selection table for details
Option pr: input voltage supervision (power ok) incl. relay contacts
Option dr: output voltage supervision (DC ok) incl. relay contacts
Option cf: charger / converter fail supervision incl. relay contacts
Option ac: AC ok for inverter including relay contacts
PROGRAMMING
Programming of output voltage from 0 to 100 % eu1: by external signal, 0 – 10 V
eu2: by external signal, 4 – 20 mA
eu3: by 270° potentiometer
eu4: by 10 turn potentiometer
Programming of output current from 0 to 100 % ei1: by external signal, 0 – 10 V
ei2: by external signal, 4 – 20 mA
ei3: by 270° potentiometer
ei4: by 10 turn potentiometer
Isolating amplifier for programming lso: Programming signal is galvanically isolated from any potentials of the power supply.
Programming via rs: RS232 (external)
can: CAN Bus (external)
MONITORING
Monitoring of output voltage from 0 to 100 % mu1: by external signal, 0 – 10 V
mu2: by external signal, 4 – 20 mA
Monitoring of output current from 0 to 100 % mi1: by external signal, 0 – 10 V
mi2: by external signal, 4 – 20 mA
Isolating amplifier for monitoring Iso: Monitoring signal is galvanically isolated from any potentials of the power supply.
Monitoring via rs: RS232 (external)
can: CAN Bus (external)
ENVIRONMENTAL
Operating temperature -20°C to +75°C
(optional -40 to 75C)
Load derating Derate 2.5% per °C, above +55°C
Cooling Heatsink - Natural Convection
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
Environment Options See selection table for details
Option t: Tropical protection
Option c: Extended temperature range
Option ms: Increased mechanical strength
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529 NEMA or others on request
MTBF approx 100K - 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
MECHANICAL

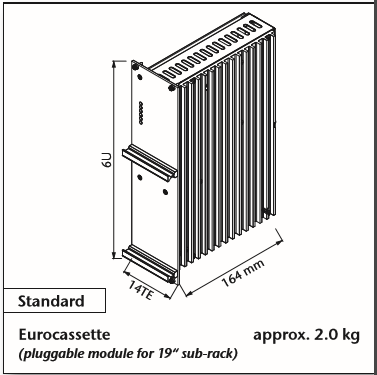

Mechanics Standard Module 6U pluggable module for 19" subrack
Dimensions See Technical illustration
Mechanical Options Option w: Wall Mounting
Option cha: Chassis Mounting
Selection Table
INPUT 115Vac ± 20% INPUT 230Vac +15% - 20% INPUT 3x200Vac +15% - 20% OUTPUT AMPS COOLING OUTPUT VOLTAGE VOLTAGE ADJUSTMENT
C1360 C1380 C1390 50 H 5 4.5 - 5.5
C1361 C1381 C1391 35 H 9 8 - 10
C1362 C1382 C1392 30 H 12 11-13
C1363 C1383 C1393 25 H 15 14-16
C1364 C1384 C1394 15 H 24 23-26
C1365 C1385 C1395 13 H 28 26-30
C1369 C1389 C1399 7.3 H 48 45 - 55
C1366 C1386 C1396 6 H 60 58 - 68
C1367 C1387 C1397 3 H 110 100-130
C5668 C1388 C1398 1.5 H 220 200-250
INPUT OPTIONS
Option “i” Inrush current limiting: A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” Electronic inrush current limiting: An electronic circuit limits the high inrush current caused by built-in capacitors. Switch- on time may increase to 5s. This is realized by a series pass transistor or depending on the input voltage by thyristor softstart..
Option “sd” Reverse polarity protection for DC input by series diode: A series diode protects the module against DC input voltage of wrong polarity. However, this also causes extra losses and reduces the overall efficiency..
Option “ad” Reverse polarity protection for DC input by anti parallel diode: To avoid the power losses a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply of wrong polarity.
Option “au” Auto-ranging: For standard dual AC input models the range of 115 / 230 V AC is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
OUTPUT OPTIONS
Option “dd” Decoupling diode: A series diode built into the units output allows paralleling of 2 or more units for redundancy or higher power or battery charging. For control purposes the anode of the diode is also available at the output connector. It cannot be loaded ≥ 0.5A. The sense signal is taken partially from the anode and partially from the load/cathode of the decoupling diode. This guarantees starting and operating under all conditions, but it also effects the regulation accuracy of 2%. In this way it gives a load sharing of 15-30% between the paralleled units.
Option “cs” Active current sharing: An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. The output lines of the converters have to be in “star point” connection
Option “csi” Current sharing interrupt (“cs” included)“csi” will effect the removal of the “cs” signal from the load voltage common connection. Should there be an instance where a unit is not supplying the load, then the effect of its current sharing signal is removed, and the load voltage is unaffected by this condition. In terms of calibration the same criteria follow as for parallel operation.
Option “icsi” Current sharing interrupt (“csi” included), galvanically isolated: The inclusion of “csi” (current sharing interrupt) and the galvanic isolation is the optimum set up for systems with high power or high currents, were the voltage drop on the power wiring could influence the cs signal.
Option “h1” Inhibit by external closing contact, signal referred to input: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the input. This can also be used in combination with a thermal trip, which shuts the unit down.
Option “h2” Inhibit by voltage signal, signal referred to output: Operation of the unit is inhibited if a voltage signal (5V / 10mA) is applied in reference to the negative line of the output
Option “h3” Inhibit by closing contact, signal referred to output: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the output. This can also be used in combination with a thermal trip, which shuts the unit down. Please note: Only relevant solution for inverters.
Option “rco” Reducing current limiting at over temperature: A circuit reduces the current limiting level at higher temperature (to be specified).
Option "rd" Reverse polarity protection for DC output: by reverse diode with external fuse.
SIGNAL OPTIONS
Option “pr” input voltage supervision (power ok) incl. relay contacts: A logic signal is given if the input voltage (AC or DC) drops below the specified limit. In AC input models the rectified input voltage is sensed so that a power fail alarm can be avoided if at light load mains power returns before the input capacitors are substantially discharged. A relay contact is provided for failure indication
Option “dr” output voltage supervision (DC ok) incl. relay contacts: A logic signal is given if the output voltage is below the specified limit. A relay contact is provided for failure indication. DC ok level: 5V output: 4,75V all other voltages: 90% of adjusted voltage
Option “cf” charger / converter fail supervision incl. relay contacts: A logic signal is given if the input voltage, the auxiliary voltage of the primary side and the current of the primary side exceed or go below a specified range. A relay contact is provided for failure indication.
Option “ac” AC ok for inverter including relay contacts: A logic signal is given if the output voltage of an inverter is below the specified limit. A relay contact is provided for failure indication
ENVIRONMENTAL OPTIONS
Option "t" Tropical protection: The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and on components to achieve 99% RH, non condensing.
Option "c" Extended temperature range: The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" Increased mechanical strength: Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.
MECHANICAL OPTIONS

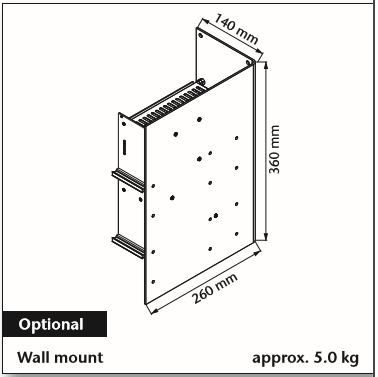

Option "w" Wall mounting: Modules, which have the wall mount option, are typically fixed to a structure or within a cabinet. Depending on the size of the module, this may be done with a flat or angled plate (see photo). The load connections are typically through a terminal block. Should the application not require a pluggable module / rack solution, wall mounting presents an alternative option for the customer to choose from.

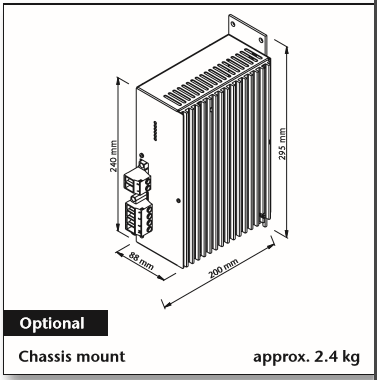

Option "cha" Chassis mounting: Module is designed for DIN rail mounting to a structure or within a cabinet. Screw type mating connectors are supplied with the module. Due to the limited number of connector pins this option is not available for modules with dual AC input. Option is avalaible for currents up to 60Amps.
Technical Illustrations
Downloads
Schaefer_ccpbbp1300-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

INPUT
Input voltage 1ph 115/230Vac
See selection table
Units will turn off with under or over input voltage.
No-load input 5 - 6W typical
Inrush current AC input: limited by thermistor
Hold-up time AC input: 10ms typical @ nom. input voltage
Immunity acc. to EN 61000-6-2
Input Options See selection table for details
Option i: Inrush current limiting
Option ie: Electronic inrush current limiting
Option sd: Reverse polarity protection for DC input by input by series diode
Option ad: Reverse polarity protection for DC input by anti parallel diode
Option au: Auto-ranging
OUTPUT
Output voltage Voltage range; 4.5 - 400Vdc
See selection table
Output power 400W
Output current See selection table
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 2-3ms typical ±1%
Turn on rise time 100mS typical (soft start)
Ripple <1% + 30mVp-p
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation
Remote sense Standard for all series
Temp coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Efficiency 80 - 92% typical
Output Options See selection table for details
Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option csi: Current sharing interrupt (“cs” included)
Option icsi: Current sharing interrupt (“csi” included), galvanically isolated
Option h1: Inhibit by external closing contact, signal referred to input
Option h2: Inhibit by voltage signal, signal referred to output
Option h3: Inhibit by closing contact, signal referred to output
Option rco: Reducing current limiting at over temperature
Option rd: Reverse polarity protection for DC output
Signal Options See selection table for details
Option pr: input voltage supervision (power ok) incl. relay contacts
Option dr: output voltage supervision (DC ok) incl. relay contacts
Option cf: charger / converter fail supervision incl. relay contacts
Option ac: AC ok for inverter including relay contacts
PROGRAMMING
Programming of output voltage from 0 to 100 % eu1: by external signal, 0 – 10 V
eu2: by external signal, 4 – 20 mA
eu3: by 270° potentiometer
eu4: by 10 turn potentiometer
Programming of output current from 0 to 100 % ei1: by external signal, 0 – 10 V
ei2: by external signal, 4 – 20 mA
ei3: by 270° potentiometer
ei4: by 10 turn potentiometer
Isolating amplifier for programming lso: Programming signal is galvanically isolated from any potentials of the power supply.
Programming via rs: RS232 (external)
can: CAN Bus (external)
MONITORING
Monitoring of output voltage from 0 to 100 % mu1: by external signal, 0 – 10 V
mu2: by external signal, 4 – 20 mA
Monitoring of output current from 0 to 100 % mi1: by external signal, 0 – 10 V
mi2: by external signal, 4 – 20 mA
Isolating amplifier for monitoring Iso: Monitoring signal is galvanically isolated from any potentials of the power supply.
Monitoring via rs: RS232 (external)
can: CAN Bus (external)
ENVIRONMENTAL
Operating temperature -20°C to +75°C
(optional -40 to 75C)
Load derating Derate 2.5% per °C, above +55°C
Cooling Heatsink - Natural Convection
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
Environment Options See selection table for details
Option t: Tropical protection
Option c: Extended temperature range
Option ms: Increased mechanical strength
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529 NEMA or others on request
MTBF approx 100K - 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
MECHANICAL
Mechanics Standard Module 6U pluggable module for 19" subrack
Dimensions See Technical illustration
Mechanical Options Option w: Wall Mounting
Option cha: Chassis Mounting
INPUT 115Vac ± 20% INPUT 230Vac +15% - 20% INPUT 3x200Vac +15% - 20% OUTPUT AMPS COOLING OUTPUT VOLTAGE VOLTAGE ADJUSTMENT
C1360 C1380 C1390 50 H 5 4.5 - 5.5
C1361 C1381 C1391 35 H 9 8 - 10
C1362 C1382 C1392 30 H 12 11-13
C1363 C1383 C1393 25 H 15 14-16
C1364 C1384 C1394 15 H 24 23-26
C1365 C1385 C1395 13 H 28 26-30
C1369 C1389 C1399 7.3 H 48 45 - 55
C1366 C1386 C1396 6 H 60 58 - 68
C1367 C1387 C1397 3 H 110 100-130
C5668 C1388 C1398 1.5 H 220 200-250
INPUT OPTIONS
Option “i” Inrush current limiting: A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” Electronic inrush current limiting: An electronic circuit limits the high inrush current caused by built-in capacitors. Switch- on time may increase to 5s. This is realized by a series pass transistor or depending on the input voltage by thyristor softstart..
Option “sd” Reverse polarity protection for DC input by series diode: A series diode protects the module against DC input voltage of wrong polarity. However, this also causes extra losses and reduces the overall efficiency..
Option “ad” Reverse polarity protection for DC input by anti parallel diode: To avoid the power losses a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply of wrong polarity.
Option “au” Auto-ranging: For standard dual AC input models the range of 115 / 230 V AC is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
OUTPUT OPTIONS
Option “dd” Decoupling diode: A series diode built into the units output allows paralleling of 2 or more units for redundancy or higher power or battery charging. For control purposes the anode of the diode is also available at the output connector. It cannot be loaded ≥ 0.5A. The sense signal is taken partially from the anode and partially from the load/cathode of the decoupling diode. This guarantees starting and operating under all conditions, but it also effects the regulation accuracy of 2%. In this way it gives a load sharing of 15-30% between the paralleled units.
Option “cs” Active current sharing: An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. The output lines of the converters have to be in “star point” connection
Option “csi” Current sharing interrupt (“cs” included)“csi” will effect the removal of the “cs” signal from the load voltage common connection. Should there be an instance where a unit is not supplying the load, then the effect of its current sharing signal is removed, and the load voltage is unaffected by this condition. In terms of calibration the same criteria follow as for parallel operation.
Option “icsi” Current sharing interrupt (“csi” included), galvanically isolated: The inclusion of “csi” (current sharing interrupt) and the galvanic isolation is the optimum set up for systems with high power or high currents, were the voltage drop on the power wiring could influence the cs signal.
Option “h1” Inhibit by external closing contact, signal referred to input: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the input. This can also be used in combination with a thermal trip, which shuts the unit down.
Option “h2” Inhibit by voltage signal, signal referred to output: Operation of the unit is inhibited if a voltage signal (5V / 10mA) is applied in reference to the negative line of the output
Option “h3” Inhibit by closing contact, signal referred to output: The operation of the unit is inhibited when a voltage signal is applied in reference to the negative line of the output. This can also be used in combination with a thermal trip, which shuts the unit down. Please note: Only relevant solution for inverters.
Option “rco” Reducing current limiting at over temperature: A circuit reduces the current limiting level at higher temperature (to be specified).
Option "rd" Reverse polarity protection for DC output: by reverse diode with external fuse.
SIGNAL OPTIONS
Option “pr” input voltage supervision (power ok) incl. relay contacts: A logic signal is given if the input voltage (AC or DC) drops below the specified limit. In AC input models the rectified input voltage is sensed so that a power fail alarm can be avoided if at light load mains power returns before the input capacitors are substantially discharged. A relay contact is provided for failure indication
Option “dr” output voltage supervision (DC ok) incl. relay contacts: A logic signal is given if the output voltage is below the specified limit. A relay contact is provided for failure indication. DC ok level: 5V output: 4,75V all other voltages: 90% of adjusted voltage
Option “cf” charger / converter fail supervision incl. relay contacts: A logic signal is given if the input voltage, the auxiliary voltage of the primary side and the current of the primary side exceed or go below a specified range. A relay contact is provided for failure indication.
Option “ac” AC ok for inverter including relay contacts: A logic signal is given if the output voltage of an inverter is below the specified limit. A relay contact is provided for failure indication
ENVIRONMENTAL OPTIONS
Option "t" Tropical protection: The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and on components to achieve 99% RH, non condensing.
Option "c" Extended temperature range: The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" Increased mechanical strength: Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.
MECHANICAL OPTIONS
Option "w" Wall mounting: Modules, which have the wall mount option, are typically fixed to a structure or within a cabinet. Depending on the size of the module, this may be done with a flat or angled plate (see photo). The load connections are typically through a terminal block. Should the application not require a pluggable module / rack solution, wall mounting presents an alternative option for the customer to choose from.
Option "cha" Chassis mounting: Module is designed for DIN rail mounting to a structure or within a cabinet. Screw type mating connectors are supplied with the module. Due to the limited number of connector pins this option is not available for modules with dual AC input. Option is avalaible for currents up to 60Amps.
Schaefer_ccpbbp1300-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant C1360 115Vac ± 20 % 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 50A
product variant C1361 115Vac ± 20 % 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 35A
product variant C1362 115Vac ± 20 % 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 30A
product variant C1363 115Vac ± 20 % 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 25A
product variant C1364 115Vac ± 20 % 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 15A
product variant C1365 115Vac ± 20 % 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 13A
product variant C1369 115Vac ± 20 % 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 7.3A
product variant C1366 115Vac ± 20 % 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 6A
product variant C1367 115Vac ± 20 % 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 3A
product variant C5668 115Vac ± 20 % 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 1.5A
product variant C1380 230Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 50A
product variant C1381 230Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 35A
product variant C1382 230Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 30A
product variant C1383 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 25A
product variant C1384 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 15A
product variant C1385 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 13A
product variant C1389 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 7.3A
product variant C1386 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 6A
product variant C1387 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 3A
product variant C1388 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 1.5A
product variant C1390 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 50A
product variant C1391 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 35A
product variant C1392 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 30A
product variant C1393 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 25A
product variant C1394 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 15A
product variant C1395 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 13A
product variant C1399 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 7.3A
product variant C1396 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 6A
product variant C1397 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 3A
product variant C1398 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 1.5A
