C4700A Series - Schaefer Euro Series AC/DC Power Supply

AC/DC Power Supplies

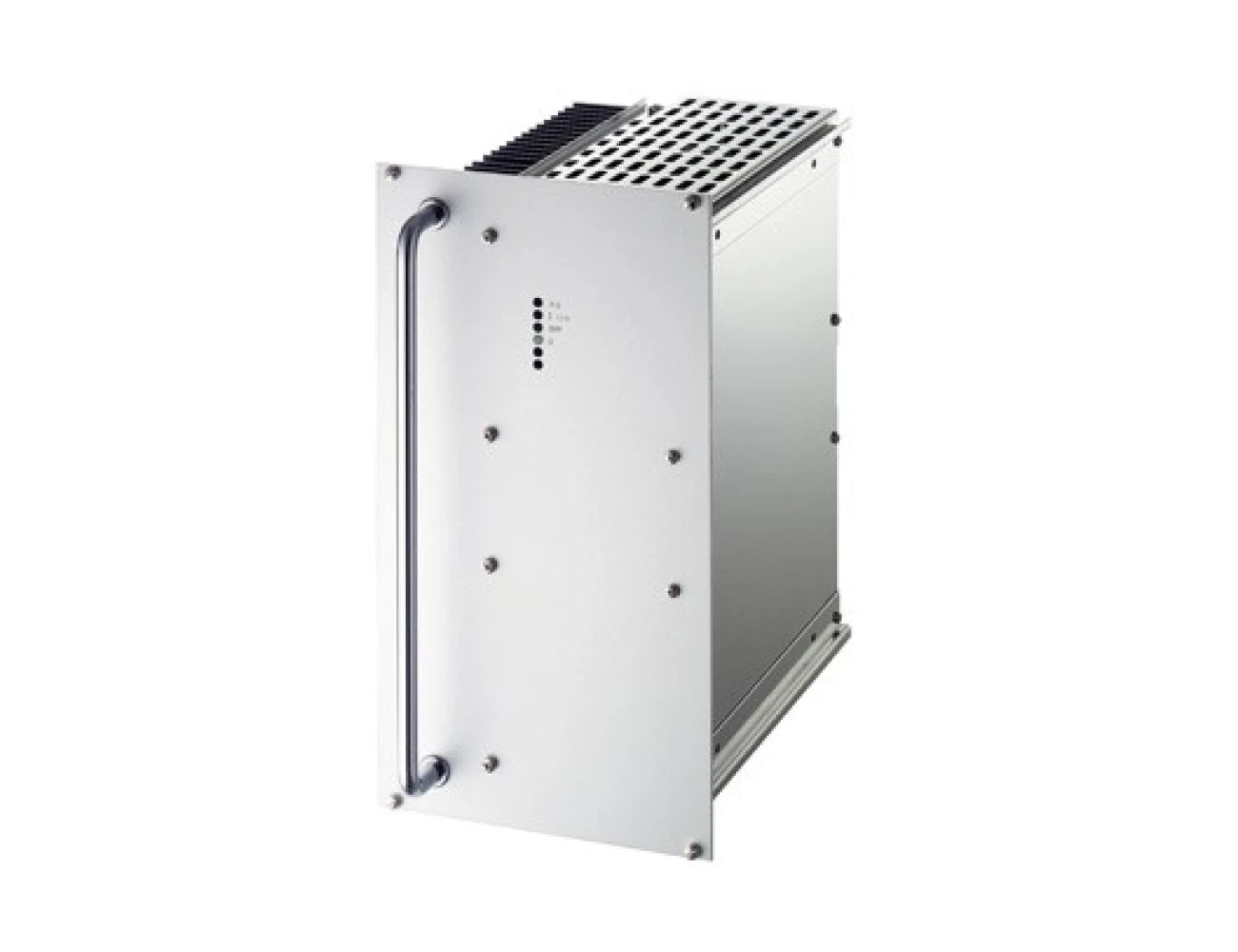

Schaefer C4700A SERIES AC/DC Power Supply

The Schaefer C4700A Series is a high-performance AC/DC power supply for industrial applications, delivering output power of 1700W for PFC-enabled models and 2.5kW for non-PFC models. This series supports a wide range of DC output voltages from 5Vdc to 400Vdc. The C4700A Series is designed for natural convection cooling, ensuring reliable performance in various environments. Mounting options include chassis mount, wall mount, or 19" rack installation when used in conjunction with a separate 6U subrack. With options for monitoring, parallel/redundant operation, and conformal coating, the C4700A Series is ideal for use in demanding sectors such as Railway, Utilities, Mining, and Heavy Industry.

View Models

Schaefer C4700A SERIES AC/DC Power Supply

Features

Industrial Grade AC/DC Power Supply
Output Power: 1.7kW - 2.5kW
AC Input: 1-Phase and 3-Phase Models
Wide Range of DC outputs: 5, 9, 12, 15, 24, 28, 48, 60, 110, 220
Flexible mounting options via Chassis Mount, Wall or Euro Cassette (19" rackmount)
Natural Convection Cooling (increased airflow via external fan recommended for high power applications)

Specifications

INPUT
Input voltage	1ph 115/230Vac 3ph 200/400/480Vac See selection table Units will turn off with under or over input voltage.
No-load input power	3-6W model (series dependant)
Inrush current	AC input limited by thermistor
Switch on time	1-2 seconds.
Input Options	Option au: Autoranging for 115/230Vac input Option pr: Power OK via relay contacts

OUTPUT
Output voltage	Voltage range; 4.5 - 400Vdc See selection table
Output current	See selection table.
Ripple & noise	1% + 30mVpp
Line regulation	0.1% (±10%)
Load regulation	0.2% typical, load step 10-90%
Load transient	6% typical, load step 10-90%
Response time	2-3ms typical ±1%
Temperature coefficient	0.02% per °C typical.
Holdup time	10mS at 220VAC typical
Turn on rise time	100mS typical (soft start)
Remote sensing	Standard for all series
Efficiency	80%-92% typical
Output Options	Option dd: Decoupling Diode for redundant / parallel operation Option cs: Active Current Sharing Option h: Remote on/off (inhibit) Option dr: DC OK via relay contacts

PROTECTION
Overload protection	Current limited at 105%–110% of full load.
Overvoltage protection	OVP switches off module with automatic return to operation
Protection Options	Option i: Inrush Current Limiting Option sd: Reverse polarity protection for DC input by Series Diode
MTBF	100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)

ENVIRONMENTAL
Operating temperature	-20°C to +75°C (optional -40 to 75C)
Load derating	Derate 2.5% per °C, from +55°C to 75°C
Cooling	H: Heatsink - natural convection F: Fan - increased airflow recommended TF: Temperature controlled Fan included See selection table
Environment Options	Option c: Extended temperature range to -40°C
Storage temperature	-40°C to +85°C
Humidity	Up to 95% RH, non-condensing

STANDARDS
EMI standards	acc. to EN61000-6-4 class A, optionally class B
Immunity standards	acc. to EN61000-6-2
C-Tick	AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction	acc. to EN60950-1 / EN50178
Protection category	IP20 acc. to EN60529 NEMA or others on request

MECHANICAL
Mounting	See technical illustrations Eurocassette, pluggable module for 19" subrack Option w: Wall Mounting Option cha: Chassis Mounting
Dimensions	See Technical illustration
Connector	H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options	Option ms: Increased Mechanical Strength Option t: Tropical protection
19" Rack Mounting Options	Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration

Selection Table

INPUT 100 -240VAC ± 10% WITH PFC	OUTPUT AMPS	INPUT 115VAC ± 20%	INPUT 230VAC + 15% - 20%	INPUT 115 ± 20% 230VAC + 15% - 20%	INPUT 3X200VAC + 15% - 20%	INPUT 3X400VAC + 15% - 20%	INPUT 3X480VAC + 10% - 15%	OUTPUT AMPS	COOLING	OUTPUT VOLTAGE	VOLTAGE ADJUSTMENT
CP4790	180	C4760	C4780	C4790	C4760V	C4780V	C4790V	180	F	5	4.5-5.5
CP4791	150	C4761	C4781	C4791	C4761V	C4781V	C4791V	150	F	9	8-10
CP4792	120	C4762	C4782	C4792	C4762V	C4782V	C4792V	130	F	12	11-13
CP4793	100	C4763	C4783	C4793	C4763V	C4783V	C4793V	110	F	15	14-16
CP4794	70	C4764	C4784	C4794	C4764V	C4784V	C4794V	80	F	24	23-26
CP4795	60	C4765	C4785	C4795	C4765V	C4785V	C4795V	70	F	28	26-30
CP4799	35	C4769	C4789	C4799	C4769V	C4789V	C4799V	40	F	48	45-55
CP4796	25	C4766	C4786	C4796	C4766V	C4786V	C4796V	33	F	60	58-68
CP4797	14	C4767	C4787	C4797	C4767V	C4787V	C4797V	20	F	110	100-130
CP4797J	7	C4767J	C4787J	C4797J	C4767VJ	C4787VJ	C4797VJ	10	F	200	190-200
Cooling	H: Heatsink - natural convection F: Fan - increased airflow recommended TF: Temperature controlled Fan included See selection table
Model configuration options:	Add the options to the model number, eg. C4700-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow.
19" Rack Mounting Options	Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration

INPUT OPTIONS
Option “i”	(inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie”	electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd”	(series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad”	(anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au”	(auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p”	(power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r”	(relay): A relay instead of a logic signal is provided for failure indication.

output options
Option “dd”	(decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs”	(active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating in parallel.
Option “csi”	(current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1”	(inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2”	(inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco”	(reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d”	(DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m”	(DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac”	(AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y"	(sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r"	(relay): A relay instead of a logic signal is provided for failure indication.

environmental options
Option "t"	(tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c"	(extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms"	(increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.

mechanical options
Standard mounting	"Eurocassette" pluggable module for 19" sub-racks 8
Option "w"	(wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha"	(chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din"	(DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.

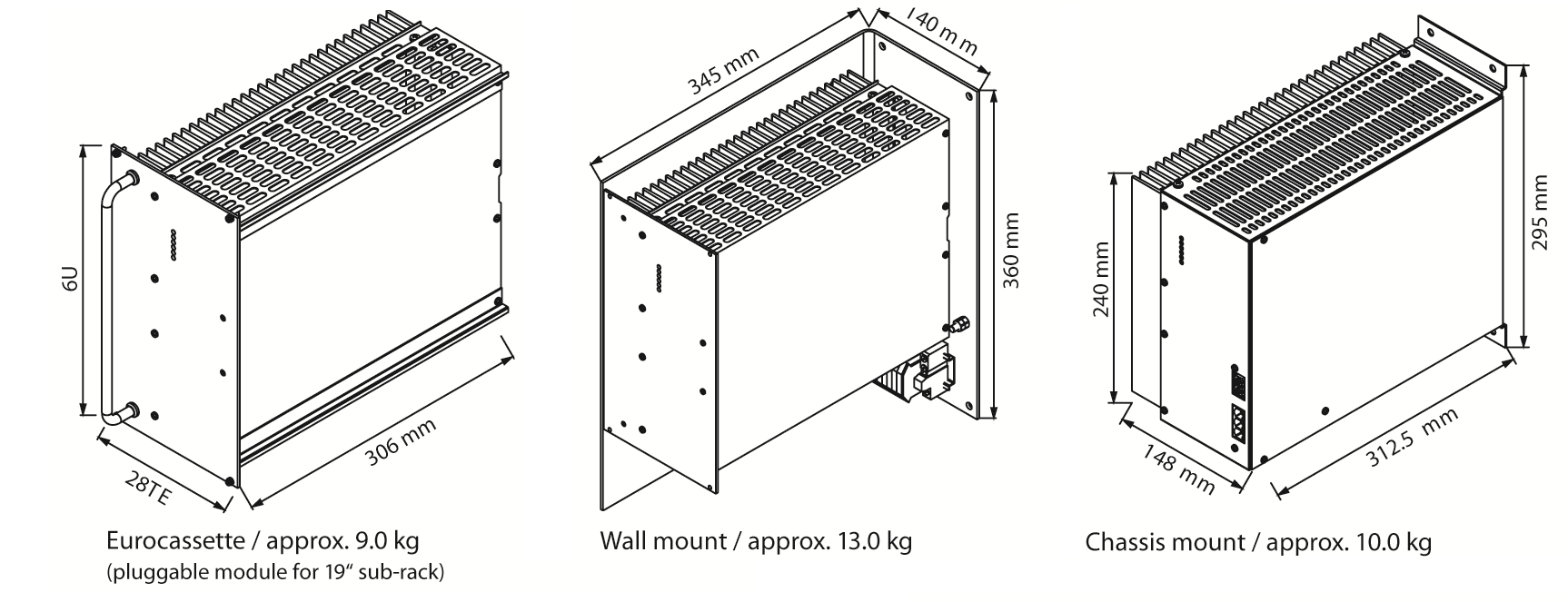

Technical Illustrations

Downloads

Schaefer_ccpbbp4700-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

INPUT
Input voltage	1ph 115/230Vac 3ph 200/400/480Vac See selection table Units will turn off with under or over input voltage.
No-load input power	3-6W model (series dependant)
Inrush current	AC input limited by thermistor
Switch on time	1-2 seconds.
Input Options	Option au: Autoranging for 115/230Vac input Option pr: Power OK via relay contacts

OUTPUT
Output voltage	Voltage range; 4.5 - 400Vdc See selection table
Output current	See selection table.
Ripple & noise	1% + 30mVpp
Line regulation	0.1% (±10%)
Load regulation	0.2% typical, load step 10-90%
Load transient	6% typical, load step 10-90%
Response time	2-3ms typical ±1%
Temperature coefficient	0.02% per °C typical.
Holdup time	10mS at 220VAC typical
Turn on rise time	100mS typical (soft start)
Remote sensing	Standard for all series
Efficiency	80%-92% typical
Output Options	Option dd: Decoupling Diode for redundant / parallel operation Option cs: Active Current Sharing Option h: Remote on/off (inhibit) Option dr: DC OK via relay contacts

PROTECTION
Overload protection	Current limited at 105%–110% of full load.
Overvoltage protection	OVP switches off module with automatic return to operation
Protection Options	Option i: Inrush Current Limiting Option sd: Reverse polarity protection for DC input by Series Diode
MTBF	100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)

ENVIRONMENTAL
Operating temperature	-20°C to +75°C (optional -40 to 75C)
Load derating	Derate 2.5% per °C, from +55°C to 75°C
Cooling	H: Heatsink - natural convection F: Fan - increased airflow recommended TF: Temperature controlled Fan included See selection table
Environment Options	Option c: Extended temperature range to -40°C
Storage temperature	-40°C to +85°C
Humidity	Up to 95% RH, non-condensing

STANDARDS
EMI standards	acc. to EN61000-6-4 class A, optionally class B
Immunity standards	acc. to EN61000-6-2
C-Tick	AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction	acc. to EN60950-1 / EN50178
Protection category	IP20 acc. to EN60529 NEMA or others on request

MECHANICAL
Mounting	See technical illustrations Eurocassette, pluggable module for 19" subrack Option w: Wall Mounting Option cha: Chassis Mounting
Dimensions	See Technical illustration
Connector	H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options	Option ms: Increased Mechanical Strength Option t: Tropical protection
19" Rack Mounting Options	Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration

INPUT 100 -240VAC ± 10% WITH PFC	OUTPUT AMPS	INPUT 115VAC ± 20%	INPUT 230VAC + 15% - 20%	INPUT 115 ± 20% 230VAC + 15% - 20%	INPUT 3X200VAC + 15% - 20%	INPUT 3X400VAC + 15% - 20%	INPUT 3X480VAC + 10% - 15%	OUTPUT AMPS	COOLING	OUTPUT VOLTAGE	VOLTAGE ADJUSTMENT
CP4790	180	C4760	C4780	C4790	C4760V	C4780V	C4790V	180	F	5	4.5-5.5
CP4791	150	C4761	C4781	C4791	C4761V	C4781V	C4791V	150	F	9	8-10
CP4792	120	C4762	C4782	C4792	C4762V	C4782V	C4792V	130	F	12	11-13
CP4793	100	C4763	C4783	C4793	C4763V	C4783V	C4793V	110	F	15	14-16
CP4794	70	C4764	C4784	C4794	C4764V	C4784V	C4794V	80	F	24	23-26
CP4795	60	C4765	C4785	C4795	C4765V	C4785V	C4795V	70	F	28	26-30
CP4799	35	C4769	C4789	C4799	C4769V	C4789V	C4799V	40	F	48	45-55
CP4796	25	C4766	C4786	C4796	C4766V	C4786V	C4796V	33	F	60	58-68
CP4797	14	C4767	C4787	C4797	C4767V	C4787V	C4797V	20	F	110	100-130
CP4797J	7	C4767J	C4787J	C4797J	C4767VJ	C4787VJ	C4797VJ	10	F	200	190-200
Cooling	H: Heatsink - natural convection F: Fan - increased airflow recommended TF: Temperature controlled Fan included See selection table
Model configuration options:	Add the options to the model number, eg. C4700-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow.
19" Rack Mounting Options	Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration

INPUT OPTIONS
Option “i”	(inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie”	electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd”	(series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad”	(anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au”	(auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p”	(power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r”	(relay): A relay instead of a logic signal is provided for failure indication.

output options
Option “dd”	(decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs”	(active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating in parallel.
Option “csi”	(current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1”	(inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2”	(inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco”	(reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d”	(DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m”	(DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac”	(AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y"	(sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r"	(relay): A relay instead of a logic signal is provided for failure indication.

environmental options
Option "t"	(tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c"	(extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms"	(increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.

mechanical options
Standard mounting	"Eurocassette" pluggable module for 19" sub-racks 8
Option "w"	(wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha"	(chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din"	(DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.

Schaefer_ccpbbp4700-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

Find the Right Model

Model Number	Input Voltage (Vac)	Output Voltage (Vdc)	Output Current (A)
CP4790	100...240Vac ± 10% 50/60Hz with PFC	5Vdc (Adj. 4.5 - 5.5Vdc)	180A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
CP4791	100...240Vac ± 10% 50/60Hz with PFC	9Vdc (Adj. 8 - 10Vdc)	150A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
CP4792	100...240Vac ± 10% 50/60Hz with PFC	12Vdc (Adj. 11 - 13Vdc)	120A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
CP4793	100...240Vac ± 10% 50/60Hz with PFC	15Vdc (Adj. 14 - 16Vdc)	100A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
CP4794	100...240Vac ± 10% 50/60Hz with PFC	24Vdc (Adj. 23 - 26Vdc)	70A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
CP4795	100...240Vac ± 10% 50/60Hz with PFC	28Vdc (Adj. 26 - 30Vdc)	60A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
CP4799	100...240Vac ± 10% 50/60Hz with PFC	48Vdc (Adj. 45 - 55Vdc)	35A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
CP4796	100...240Vac ± 10% 50/60Hz with PFC	60Vdc (Adj. 58 - 68Vdc)	25A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
CP4797	100...240Vac ± 10% 50/60Hz with PFC	110Vdc (Adj. 100 - 130Vdc)	14A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
CP4797J	100...240Vac ± 10% 50/60Hz with PFC	200Vdc(Adj. 190 - 200Vdc)	7A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
CP4798	100...240Vac ± 10% 50/60Hz with PFC	220Vdc (Adj. 200 - 250Vdc)	7A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
CP4798J	100...240Vac ± 10% 50/60Hz with PFC	400Vdc (Adj. 380 - 400Vdc)	3.5A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4760	115Vac ± 20 % 50/60Hz	5Vdc (Adj. 4.5 - 5.5Vdc)	180A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4761	115Vac ± 20 % 50/60Hz	9Vdc (Adj. 8 - 10Vdc)	150A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4762	115Vac ± 20 % 50/60Hz	12Vdc (Adj. 11 - 13Vdc)	130A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4763	115Vac ± 20 % 50/60Hz	15Vdc (Adj. 14 - 16Vdc)	110A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4764	115Vac ± 20 % 50/60Hz	24Vdc (Adj. 23 - 26Vdc)	80A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4765	115Vac ± 20 % 50/60Hz	28Vdc (Adj. 26 - 30Vdc)	70A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4769	115Vac ± 20 % 50/60Hz	48Vdc (Adj. 45 - 55Vdc)	40A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4766	115Vac ± 20 % 50/60Hz	60Vdc (Adj. 58 - 68Vdc)	33A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4767	115Vac ± 20 % 50/60Hz	110Vdc (Adj. 100 - 130Vdc)	20A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4767J	115Vac ± 20 % 50/60Hz	200Vdc(Adj. 190 - 200Vdc)	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4768	115Vac ± 20 % 50/60Hz	220Vdc (Adj. 200 - 250Vdc)	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4768J	115Vac ± 20 % 50/60Hz	400Vdc (Adj. 380 - 400Vdc)	5A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4780	230Vac +15%/-20% 50/60Hz	5Vdc (Adj. 4.5 - 5.5Vdc)	180A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4781	230Vac +15%/-20% 50/60Hz	9Vdc (Adj. 8 - 10Vdc)	150A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4782	230Vac +15%/-20% 50/60Hz	12Vdc (Adj. 11 - 13Vdc)	130A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4783	230Vac +15%/-20% 50/60Hz	15Vdc (Adj. 14 - 16Vdc)	110A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4784	230Vac +15%/-20% 50/60Hz	24Vdc (Adj. 23 - 26Vdc)	80A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4785	230Vac +15%/-20% 50/60Hz	28Vdc (Adj. 26 - 30Vdc)	70A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4789	230Vac +15%/-20% 50/60Hz	48Vdc (Adj. 45 - 55Vdc)	40A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4786	230Vac +15%/-20% 50/60Hz	60Vdc (Adj. 58 - 68Vdc)	33A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4787	230Vac +15%/-20% 50/60Hz	110Vdc (Adj. 100 - 130Vdc)	20A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4787J	230Vac +15%/-20% 50/60Hz	200Vdc(Adj. 190 - 200Vdc)	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4788	230Vac +15%/-20% 50/60Hz	220Vdc (Adj. 200 - 250Vdc)	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4788J	230Vac +15%/-20% 50/60Hz	400Vdc (Adj. 380 - 400Vdc)	5A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4790	115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz	5Vdc (Adj. 4.5 - 5.5Vdc)	180A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4791	115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz	9Vdc (Adj. 8 - 10Vdc)	150A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4792	115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz	12Vdc (Adj. 11 - 13Vdc)	130A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4793	115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz	15Vdc (Adj. 14 - 16Vdc)	110A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4794	115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz	24Vdc (Adj. 23 - 26Vdc)	80A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4795	115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz	28Vdc (Adj. 26 - 30Vdc)	70A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4799	115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz	48Vdc (Adj. 45 - 55Vdc)	40A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4796	115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz	60Vdc (Adj. 58 - 68Vdc)	33A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4797	115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz	110Vdc (Adj. 100 - 130Vdc)	20A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4797J	115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz	200Vdc(Adj. 190 - 200Vdc)	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4798	115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz	220Vdc (Adj. 200 - 250Vdc)	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4798J	115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz	400Vdc (Adj. 380 - 400Vdc)	5A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4760V	3 x 200Vac +15%/-20% 50/60Hz	5Vdc (Adj. 4.5 - 5.5Vdc)	180A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4761V	3 x 200Vac +15%/-20% 50/60Hz	9Vdc (Adj. 8 - 10Vdc)	150A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4762V	3 x 200Vac +15%/-20% 50/60Hz	12Vdc (Adj. 11 - 13Vdc)	130A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4763V	3 x 200Vac +15%/-20% 50/60Hz	15Vdc (Adj. 14 - 16Vdc)	110A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4764V	3 x 200Vac +15%/-20% 50/60Hz	24Vdc (Adj. 23 - 26Vdc)	80A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4765V	3 x 200Vac +15%/-20% 50/60Hz	28Vdc (Adj. 26 - 30Vdc)	70A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4769V	3 x 200Vac +15%/-20% 50/60Hz	48Vdc (Adj. 45 - 55Vdc)	40A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4766V	3 x 200Vac +15%/-20% 50/60Hz	60Vdc (Adj. 58 - 68Vdc)	33A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4767V	3 x 200Vac +15%/-20% 50/60Hz	110Vdc (Adj. 100 - 130Vdc)	20A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4767VJ	3 x 200Vac +15%/-20% 50/60Hz	200Vdc(Adj. 190 - 200Vdc)	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4768V	3 x 200Vac +15%/-20% 50/60Hz	220Vdc (Adj. 200 - 250Vdc)	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4768VJ	3 x 200Vac +15%/-20% 50/60Hz	400Vdc (Adj. 380 - 400Vdc)	5A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4780V	3 x 400Vac +15%/-20% 50/60Hz	5Vdc (Adj. 4.5 - 5.5Vdc)	180A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4781V	3 x 400Vac +15%/-20% 50/60Hz	9Vdc (Adj. 8 - 10Vdc)	150A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4782V	3 x 400Vac +15%/-20% 50/60Hz	12Vdc (Adj. 11 - 13Vdc)	130A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4783V	3 x 400Vac +15%/-20% 50/60Hz	15Vdc (Adj. 14 - 16Vdc)	110A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4784V	3 x 400Vac +15%/-20% 50/60Hz	24Vdc (Adj. 23 - 26Vdc)	80A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4785V	3 x 400Vac +15%/-20% 50/60Hz	28Vdc (Adj. 26 - 30Vdc)	70A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4789V	3 x 400Vac +15%/-20% 50/60Hz	48Vdc (Adj. 45 - 55Vdc)	40A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4786V	3 x 400Vac +15%/-20% 50/60Hz	60Vdc (Adj. 58 - 68Vdc)	33A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4787V	3 x 400Vac +15%/-20% 50/60Hz	110Vdc (Adj. 100 - 130Vdc)	20A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4787VJ	3 x 400Vac +15%/-20% 50/60Hz	200Vdc(Adj. 190 - 200Vdc)	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4788V	3 x 400Vac +15%/-20% 50/60Hz	220Vdc (Adj. 200 - 250Vdc)	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4788VJ	3 x 400Vac +15%/-20% 50/60Hz	400Vdc (Adj. 380 - 400Vdc)	5A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4790V	3 x 480Vac +10%/-15% 50/60Hz	5Vdc (Adj. 4.5 - 5.5Vdc)	180A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4791V	3 x 480Vac +10%/-15% 50/60Hz	9Vdc (Adj. 8 - 10Vdc)	150A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4792V	3 x 480Vac +10%/-15% 50/60Hz	12Vdc (Adj. 11 - 13Vdc)	130A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4793V	3 x 480Vac +10%/-15% 50/60Hz	15Vdc (Adj. 14 - 16Vdc)	110A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4794V	3 x 480Vac +10%/-15% 50/60Hz	24Vdc (Adj. 23 - 26Vdc)	80A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4795V	3 x 480Vac +10%/-15% 50/60Hz	28Vdc (Adj. 26 - 30Vdc)	70A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4799V	3 x 480Vac +10%/-15% 50/60Hz	48Vdc (Adj. 45 - 55Vdc)	40A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4796V	3 x 480Vac +10%/-15% 50/60Hz	60Vdc (Adj. 58 - 68Vdc)	33A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4797V	3 x 480Vac +10%/-15% 50/60Hz	110Vdc (Adj. 100 - 130Vdc)	20A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4797VJ	3 x 480Vac +10%/-15% 50/60Hz	200Vdc(Adj. 190 - 200Vdc)	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4798V	3 x 480Vac +10%/-15% 50/60Hz	220Vdc (Adj. 200 - 250Vdc)	10A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now
C4798VJ	3 x 480Vac +10%/-15% 50/60Hz	400Vdc (Adj. 380 - 400Vdc)	5A	Product Enquiry Fill out the form below and one of our Powerbox specialists will be in contact with you shortly. First Name Last Name Phone Email Company Name Product you're enquiring about Product Model Need assistance CP4790 CP4791 CP4792 CP4793 CP4794 CP4795 CP4799 CP4796 CP4797 CP4797J CP4798 CP4798J C4760 C4761 C4762 C4763 C4764 C4765 C4769 C4766 C4767 C4767J C4768 C4768J C4780 C4781 C4782 C4783 C4784 C4785 C4789 C4786 C4787 C4787J C4788 C4788J C4790 C4791 C4792 C4793 C4794 C4795 C4799 C4796 C4797 C4797J C4798 C4798J C4760V C4761V C4762V C4763V C4764V C4765V C4769V C4766V C4767V C4767VJ C4768V C4768VJ C4780V C4781V C4782V C4783V C4784V C4785V C4789V C4786V C4787V C4787VJ C4788V C4788VJ C4790V C4791V C4792V C4793V C4794V C4795V C4799V C4796V C4797V C4797VJ C4798V C4798VJ Message (optional) Enquire Now

Item added to your cart

Schaefer C4700A SERIES AC/DC Power Supply

Features

Find the Right Model

Need help finding the right product model?

Schaefer C4700A SERIES AC/DC Power Supply

Features

Find the Right Model

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry

Product Enquiry
