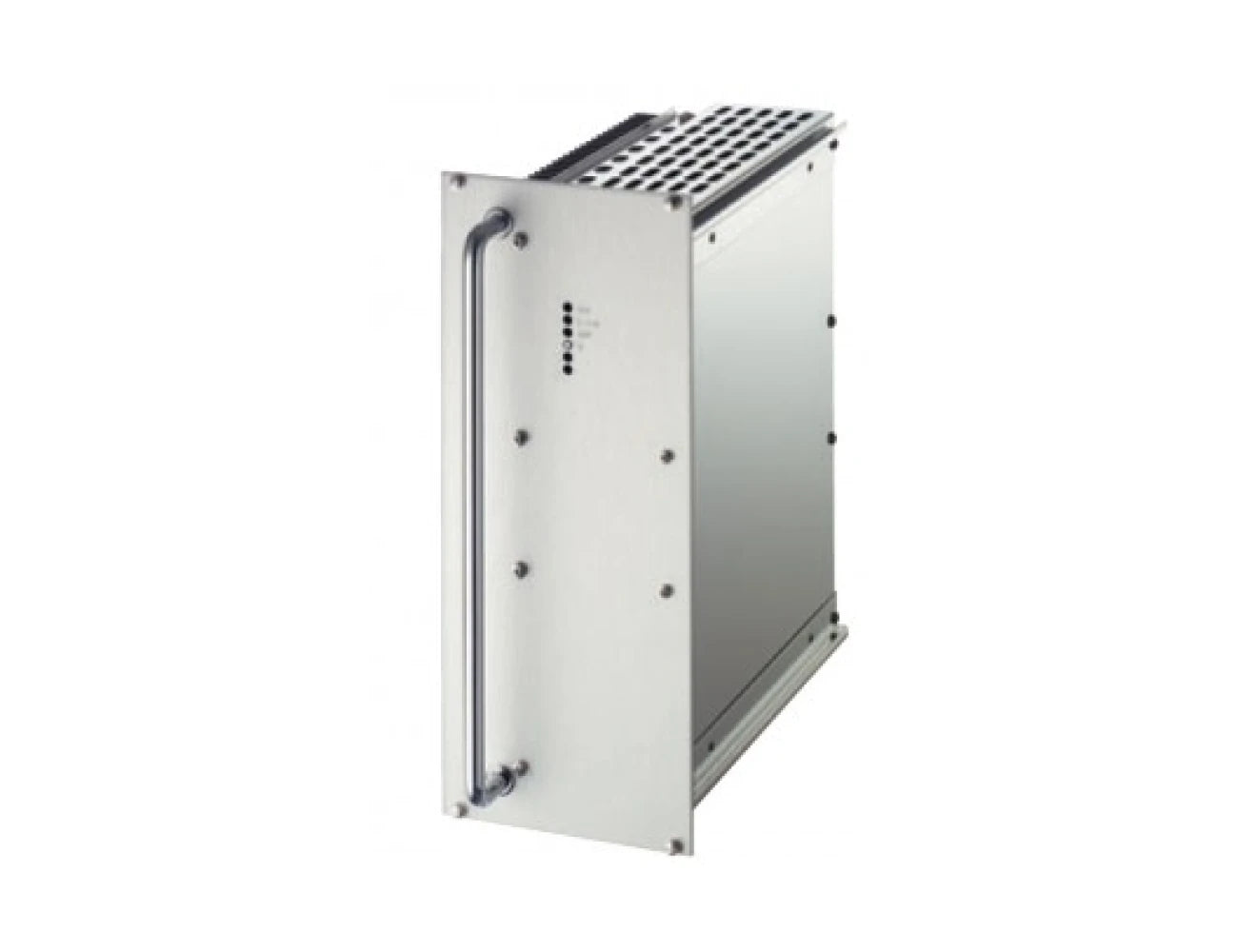

Schaefer C4500A SERIES AC/DC Power Supply

The Schaefer C4500A Series is a high-performance AC/DC power supply for industrial applications, delivering output power of 1600W. This series supports a wide range of DC output voltages from 9Vdc to 400Vdc. Designed for natural convection cooling, the C4500 Series ensures reliable performance in various environments. Mounting options include chassis mount, wall mount, or 19" rack installation when used with a separate 6U subrack. With options for monitoring, parallel/redundant operation, and conformal coating, the C4500 Series is ideal for demanding sectors such as Railway, Utilities, Mining, and Heavy Industry

View Models

Schaefer C4500A SERIES AC/DC Power Supply

Features

Industrial Grade AC/DC Power Supply
Output Power: 1600W
AC Input: 1-Phase and 3-Phase Models
Wide Range of DC outputs: 9,12,15, 24, 28, 48, 60, 110, 220,400
Flexible mounting options via Chassis, Wall or Euro Cassette (19" rackmount via 6U subrack)
Natural Convection Cooling (increased airflow via external fan recommended for high power applications)

Specifications

INPUT
Input voltage	1ph 115/230Vac 3ph 200/400/480Vac See selection table Units will turn off with under or over input voltage.
No-load input power	3-6W model (series dependant)
Inrush current	AC input limited by thermistor
Switch on time	1-2 seconds.
Input Options	Option au: Autoranging for 115/230Vac input Option pr: Power OK via relay contacts

OUTPUT
Output voltage	Voltage range; 4.5 - 400Vdc See selection table
Output current	See selection table.
Ripple & noise	1% + 30mVpp
Line regulation	0.1% (±10%)
Load regulation	0.2% typical, load step 10-90%
Load transient	6% typical, load step 10-90%
Response time	2-3ms typical ±1%
Temperature coefficient	0.02% per °C typical.
Holdup time	10mS at 220VAC typical
Turn on rise time	100mS typical (soft start)
Remote sensing	Standard for all series
Efficiency	80%-92% typical
Output Options	Option dd: Decoupling Diode for redundant / parallel operation Option cs: Active Current Sharing Option h: Remote on/off (inhibit) Option dr: DC OK via relay contacts

PROTECTION
Overload protection	Current limited at 105%–110% of full load.
Overvoltage protection	OVP switches off module with automatic return to operation
Protection Options	Option i: Inrush Current Limiting Option sd: Reverse polarity protection for DC input by Series Diode
MTBF	100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)

ENVIRONMENTAL
Operating temperature	-20°C to +75°C (optional -40 to 75C)
Load derating	Derate 2.5% per °C, from +55°C to 75°C
Cooling	H: Heatsink - natural convection F: Fan - increased airflow recommended TF: Temperature controlled Fan included See selection table
Environment Options	Option c: Extended temperature range to -40°C
Storage temperature	-40°C to +85°C
Humidity	Up to 95% RH, non-condensing

STANDARDS
EMI standards	acc. to EN61000-6-4 class A, optionally class B
Immunity standards	acc. to EN61000-6-2
C-Tick	AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction	acc. to EN60950-1 / EN50178
Protection category	IP20 acc. to EN60529 NEMA or others on request

MECHANICAL
Mounting	See technical illustrations Eurocassette, pluggable module for 19" subrack Option w: Wall Mounting Option cha: Chassis Mounting
Dimensions	See Technical illustration
Connector	H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options	Option ms: Increased Mechanical Strength Option t: Tropical protection
19" Rack Mounting Options	Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration

Selection Table

INPUT 115VAC ± 20%	INPUT 230VAC +15% - 20%	INPUT 115 ± 20% 230VAC +15% 20%	INPUT 3X200VAC +15%- 20%	INPUT 3X400VAC +15% - 20%	INPUT 3X480VAC +15% - 20%	OUTPUT AMPS	COOLING	OUTPUT VOLTAGE	VOLTAGE ADJUSTMENT
C4561	C4581	C4591	C4561V	C4581V	C4591V	110	F	9	8-10
C4562	C4582	C4592	C4562V	C4582V	C4592V	96	F	12	11-13
C4563	C4583	C4593	C4563V	C4583V	C4593V	80	F	15	14-16
C4564	C4584	C4594	C4564V	C4584V	C4594V	56	F	24	23-26
C4565	C4585	C4595	C4565V	C4585V	C4595V	50	F	28	26-30
C4569	C4589	C4599	C4569V	C4589V	C4599V	30	F	48	45-55
C4566	C4586	C4596	C4566V	C4586V	C4596V	24	F	60	58-68
C4567	C4587	C4597	C4567V	C4587V	C4597V	13	F	110	100-130
C4567J	C4587J	C4597J	C4567VJ	C4587VJ	C4597VJ	8	F	200	190-200
C4568	C4588	C4598	C4568V	C4588V	C4598V	6.5	F	220	200-250
C4568J	C4588J	C4598J	C4568VJ	C4588VJ	C4598VJ	4	F	400	380-400
Cooling	H: Heatsink - natural convection F: Fan - increased airflow recommended TF: Temperature controlled Fan included See selection table
Model configuration options:	Add the options to the model number, eg. C4594-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow.
19" Rack Mounting Options	Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration

INPUT OPTIONS
Option “i”	(inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie”	electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd”	(series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad”	(anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au”	(auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p”	(power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r”	(relay): A relay instead of a logic signal is provided for failure indication.

OUTPUT OPTIONS
Option “dd”	(decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs”	(active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating in parallel.
Option “csi”	(current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1”	(inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2”	(inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco”	(reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d”	(DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m”	(DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac”	(AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y"	(sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r"	(relay): A relay instead of a logic signal is provided for failure indication.

ENVIRONMENTAL OPTIONS
Option "t"	(tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c"	(extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms"	(increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.

MECHANICAL OPTIONS
Standard mounting	"Eurocassette" pluggable module for 19" sub-racks 8
Option "w"	(wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha"	(chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din"	(DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.

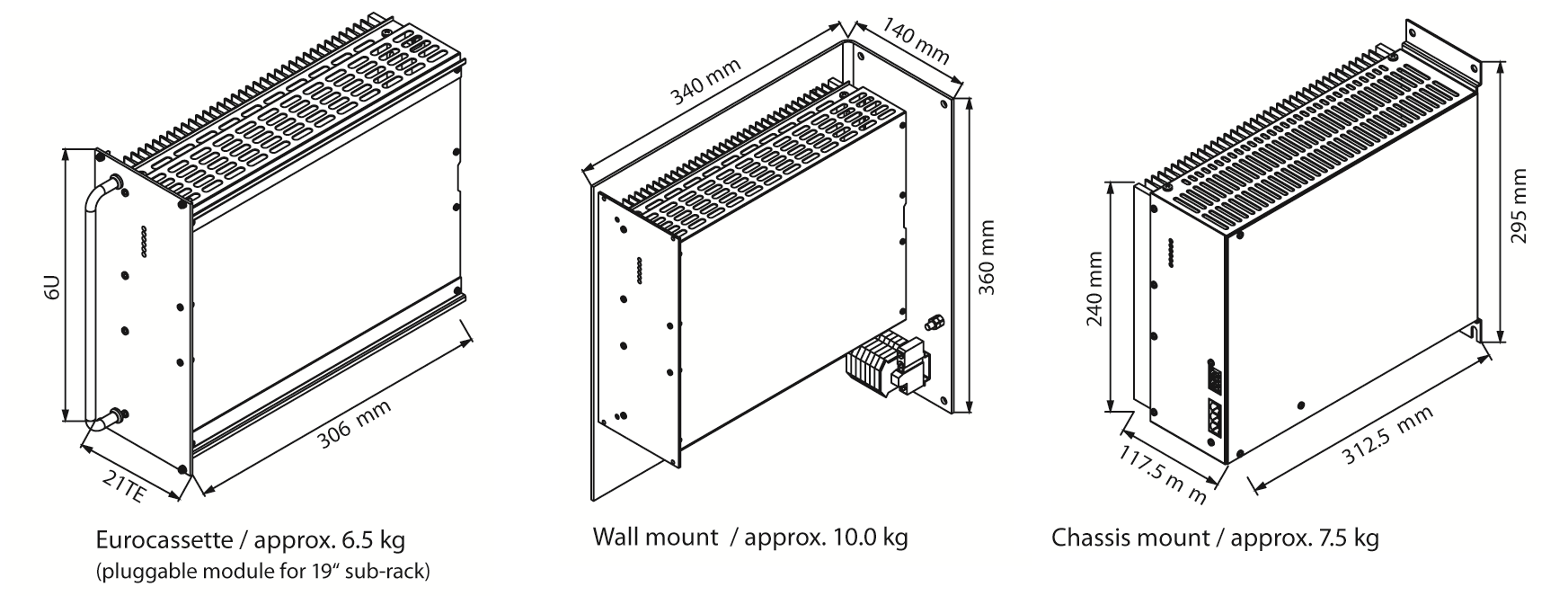

Technical Illustrations
