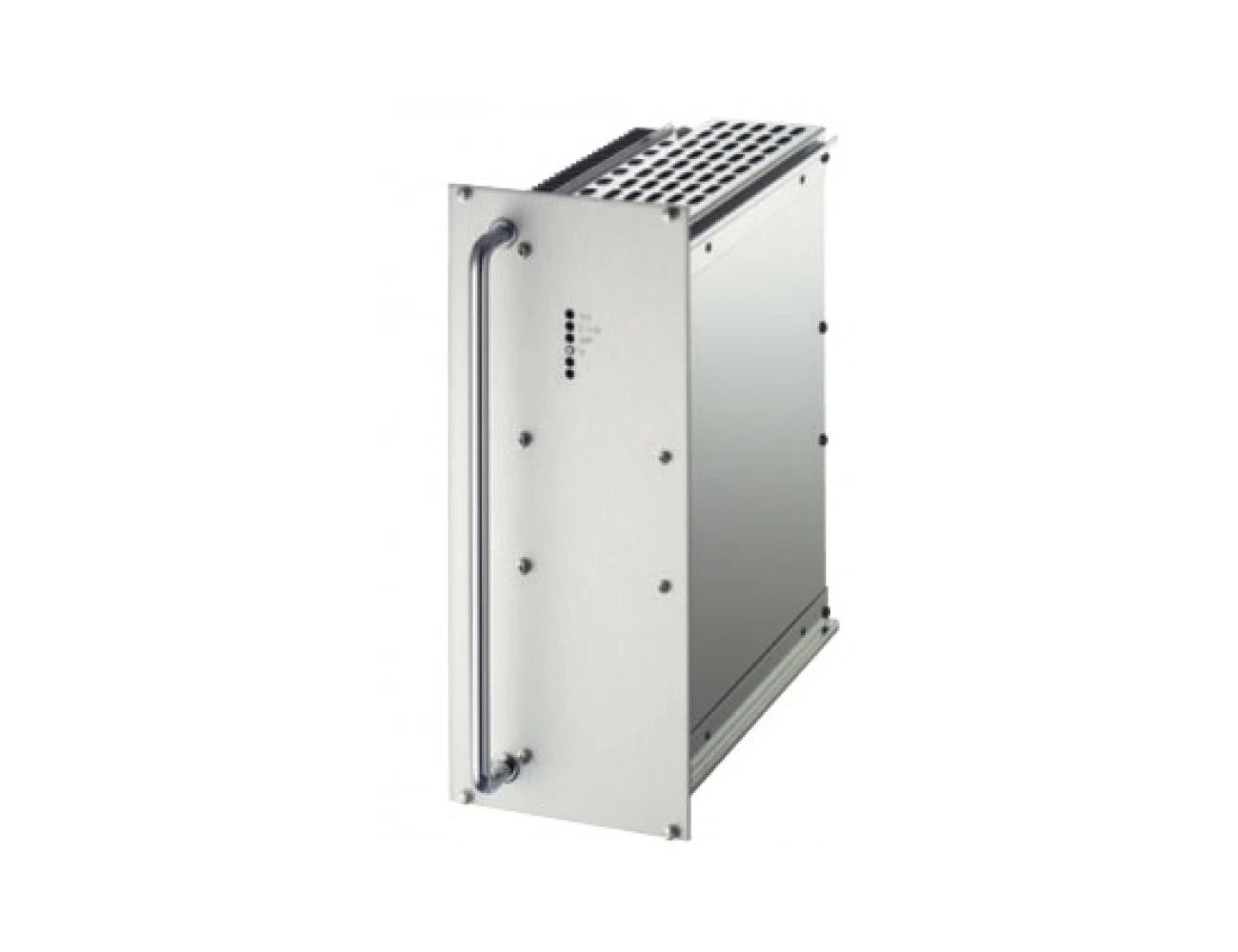

Schaefer C3500A SERIES AC/DC Power Supply

The Schaefer C3500A Series is a reliable AC/DC power supply for industrial applications, delivering an output power of 850W. Available in a wide range of DC output voltages from 5Vdc to 400Vdc, the C3500A Series benefits from natural convection cooling and can be easily configured for parallel/redundant operation, ensuring dependable performance. Powerbox Australia holds network-wide ARTC Type Approval for the C3500A Series, making it compliant for use in railway ARTC signalling applications (Certificate Ref: NESA-S061) as well as affiliated Railway networks.

Features

  • Industrial Grade 850W AC/DC Power Supply
  • AC Input: 1-Phase and 3-Phase Models
  • Wide Range of DC outputs: 5, 9, 12,15, 24, 28, 48, 60, 110, 220,400
  • Flexible mounting options via Chassis, Wall or Euro Cassette (19" rackmount via 6U subrack)
  • ARTC Type Approved Power Supply (NESA-S061) for Railway Signalling Applications.
Specifications
INPUT
Input voltage 1ph 115/230Vac
3ph 200/400/480Vac
See selection table
Units will turn off with under or over input voltage.
No-load input power 3-6W model (series dependant)
Inrush current AC input limited by thermistor
Switch on time 1-2 seconds.
Input Options Option au: Autoranging for 115/230Vac input
Option pr: Power OK via relay contacts
OUTPUT
Output voltage Voltage range; 4.5 - 400Vdc
See selection table
Output current See selection table.
Ripple & noise 1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 2-3ms typical ±1%
Temperature coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 100mS typical (soft start)
Remote sensing Standard for all series
Efficiency 80%-92% typical
Output Options Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option h: Remote on/off (inhibit)
Option dr: DC OK via relay contacts
PROTECTION
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation
Protection Options Option i: Inrush Current Limiting
Option sd: Reverse polarity protection for DC input by Series Diode
MTBF 100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
ENVIRONMENTAL
Operating temperature -20°C to +75°C
(optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Environment Options Option c: Extended temperature range to -40°C
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
C-Tick AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529
NEMA or others on request
MECHANICAL
Mounting See technical illustrations
Eurocassette, pluggable module for 19" subrack
Option w: Wall Mounting
Option cha: Chassis Mounting
Dimensions See Technical illustration
Connector H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options Option ms: Increased Mechanical Strength
Option t: Tropical protection
19" Rack Mounting Options Subrack Height 3U, 5U, 6U
Wiring, Front Panels
Accessories: Fuses, MCBs, Mains on/off switch
Contact Powerbox for rack configuration
Selection Table
INPUT 115VAC ±20% INPUT 230VAC +15% – 20% INPUT 115 ± 20 % / 230VAC+15% – 20% INPUT 3X200VAC +15% –20% INPUT 3X400VAC +15% – 20% INPUT 3X480VAC +15% –20% OUTPUT AMPS COOLING OUTPUT VOLTAGE VOLTAGE ADJUSTMENT RANGE
C3560 C3580 C3590 C3560V C3580V C3590V 100 F 5 4.5 – 5.5
C3561 C3581 C3591 C3561V C3581V C3591V 65 H 9 8 – 10
C3562 C3582 C3592 C3562V C3582V C3592V 56 H 12 11 – 13
C3563 C3583 C3593 C3563V C3583V C3593V 45 H 15 14 – 16
C3564 C3584 C3594 C3564V C3584V C3594V 30 H 24 23 – 26
C3565 C3585 C3595 C3565V C3585V C3595V 27 H 28 26 – 30
C3569 C3589 C3599 C3569V C3589V C3599V 14 H 48 45 – 55
C3566 C3586 C3596 C3566V C3586V C3596V 12 H 60 58 – 68
C3567 C3587 C3597 C3567V C3587V C3597V 6.5 H 110 100 – 130
C3567J C3587J C3597J C3567VJ C3587VJ C3597VJ 4 H 200 190 – 200
C3568 C3588 C3598 C3568V C3588V C3598V 3.5 H 220 200 – 250
C3568J C3588J C3598J C3568VJ C3588VJ C3598VJ 2 H 400 380 – 400
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table

Model configuration options:

Add the options to the model number, eg. C3590-dd-dr-cs
Options for Input, Output, Environmental and Mechanical follow.

19" Rack Mounting Options

Subrack Height 3U, 5U, 6U
Wiring, Front Panels
Accessories: Fuses, MCBs, Mains on/off switch
Contact Powerbox for rack configuration



INPUT OPTIONS
Option “i” (inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd” (series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad” (anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au” (auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p” (power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r” (relay): A relay instead of a logic signal is provided for failure indication.
OUTPUT OPTIONS
Option “dd” (decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs” (active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating inparallel.
Option “csi” (current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1” (inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2” (inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco” (reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d” (DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m” (DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac” (AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y" (sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r" (relay): A relay instead of a logic signal is provided for failure indication.
ENVIRONMENT OPTIONS
Option "t" (tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c" (extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" (increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.
MECHANICAL OPTIONS
Standard mounting "Eurocassette" pluggable module for 19" sub-racks 8
Option "w" (wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha" (chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din" (DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.

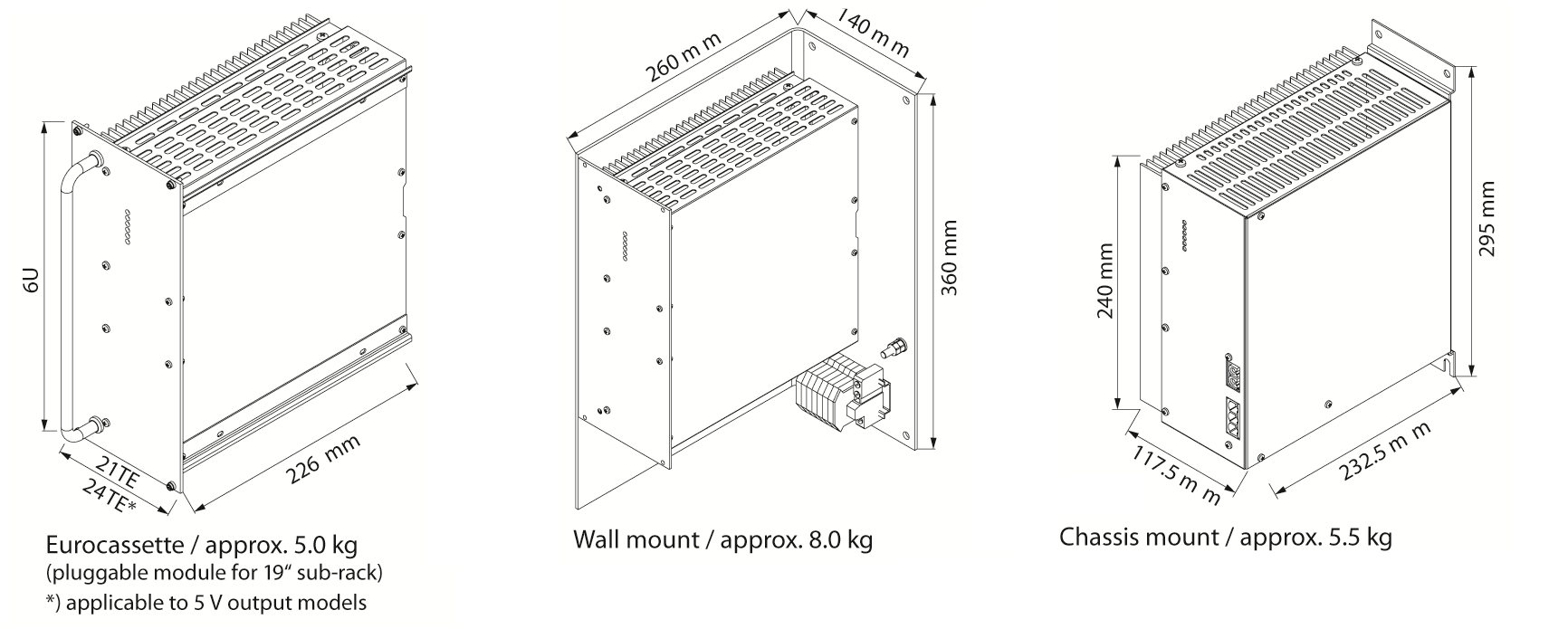

Technical Illustrations

Downloads
Schaefer_cb3500-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf
INPUT
Input voltage 1ph 115/230Vac
3ph 200/400/480Vac
See selection table
Units will turn off with under or over input voltage.
No-load input power 3-6W model (series dependant)
Inrush current AC input limited by thermistor
Switch on time 1-2 seconds.
Input Options Option au: Autoranging for 115/230Vac input
Option pr: Power OK via relay contacts
OUTPUT
Output voltage Voltage range; 4.5 - 400Vdc
See selection table
Output current See selection table.
Ripple & noise 1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 2-3ms typical ±1%
Temperature coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 100mS typical (soft start)
Remote sensing Standard for all series
Efficiency 80%-92% typical
Output Options Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option h: Remote on/off (inhibit)
Option dr: DC OK via relay contacts
PROTECTION
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation
Protection Options Option i: Inrush Current Limiting
Option sd: Reverse polarity protection for DC input by Series Diode
MTBF 100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
ENVIRONMENTAL
Operating temperature -20°C to +75°C
(optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Environment Options Option c: Extended temperature range to -40°C
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
C-Tick AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529
NEMA or others on request
MECHANICAL
Mounting See technical illustrations
Eurocassette, pluggable module for 19" subrack
Option w: Wall Mounting
Option cha: Chassis Mounting
Dimensions See Technical illustration
Connector H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options Option ms: Increased Mechanical Strength
Option t: Tropical protection
19" Rack Mounting Options Subrack Height 3U, 5U, 6U
Wiring, Front Panels
Accessories: Fuses, MCBs, Mains on/off switch
Contact Powerbox for rack configuration
INPUT 115VAC ±20% INPUT 230VAC +15% – 20% INPUT 115 ± 20 % / 230VAC+15% – 20% INPUT 3X200VAC +15% –20% INPUT 3X400VAC +15% – 20% INPUT 3X480VAC +15% –20% OUTPUT AMPS COOLING OUTPUT VOLTAGE VOLTAGE ADJUSTMENT RANGE
C3560 C3580 C3590 C3560V C3580V C3590V 100 F 5 4.5 – 5.5
C3561 C3581 C3591 C3561V C3581V C3591V 65 H 9 8 – 10
C3562 C3582 C3592 C3562V C3582V C3592V 56 H 12 11 – 13
C3563 C3583 C3593 C3563V C3583V C3593V 45 H 15 14 – 16
C3564 C3584 C3594 C3564V C3584V C3594V 30 H 24 23 – 26
C3565 C3585 C3595 C3565V C3585V C3595V 27 H 28 26 – 30
C3569 C3589 C3599 C3569V C3589V C3599V 14 H 48 45 – 55
C3566 C3586 C3596 C3566V C3586V C3596V 12 H 60 58 – 68
C3567 C3587 C3597 C3567V C3587V C3597V 6.5 H 110 100 – 130
C3567J C3587J C3597J C3567VJ C3587VJ C3597VJ 4 H 200 190 – 200
C3568 C3588 C3598 C3568V C3588V C3598V 3.5 H 220 200 – 250
C3568J C3588J C3598J C3568VJ C3588VJ C3598VJ 2 H 400 380 – 400
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table

Model configuration options:

Add the options to the model number, eg. C3590-dd-dr-cs
Options for Input, Output, Environmental and Mechanical follow.

19" Rack Mounting Options

Subrack Height 3U, 5U, 6U
Wiring, Front Panels
Accessories: Fuses, MCBs, Mains on/off switch
Contact Powerbox for rack configuration



INPUT OPTIONS
Option “i” (inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd” (series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad” (anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au” (auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p” (power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r” (relay): A relay instead of a logic signal is provided for failure indication.
OUTPUT OPTIONS
Option “dd” (decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs” (active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating inparallel.
Option “csi” (current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1” (inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2” (inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco” (reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d” (DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m” (DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac” (AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y" (sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r" (relay): A relay instead of a logic signal is provided for failure indication.
ENVIRONMENT OPTIONS
Option "t" (tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c" (extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" (increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.
MECHANICAL OPTIONS
Standard mounting "Eurocassette" pluggable module for 19" sub-racks 8
Option "w" (wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha" (chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din" (DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.
Schaefer_cb3500-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant C3560 115Vac ± 20 % 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 100A
product variant C3561 115Vac ± 20 % 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 65A
product variant C3562 115Vac ± 20 % 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 56A
product variant C3563 115Vac ± 20 % 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 45A
product variant C3564 115Vac ± 20 % 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 30A
product variant C3565 115Vac ± 20 % 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 27A
product variant C3569 115Vac ± 20 % 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 14A
product variant C3566 115Vac ± 20 % 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 12A
product variant C3567 115Vac ± 20 % 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 6.5A
product variant C3567J 115Vac ± 20 % 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 4A
product variant C3568 115Vac ± 20 % 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 3.5A
product variant C3568J 115Vac ± 20 % 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 2A
product variant C3580 230Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 100A
product variant C3581 230Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 65A
product variant C3582 230Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 56A
product variant C3583 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 45A
product variant C3584 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 30A
product variant C3585 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 27A
product variant C3589 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 14A
product variant C3586 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 12A
product variant C3587 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 6.5A
product variant C3587J 230Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 4A
product variant C3588 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 3.5A
product variant C3588J 230Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 2A
product variant C3590 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 100A
product variant C3591 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 65A
product variant C3592 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 56A
product variant C3593 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 45A
product variant C3594 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 30A
product variant C3595 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 27A
product variant C3599 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 14A
product variant C3596 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 12A
product variant C3597 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 6.5A
product variant C3597J 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 4A
product variant C3598 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 3.5A
product variant C3598J 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 2A
product variant C3560V 3 x 200Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 100A
product variant C3561V 3 x 200Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 65A
product variant C3562V 3 x 200Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 56A
product variant C3563V 3 x 200Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 45A
product variant C3564V 3 x 200Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 30A
product variant C3565V 3 x 200Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 27A
product variant C3569V 3 x 200Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 14A
product variant C3566V 3 x 200Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 12A
product variant C3567V 3 x 200Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 6.5A
product variant C3567VJ 3 x 200Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 4A
product variant C3568V 3 x 200Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 3.5A
product variant C3568VJ 3 x 200Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 2A
product variant C3580V 3 x 400Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 100A
product variant C3581V 3 x 400Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 65A
product variant C3582V 3 x 400Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 56A
product variant C3583V 3 x 400Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 45A
product variant C3584V 3 x 400Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 30A
product variant C3585V 3 x 400Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 27A
product variant C3589V 3 x 400Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 14A
product variant C3586V 3 x 400Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 12A
product variant C3587V 3 x 400Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 6.5A
product variant C3587VJ 3 x 400Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 4A
product variant C3588V 3 x 400Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 3.5A
product variant C3588VJ 3 x 400Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 2A
product variant C3590V 3 x 480Vac +10%/-15% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 100A
product variant C3591V 3 x 480Vac +10%/-15% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 65A
product variant C3592V 3 x 480Vac +10%/-15% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 56A
product variant C3593V 3 x 480Vac +10%/-15% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 45A
product variant C3594V 3 x 480Vac +10%/-15% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 30A
product variant C3595V 3 x 480Vac +10%/-15% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 27A
product variant C3599V 3 x 480Vac +10%/-15% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 14A
product variant C3596V 3 x 480Vac +10%/-15% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 12A
product variant C3597V 3 x 480Vac +10%/-15% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 6.5A
product variant C3597VJ 3 x 480Vac +10%/-15% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 4A
product variant C3598V 3 x 480Vac +10%/-15% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 3.5A
product variant C3598VJ 3 x 480Vac +10%/-15% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 2A
