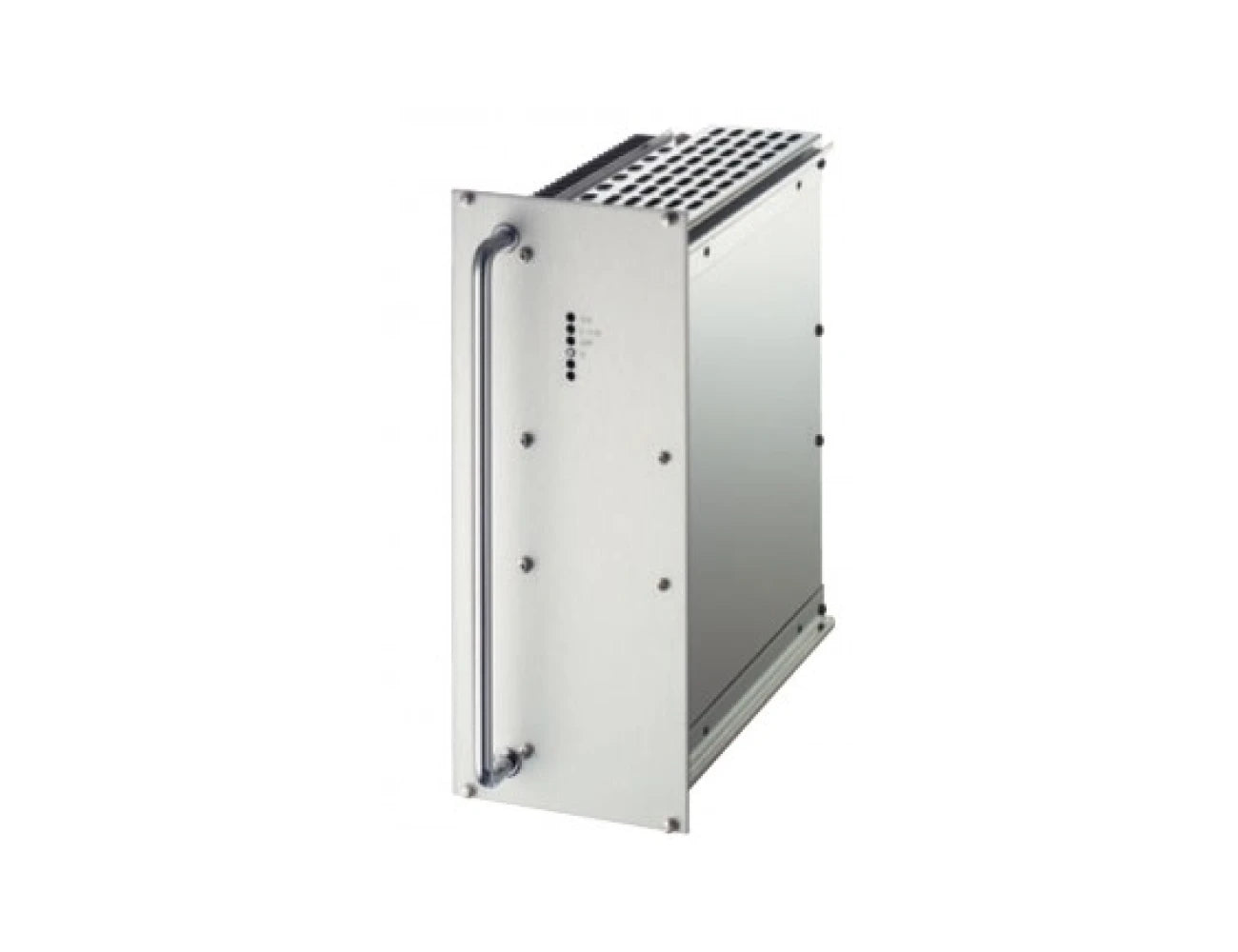

Schaefer C1500A SERIES AC/DC Power Supply

The Schaefer C1500A Series is a reliable industrial-grade AC/DC power supply, delivering 400W output power for a variety of demanding applications. Supporting DC output voltages from 5Vdc to 220Vdc, the series benefits from natural convection cooling for dependable operation. With a narrow profile of 24TE, up to four units can be included within a 6U subrack for scalable and space-efficient installations. Powerbox Australia holds network-wide ARTC Type Approval for the C1500A Series, certifying its compliance for use in railway ARTC signalling applications (Certificate Ref: NESA-S061) and affiliated railway networks.

View Models
Schaefer C1500A SERIES AC/DC Power Supply

Features

  • Industrial Grade 400W AC/DC Power Supply
  • Wide Range of DC outputs: 5, 9, 12,15, 24, 28, 48, 60, 110 and 220
  • Extremely narrow profile with flexible mounting options via Chassis, Wall or Euro Cassette (19" rackmount via 6U subrack)
  • ARTC Type Approved Power Supply (NESA-S061) for Railway Signalling Applications.
Specifications
INPUT
Input voltage 1ph 115/230Vac
3ph 200/400/480Vac
See selection table
Units will turn off with under or over input voltage.
No-load input power 3-6W model (series dependant)
Inrush current AC input limited by thermistor
Switch on time 1-2 seconds.
Input Options Option au: Autoranging for 115/230Vac input
Option pr: Power OK via relay contacts
OUTPUT
Output voltage Voltage range; 4.5 - 400Vdc
See selection table
Output current See selection table.
Ripple & noise 1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 2-3ms typical ±1%
Temperature coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 100mS typical (soft start)
Remote sensing Standard for all series
Efficiency 80%-92% typical
Output Options Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option h: Remote on/off (inhibit)
Option dr: DC OK via relay contacts
PROTECTION
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation
Protection Options Option i: Inrush Current Limiting
Option sd: Reverse polarity protection for DC input by Series Diode
MTBF 100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
ENVIRONMENTAL
Operating temperature -20°C to +75°C
(optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Environment Options Option c: Extended temperature range to -40°C
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
C-Tick AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529
NEMA or others on request
MECHANICAL
Mounting See technical illustrations
Eurocassette, pluggable module for 19" subrack
Option w: Wall Mounting
Option cha: Chassis Mounting
Dimensions See Technical illustration
Connector H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options Option ms: Increased Mechanical Strength
Option t: Tropical protection
19" Rack Mounting Options Subrack Height 3U, 5U, 6U
Wiring, Front Panels
Accessories: Fuses, MCBs, Mains on/off switch
Contact Powerbox for rack configuration
Selection Table
INPUT 115VAC ± 20 % INPUT 230VAC + 15 % – 20 % INPUT 115 ± 20 % / 230VAC+15 % – 20 % INPUT 3x200VAC +15% – 20% OUTPUT AMPS COOLING HEATSINK OUTPUT VOLTAGE VOLTAGE ADJUSTMENT
C1560 C1580 C1590 C1560V 80 H 5 4.5–5.5
C1561 C1581 C1591 C1561V 50 H 9 8–10
C1562 C1582 C1592 C1562V 42 H 12 11–13
C1563 C1583 C1593 C1563V 34 H 15 14–16
C1564 C1584 C1594 C1564V 23 H 24 23–26
C1565 C1585 C1595 C1565V 20 H 28 26–30
C1569 C1589 C1599 C1569V 11 H 48 45–55
C1566 C1586 C1596 C1566V 9 H 60 58–68
C1567 C1587 C1597 C1567V 4.5 H 110 100–130
C1567J C1587J C1597J C1567VJ 3 H 200 190–200
C1568 C1588 C1598 C1568V 2.4 H 220 200–250
C1568J C1588J C1598J C1568VJ 1.5 H 400 380–400
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Model designation options: Add the designation of options to the model number, eg. C1561-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow
19" Rack Mounting Options Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration
INPUT OPTIONS
Option “i” (inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd” (series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad” (anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au” (auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p” (power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r” (relay): A relay instead of a logic signal is provided for failure indication.
OUTPUT OPTIONS
Option “dd” (decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs” (active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating in parallel.
Option “csi” (current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1” (inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2” (inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco” (reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d” (DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m” (DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac” (AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y" (sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r" (relay): A relay instead of a logic signal is provided for failure indication.
environmental options
Option "t" (tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c" (extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" (increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.
mechanical options
Standard mounting "Eurocassette" pluggable module for 19" sub-racks 8
Option "w" (wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha" (chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din" (DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.

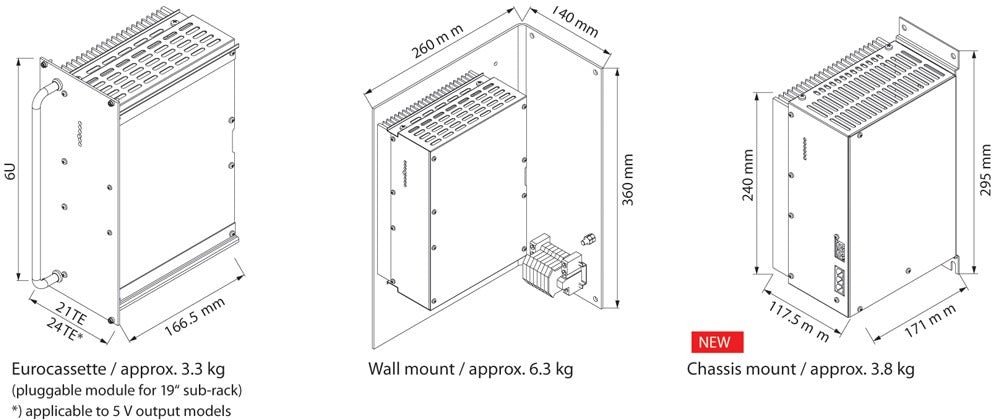

Technical Illustrations
Downloads
Schaefer_cb1500-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

INPUT
Input voltage 1ph 115/230Vac
3ph 200/400/480Vac
See selection table
Units will turn off with under or over input voltage.
No-load input power 3-6W model (series dependant)
Inrush current AC input limited by thermistor
Switch on time 1-2 seconds.
Input Options Option au: Autoranging for 115/230Vac input
Option pr: Power OK via relay contacts
OUTPUT
Output voltage Voltage range; 4.5 - 400Vdc
See selection table
Output current See selection table.
Ripple & noise 1% + 30mVpp
Line regulation 0.1% (±10%)
Load regulation 0.2% typical, load step 10-90%
Load transient 6% typical, load step 10-90%
Response time 2-3ms typical ±1%
Temperature coefficient 0.02% per °C typical.
Holdup time 10mS at 220VAC typical
Turn on rise time 100mS typical (soft start)
Remote sensing Standard for all series
Efficiency 80%-92% typical
Output Options Option dd: Decoupling Diode for redundant / parallel operation
Option cs: Active Current Sharing
Option h: Remote on/off (inhibit)
Option dr: DC OK via relay contacts
PROTECTION
Overload protection Current limited at 105%–110% of full load.
Overvoltage protection OVP switches off module with automatic return to operation
Protection Options Option i: Inrush Current Limiting
Option sd: Reverse polarity protection for DC input by Series Diode
MTBF 100Khrs to 140Khrs at 40°C acc. to MIL-HDBK-217E (notice 1)
ENVIRONMENTAL
Operating temperature -20°C to +75°C
(optional -40 to 75C)
Load derating Derate 2.5% per °C, from +55°C to 75°C
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Environment Options Option c: Extended temperature range to -40°C
Storage temperature -40°C to +85°C
Humidity Up to 95% RH, non-condensing
STANDARDS
EMI standards acc. to EN61000-6-4 class A, optionally class B
Immunity standards acc. to EN61000-6-2
C-Tick AS/NZS CISPR11: 2002 Group1 Class A
Safety / Construction acc. to EN60950-1 / EN50178
Protection category IP20 acc. to EN60529
NEMA or others on request
MECHANICAL
Mounting See technical illustrations
Eurocassette, pluggable module for 19" subrack
Option w: Wall Mounting
Option cha: Chassis Mounting
Dimensions See Technical illustration
Connector H15 acc. to DIN 41612 H15 and high current connectors for I > 50A, or terminals / bolts / bars
Mechanical Options Option ms: Increased Mechanical Strength
Option t: Tropical protection
19" Rack Mounting Options Subrack Height 3U, 5U, 6U
Wiring, Front Panels
Accessories: Fuses, MCBs, Mains on/off switch
Contact Powerbox for rack configuration
INPUT 115VAC ± 20 % INPUT 230VAC + 15 % – 20 % INPUT 115 ± 20 % / 230VAC+15 % – 20 % INPUT 3x200VAC +15% – 20% OUTPUT AMPS COOLING HEATSINK OUTPUT VOLTAGE VOLTAGE ADJUSTMENT
C1560 C1580 C1590 C1560V 80 H 5 4.5–5.5
C1561 C1581 C1591 C1561V 50 H 9 8–10
C1562 C1582 C1592 C1562V 42 H 12 11–13
C1563 C1583 C1593 C1563V 34 H 15 14–16
C1564 C1584 C1594 C1564V 23 H 24 23–26
C1565 C1585 C1595 C1565V 20 H 28 26–30
C1569 C1589 C1599 C1569V 11 H 48 45–55
C1566 C1586 C1596 C1566V 9 H 60 58–68
C1567 C1587 C1597 C1567V 4.5 H 110 100–130
C1567J C1587J C1597J C1567VJ 3 H 200 190–200
C1568 C1588 C1598 C1568V 2.4 H 220 200–250
C1568J C1588J C1598J C1568VJ 1.5 H 400 380–400
Cooling H: Heatsink - natural convection
F: Fan - increased airflow recommended
TF: Temperature controlled Fan included
See selection table
Model designation options: Add the designation of options to the model number, eg. C1561-dd-dr-cs Options for Input, Output, Environmental and Mechanical follow
19" Rack Mounting Options Subrack Height 3U, 5U, 6U Wiring, Front Panels Accessories: Fuses, MCBs, Mains on/off switch Contact Powerbox for rack configuration
INPUT OPTIONS
Option “i” (inrush current limiting): A thermistor is connected in series with the input lines which changes its resistance from high to low when it gets hot. It does not reduce the current surge if the input power is interrupted for a short period of time not allowing the thermistor to cool down. Thermistors are fitted as standard to all mains input models except for 1-phase input of models > 2.5kW. Thermistors are available up to 45A. For higher input current an electronic inrush current limitation can be offered.
Option “ie” electronic inrush current limiting An electronic circuit limits the inrush current.
Option “sd” (series diode): A series diode protects the module against input voltage of wrong polarity (additional power losses).
Option “ad” (anti-parallel diode): To avoid the power losses of a series diode a diode is provided with opposite polarity in parallel to the input blowing an internal or external fuse if the module is connected to a supply with wrong polarity.
Option “au” (auto-ranging) For standard dual AC input models the range of 115/230Vac is to be selected by connecting the input line to different pins on the connector. With auto-ranging the unit senses the input voltage and provides automatically the correct connection.
Option “p” (power fail): A signal (logic or relay) is given if the input voltage (AC or DC) drops below the specified limit. In AC input units we sense the rectified input voltage so that a power fail alarm will not be triggered if at light loads mains power returns before the input capacitors are substantially discharged.
Option “r” (relay): A relay instead of a logic signal is provided for failure indication.
OUTPUT OPTIONS
Option “dd” (decoupling diode): For redundant operation the outputs of two or more units are paralleled behind de-coupling diodes so that an internal fault of one module does not affect the operation of the others. These diodes cause power losses.
Option “cs” (active current sharing): An additional control circuit provides active current sharing via an interconnecting wire between converters that operate in parallel. Active current sharing should be used for multi-output units operating in parallel.
Option “csi” (current sharing interrupt): Option "csi" will effect the removal of the "cs" signal. Should there be an instance where a unit is not supplying the load, then the effect of its "cs" signal is removed, and the load voltage is unaffected by this condition.
Option “h1” (inhibit): A terminal connected to the negative input line also shuts off the converter. This can also be used in conjunction with a thermal trip which shuts the unit down.
Option “h2” (inhibit): Operation of the unit is inhibited if a voltage signal (5V/10mA) is applied in reference to the negative line of the (main) output.
Option “rco” (reducing current limiting at over temperature) A circuit reduces the current limiting level at higher temperature (to be specified).
Option “d” (DC-ok, one output): A logic signal is given if the output voltage (main output in multi-output systems) is below the specified limit.
Option “m” (DC-ok, all outputs): In multi-output systems a logic signal is provided if the voltage of any output is below the specified limit.
Option “ac” (AC ok) A logic signal connected to relay contacts is given if the output voltage of an inverter is below the specified limit.
Option "y" (sys-reset): This logic signal is a combination of power fail and DC-ok as specified for VME systems.
Option "r" (relay): A relay instead of a logic signal is provided for failure indication.
environmental options
Option "t" (tropical protection):The unit is given additional protection by a heavy coat of varnish on the printed circuit board(s) and components.
Option "c" (extended temperature range):The circuit is designed and tested for operation at an ambient temperature as low as –40 °C.
Option "ms" (increased mechanical strength): Screws are secured by Locktite and heavy components are fastened by ties and/or glue. Modules with the "ms" option meet the standard EN61373 regarding shock and vibration.
mechanical options
Standard mounting "Eurocassette" pluggable module for 19" sub-racks 8
Option "w" (wall mounting): Module is screwed against a mounting plate for installation in a cabinet. The load connections are typically a terminal block.
Option "cha" (chassis mount) Module is designed for installation to a structure or within cabinet. Screw type connectors are supplied with the module.
Option "din" (DIN rail mount) Module is designed for DIN rail mounting to a structure or within Cabinet. Screw type connectors are supplied with the module.
Schaefer_cb1500-AC-DC-PS-BatteryChargers-DC-DC-Converters.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant C1560 115Vac ± 20 % 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 80A
product variant C1561 115Vac ± 20 % 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 50A
product variant C1562 115Vac ± 20 % 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 42A
product variant C1563 115Vac ± 20 % 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 34A
product variant C1564 115Vac ± 20 % 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 23A
product variant C1565 115Vac ± 20 % 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 20A
product variant C1569 115Vac ± 20 % 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 11A
product variant C1566 115Vac ± 20 % 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 9A
product variant C1567 115Vac ± 20 % 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 4.5A
product variant C1567J 115Vac ± 20 % 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 3A
product variant C1568 115Vac ± 20 % 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 2.4A
product variant C1568J 115Vac ± 20 % 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 1.5A
product variant C1580 230Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 80A
product variant C1581 230Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 50A
product variant C1582 230Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 42A
product variant C1583 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 34A
product variant C1584 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 23A
product variant C1585 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 20A
product variant C1589 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 11A
product variant C1586 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 9A
product variant C1587 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 4.5A
product variant C1587J 230Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 3A
product variant C1588 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 2.4A
product variant C1588J 230Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 1.5A
product variant C1590 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 80A
product variant C1591 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 50A
product variant C1592 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 42A
product variant C1593 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 34A
product variant C1594 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 23A
product variant C1595 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 20A
product variant C1599 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 11A
product variant C1596 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 9A
product variant C1597 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 4.5A
product variant C1597J 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 3A
product variant C1598 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 2.4A
product variant C1598J 115Vac ± 20 % 50/60Hz or 230Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 1.5A
product variant C1560V 3 x 200Vac +15%/-20% 50/60Hz 5Vdc (Adj. 4.5 - 5.5Vdc) 80A
product variant C1561V 3 x 200Vac +15%/-20% 50/60Hz 9Vdc (Adj. 8 - 10Vdc) 50A
product variant C1562V 3 x 200Vac +15%/-20% 50/60Hz 12Vdc (Adj. 11 - 13Vdc) 42A
product variant C1563V 3 x 200Vac +15%/-20% 50/60Hz 15Vdc (Adj. 14 - 16Vdc) 34A
product variant C1564V 3 x 200Vac +15%/-20% 50/60Hz 24Vdc (Adj. 23 - 26Vdc) 23A
product variant C1565V 3 x 200Vac +15%/-20% 50/60Hz 28Vdc (Adj. 26 - 30Vdc) 20A
product variant C1569V 3 x 200Vac +15%/-20% 50/60Hz 48Vdc (Adj. 45 - 55Vdc) 11A
product variant C1566V 3 x 200Vac +15%/-20% 50/60Hz 60Vdc (Adj. 58 - 68Vdc) 9A
product variant C1567V 3 x 200Vac +15%/-20% 50/60Hz 110Vdc (Adj. 100 - 130Vdc) 4.5A
product variant C1567VJ 3 x 200Vac +15%/-20% 50/60Hz 200Vdc(Adj. 190 - 200Vdc) 3A
product variant C1568V 3 x 200Vac +15%/-20% 50/60Hz 220Vdc (Adj. 200 - 250Vdc) 2.4A
product variant C1568VJ 3 x 200Vac +15%/-20% 50/60Hz 400Vdc (Adj. 380 - 400Vdc) 1.5A
