Jack Fuse Lodestar - Versatile Alarm Status Indicator

The Jack Fuse Lodestar is a versatile audiovisual indicator designed to clearly communicate alarm and status conditions across a wide range of applications. With its multi-colour LED options, adjustable sounder, and backlit icon set, Lodestar provides a practical and stylish solution for environments where quick and reliable visual or audible alerts are essential.

View Models

Features

Seven LED colours (Blue, Green, Red, White, Yellow, Purple, Light Blue) for clear status indication
Adjustable sounder (~80 dB) with selectable pulse or continuous operation

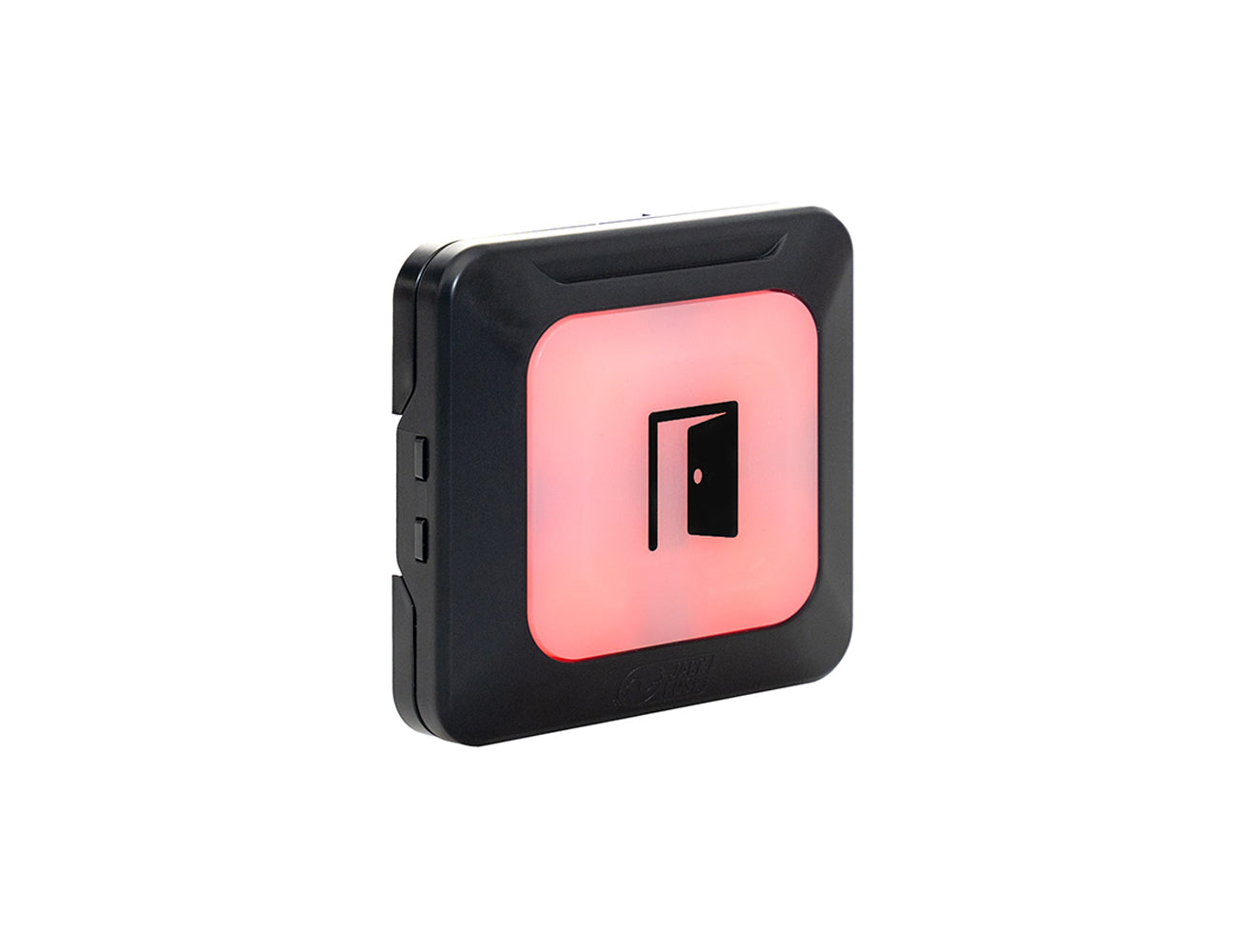

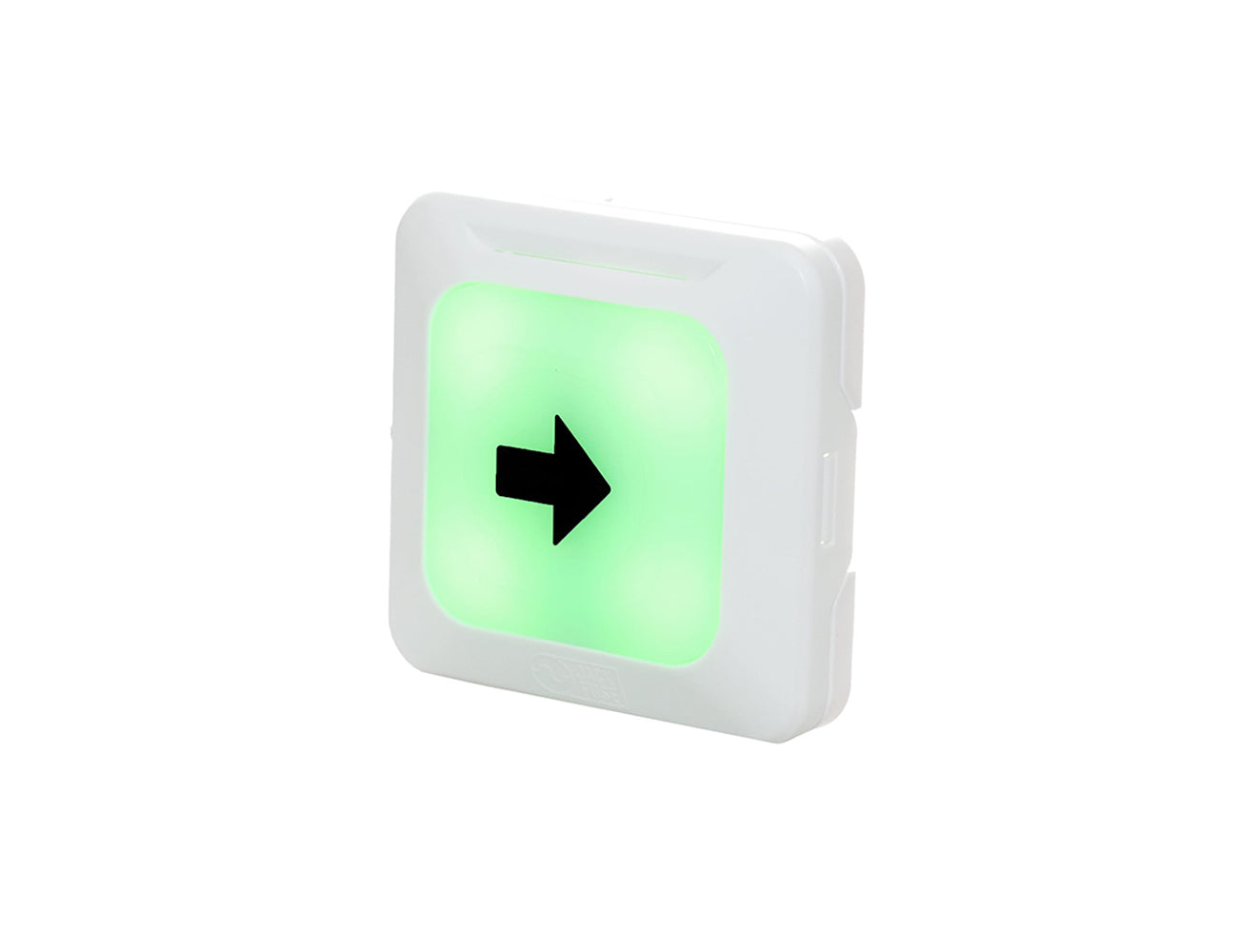

Backlit icons – supplied with 11 adhesive options to match alarm scenarios
Flexible display modes – flashing or solid illumination
Wide viewing angle for high visibility
Low power consumption (max. 35 mA @ 12 VDC with buzzer and 3 LEDs active)

Specifications

Technical Data
Conductor Size	1.5mm2 (28-16AWG)
Recommended Cable	Six core security (14/020)
Operating voltage	9-28Vdc
Dimensions	87x87x26mm
Sounder	~80db adjustable
Primary materials	Polycarbonate, Polyamide 46, fiberglass
Country of origin	China

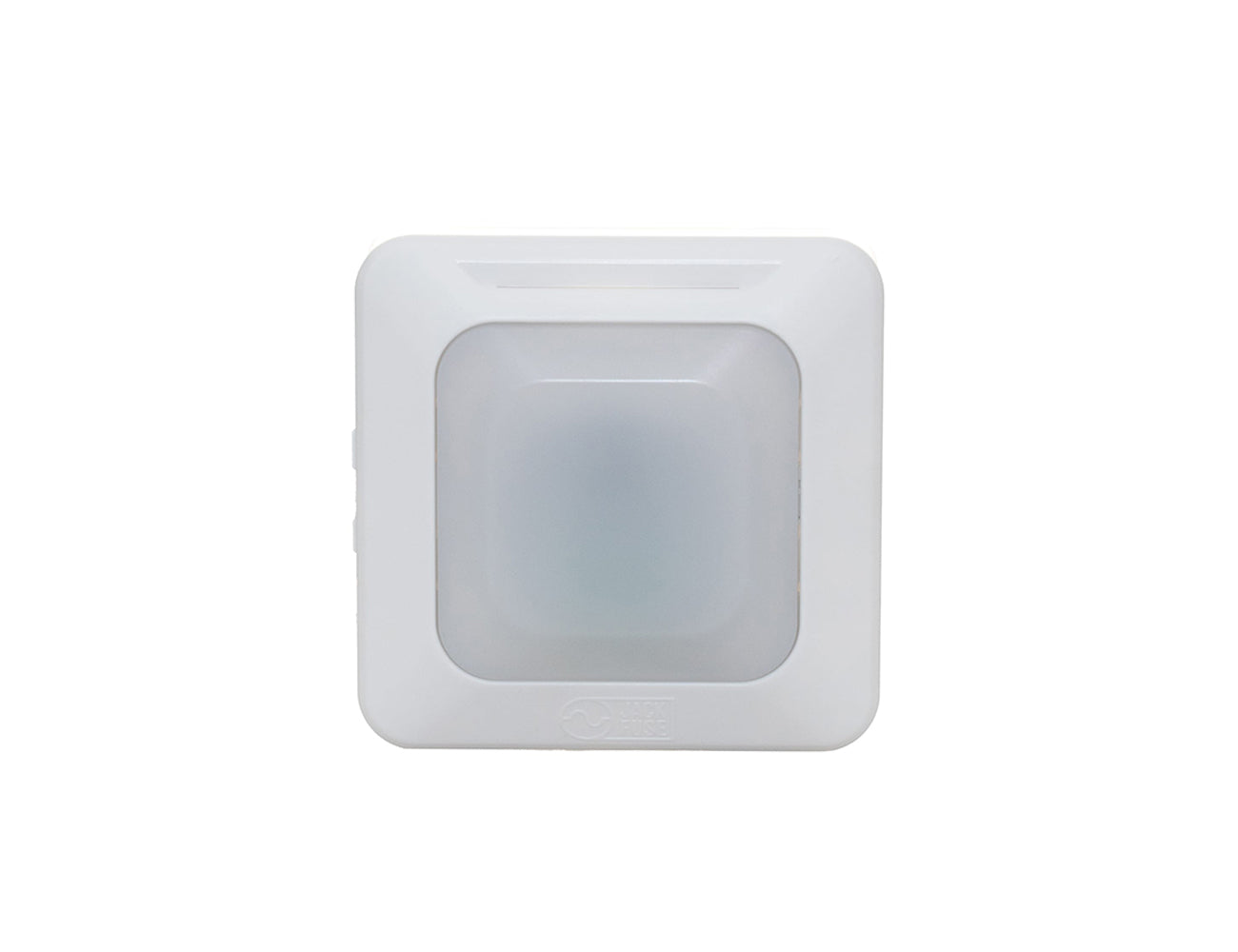

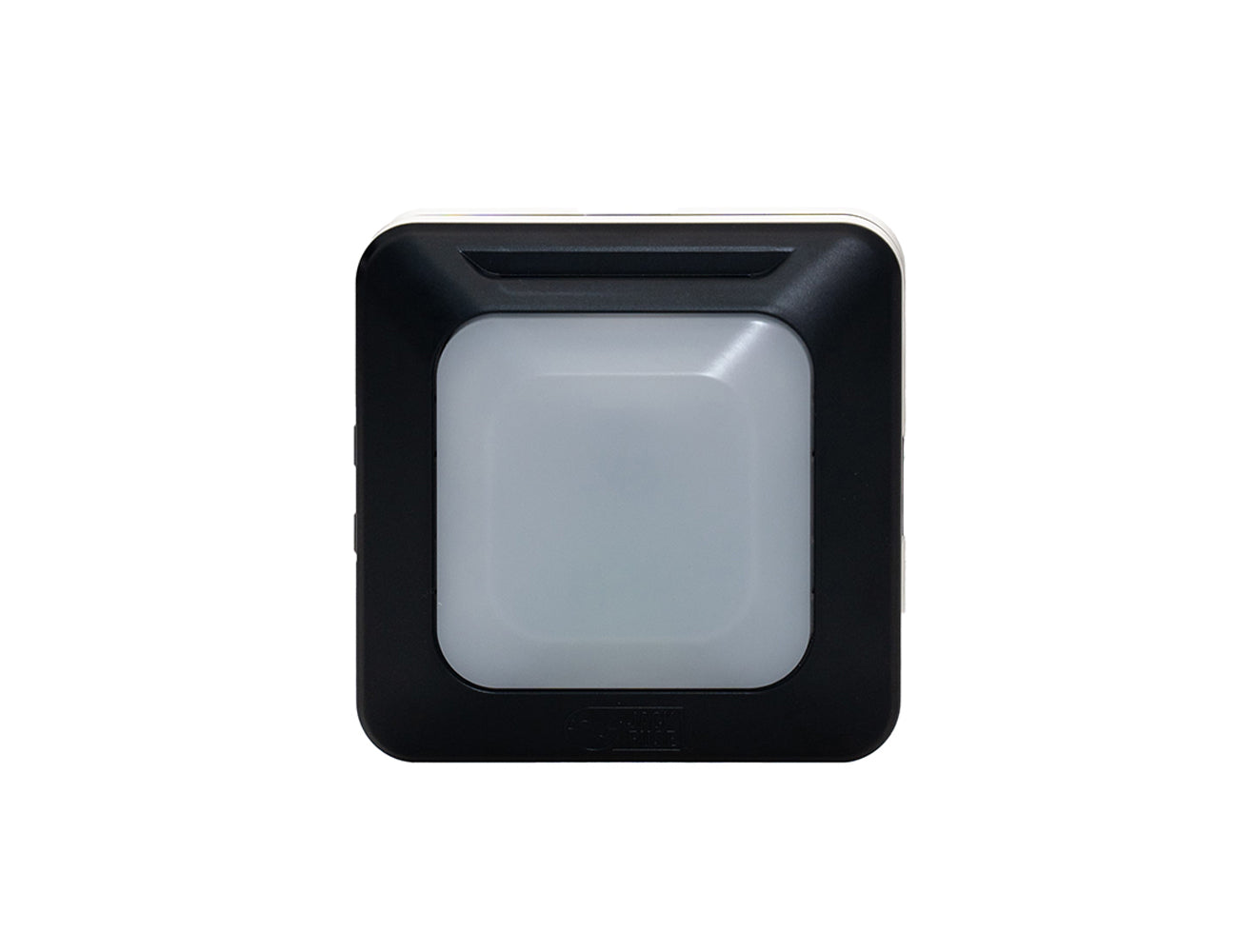

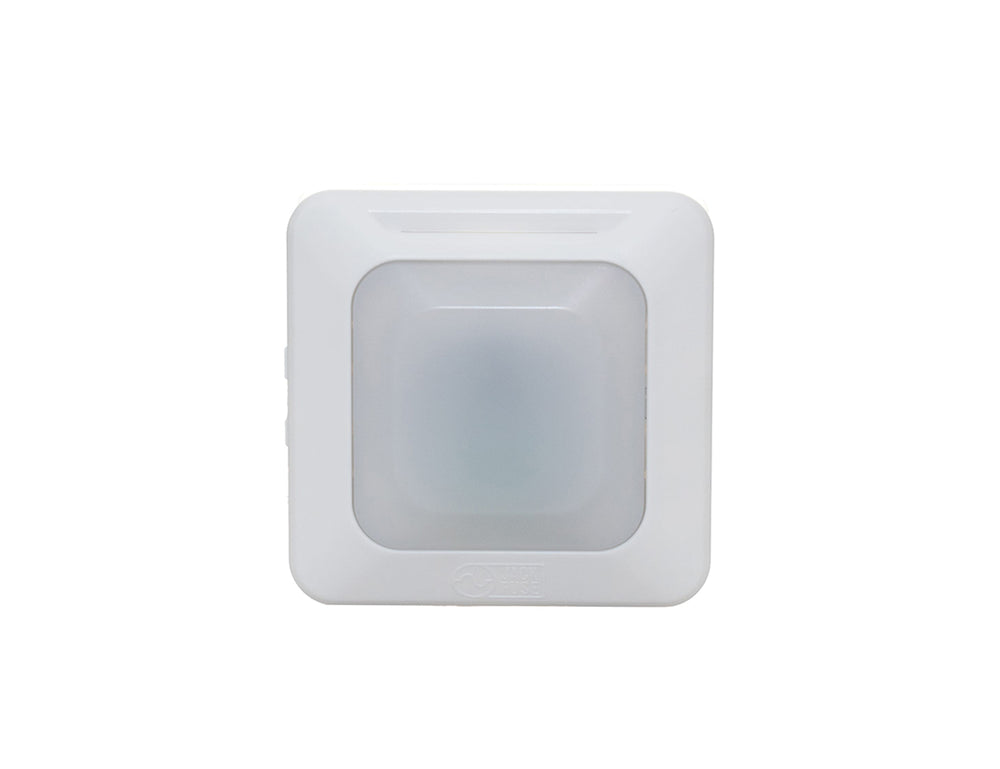

Colour	White or Charcoal
Ordering
Lodestar-W	Lodestar - White
Lodestar-C	Lodestar- Charcoal
Lodestar-ICOX	Custom icon design, special order
Power
LED	11mA @ 12VDC (max each)
Sounder	6-10mA @12VDC (min-max)
Maximum	35mA @ 12VDC (max buz + 3 LED)

Downloads

Lodestar-V1-Datasheet-R1.pdf

Lodestar-V1-Quick-Install-Note-R1.pdf
