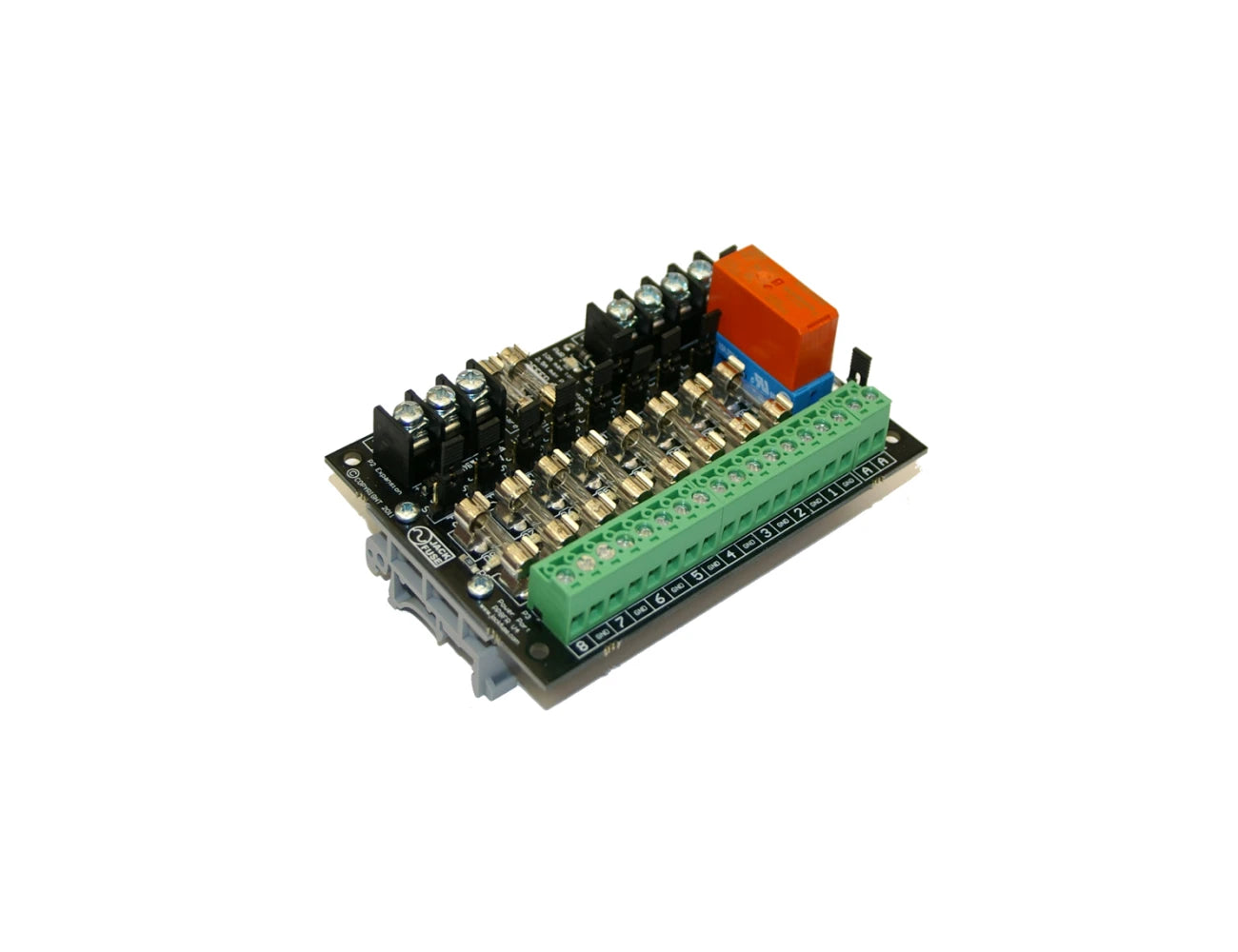

Jack Fuse PP8FR Power Distribution Module
The Jack Fuse PP8FR is a versatile power distribution module designed to provide secure and efficient over-current protection for electronic access control and security systems. It integrates seamlessly with fire alarm systems to ensure automatic emergency release of electric door locks during an evacuation. Key features include eight individual...
Read MoreThe Jack Fuse PP8FR is a versatile power distribution module designed to provide secure and efficient over-current protection for electronic access control and security systems. It integrates seamlessly with fire alarm systems to ensure automatic emergency release of electric door locks during an evacuation.
Key features include eight individually fused outputs with status LEDs for easy monitoring, field-selectable power outputs (standard or fire tripped), and on-board spare fuse holders for convenience. With its compact DIN rail mount design, the PP8FR minimises installation time and wiring complexity, while supporting a wide input voltage range of 0–28V DC. It offers unlimited local and remote expansion options for scalable security solutions.
The PP8FR enhances reliability by simplifying fire trip wiring and protecting against over-current faults that can damage security devices. Its intuitive design reduces fault-finding efforts and ensures compliance with safety standards.
The Jack Fuse PP8FR is an essential solution for access control and security installations requiring efficient, compact, and reliable power distribution.
Show Less
Features
- Fused Power Distribution: Eight individually fused outputs (1A glass fuses) with status LEDs provide clear, fault-isolated DC power to access control and security devices.
- Field Selectable Output Mode: Each channel can be independently configured to receive standard power or fire-tripped power, ensuring compliance with fire safety requirements.
- Fire Trip Integration: Built-in fire relay accepts 12–24Vdc or dry contact activation and automatically disconnects power during a fire alarm event.
- Expansion-Ready Design: Easily connects to additional PP8FR, enabling expansion via N/C relay contacts and shared power/fire lines.
- Quick Fault Diagnosis: Visual status LEDs and spare fuse holders simplify on-site troubleshooting, minimising downtime and improving installation quality.
- DIN Rail Mounting: Supplied with DIN clips for fast, tidy installation in control cabinets; reduces materials and installation time compared to traditional wiring methods.
