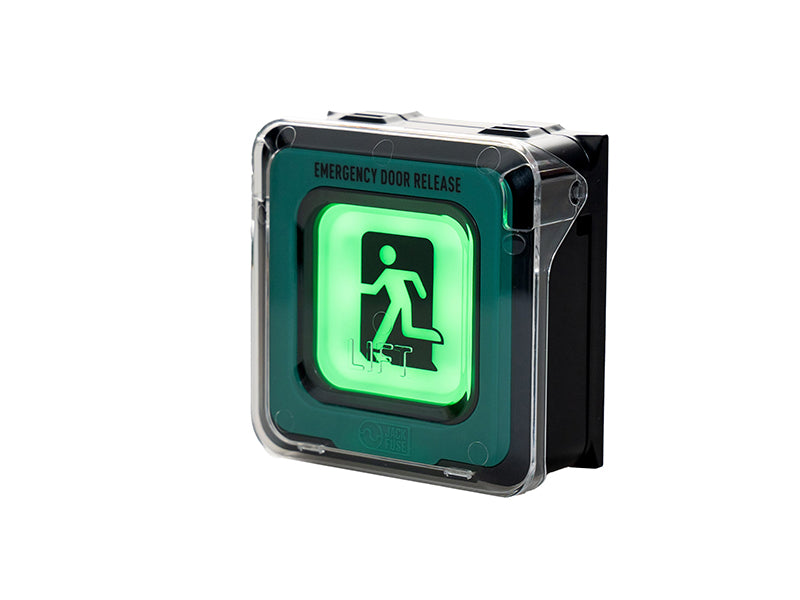

Jack Fuse Electronic Break Glass (EBG)
The Jack Fuse Electronic Break Glass (EBG) redefines emergency door release functionality with a unique combination of local, remote, and automatic reset options. Designed for high-security and remotely managed facilities, it eliminates the need for manual resets, significantly reducing response time, labour costs, and unnecessary door unlock duration after activation.
Read More
Features
- Automatic, Remote & Local Reset Options: Reset can occur via lock power cycle, remote control voltage, or local button. All reset methods can be combined for added flexibility.
- Integrated Audible & Visual Feedback: Activation triggers an LED status indicator and internal sounder, both with adjustable brightness and volume.

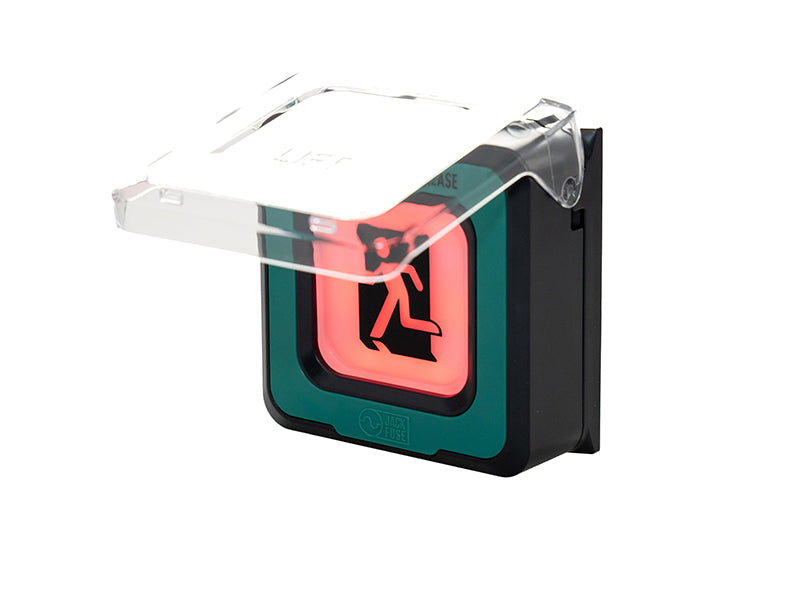

- Tamper Protection & Lift-Up Guard: Case and wall tamper switches plus a hinged guard protect against accidental or unauthorised activation.
- Dual Relay Outputs: Includes two 3A SPDT (Form C) relays for seamless integration with electric locks, auto doors, and control panels.
- Universal Mounting Compatibility: Compatible with standard square break glass footprints. Optional surface-mount back box available for hardwired installations.
- Low Power Operation with Fail-Safe Design: Operates at 12V or 24VDC and defaults to lock release on power failure, ensuring life safety compliance.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Conductor size – relays and common terminal | 2.5mm² (22-12AWG) |
| Conductor size – Tamper Terminal | 1.5mm² (26-14AWG) |
| Relay Contact Max Current | 3A |
| Relay Contact Configuration | SPDT (1 Form C) X 2 |
| Tamper Contact | NC 1A max |
| Power | 55mA @ 13.8VDC (Sounder and Red LED on) |
| Operating voltage | 12 & 24Vdc* - Fail safe** |
| Power | 55mA @ 12Vdc (red LED + sounder on) |
| Dimensions | 86 x 86 x 40mm (with guard) |
| Operations | 40,000 (actuator presses) |
| Primary materials | Polycarbonate, Polyamide 46, fiberglass |
| Colour | Charcoal with green facia |
| ROHS | Compliant |
| AUS/NZ (RMC-EMC) 61000.6.3 | Compliant |
| Notes |
*Built in low power setting to help performance even when lock voltage falls below 12VDC. **On power fail the EBG will deactivate and release lock power. |
| ORDERING CODES | |
|---|---|
| EBG-C |
Electronic Break Glass with guard. Includes: Case plus facia and PCB attached with 4 x M3 self-tapping screws; Running man actuator; Base with tamper bracket attached; Transparent activation cover; 2 X 10mm M3 T10 security machine screws; 2 X 35mm M3.5 machine screws for back box and wall box mounting
|

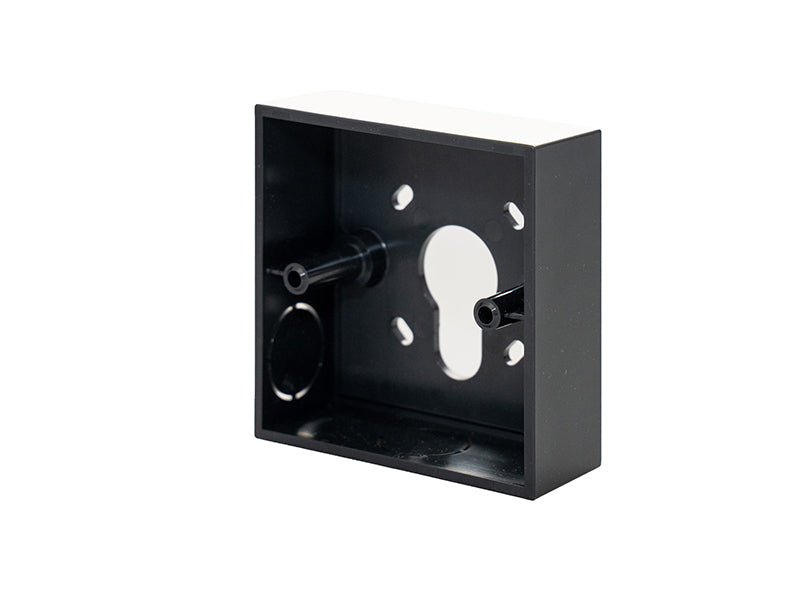

| EBG-MB-C | Surface mounting back box for EBG-C with conduit knockouts |
| Mini-FRI-12 | Relay for auto door/gate interface 12VDC |
| Mini-FRI-24 | Relay for auto door/gate interface 24VDC |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Conductor size – relays and common terminal | 2.5mm² (22-12AWG) |
| Conductor size – Tamper Terminal | 1.5mm² (26-14AWG) |
| Relay Contact Max Current | 3A |
| Relay Contact Configuration | SPDT (1 Form C) X 2 |
| Tamper Contact | NC 1A max |
| Power | 55mA @ 13.8VDC (Sounder and Red LED on) |
| Operating voltage | 12 & 24Vdc* - Fail safe** |
| Power | 55mA @ 12Vdc (red LED + sounder on) |
| Dimensions | 86 x 86 x 40mm (with guard) |
| Operations | 40,000 (actuator presses) |
| Primary materials | Polycarbonate, Polyamide 46, fiberglass |
| Colour | Charcoal with green facia |
| ROHS | Compliant |
| AUS/NZ (RMC-EMC) 61000.6.3 | Compliant |
| Notes |
*Built in low power setting to help performance even when lock voltage falls below 12VDC. **On power fail the EBG will deactivate and release lock power. |
| ORDERING CODES | |
|---|---|
| EBG-C |
Electronic Break Glass with guard. Includes: Case plus facia and PCB attached with 4 x M3 self-tapping screws; Running man actuator; Base with tamper bracket attached; Transparent activation cover; 2 X 10mm M3 T10 security machine screws; 2 X 35mm M3.5 machine screws for back box and wall box mounting
|
| EBG-MB-C | Surface mounting back box for EBG-C with conduit knockouts |
| Mini-FRI-12 | Relay for auto door/gate interface 12VDC |
| Mini-FRI-24 | Relay for auto door/gate interface 24VDC |
