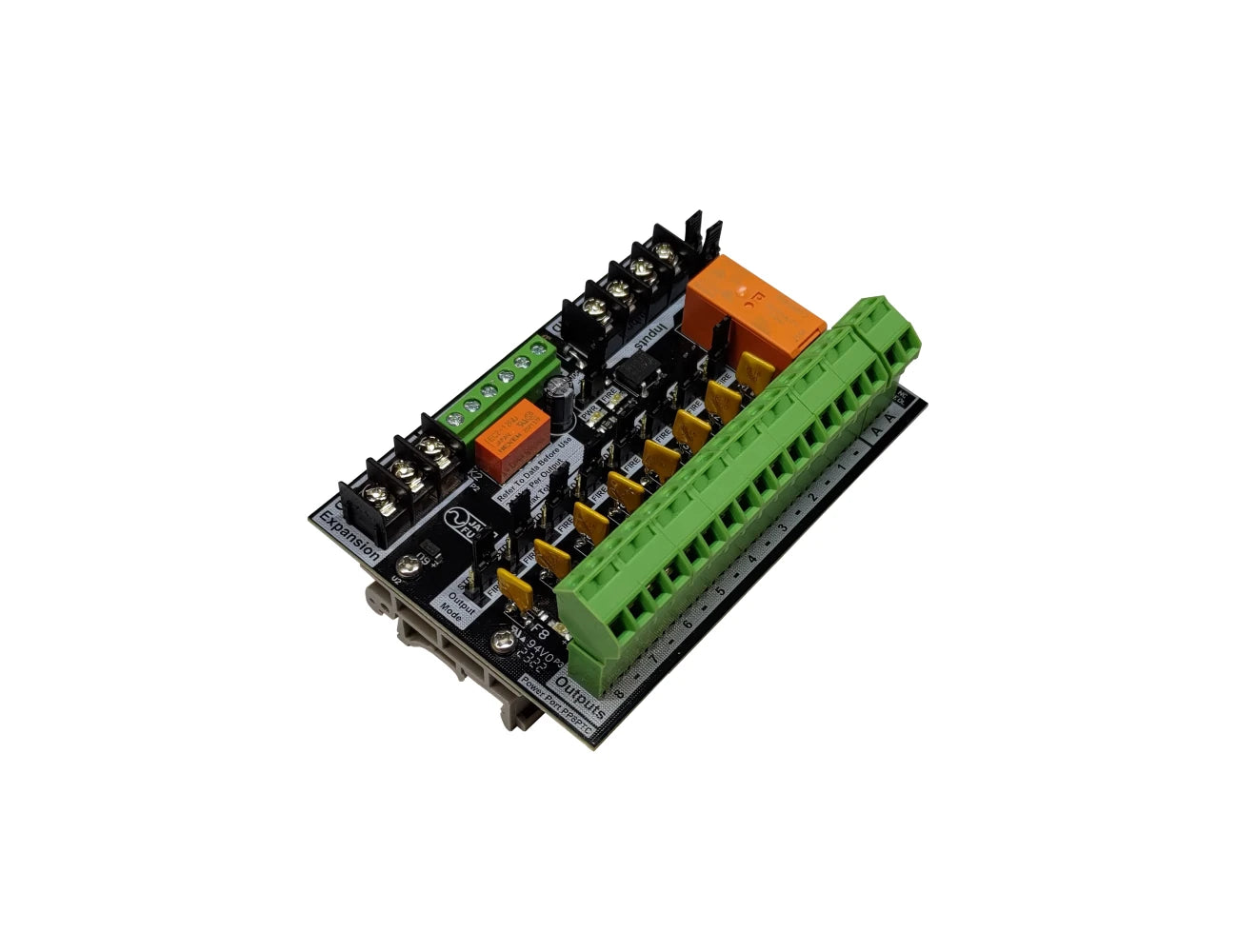

Jack Fuse PP8PTC Power Distribution Module
The Jack Fuse PP8PTC is a premium power distribution module designed for electronic access control and security systems. With its self-healing fused outputs and fire trip interface, it delivers unmatched reliability and safety for critical installations. Key features include eight individual self-healing fused outputs, each with a status LED for...
Read MoreThe Jack Fuse PP8PTC is a premium power distribution module designed for electronic access control and security systems. With its self-healing fused outputs and fire trip interface, it delivers unmatched reliability and safety for critical installations.
Key features include eight individual self-healing fused outputs, each with a status LED for easy monitoring, and field-selectable power outputs that support both standard and fire-tripped configurations. The auxiliary fire trip slaved relay with dry contacts provides integration with third-party devices, such as automatic doors. Its compact DIN rail mount design ensures easy installation and scalability, with unlimited local and remote expansion options.
The PP8PTC simplifies wiring for fire trip and over-current protection, reducing material and labour costs while improving system reliability. Its self-healing PPTC fuses automatically reset after a fault is cleared, minimising downtime and eliminating the need for manual fuse replacements.
The Jack Fuse PP8PTC is the ideal solution for secure, scalable, and efficient power distribution in access control and security systems.
Show Less
Features
- Self-Healing Fused Outputs: Each of the eight outputs is protected by a 2A resettable PPTC fuse, automatically restoring power after fault clearance, minimizing downtime and service calls.
- Fire Trip Integration: Features a built-in fire trip relay with a non-polarized input accepting 12–24VDC or dry contact signals, ensuring compliance with fire safety requirements.
- Field-Selectable Output Modes: Each output can be individually configured for standard or fire-tripped power, providing flexibility for various system requirements.
- Auxiliary Dry Contact Outputs: Includes two dry contact outputs (DPDT) slaved to the fire trip relay, allowing integration with additional devices like automatic doors or expansion modules.
- DIN-Rail Mounting and Compact Design: The compact form factor (110 x 75 x 52 mm) with DIN-rail mounting facilitates easy installation in control cabinets and enclosures.
- Expansion Capability: Provides an unfused auxiliary output for expansion, supporting additional modules or devices as needed.
