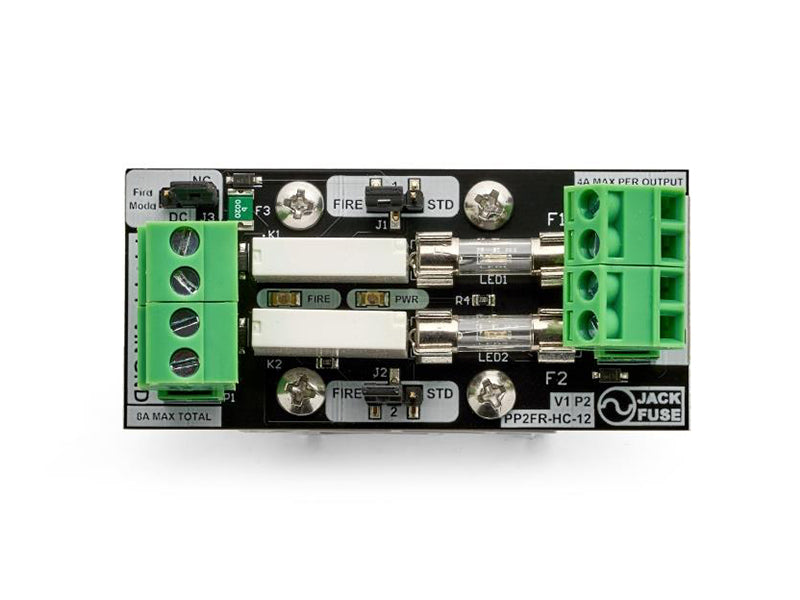

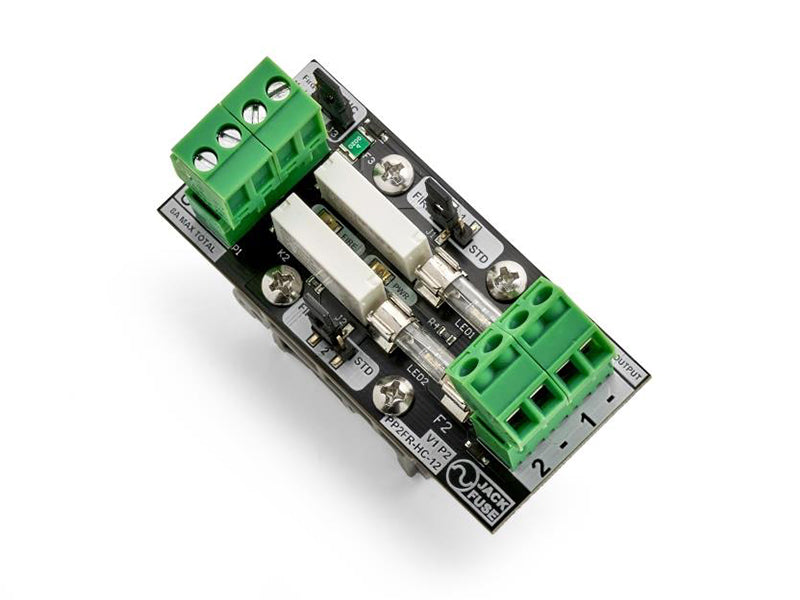

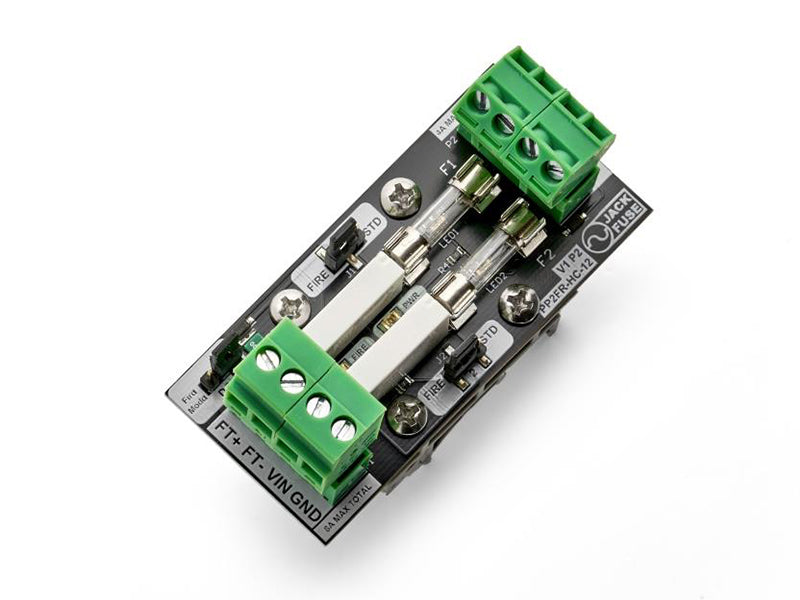

Jack Fuse PP2FR-HC Power Distribution Module
The Jack Fuse PP2FR-HC is a compact, high-current power distribution module designed to simplify fire trip integration and protect demanding access control circuits. Engineered for 12V or 24V DC systems, it provides two individually fused outputs and is ideal for powering magnetic locks, daisy-chained door controllers, or expanding existing inst...
Read MoreThe Jack Fuse PP2FR-HC is a compact, high-current power distribution module designed to simplify fire trip integration and protect demanding access control circuits. Engineered for 12V or 24V DC systems, it provides two individually fused outputs and is ideal for powering magnetic locks, daisy-chained door controllers, or expanding existing installations.
Each output supports up to 4A continuous current and includes a field-selectable fire trip mode. Built-in status LEDs provide clear output visibility, while onboard fire relay control ensures electric door locks respond safely during evacuation events. The PP2FR-HC’s DIN rail mounting and small footprint make it well suited for both field-mounted and centralised applications.
With its high current rating, intuitive layout, and compliance with AS/CA S009:2020, the PP2FR-HC is the go-to solution for installations requiring reliable, fire-compliant high-load switching in access control and security systems.
Show Less
Features
- High-Current Dual Outputs: Two individually fused outputs rated to 4A each (8A total), using 4A fast-blow fuses—ideal for high-demand devices like maglocks or field controllers.
- Fire Trip Integration: Built-in relay responds to 12–24VDC or dry contact signals from fire panels, disconnecting fire-tripped outputs during alarm conditions.
- Selectable Output Mode: Each channel can be independently configured to receive either standard or fire-tripped power, set via onboard jumpers.
- Compact DIN-Rail Mounting: Supplied with DIN-rail clips and compatible with Snap Track for easy integration in tight control cabinets or field enclosures.
- Visual Output Monitoring: Output status LEDs simplify fault diagnosis and quickly confirm active power or tripped conditions.
- Expandable & Versatile: Ideal for two-door access systems or expanding PP8FR and other Power Port modules where high current is needed without redesigning distribution.
