Jack Fuse ATMOD Quick Connect Resistor Module
The Jack Fuse ATMOD Quick Connect Resistor Module is a compact, high-efficiency solution designed for electronic access control and security systems. Engineered to simplify installations, it reduces labour costs and eliminates the risk of wiring errors, making it an essential tool for both new setups and system upgrades. Key features include pus...
Read MoreThe Jack Fuse ATMOD Quick Connect Resistor Module is a compact, high-efficiency solution designed for electronic access control and security systems. Engineered to simplify installations, it reduces labour costs and eliminates the risk of wiring errors, making it an essential tool for both new setups and system upgrades.
Key features include push-in quick-connect terminals for fast and tool-free installation, colour-coded insulation for easy resistor value identification, and a rugged, insulated housing for reliable performance in demanding environments. Its compact size allows it to fit seamlessly into tight spaces, including alarm devices, door frames, and ducts. The integrated orientation tab ensures correct installation every time, even by novice technicians.
The ATMOD supports a wide range of EOL resistor values to suit most security panels, with custom configurations available on request. Its reusable design adds to its versatility, enabling cost-effective reuse across multiple projects. High-quality spring-clamp connections provide reliable, vibration-resistant performance, ideal for installations exposed to movement or extreme temperatures.
Designed for optimal efficiency, the Jack Fuse ATMOD Quick Connect Resistor Module is a trusted solution for security integrators, installers, and system engineers seeking to enhance reliability and reduce installation time.
Show Less
Features
- Time-Saving Installation: ATMOD modules dramatically reduce installation time by replacing traditional resistor wiring with a compact, pre-assembled solution that eliminates manual errors.
- Push-In Terminal Blocks: Tool-free, spring-loaded terminals accept 0.2–0.5mm² cable and provide consistent pressure—ideal for fast, secure terminations on site or in the workshop.

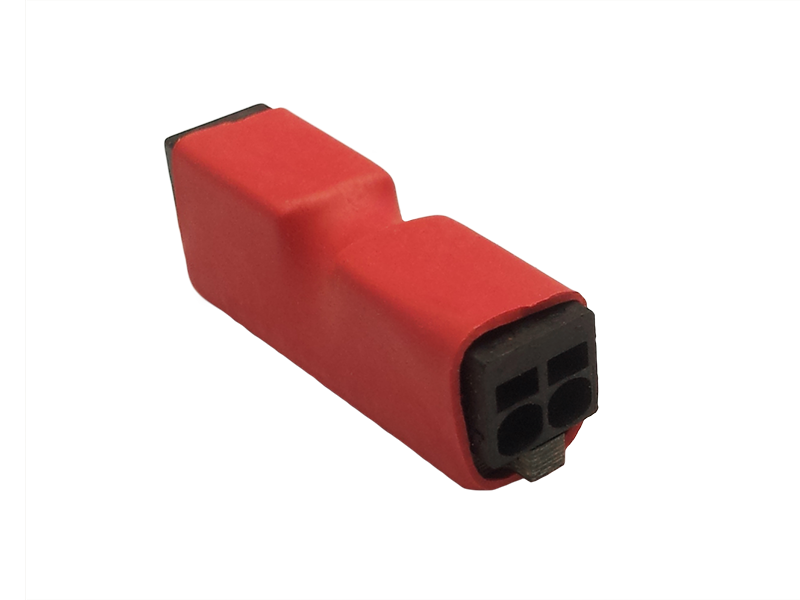

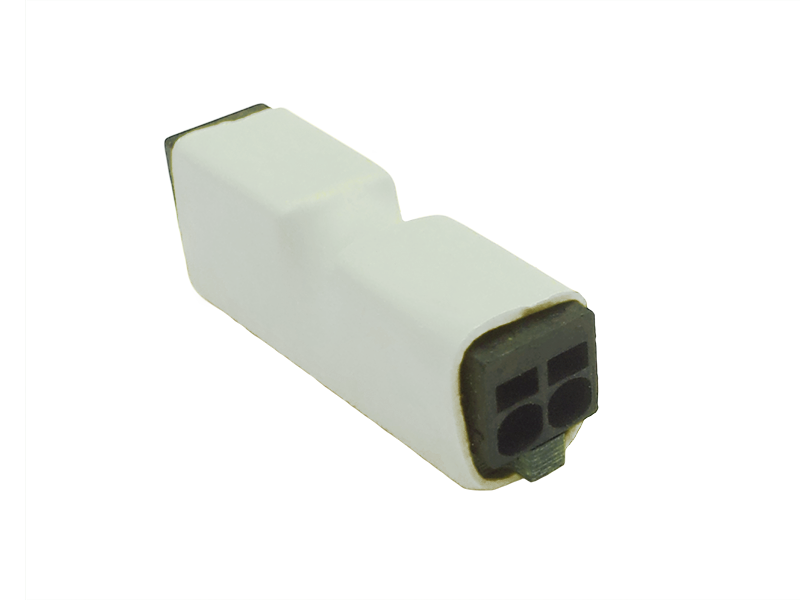

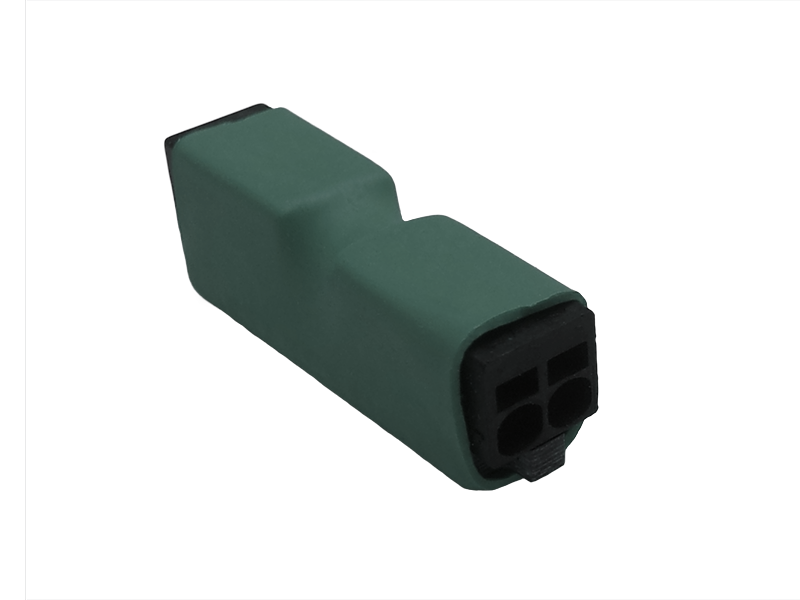

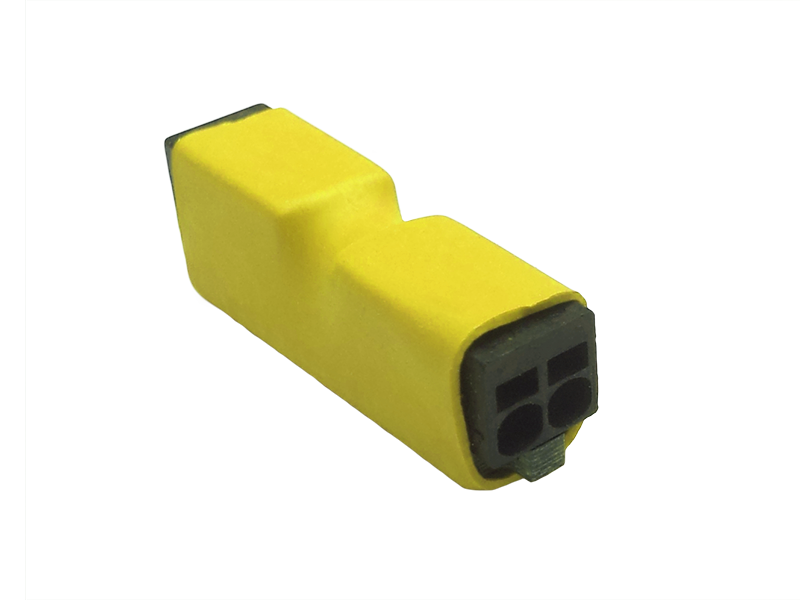

- Pre-Built PCB & Colour Coded: Each ATMOD contains surface-mounted resistors on a PCB and comes colour-coded by resistor value, aiding identification and avoiding miswires.

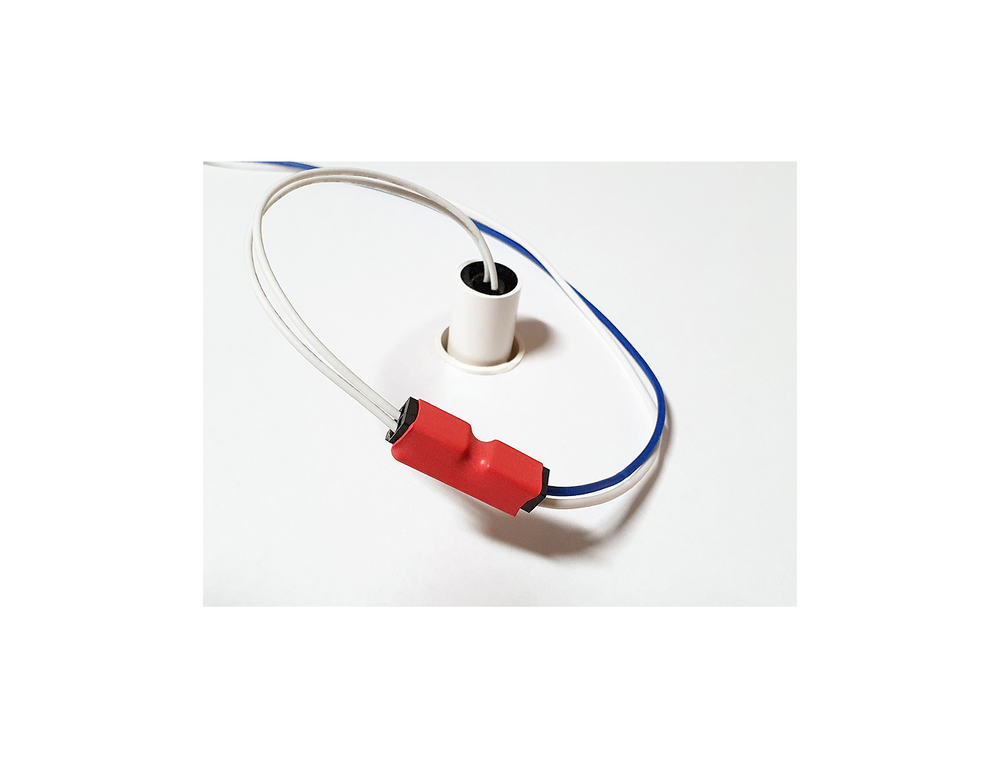

- Compact & Concealable: Just 24mm x 7mm x 8mm in size, the ATMOD fits neatly inside most alarm devices, door frames, or cable ducts for tamper-resistant EOL compliance.
- Orientation Tab for Reliability: Built-in directional tab ensures the ATMOD is correctly oriented toward the field device, helping new or junior technicians install with confidence.
- Available in Multiple Resistor Sets: Stocked in all common EOL values (e.g. 1K/1K, 2K2/6K8, 10K/10K), with custom options available on request—fully compatible with most security systems.
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
