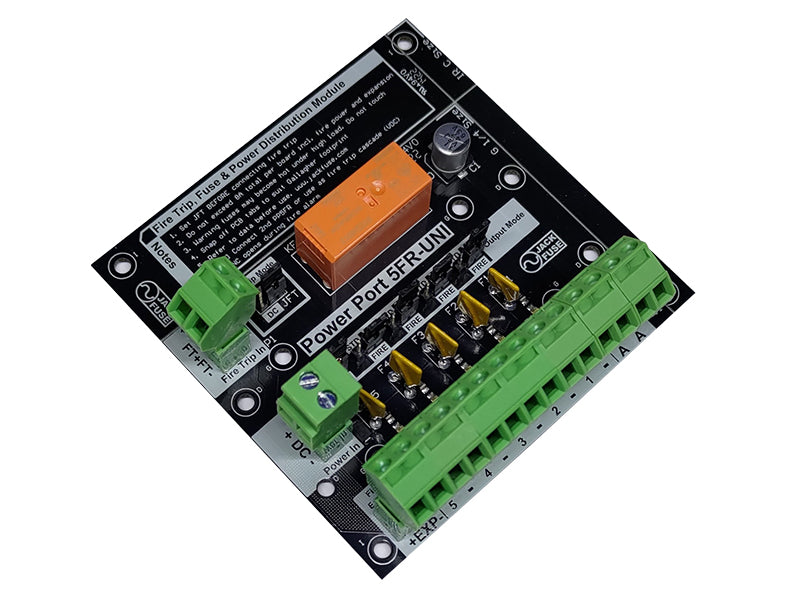

Jack Fuse PP5FR-UNI Power Distribution Module
The Jack Fuse PP5FR-UNI is a compact and adaptable power distribution module designed for secure and reliable overcurrent protection in electronic access control systems. Engineered to interface directly with fire alarm systems, it ensures automatic unlocking of electric door locks during an emergency, supporting life safety compliance. Featurin...
Read MoreThe Jack Fuse PP5FR-UNI is a compact and adaptable power distribution module designed for secure and reliable overcurrent protection in electronic access control systems. Engineered to interface directly with fire alarm systems, it ensures automatic unlocking of electric door locks during an emergency, supporting life safety compliance.
Featuring five individually fused outputs with self-resetting PPTC protection and status LEDs, the PP5FR-UNI also allows field selection between standard and fire-tripped power for each channel. It mounts natively into Inner Range “C” size and Gallagher ¼ footprint panels, and is optionally DIN-rail mountable, offering installers flexibility across system architectures. With wide 12–15Vdc input support, fire trip monitoring, and expansion-ready design, the PP5FR-UNI is ideal for scalable security installations.
Its intuitive layout, self-healing fuse technology, and universal mounting options reduce installation time, simplify fault diagnosis, and enhance long-term system reliability.
Show Less
Features
- Five Individually Fused Outputs: Each output features a 2A self-resetting PPTC fuse and status LED for clear visual monitoring and automatic recovery from overcurrent events.
- Fire Alarm Integration: Built-in fire trip relay supports 12–15Vdc or dry contact activation and cuts power to fire-tripped outputs during evacuation events.

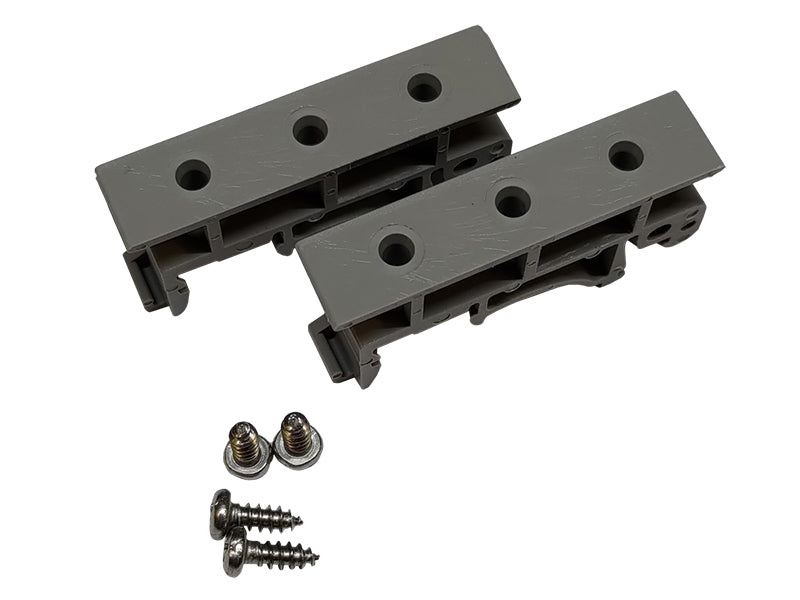

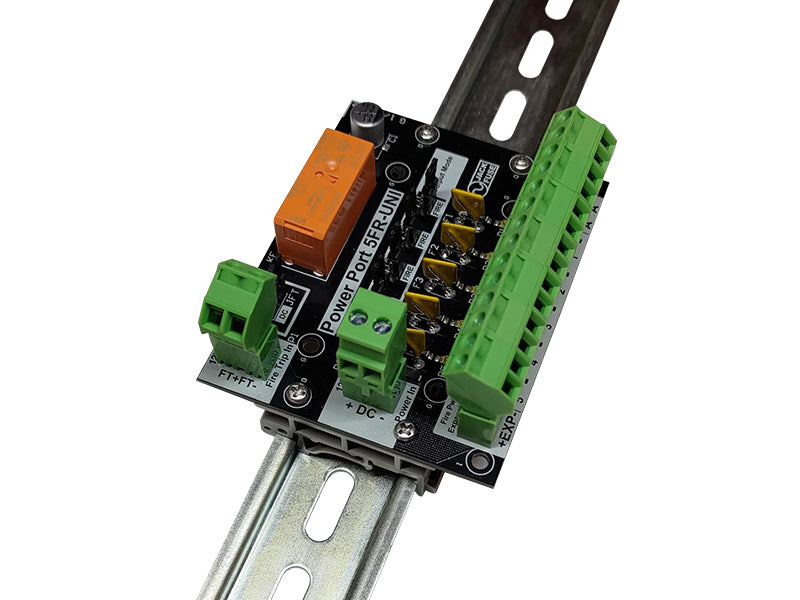

- Flexible Mounting Options: Mounts directly into Inner Range and Gallagher panel footprints with no modification. Optional DIN-rail kit (PPDIN1) also available.
- Selectable Output Modes: Each output can be independently configured as standard or fire-tripped power via jumper links, allowing tailored deployment.
- Monitoring and Expansion: Includes a secondary relay contact for fire trip status monitoring and an unfused expansion output to connect additional modules or slave units.
- Compact, Efficient Design: The PP5FR-UNI reduces wiring complexity and supports system growth while ensuring compliance with AS/CA S009:2020 for door lock control.
