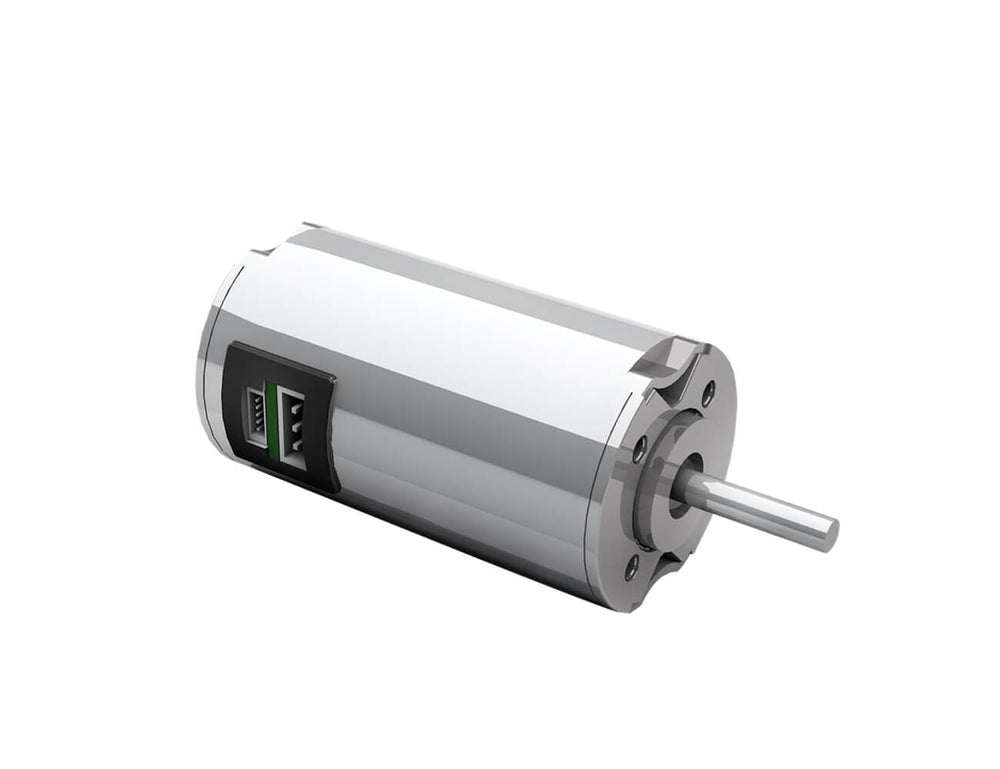

Dunkermotoren BG 32 dCore SERIES Brushless DC Motor

The Dunkermotoren BG32 dCore Series Brushless DC Motor is a high-performance and dynamic solution, delivering continuous power outputs up to 20W with peak performance reaching 27W. Designed for industrial and commercial applications, this series is ideal for robotics, automation systems, and precision tools that demand efficient, low-maintenance...

Read More

The Dunkermotoren BG32 dCore Series Brushless DC Motor is a high-performance and dynamic solution, delivering continuous power outputs up to 20W with peak performance reaching 27W. Designed for industrial and commercial applications, this series is ideal for robotics, automation systems, and precision tools that demand efficient, low-maintenance motion control.

Key features include an 8-pole neodymium magnet design for premium efficiency and a highly dynamic 3-phase BLDC motor structure. Integrated Hall sensors enable accurate rotor position detection, enhancing precision in demanding applications. The BG32 Series supports nominal voltages of 12V and 24V, with optional customization for specific voltage needs. Its compatibility with Dunkermotoren’s modular system—offering gearboxes, controllers, encoders, and brakes—provides tailored solutions for diverse motion requirements.

The BG32 dCore Series ensures robust and reliable operation with a lightweight design (starting at 0.15kg), IP40 protection class, and a modular architecture for easy integration. Its low energy consumption and high torque performance make it a sustainable and cost-effective choice for complex systems.

Whether you require a motor for advanced robotics or high-precision tools, the Dunkermotoren BG32 dCore Series delivers unmatched reliability and adaptability.

Show Less
Unit Price
—
or send a quick enquiry about this product only
Dunkermotoren BG32 Series Brushless DC Motor
Features
  • Nominal Voltage: 12~24VDC
  • Nominal Torque: 0.025~ 0.045Nm
  • Nominal Speed: 3600~4060rpm
  • Nominal Output Power: 10.4~20.5W
  • Compatibility with Dunkermotoren’s modular system—offering gearboxes, controllers, encoders, and brakes
Specifications
Data   BG 32x10 dCore BG 32x20 dCore
Stack length   x10 x20
Nominal voltage VDC 12 24 12 24
Nominal current A 1.6 0.76 2.53 1.13
Nominal torque Nm 0.025 0.025 0.045 0.044
Nominal speed rpm 4000 3870 4060 3600
Stall torque Nm 0.075 0.075 0.162 0.162
Maximum torque Nm 0.075 0.075 0.162 0.162
No load speed rpm 5930 5730 5460 4960
Nominal output power W 11.4 10.4 20.5 17.2
Maximum output power W 16.1 15 34.6 26.7
Torque constant Nm A-1 0.021 0.043 0.023 0.05
Terminal Resistance Ω 1.55 6.96 0.75 3.82
Terminal inductance mH 0.7 3.1 0.37 1.8
Starting current A 5.1 2.3 10 4.1
No load current A 0.14 0.05 0.17 0.07
Demagnetisation current A ≥ 8.2 ≥ 4.0 ≥ 16.5 ≥ 7.5
Rotor inertia gcm2 5.9 5.9 10.2 10.2
Weight of motor kg 0.15 0.15 0.2 0.2
External controller   BGE 3004 A, BGE 5510 dPro, BGE 6005 A
Encoder   RE 22, RE 30 (TI)
Brakes   E 38 R
Planetary gearbox   PLG 32, PLG 42 K, PLG 42 S
Downloads
bg_32_dcore_Brushless_DC_Motor_Datasheet.pdf
bg_32_ki_Brushless_DC_Motor_Datasheet.pdf
