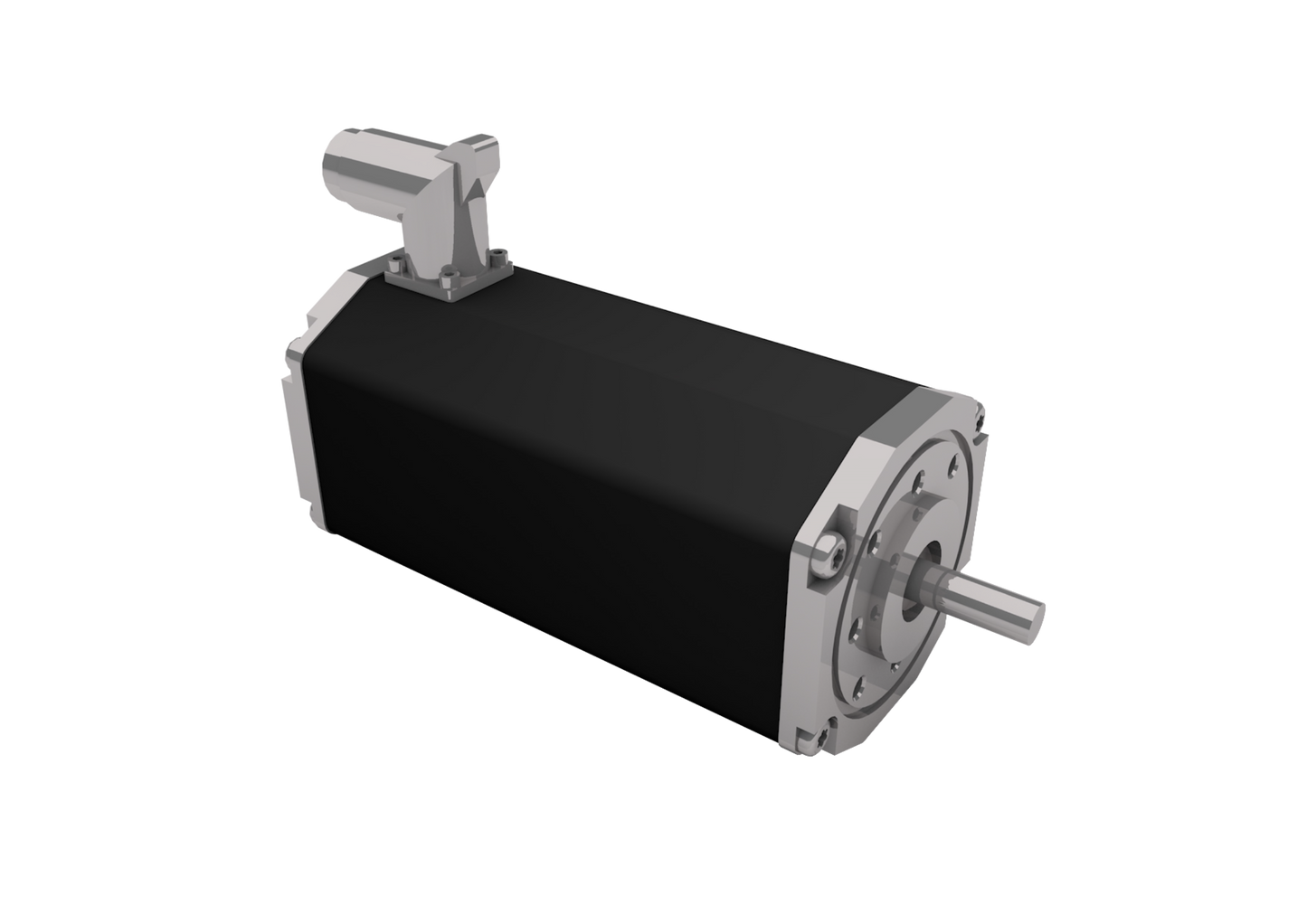

Dunkermotoren BG 66 dCore Brushless DC Motor

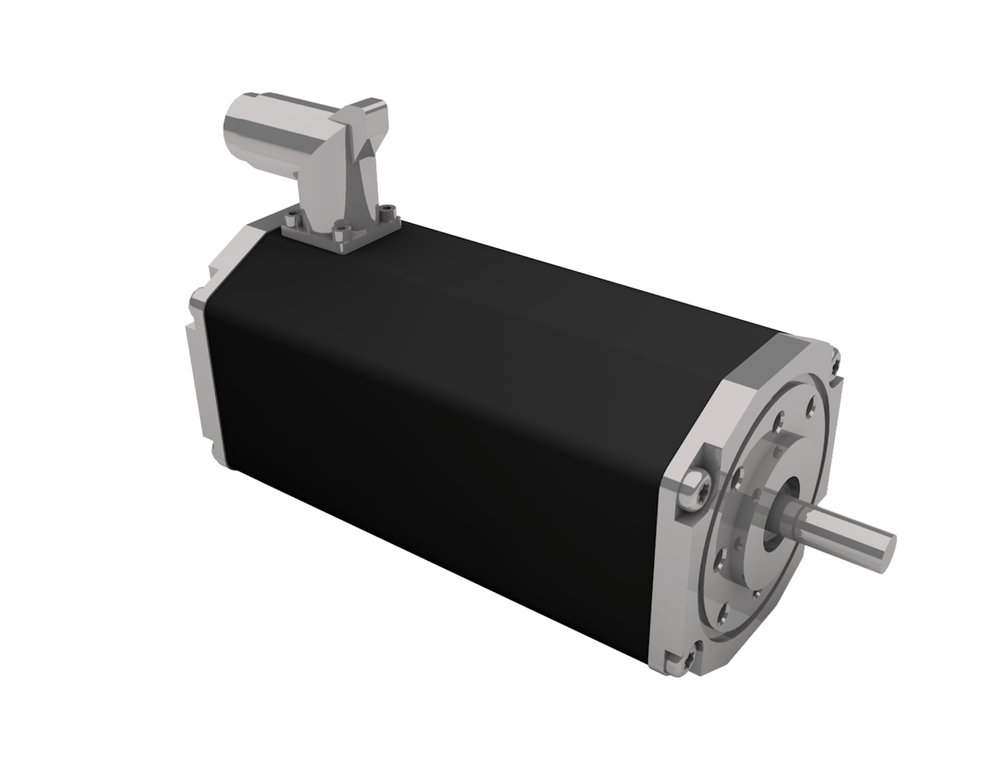

The Dunkermotoren BG 66 dCore is a highly dynamic 3-phase EC motor with a 10-pole neodymium magnet, Hall sensors for rotor position detection, and a high-resolution magnetic encoder MR 1 providing 4×1,024 pulses per revolution (4096 cpr). The motor features a One-Connector-Solution for simplified connectivity. Available in BG 66x25, BG 66x50, and BG 66x75 stack lengths with supply voltage options from 12 Vdc to 110 Vdc, the series delivers continuous output power up to 359 W and peak output power up to 838 W.

Read More

View Models
bg66x50_dcore

Features

  • Highly dynamic 3-phase EC motor with 10-pole neodymium magnet.
  • Hall sensors for rotor position detection.
  • High-resolution magnetic encoder MR 1 with 4096 cpr (4×1,024 ppr).
  • One-Connector-Solution for simplified wiring.
  • Supply voltage from 12Vdc to 110Vdc.
  • Integrated 30 cpr and 4096 cpr feedback.
Specifications
BG 66 dCore Specifications
Parameter Units BG 66x25
12V		 BG 66x25
24V		 BG 66x25
48V		 BG 66x25
60V		 BG 66x25
110V		 BG 66x50
24V		 BG 66x50
48V		 BG 66x50
60V		 BG 66x50
110V		 BG 66x75
48V		 BG 66x75
60V		 BG 66x75
110V
Nominal voltage VDC 12 24 48 60 110 24 48 60 110 48 60 110
Nominal current A* 14.1 8 4 3.2 1.6 10.8 5.5 4.6 2.5 8.5 6.7 3.7
Nominal torque Nm* 0.347 0.398 0.42 0.444 0.465 0.653 0.667 0.67 0.693 0.954 0.985 0.973
Nominal speed rpm* 3460 3850 3680 3440 3160 3200 3200 3360 3290 3540 3410 3530
Stall torque Nm** 1.315 tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd.
Maximum torque Nm** 1.46 1.46 1.46 1.46 1.46 2.92 2.92 2.92 2.92 4.38 4.38 4.38
No load speed rpm* 4480 4750 4580 4340 4060 3940 3940 4100 4030 3870 3740 3860
Nominal output power W** 126 160 162 160 154 219 224 236 239 353 351 359
Maximum output power W 158 329 326 306 269 508 531 608 616 811 779 838
Torque constant Nm A⁻¹*** 0.029 0.062 0.13 0.172 0.338 0.066 0.132 0.159 0.296 0.13 0.168 0.298
Rotor inertia gcm² 70 70 70 70 70 129 129 129 129 188 188 188
Weight of motor kg 0.99 0.99 0.99 0.99 0.99 1.43 1.43 1.43 1.43 1.93 1.93 1.93
*) Δϑw = 100 K; **) ϑR = 20°C ***) at nominal point
Values for vector commutation
Downloads
Datasheet_bg_66_dcore.pdf
BG 66 dCore Specifications
Parameter Units BG 66x25
12V		 BG 66x25
24V		 BG 66x25
48V		 BG 66x25
60V		 BG 66x25
110V		 BG 66x50
24V		 BG 66x50
48V		 BG 66x50
60V		 BG 66x50
110V		 BG 66x75
48V		 BG 66x75
60V		 BG 66x75
110V
Nominal voltage VDC 12 24 48 60 110 24 48 60 110 48 60 110
Nominal current A* 14.1 8 4 3.2 1.6 10.8 5.5 4.6 2.5 8.5 6.7 3.7
Nominal torque Nm* 0.347 0.398 0.42 0.444 0.465 0.653 0.667 0.67 0.693 0.954 0.985 0.973
Nominal speed rpm* 3460 3850 3680 3440 3160 3200 3200 3360 3290 3540 3410 3530
Stall torque Nm** 1.315 tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd.
Maximum torque Nm** 1.46 1.46 1.46 1.46 1.46 2.92 2.92 2.92 2.92 4.38 4.38 4.38
No load speed rpm* 4480 4750 4580 4340 4060 3940 3940 4100 4030 3870 3740 3860
Nominal output power W** 126 160 162 160 154 219 224 236 239 353 351 359
Maximum output power W 158 329 326 306 269 508 531 608 616 811 779 838
Torque constant Nm A⁻¹*** 0.029 0.062 0.13 0.172 0.338 0.066 0.132 0.159 0.296 0.13 0.168 0.298
Rotor inertia gcm² 70 70 70 70 70 129 129 129 129 188 188 188
Weight of motor kg 0.99 0.99 0.99 0.99 0.99 1.43 1.43 1.43 1.43 1.93 1.93 1.93
*) Δϑw = 100 K; **) ϑR = 20°C ***) at nominal point
Values for vector commutation
Datasheet_bg_66_dcore.pdf

Find the Right Model

Model Number Nom. Voltage (Vdc) Nom. Torque (Nm) Nom. Speed (RPM)
product variant BG 66x25-12 dCore 12Vdc 0.347Nm 3460rpm
product variant BG 66x25-24 dCore 24Vdc 0.398Nm 3850rpm
product variant BG 66x25-48 dCore 48Vdc 0.42Nm 3680rpm
product variant BG 66x25-60 dCore 60Vdc 0.444Nm 3440rpm
product variant BG 66x25-110 dCore 110Vdc 0.465Nm 3160rpm
product variant BG 66x50-24 dCore 24Vdc 0.653Nm 3200rpm
product variant BG 66x50-48 dCore 48Vdc 0.667Nm 3200rpm
product variant BG 66x50-60 dCore 60Vdc 0.67Nm 3360rpm
product variant BG 66x50-110 dCore 110Vdc 0.693Nm 3290rpm
product variant BG 66x75-48 dCore 48Vdc 0.954Nm 3540rpm
product variant BG 66x75-60 dCore 60Vdc 0.985Nm 3410rpm
product variant BG 66x75-110 dCore 110Vdc 0.973Nm 3530rpm
