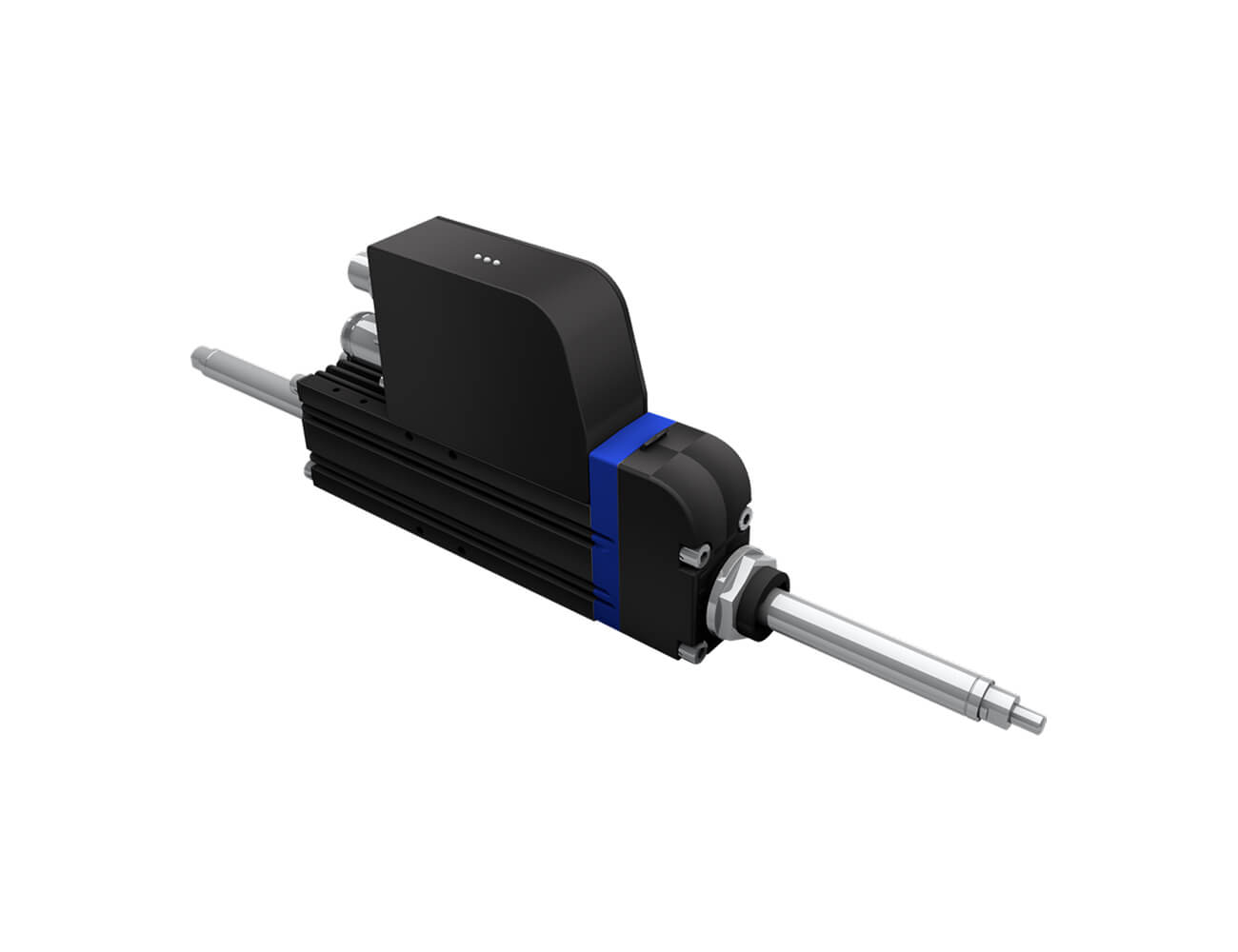

Dunkermotoren SCA11 SERIES Linear Motor

The Dunkermotoren SCA11 Series Linear Motor is a highly dynamic and precise linear motion solution, designed for applications demanding exceptional speed, accuracy, and reliability. With peak forces reaching 91.9 N and continuous stall forces up to 19.28 N, this motor is ideal for automation, medical devices, and material handling systems.

Read More

View Models
Dunkermotoren SCA11 Series Linear Motor

Features

  • Peak Force: 46N ~ 92N
  • Peak Current: 12 Apk
  • Continuous Stall Force: 6.02N ~ 19.28N
  • Peak Acceleration: 359 - 422m/s2
  • Range of Motion: 14~271 mm
  • Reduced cabling complexity
Selection Table
Type   SCA1104 - XI SCA1108 - XI SCA1112 - XI SCA1116 - XI
Peak force @ 25°C ambient for 1 sec N 46 53 68.9 91.9
Peak current @ 25°C ambient for 1 sec Apk 12
Continuous stall force @ 25°C ambient N 6.02 10.83 15.18 19.28
Continuous stall current @ 25°C ambient* Arms 1.11 1.73 1.87 1.78
Power supply VDC max. 60
Control voltage VDC 24
Peak acceleration (SCA)(1) m/s² 407 359 378 422
Maximum speed (SCA)(2) m/s 5.3 5.6 5.4 4.7
Repeatability µm 6
Based on a moving thrust rod with 27 mm stroke and no playload.(1)
Based on a moving thrust rod with triangular move over maximum stroke, no playload.(2)
Downloads
sca_11_Linear_Motor_Datasheet.pdf
Type   SCA1104 - XI SCA1108 - XI SCA1112 - XI SCA1116 - XI
Peak force @ 25°C ambient for 1 sec N 46 53 68.9 91.9
Peak current @ 25°C ambient for 1 sec Apk 12
Continuous stall force @ 25°C ambient N 6.02 10.83 15.18 19.28
Continuous stall current @ 25°C ambient* Arms 1.11 1.73 1.87 1.78
Power supply VDC max. 60
Control voltage VDC 24
Peak acceleration (SCA)(1) m/s² 407 359 378 422
Maximum speed (SCA)(2) m/s 5.3 5.6 5.4 4.7
Repeatability µm 6
Based on a moving thrust rod with 27 mm stroke and no playload.(1)
Based on a moving thrust rod with triangular move over maximum stroke, no playload.(2)
sca_11_Linear_Motor_Datasheet.pdf

Find the Right Model

Model Number Constant Force (n) Max. Speed (m/s) Repeatability (µm)
product variant SCA1104 - XI 6.02n 5.3m/s 6
product variant SCA1108 - XI 10.83n 5.6m/s 6
product variant SCA1112 - XI 15.18n 5.4m/s 6
product variant SCA1116 - XI 19.28n 4.7m/s 6
