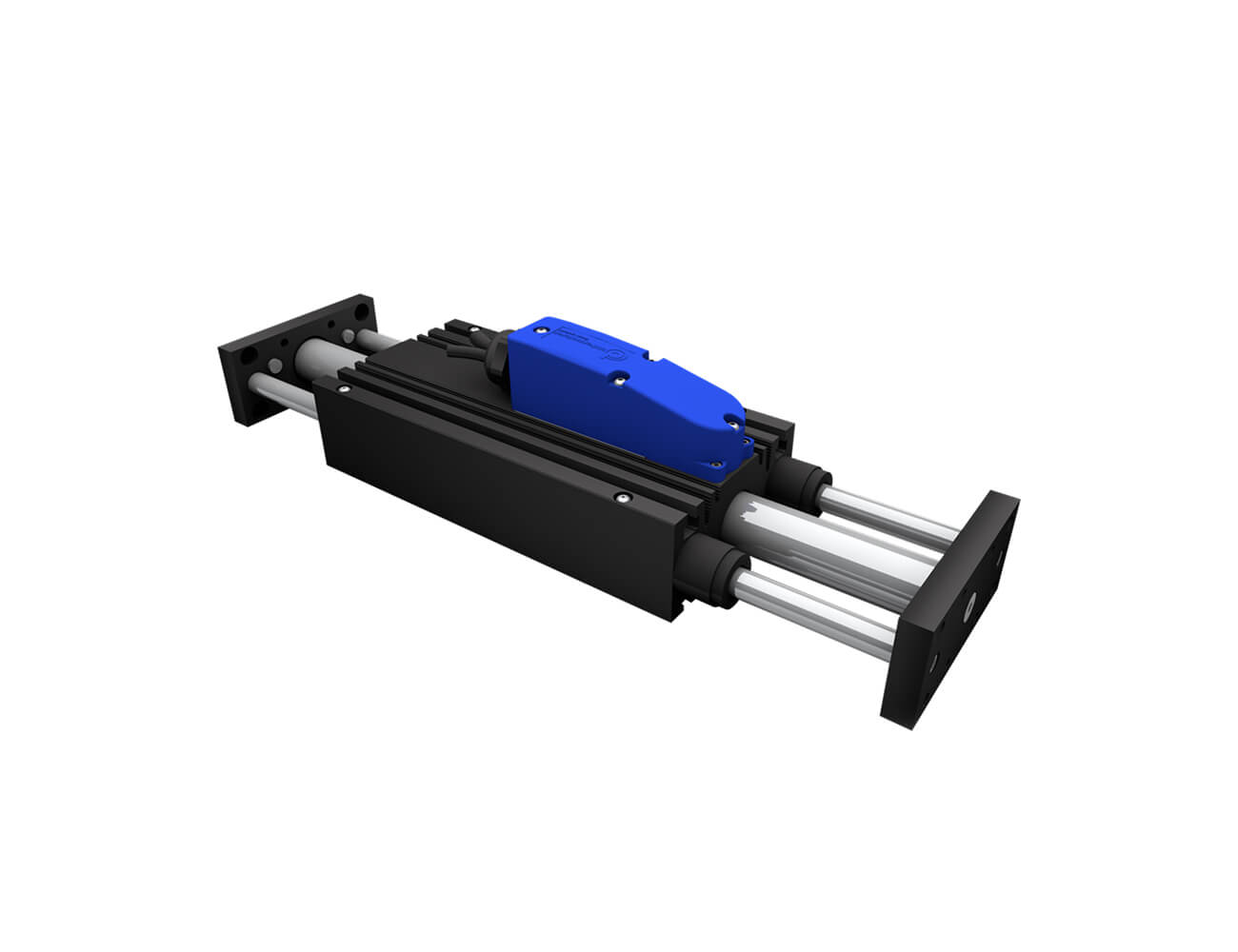

Dunkermotoren XTR25 SERIES Linear Motor

The Dunkermotoren XTR25 Series Linear Motor is a compact and high-performance solution, delivering precise linear motion for demanding industrial applications. With continuous stall forces up to 108 N and peak forces reaching 860 N, this motor is ideal for automation, robotics, and high-speed manufacturing systems.

Read More

View Models
Dunkermotoren XTR25 SERIES Linear Motor

Features

  • Peak Force: 344N ~ 860N
  • Peak Current: 20Apk
  • Continuous Stall Force: 52.2 - 108.0
  • Peak Acceleration: 225~ 369 m/s2
Selection Table
Type   XTR 2504 XTR 2506 XTR 2508 XTR 2510
Peak force @ 25°C ambient for 1 sec N 344 516 688 860
Peak current @ 25°C ambient for 1 sec Apk 20
Continuous stall force @ 25°C ambient(1) N 52.2 72.3 90.4 108
Continuous stall current @ 25°C ambient(1) Arms 2.15 1.98 1.86 1.78
Force constant (sine commutation)(1) N/Arms 24.3 36.5 48.6 60.8
Maximum working voltage VDC 325
Peak acceleration(2) m/s² 225 288 334 369
Maximum speed(3) m/s 5.6 5.3 4.8 4.3
Repeatability µm 12
(1) By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%
(2) Based on a moving thrust rod with 28 mm stroke, no payload.
(3) Based on a moving thrust rod with triangular move over maximum stroke, no payload.
Downloads
xtr_25_Linear_Motor_Datasheet.pdf
Type   XTR 2504 XTR 2506 XTR 2508 XTR 2510
Peak force @ 25°C ambient for 1 sec N 344 516 688 860
Peak current @ 25°C ambient for 1 sec Apk 20
Continuous stall force @ 25°C ambient(1) N 52.2 72.3 90.4 108
Continuous stall current @ 25°C ambient(1) Arms 2.15 1.98 1.86 1.78
Force constant (sine commutation)(1) N/Arms 24.3 36.5 48.6 60.8
Maximum working voltage VDC 325
Peak acceleration(2) m/s² 225 288 334 369
Maximum speed(3) m/s 5.6 5.3 4.8 4.3
Repeatability µm 12
(1) By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%
(2) Based on a moving thrust rod with 28 mm stroke, no payload.
(3) Based on a moving thrust rod with triangular move over maximum stroke, no payload.
xtr_25_Linear_Motor_Datasheet.pdf

Find the Right Model

Model Number Constant Force (n) Max. Speed (m/s) Repeatability (µm)
product variant XTR 2504 52.2n 5.6m/s 12
product variant XTR 2506 72.3n 5.3m/s 12
product variant XTR 2508 90.4n 4.8m/s 12
product variant XTR 2510 108n 4.3m/s 12
