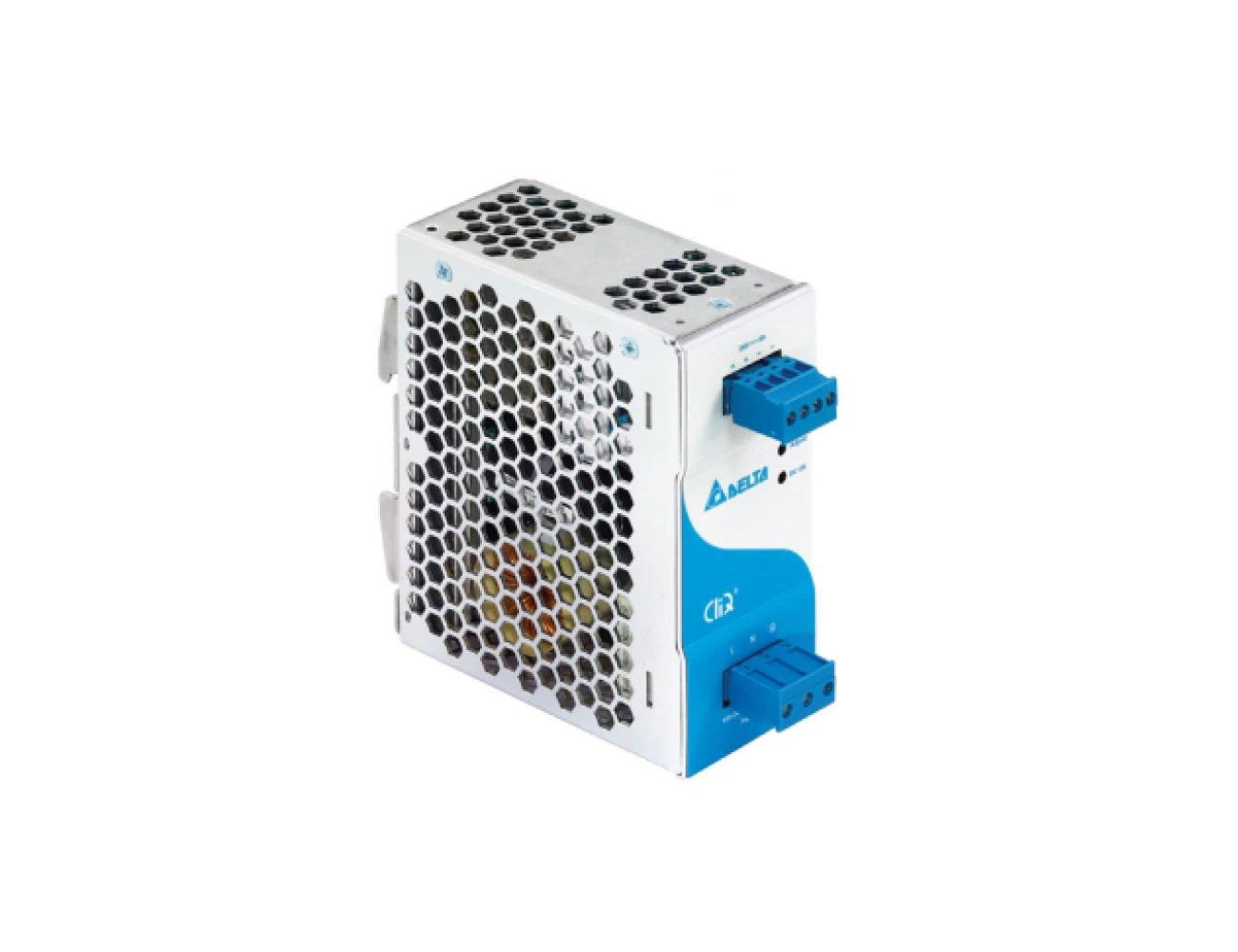

Delta Electronics CliQ II DRP BN-1PH-24V SERIES AC/DC Power Supply
Delta Electronics' DRP BN-1PH-24 series is part of the CliQ II range, offering 24VDC outputs from 60W and 240W. These DIN Rail mountable power supplies are engineered for reliability across a broad input voltage range without de-rating. Features include a 150% Power Boost for 3 seconds, overvoltage, overcurrent, and over temperature protections, and a conformal coating on PCBAs for enhanced environmental resistance. Ideal for a wide range of industrial applications.
Features
- Reliable design, with expected life of 10 years
- Compact, rugged design for ease of handling and installation
- IP20 Compliant
- Meets worldwide safety requirements
- RoHS Directive 2011/65/EU Compliant
- Worldwide AC input range without power de-rating
Specifications
Selection Table

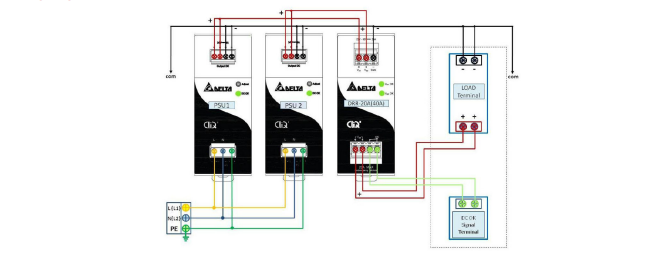

Technical Illustrations
Downloads
| OUTPUT | ||
|---|---|---|
| Output Model | DRP024V060W1BN | DRP024V240W1BN |
| Output Voltage | 24Vdc | 24Vdc |
| Output Voltage Range | 24V - 28Vdc | 24V - 28Vdc |
| Output Current | 2.5A | 10A |
| Output Power | 60W | 240W |
| MTBF | 1,000,000 hours | >500,000hrs |
| Hold-up Time | >125ms @ 230Vac | >20ms @ 230Vac |
| Line Regulation | < 0.5% typ. at 100% load | |
| Load Regulation | < 1% typ. at 0-100% load | |
| PARD (20MHz) | <150mVpp | |
| Indicator | Green LED (DC OK) | |
| INPUT | ||
|---|---|---|
| Output Model | DRP024V060W1BN | DRP024V240W1BN |
| Input Voltage | 85–264Vac, 120-375Vdc | |
| Input Frequency | 47-63Hz | |
| Input Current | <0.8A @ 230Vac | < 1.3A @ 230Vac |
| Efficiency at 100% Load | > 90% at 230Vac | > 92% at 230Vac |
| Leakage Current | < 1mA @ 240Vac | < 1mA @ 240Vac |
| Power Factor | Conform to EN61000-3-2 | >0.90 at 230Vac |
| Max Inrush | <35A at 230Vac | <35A at 230Vac |
| ENVIRONMENTAL | ||
|---|---|---|
| Output Model | DRP024V060W1BN | DRP024V240W1BN |
| Operating Temperature | -25°C to +80°C | -25°C to +80°C |
| Power De-rating | > 50°C (2.5%/°C) | > 50°C (2.5%/°C) |
| Cooling System | Convection | |
| Storage Temperature | -40°C to +85°C | |
| Operating Humidity | 5 to 95% RH (Non-Condensing) | |
| Operating Altitude | 0 to 2,500m | |
| STANDARDS | |
|---|---|
| Electronic Equipment | EN50718 / IEC62103 in Power Installatioins |
| Electrical Safety | SIQ to EN60950-1, UL/cUL recognized to UL60950-1, CSA C22.2 No. 60950-1, CB scheme to IEC60950-1 |
| Industrial Control | UL/cUL listed to UL508 and CSA C22.2 No. 107.1-01, CSA to CSA C22.2 No. 107.1-01 (File No. 181564) |
| CE | In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC |
| Materials & Parts | RoHS Directive 2011/65/EU Compliant |
| PROTECTIONS | |
|---|---|
| Overvoltage | 32V, +/-10% SELV Ouput, Hiccup Mode, Non-Latching (Auto-Recovery) |
| Overload/Overcurrent | > 150% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery) |
| Over Temperature | < 80C Surrounding Air Temperature @ 100% load, Non-Latching (Auto Recovery) |
| Short Circuit | Hiccup Mode, Non-Latching (Auto-Recovery) when the fault is removed) |
| Degree of Protection | IP20 |
| Protection against shock | Class 1 with PE (Primary Earth) connection |
| Galvanic Isolation | Input to Output: 4.0KVAC Input to Ground: 1.5KVAC Output to Ground: 1.5KVAC |
| MECHANICAL | ||
|---|---|---|
| Output Model | DRP024V060W1BN | DRP024V240W1BN |
| Case Cover | Aluminium | Aluminium |
| Dimensions | 121 x 32 x 119.3mm | 121 x 85 x 124.1mm |
| Weight | 0.37Kg | 1.1kg |
| Input Terminal | 3pin pluggable 300V/15A | 3pin pluggable 300V/15A |
| Input Wire | AWG 22-12 | AWG 16-14 |
| Output Terminal | 2pin pluggable 300V/15A | 4pin pluggable 300V/15A |
| Output Wire | AWG 22-12 | AWG 16-14 |
| Mounting Rail | TS35 DIN Rail | TS35 DIN Rail |
| PBB1P OPTION | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Connector |
IEC AC Power Socket (with 2 meter IEC power cable supplied) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Mounting L Bracket |
Optional Mounting bracket available See technical illustrations |
||||||||||||||||||||||||||||||||||||||||||||||||
| Drip Hood Cover |
Optional Drip hood cover Mounted on top of PBB1P power supply to protect against condensation drips |
||||||||||||||||||||||||||||||||||||||||||||||||
| MODEL NUMBER | OUTPUT VOLTAGE | OUTPUT CURRENT | POWER BOOST (5 SECS) | OUTPUT POWER |
|---|---|---|---|---|
| DRP024V060W1BN | 24Vdc | 2.5A | 3.75A | 60W |
| DRP024V240W1BN | 24Vdc | 10A | 15A | 240W |
|
MODEL NUMBER PBB1P OPTION |
OUTPUT VOLTAGE | OUTPUT CURRENT | DELTA POWER SUPPLY |
|---|---|---|---|
| PBB1P-240W-IEC-24V | 24V | 10A | DRP024V240W1BN |
| OUTPUT | ||
|---|---|---|
| Output Model | DRP024V060W1BN | DRP024V240W1BN |
| Output Voltage | 24Vdc | 24Vdc |
| Output Voltage Range | 24V - 28Vdc | 24V - 28Vdc |
| Output Current | 2.5A | 10A |
| Output Power | 60W | 240W |
| MTBF | 1,000,000 hours | >500,000hrs |
| Hold-up Time | >125ms @ 230Vac | >20ms @ 230Vac |
| Line Regulation | < 0.5% typ. at 100% load | |
| Load Regulation | < 1% typ. at 0-100% load | |
| PARD (20MHz) | <150mVpp | |
| Indicator | Green LED (DC OK) | |
| INPUT | ||
|---|---|---|
| Output Model | DRP024V060W1BN | DRP024V240W1BN |
| Input Voltage | 85–264Vac, 120-375Vdc | |
| Input Frequency | 47-63Hz | |
| Input Current | <0.8A @ 230Vac | < 1.3A @ 230Vac |
| Efficiency at 100% Load | > 90% at 230Vac | > 92% at 230Vac |
| Leakage Current | < 1mA @ 240Vac | < 1mA @ 240Vac |
| Power Factor | Conform to EN61000-3-2 | >0.90 at 230Vac |
| Max Inrush | <35A at 230Vac | <35A at 230Vac |
| ENVIRONMENTAL | ||
|---|---|---|
| Output Model | DRP024V060W1BN | DRP024V240W1BN |
| Operating Temperature | -25°C to +80°C | -25°C to +80°C |
| Power De-rating | > 50°C (2.5%/°C) | > 50°C (2.5%/°C) |
| Cooling System | Convection | |
| Storage Temperature | -40°C to +85°C | |
| Operating Humidity | 5 to 95% RH (Non-Condensing) | |
| Operating Altitude | 0 to 2,500m | |
| STANDARDS | |
|---|---|
| Electronic Equipment | EN50718 / IEC62103 in Power Installatioins |
| Electrical Safety | SIQ to EN60950-1, UL/cUL recognized to UL60950-1, CSA C22.2 No. 60950-1, CB scheme to IEC60950-1 |
| Industrial Control | UL/cUL listed to UL508 and CSA C22.2 No. 107.1-01, CSA to CSA C22.2 No. 107.1-01 (File No. 181564) |
| CE | In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC |
| Materials & Parts | RoHS Directive 2011/65/EU Compliant |
| PROTECTIONS | |
|---|---|
| Overvoltage | 32V, +/-10% SELV Ouput, Hiccup Mode, Non-Latching (Auto-Recovery) |
| Overload/Overcurrent | > 150% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery) |
| Over Temperature | < 80C Surrounding Air Temperature @ 100% load, Non-Latching (Auto Recovery) |
| Short Circuit | Hiccup Mode, Non-Latching (Auto-Recovery) when the fault is removed) |
| Degree of Protection | IP20 |
| Protection against shock | Class 1 with PE (Primary Earth) connection |
| Galvanic Isolation | Input to Output: 4.0KVAC Input to Ground: 1.5KVAC Output to Ground: 1.5KVAC |
| MECHANICAL | ||
|---|---|---|
| Output Model | DRP024V060W1BN | DRP024V240W1BN |
| Case Cover | Aluminium | Aluminium |
| Dimensions | 121 x 32 x 119.3mm | 121 x 85 x 124.1mm |
| Weight | 0.37Kg | 1.1kg |
| Input Terminal | 3pin pluggable 300V/15A | 3pin pluggable 300V/15A |
| Input Wire | AWG 22-12 | AWG 16-14 |
| Output Terminal | 2pin pluggable 300V/15A | 4pin pluggable 300V/15A |
| Output Wire | AWG 22-12 | AWG 16-14 |
| Mounting Rail | TS35 DIN Rail | TS35 DIN Rail |
| PBB1P OPTION | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Connector |
IEC AC Power Socket (with 2 meter IEC power cable supplied) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Mounting L Bracket |
Optional Mounting bracket available See technical illustrations |
||||||||||||||||||||||||||||||||||||||||||||||||
| Drip Hood Cover |
Optional Drip hood cover Mounted on top of PBB1P power supply to protect against condensation drips |
||||||||||||||||||||||||||||||||||||||||||||||||
| MODEL NUMBER | OUTPUT VOLTAGE | OUTPUT CURRENT | POWER BOOST (5 SECS) | OUTPUT POWER |
|---|---|---|---|---|
| DRP024V060W1BN | 24Vdc | 2.5A | 3.75A | 60W |
| DRP024V240W1BN | 24Vdc | 10A | 15A | 240W |
|
MODEL NUMBER PBB1P OPTION |
OUTPUT VOLTAGE | OUTPUT CURRENT | DELTA POWER SUPPLY |
|---|---|---|---|
| PBB1P-240W-IEC-24V | 24V | 10A | DRP024V240W1BN |
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage (Vdc) | Output Current (A) | ||
|---|---|---|---|---|---|
|
DRP024V060W1BN | 85...264Vac 50/60Hz | 24Vdc | 2.5A | |
|
|
DRP024V240W1BN | 85...264Vac 50/60Hz | 24Vdc | 10A |
