Delta Electronics Chrome DRC SERIES AC/DC Power Supply

Delta's DRC Series introduces efficient DIN Rail power supplies ranging from 10W to 100W. These supplies are mountable within compact cabinets, making them ideal for home automations and the food and beverage industry. With double isolation, universal AC input, and full power up to 55°C, they offer efficiency greater than 89% at 230VAC. The DRC Series is Protection Class II certified, featuring overvoltage, overcurrent, and over temperature protections for enhanced safety and reliability.

View Models
  • Delta Electronics DRC SERIES AC/DC Power Supply
  • Delta Electronics DRC SERIES AC/DC Power Supply 10W - 100W

Features

  • 5V, 12V and 24V models available from 10W-100W
  • Universal 90-264V AC input range
  • Low profile
  • Efficiency > 82.0% @ 115Vac & 230Vac
  • NEC Class 2 / Limited Power Source (LPS) certified
  • Overvoltage / Overcurrent / Over Temperature Protections
Specifications
OUTPUT
Output Voltage 5V, 12V, 24V
Voltage Range 5Vdc, 4.75V - 5.25Vdc 12Vdc, 11.5V - 14.5Vdc 24Vdc, 20V - 24.8Vdc
Output Current See Selection Table
Output Power 10W, 30W, 60W, 100W
Line Regulation < 1% typ. (@ 90-264 Vac,100% load)
Load Regulation < 2% typ. (@ 90-264 Vac,100% load)
PARD (20MHz) < 150mVpp
Rise Time < 100ms @ nominal input (100% load)
Start-up Time < 3,000ms @ nominal input (100% load)
Hold-up Time >30ms @ 230Vac (100% load)
Dynamic Response ± 5% @ 10 - 100% load
Start-up 3,000μF Max with Capacitive Loads
MECHANICAL
Case Cover Plastic
Dimensions / Weight DRC 10W: 91 x 18 x 55.6mm, 0.065kg DRC 30W: 91 x 53 x 55.6mm, 0.14kg DRC 60W: 91 x 71 x 55.6mm, 0.24kg DRC 100W: 91 x 89.9 x 55.6mm, 0.35kg
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal 2 Pins Rated 300V/25A  (DRC10W 16A)
Output Terminal 4 Pins Rated 300V/25A (DRC10W 16A)
Input / Output Wire DRC 10W: AWG 26-12 DRC 30W: AWG 24-12 DRC 60W: AWG 26-12 DRC 100W: AWG 22-12, AWG 24-12
Mounting Rail TS35 DIN Rail in accordance with EN 60715
INPUT
Input Voltage 90-264Vac
Input Frequency 47-63Hz
Efficiency > 82% @ 230Vac at 100% load
Input Current DRC 10W: < 0.2A @230Vac DRC 30W: < 0.60A @230Vac DRC 60W: < 0.80A @230Vac DRC 100W: < 1.0A @ 230Vac
Leakage Current < 0.25mA @ 240Vac
PROTECTIONS
Overvoltage 17.4V & 34.8V+10% SELV Ouput,Latch-off Mode
Overload/Overcurrent > 130% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)
Over Temperature > 75C Surrounding Air Temperature @ 100% load, Latch-off Mode
Short Circuit Hiccup Mode, Non-Latching (Auto-Recovery) when the fault is removed)
Degree of Protection IP20
Protection against Shock Class II (No PE* connection is required)
Galvanic Isolation 3.0KVac
MTBF > 500,000 hrs as per Telcordia SR-332
STANDARDS
C-Tick AS/NZS CISPR11 Group 1 Class A.
Safety TUV Bauart to EN60950-1, UL/cUL recognized to UL60950-1, CSA C22.2 No. 60950-1, CB scheme to IEC 60950 - 1, Limited Power Source (LPS)
Industrial Control UL/cUL listed to UL508 and CSA C22.2 No. 107.1-01
CE In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC
Materials and Parts RoHS Directive 2011/65/EU Compliant
EMC CISPR 22, EN55022, FCC Title 47: Class A* IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-4-12
Selection Table
MODEL NUMBER Output
Voltage		 Output
Current		 Output
Power

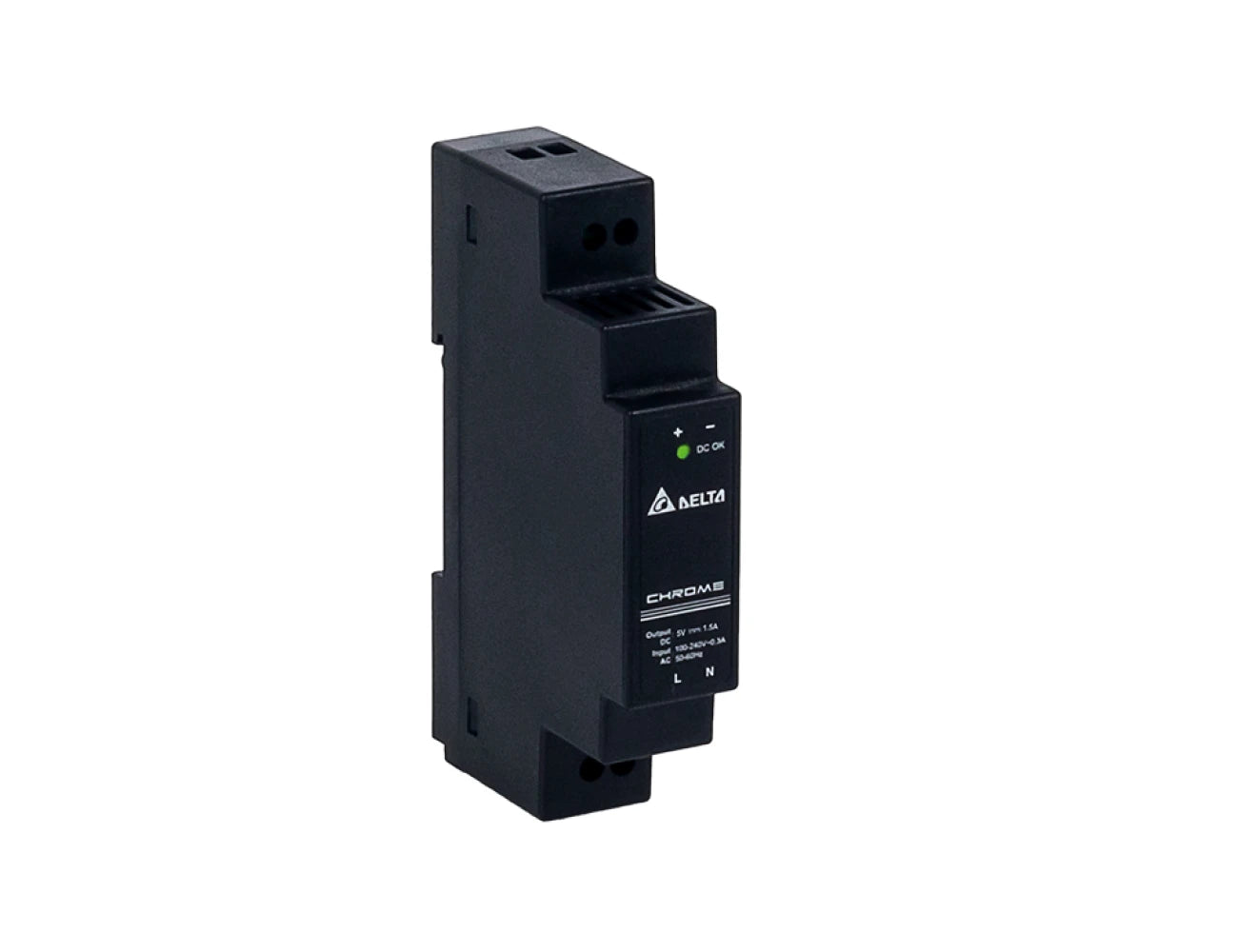

DRC-5V10W1AZ 5Vdc 1.5A 10W
DRC-12V10W1AZ 12Vdc 0.83A 10W
DRC-12V30W1AZ 12Vdc 2.1A 30W

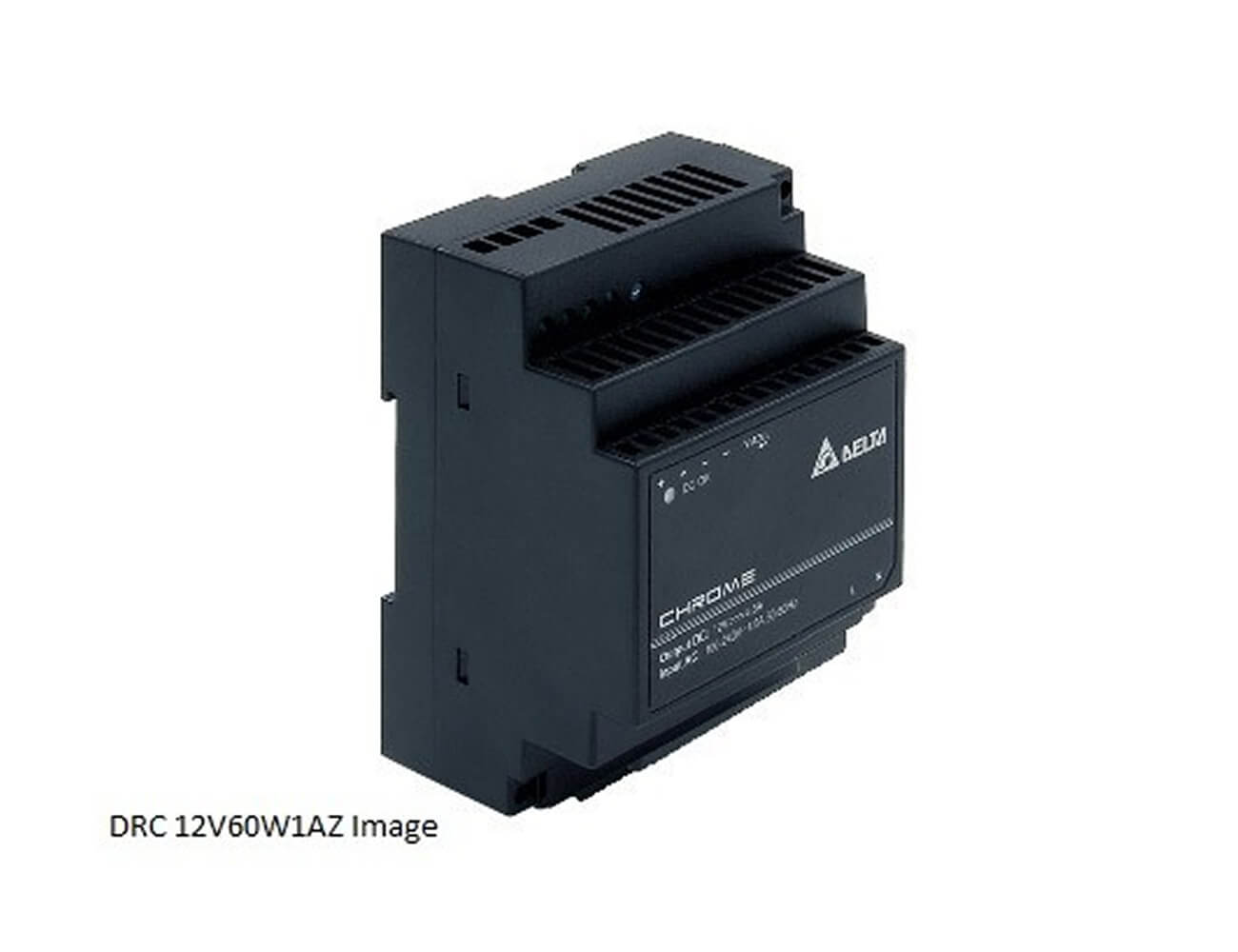

DRC-12V60W1AZ 12Vdc 5.0A 60W
DRC-24V10W1AZ 24Vdc 0.42A 10W
DRC-24V30W1AZ 24Vdc 1.25A 30W
DRC-24V60W1AZ 24Vdc 2.5A 60W
DRC-24V100W1AZ 24Vdc 3.8A 100W

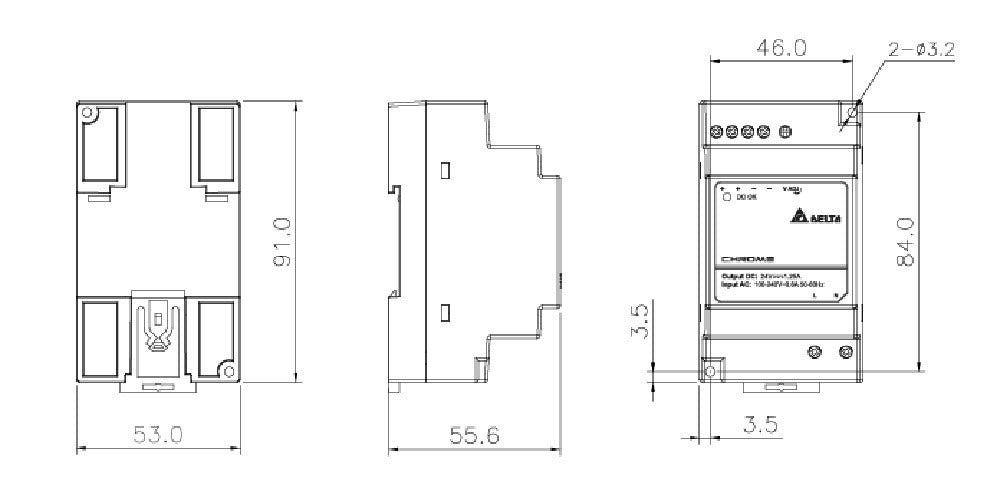

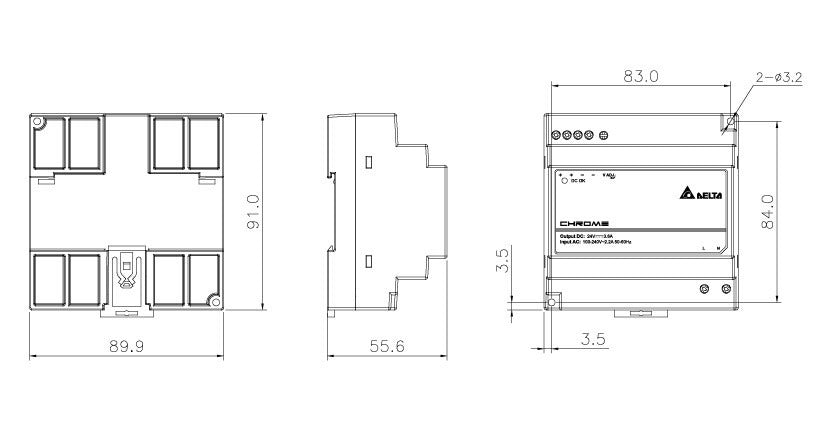

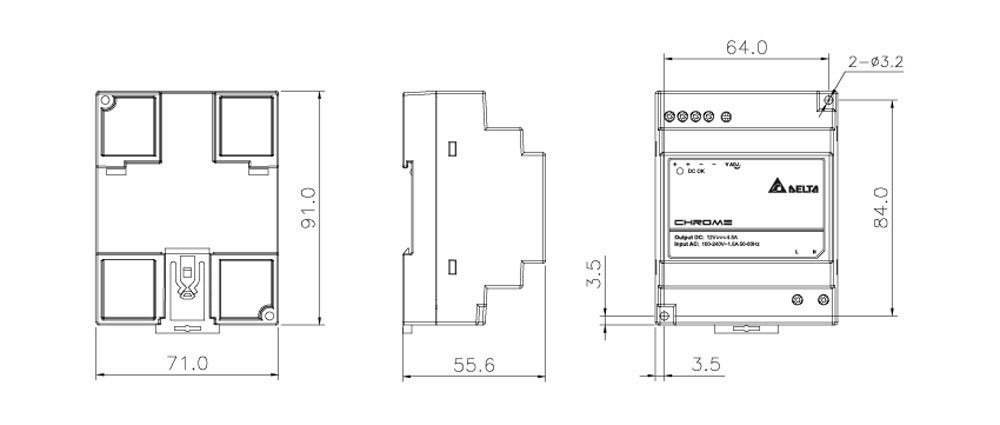

Technical Illustrations
