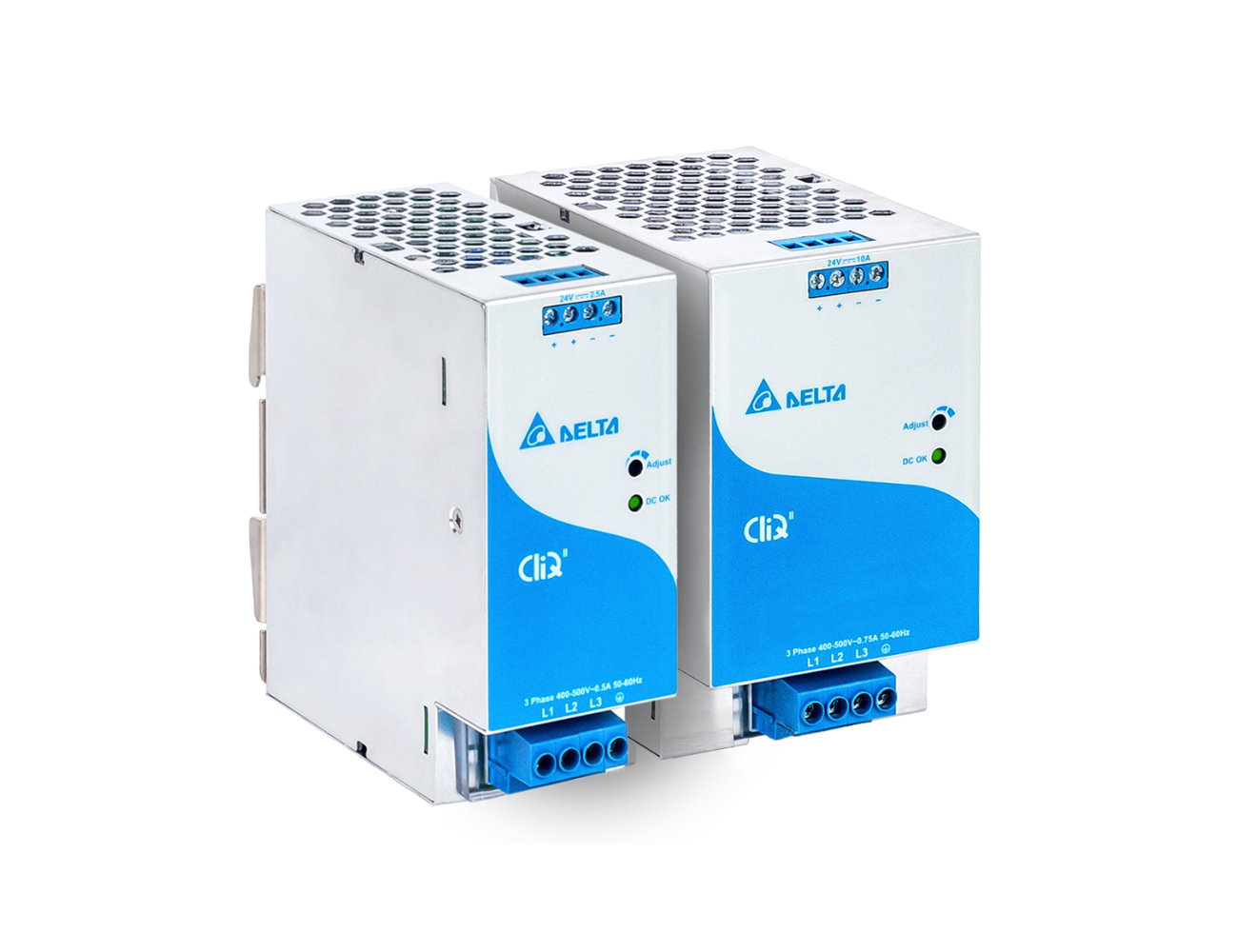

Delta Electronics CliQ II DRP 24V 3PH SERIES AC/DC Power Supply

The DRP 24V 3PH series by Delta Electronics offers a high-performance AC/DC power supply ranging from 60W to 960W for DIN Rail applications. This series features universal AC input and a rugged, corrosion-resistant aluminum chassis. Its design is ideal for harsh industrial environments, with a conformal coating on the PCB for additional protection. The power supply ensures efficient operation with a Power Boost of 150% for critical applications and operates over a wide temperature range.

View Models
Delta Electronics CliQ II DRP 24V 3PH SERIES AC/DC Power Supply

Features

  • Universal AC input voltage: 3 x 320Vac – 600Vac (3-Phase) or 2 x 360Vac – 600Vac (2-Phase)
  • Power will not de-rate for the entire input voltage range
  • Power Boost of 150% for 5 seconds
  • Full corrosion resistant aluminium chassis
  • Conformal coating on PCBA to protect against chemical and dust pollutants
Specifications
OUTPUT
Model DRP024V060W3BN DRP024V120W3BN DRP024V240W3BN DRP024V480W3BN DRP024V960W3BN
Output Voltage 24Vdc 24Vdc 24Vdc 24Vdc 24Vdc
Output Voltage Range 24-28V 24-28V 24-28V 24-28V 24-28V
Output Current 2.5A 5A 10A 20A 40A
Output Power 60W 120W 240W 480W 960W
MTBF >500,000hrs >500,000hrs >500,000hrs >500,000hrs >300,000hrs
PARD (20MHz) 50mV 50mV 50mV 50mV 50mV
Power 150% Power Boost for 5 Seconds
Indicator Green LED (DC OK)
Line Regulation <0.5% at 320-600VAC, 100% load
Load Regulation < 1% at 320-600VAC, 0-100% load
Hold-up Time > 20ms at 3 x 400Vac
INPUT
Model DRP024V060W3BN DRP024V120W3BN DRP024V240W3BN DRP024V480W3BN DRP024V960W3BN
Phase Input Two or Three Phase
Input Voltage 3 x 320-600VAC (3Ph) or 2 x 360-600VAC (2Ph) 3 x 320-600VAC (3Ph) or 2 x 360-600VAC (2Ph) 3 x 320-600VAC (3Ph) or 2 x 360-600VAC (2Ph) 3 x 320-600VAC (3Ph) or 2 x 360-600VAC (2Ph) 3 x 320-600VAC (3Ph) or 2 x 380-600VAC (2Ph)
Input Frequency 47-63Hz
Power Factor Conform to EN6100-3-2 Conform to EN6100-3-2 Conform to EN6100-3-2 > 0.95 @ 3 x 400Vac > 0.95 @ 3 x 400Vac
Efficiency 100% load >86% at 3 x 400Vac >88% at 3 x 400Vac >92% at 3 x 400Vac >91% at 3 x 400Vac >92% at 3 x 400Vac
Input Current < 0.30A @ 3 x 400Vac < 0.5A @ 3 x 400Vac < 0.75A @ 3 x 400Vac < 1.0A @ 3 x 400Vac < 1.7A @ 3 x 400Vac
Max Inrush Current < 30A @ 3 x 400Vac < 30A @ 3 x 400Vac < 40A @ 3 x 400Vac < 50A @ 3 x 400Vac < 60A @ 3 x 400Vac
Leakage Current < 3.5mA
ENVIRONMENTAL
Operating Temperature -25°C to +75°C -25°C to +75°C -25°C to +75°C -25°C to +75°C -25°C to +75°C
Power De-rating > 50°C de-rate power by 2.5% / °C > 70°C > 50°C de-rate power by 2.5% / °C > 70°C > 50°C de-rate power by 2.5% / °C > 70°C > 50°C de-rate power by 2.5% / °C > 70°C > 50°C de-rate power by 2.5% / °C
Operating Humidity 5 to 95%RH (Non condensing)
Operating Altitude 0–2,000m
PROTECTIONS
Overvoltage 32V, +/-10% SELV Ouput, Hiccup Mode, Non-Latching (Auto-Recovery)
Overload/Overcurrent 200% of rated load current for 960W model, >150% for 120W, 240W & 480W models. Hiccup Mode, Non-Latching (Auto-Recovery)
Over Temperature <65°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)
Short Circuit Hiccup Mode, Non-Latching (Auto-Recovery) when the fault is removed)
Degree of Protection IP20
Protection against shock Class 1 with PE (Primary Earth) connection
Galvanic Isolation Input to Output 4.0KVAC
Input to Ground 1.5K VAC
Output to Ground 1.5KVAC
STANDARDS
Safety SIQ to EN 60950-1, UL/cUL recognized to UL 60950-1, CSA C22.2 No. 60950-1, CB scheme IEC 60950-1
Industrial Control Equipment UL/cUL listed to UL 508 and CSA C22.2 No. 107.1-01, CSA to CSA C22.2 No. 107.1-01 (File No. 181564)
Electrical Equipment In Power Installations: EN 50178 / IEC 62103
CE In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.
Materials & Parts RoHS Directive 2011/65/EU Compliant
MECHANICAL
Model DRP024V060W3BN DRP024V120W3BN DRP024V240W3BN DRP024V480W3BN DRP024V960W3BN
Case Cover Aluminium Aluminium Aluminium Aluminium Aluminium
Dimensions 121 x 50 x 117.3 mm 121 x 50 x 117.3 mm 121 x 70 x 117.3 mm 121 x 140 117.3 mm 121 x 225 x 117.3 mm
Weight 0.66Kg 0.66kg 0.89kg 1.35kg 2.6kg
Cooling System Convection Convection Convection Convection Convection
Input Terminal 4 Pins (Rated 600V/35A) 4 Pins (Rated 600V/35A) 4 Pins (Rated 600V/35A) 4 Pins (Rated 600V/35A) 4 Pins (Rated 600V/35A)
Input Wire AWG 18-12 AWG 18-12 AWG 18-12 AWG 18-8 AWG 18-8
Output Terminal 4 Pins (Rated 300V/28A) 4 Pins (Rated 300V/28A) 4 Pins (Rated 300V/28A) 4 Pins (Rated 300V/30A) 6 Pins (Rated 300V/30A)
Output Wire AWG 18-12 AWG 18-12 AWG 16-12 AWG 12-10 AWG 12-10
Mounting Rail TS35 DIN Rail TS35 DIN Rail TS35 DIN Rail TS35 DIN Rail TS35 DIN Rail
Selection Table
MODEL NUMBER Output Voltage Output Current Power Boost ( 5 Secs) Output Power
DRP024V060W3BN 24Vdc 2.5A 3.75A 60W
DRP024V120W3BN 24Vdc 5A 7.5A 120W
DRP024V240W3BN 24Vdc 10A 15A 240W
DRP024V480W3BN 24Vdc 20A 30A 480W
DRP024V960W3BN 24Vdc 40A 60A 960W
Technical Illustrations

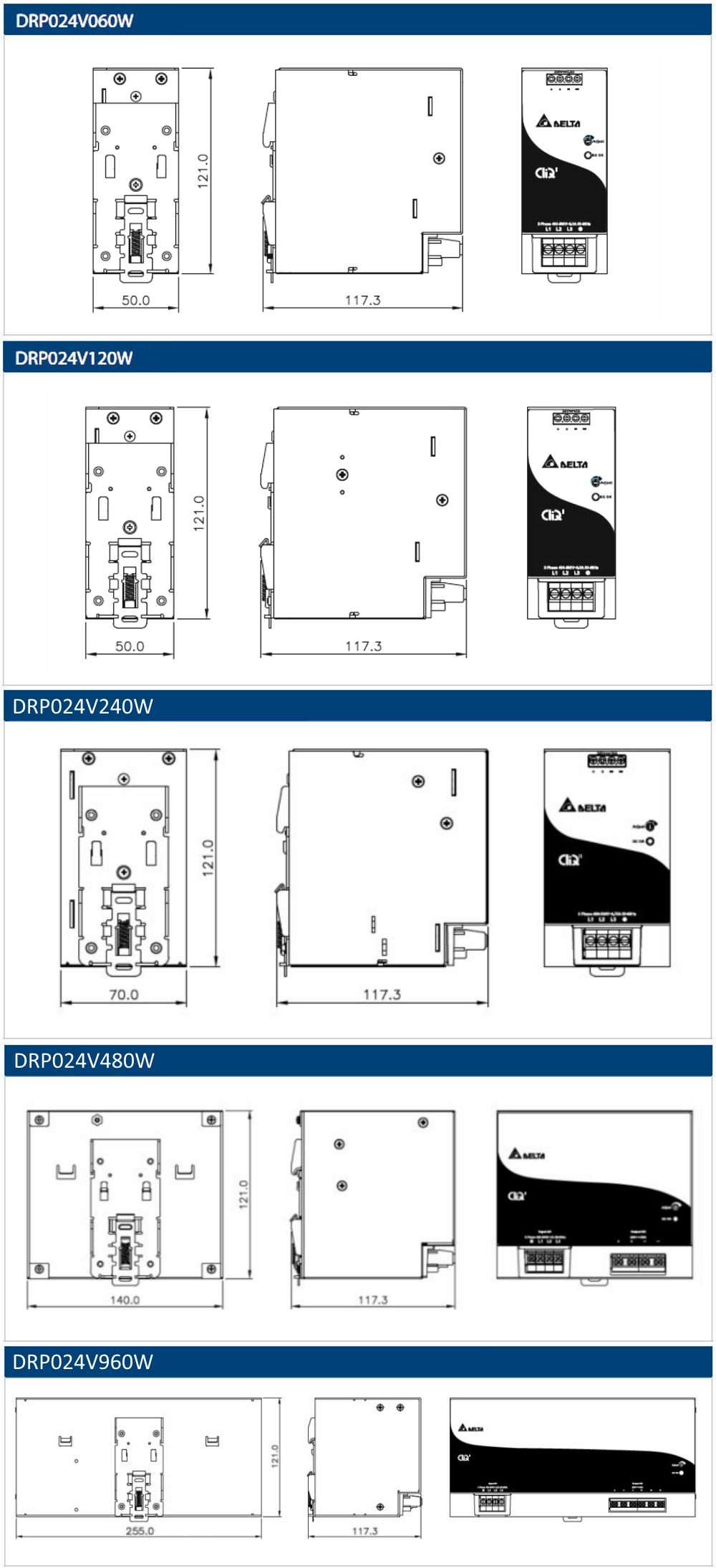

Technical drawings of Delta power supply units with dimensions.
Downloads
Datasheet_DRP024V480W3BN.pdf
Datasheet_DRP024V120W3BN.pdf
Datasheet_DRP024V060W3BN.pdf
Datasheet_DRP024V240W3BN.pdf
Datasheet_DRP024V960W3BN.pdf
OUTPUT
Model DRP024V060W3BN DRP024V120W3BN DRP024V240W3BN DRP024V480W3BN DRP024V960W3BN
Output Voltage 24Vdc 24Vdc 24Vdc 24Vdc 24Vdc
Output Voltage Range 24-28V 24-28V 24-28V 24-28V 24-28V
Output Current 2.5A 5A 10A 20A 40A
Output Power 60W 120W 240W 480W 960W
MTBF >500,000hrs >500,000hrs >500,000hrs >500,000hrs >300,000hrs
PARD (20MHz) 50mV 50mV 50mV 50mV 50mV
Power 150% Power Boost for 5 Seconds
Indicator Green LED (DC OK)
Line Regulation <0.5% at 320-600VAC, 100% load
Load Regulation < 1% at 320-600VAC, 0-100% load
Hold-up Time > 20ms at 3 x 400Vac
INPUT
Model DRP024V060W3BN DRP024V120W3BN DRP024V240W3BN DRP024V480W3BN DRP024V960W3BN
Phase Input Two or Three Phase
Input Voltage 3 x 320-600VAC (3Ph) or 2 x 360-600VAC (2Ph) 3 x 320-600VAC (3Ph) or 2 x 360-600VAC (2Ph) 3 x 320-600VAC (3Ph) or 2 x 360-600VAC (2Ph) 3 x 320-600VAC (3Ph) or 2 x 360-600VAC (2Ph) 3 x 320-600VAC (3Ph) or 2 x 380-600VAC (2Ph)
Input Frequency 47-63Hz
Power Factor Conform to EN6100-3-2 Conform to EN6100-3-2 Conform to EN6100-3-2 > 0.95 @ 3 x 400Vac > 0.95 @ 3 x 400Vac
Efficiency 100% load >86% at 3 x 400Vac >88% at 3 x 400Vac >92% at 3 x 400Vac >91% at 3 x 400Vac >92% at 3 x 400Vac
Input Current < 0.30A @ 3 x 400Vac < 0.5A @ 3 x 400Vac < 0.75A @ 3 x 400Vac < 1.0A @ 3 x 400Vac < 1.7A @ 3 x 400Vac
Max Inrush Current < 30A @ 3 x 400Vac < 30A @ 3 x 400Vac < 40A @ 3 x 400Vac < 50A @ 3 x 400Vac < 60A @ 3 x 400Vac
Leakage Current < 3.5mA
ENVIRONMENTAL
Operating Temperature -25°C to +75°C -25°C to +75°C -25°C to +75°C -25°C to +75°C -25°C to +75°C
Power De-rating > 50°C de-rate power by 2.5% / °C > 70°C > 50°C de-rate power by 2.5% / °C > 70°C > 50°C de-rate power by 2.5% / °C > 70°C > 50°C de-rate power by 2.5% / °C > 70°C > 50°C de-rate power by 2.5% / °C
Operating Humidity 5 to 95%RH (Non condensing)
Operating Altitude 0–2,000m
PROTECTIONS
Overvoltage 32V, +/-10% SELV Ouput, Hiccup Mode, Non-Latching (Auto-Recovery)
Overload/Overcurrent 200% of rated load current for 960W model, >150% for 120W, 240W & 480W models. Hiccup Mode, Non-Latching (Auto-Recovery)
Over Temperature <65°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)
Short Circuit Hiccup Mode, Non-Latching (Auto-Recovery) when the fault is removed)
Degree of Protection IP20
Protection against shock Class 1 with PE (Primary Earth) connection
Galvanic Isolation Input to Output 4.0KVAC
Input to Ground 1.5K VAC
Output to Ground 1.5KVAC
STANDARDS
Safety SIQ to EN 60950-1, UL/cUL recognized to UL 60950-1, CSA C22.2 No. 60950-1, CB scheme IEC 60950-1
Industrial Control Equipment UL/cUL listed to UL 508 and CSA C22.2 No. 107.1-01, CSA to CSA C22.2 No. 107.1-01 (File No. 181564)
Electrical Equipment In Power Installations: EN 50178 / IEC 62103
CE In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.
Materials & Parts RoHS Directive 2011/65/EU Compliant
MECHANICAL
Model DRP024V060W3BN DRP024V120W3BN DRP024V240W3BN DRP024V480W3BN DRP024V960W3BN
Case Cover Aluminium Aluminium Aluminium Aluminium Aluminium
Dimensions 121 x 50 x 117.3 mm 121 x 50 x 117.3 mm 121 x 70 x 117.3 mm 121 x 140 117.3 mm 121 x 225 x 117.3 mm
Weight 0.66Kg 0.66kg 0.89kg 1.35kg 2.6kg
Cooling System Convection Convection Convection Convection Convection
Input Terminal 4 Pins (Rated 600V/35A) 4 Pins (Rated 600V/35A) 4 Pins (Rated 600V/35A) 4 Pins (Rated 600V/35A) 4 Pins (Rated 600V/35A)
Input Wire AWG 18-12 AWG 18-12 AWG 18-12 AWG 18-8 AWG 18-8
Output Terminal 4 Pins (Rated 300V/28A) 4 Pins (Rated 300V/28A) 4 Pins (Rated 300V/28A) 4 Pins (Rated 300V/30A) 6 Pins (Rated 300V/30A)
Output Wire AWG 18-12 AWG 18-12 AWG 16-12 AWG 12-10 AWG 12-10
Mounting Rail TS35 DIN Rail TS35 DIN Rail TS35 DIN Rail TS35 DIN Rail TS35 DIN Rail
MODEL NUMBER Output Voltage Output Current Power Boost ( 5 Secs) Output Power
DRP024V060W3BN 24Vdc 2.5A 3.75A 60W
DRP024V120W3BN 24Vdc 5A 7.5A 120W
DRP024V240W3BN 24Vdc 10A 15A 240W
DRP024V480W3BN 24Vdc 20A 30A 480W
DRP024V960W3BN 24Vdc 40A 60A 960W
Technical drawings of Delta power supply units with dimensions.
Datasheet_DRP024V480W3BN.pdf
Datasheet_DRP024V120W3BN.pdf
Datasheet_DRP024V060W3BN.pdf
Datasheet_DRP024V240W3BN.pdf
Datasheet_DRP024V960W3BN.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant DRP024V060W3BN 3 x 320...600Vac (3-Phase) or 2 x 360..600Vac (2-Phase) 24Vdc 2.5A
product variant DRP024V120W3BN 3 x 320...600Vac (3-Phase) or 2 x 360..600Vac (2-Phase) 24Vdc 5A
product variant DRP024V240W3BN 3 x 320...600Vac (3-Phase) or 2 x 360..600Vac (2-Phase) 24Vdc 10A
product variant DRP024V480W3BN 3 x 320...600Vac (3-Phase) or 2 x 360..600Vac (2-Phase) 24Vdc 20A
product variant DRP024V960W3BN 3 x 320...600Vac (3-Phase) or 2 x 360..600Vac (2-Phase) 24Vdc 40A
