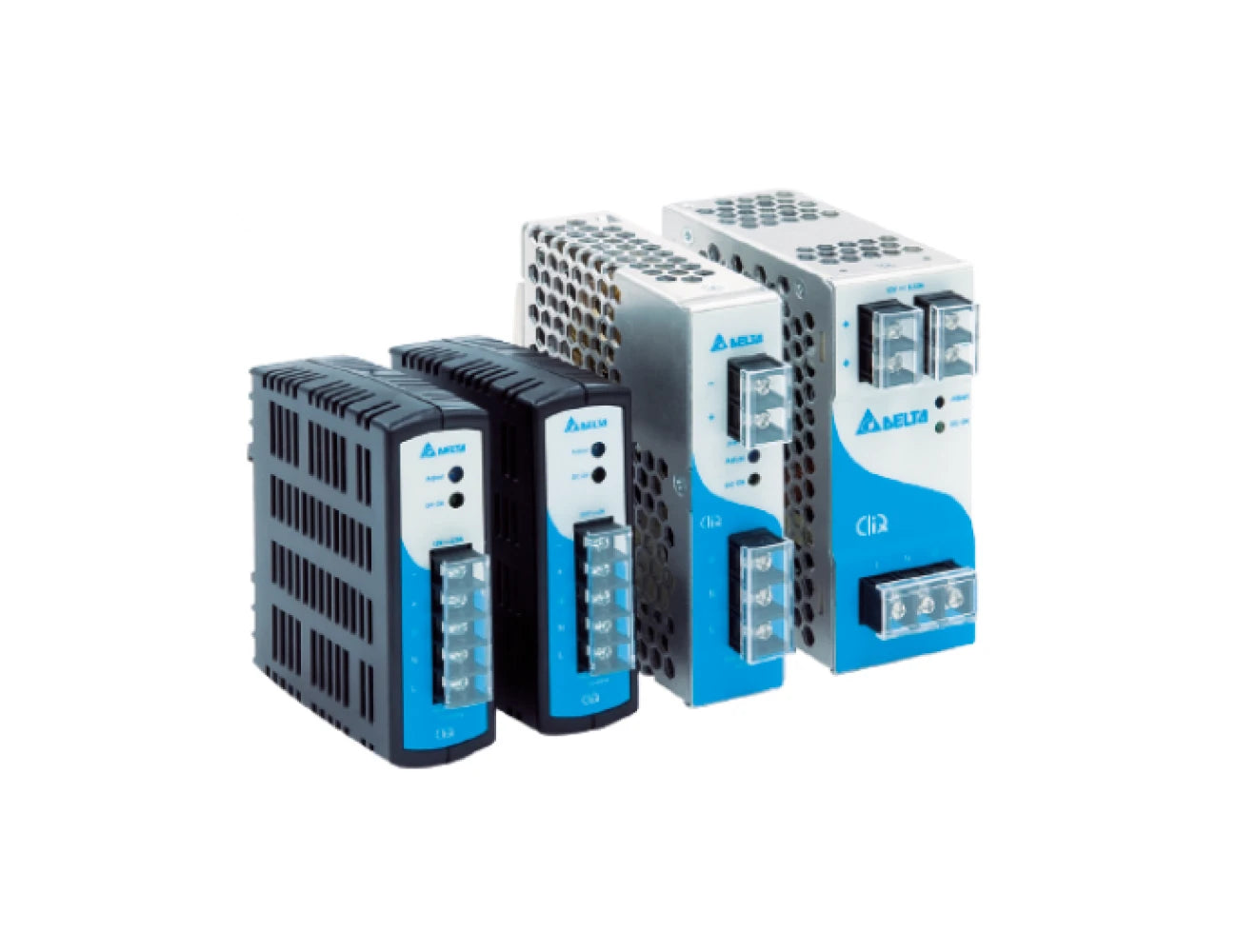

Delta Electronics CliQ II DRP 12V SERIES AC/DC Power Supply

The DRP 12V Series from Delta offers a range of 12VDC power supplies for DIN Rail applications, available in outputs from 15W to 100W. These units are designed to withstand harsh industrial environments, meeting ATEX Class I Div 2 standards. They feature a wide input voltage range, power boost of 150% for 3 seconds, and conformal coating on PCBAs for protection against dust and chemical pollutants, ensuring reliability and performance in challenging conditions.

View Models
Delta Electronics CliQ II DRP 12V SERIES AC/DC Power Supply
NRND Not Recommended for New Design
EOL End of Life

Features

  • 24V to 48Vdc - 20A & 40A Redundancy module
  • 2 Channel Inputs
  • 2 x DC OK LED indicator signal
  • Voltage alarms relay output
  • Wide Input 22-60Vdc
  • Conformal coating Corrosion resistant
Specifications
OUTPUT
Output Model DRP012V015W1AZ DRP012V030W1AZ DRP012V060W1AA DRP012V100W1AA
Output Voltage 12Vdc 12Vdc 12Vdc 12Vdc
Output Voltage Range 11V - 14Vdc 11V - 14Vdc 11V - 14Vdc 11V - 14Vdc
Output Current 1.25A 2.5A 5A 8.33A
Output Power 15W 30W 60W 100W
MTBF   >500,000hrs
Hold-up Time   >110ms @ 230Vac
Line Regulation   < 0.5% typ. at 100% load
Load Regulation   < 1% typ. at 0-100% load
PARD (20MHz)   <100mVpp
Indicator   Green LED (DC OK)
INPUT
Model DRP012V015W1AZ DRP012V030W1AZ DRP012V060W1AA DRP012V100W1AA
Input Voltage   85–264Vac, 120-375Vdc
Input Frequency   47-63Hz
Input Current <0.22A @ 230Vac < 0.42A @ 230Vac < 0.8A @ 230Vac <1.5A @ 230Vac
Max Inrush <65A at 230Vac <80A at 230Vac <100A at 230Vac No damage at 230Vac
Efficiency at 100% Load > 83% at 230Vac > 85% at 230Vac > 86% at 230Vac > 87.5% at 230Vac
Leakage Current   < 1mA @ 240Vac
Power Factor   Conform to EN61000-3-2
ENVIRONMENTAL
Model DRP012V015W1AZ DRP012V030W1AZ DRP012V060W1AA DRP012V100W1AA
Operating Temperature   -20°C to +80°C
Cooling System   Convection
Storage Temperature   -25°C to +85°C
Power De-rating   > 50°C (2.5%/°C), > 70°C (4%/°C)
Operating Humidity   < 95% RH (Non-Condensing)
Operating Altitude   0 to 2,000m
PROTECTIONS
Overvoltage 16V, +10% / -5% SELV Ouput, Hiccup Mode, Non-Latching (Auto-Recovery)
Overload/Overcurrent > 150% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)
Over Temperature  > 80C Surrounding Air Temperature @ 100% load, Latch-off Mode
Short Circuit Hiccup Mode, Non-Latching (Auto-Recovery) when the fault is removed)
Protection against Shock Class 1 with PE connection
Galvanic Isolation Input to Output: 4.0KVAC Input to Ground: 1.5KVAC Output to Ground: 1.5KVAC
STANDARDS
Electronic Equipment EN50718 / IEC62103  In power installations
Electrical Safety TUV Bauart to EN60950-1 UL/cUL recognized to UL60950-1, CSA C22.2 No. 60950-1, CB scheme to IEC60950-1
Industrial Control UL/cUL listed to UL508 and CSA C22.2 No. 107.1-01, CSA to CSA C22.2 No. 107.1-01 (File No. 181564)
CE In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC
Materials & Parts RoHS Directive 2011/65/EU Compliant
Hazardous Location / ATEX For DRP60 & DRP100 models, CSAus to CSA C22.2 No.213-M1987, ANSI / ISA 12.12.01:2007 CLass 1, Division 2, Group A,B,C,D,T4, EN60079-0:2009, EN60079-15:2010,  Certificate No. EPS 12 ATEX 1 491.X
MECHANICAL
Model DRP012V015W1AZ DRP012V030W1AZ DRP012V060W1AA DRP012V100W1AA
Case Cover Plastic Plastic Aluminium Aluminium
Dimensions 100 x 32 x 100.6mm 100 x 32 x 100.6mm 121 x 32 x 120mm 121 x 50 x 118.7mm
Weight 0.18Kg 0.20kg 0.33kg 0.64kg
Input Terminal 5 pins (rated 300V/15A) 5 pins (rated 300V/15A) 3 pins (rated 300V/20A) 3 pins (rated 300V/20A)
Input Wire AWG 22-14 AWG 22-14 AWG 22-14 AWG 18-14
Output Terminal 5 pins (rated 300V/15A) 5 pins (rated 300V/15A) 2 pins (rated 300V/20A) 2 pins (rated 300V/20A)
Output Wire AWG 22-14 AWG 22-14 AWG 22-14 AWG 18-14
Mounting Rail TS35 DIN Rail TS35 DIN Rail TS35 DIN Rail TS35 DIN Rail
PBB1P OPTION  (Available on 100W variant)
Input Connector

IEC AC Power Socket

(with 2 meter IEC power cable supplied)
Mounting L Bracket

Optional Mounting bracket available

See technical illustrations
Drip Hood Cover

Optional Drip hood cover

Mounted on top of PBB1P power supply to protect against condensation drips



Selection Table
MODEL NUMBER

Output

Voltage

Output

Current

Power Boost

(3 Secs)

Output

Power
DRP012V015W1AZ

12Vdc

 1.25A 1.87A 15W
DRP012V030W1AZ

12Vdc

 2.5A 3.75A 30W
DRP012V060W1AA

12Vdc

 5A 7.5A 60W
DRP012V100W1AA

12Vdc

 8.33A 12.5A 100W

MODEL NUMBER

PBB1P Assembly

Output

Voltage

Output

Current

Power Boost

(3 Secs)

Output

Power
PBB1P-100W-IEC-12V 12Vdc 8.33A 12.5A 100W
Technical Illustrations
Downloads
Datasheet_DRP012V100W1AA_Delta_Electronics.pdf
OUTPUT
Output Model DRP012V015W1AZ DRP012V030W1AZ DRP012V060W1AA DRP012V100W1AA
Output Voltage 12Vdc 12Vdc 12Vdc 12Vdc
Output Voltage Range 11V - 14Vdc 11V - 14Vdc 11V - 14Vdc 11V - 14Vdc
Output Current 1.25A 2.5A 5A 8.33A
Output Power 15W 30W 60W 100W
MTBF   >500,000hrs
Hold-up Time   >110ms @ 230Vac
Line Regulation   < 0.5% typ. at 100% load
Load Regulation   < 1% typ. at 0-100% load
PARD (20MHz)   <100mVpp
Indicator   Green LED (DC OK)
INPUT
Model DRP012V015W1AZ DRP012V030W1AZ DRP012V060W1AA DRP012V100W1AA
Input Voltage   85–264Vac, 120-375Vdc
Input Frequency   47-63Hz
Input Current <0.22A @ 230Vac < 0.42A @ 230Vac < 0.8A @ 230Vac <1.5A @ 230Vac
Max Inrush <65A at 230Vac <80A at 230Vac <100A at 230Vac No damage at 230Vac
Efficiency at 100% Load > 83% at 230Vac > 85% at 230Vac > 86% at 230Vac > 87.5% at 230Vac
Leakage Current   < 1mA @ 240Vac
Power Factor   Conform to EN61000-3-2
ENVIRONMENTAL
Model DRP012V015W1AZ DRP012V030W1AZ DRP012V060W1AA DRP012V100W1AA
Operating Temperature   -20°C to +80°C
Cooling System   Convection
Storage Temperature   -25°C to +85°C
Power De-rating   > 50°C (2.5%/°C), > 70°C (4%/°C)
Operating Humidity   < 95% RH (Non-Condensing)
Operating Altitude   0 to 2,000m
PROTECTIONS
Overvoltage 16V, +10% / -5% SELV Ouput, Hiccup Mode, Non-Latching (Auto-Recovery)
Overload/Overcurrent > 150% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)
Over Temperature  > 80C Surrounding Air Temperature @ 100% load, Latch-off Mode
Short Circuit Hiccup Mode, Non-Latching (Auto-Recovery) when the fault is removed)
Protection against Shock Class 1 with PE connection
Galvanic Isolation Input to Output: 4.0KVAC Input to Ground: 1.5KVAC Output to Ground: 1.5KVAC
STANDARDS
Electronic Equipment EN50718 / IEC62103  In power installations
Electrical Safety TUV Bauart to EN60950-1 UL/cUL recognized to UL60950-1, CSA C22.2 No. 60950-1, CB scheme to IEC60950-1
Industrial Control UL/cUL listed to UL508 and CSA C22.2 No. 107.1-01, CSA to CSA C22.2 No. 107.1-01 (File No. 181564)
CE In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC
Materials & Parts RoHS Directive 2011/65/EU Compliant
Hazardous Location / ATEX For DRP60 & DRP100 models, CSAus to CSA C22.2 No.213-M1987, ANSI / ISA 12.12.01:2007 CLass 1, Division 2, Group A,B,C,D,T4, EN60079-0:2009, EN60079-15:2010,  Certificate No. EPS 12 ATEX 1 491.X
MECHANICAL
Model DRP012V015W1AZ DRP012V030W1AZ DRP012V060W1AA DRP012V100W1AA
Case Cover Plastic Plastic Aluminium Aluminium
Dimensions 100 x 32 x 100.6mm 100 x 32 x 100.6mm 121 x 32 x 120mm 121 x 50 x 118.7mm
Weight 0.18Kg 0.20kg 0.33kg 0.64kg
Input Terminal 5 pins (rated 300V/15A) 5 pins (rated 300V/15A) 3 pins (rated 300V/20A) 3 pins (rated 300V/20A)
Input Wire AWG 22-14 AWG 22-14 AWG 22-14 AWG 18-14
Output Terminal 5 pins (rated 300V/15A) 5 pins (rated 300V/15A) 2 pins (rated 300V/20A) 2 pins (rated 300V/20A)
Output Wire AWG 22-14 AWG 22-14 AWG 22-14 AWG 18-14
Mounting Rail TS35 DIN Rail TS35 DIN Rail TS35 DIN Rail TS35 DIN Rail
PBB1P OPTION  (Available on 100W variant)
Input Connector

IEC AC Power Socket

(with 2 meter IEC power cable supplied)
Mounting L Bracket

Optional Mounting bracket available

See technical illustrations
Drip Hood Cover

Optional Drip hood cover

Mounted on top of PBB1P power supply to protect against condensation drips



MODEL NUMBER

Output

Voltage

Output

Current

Power Boost

(3 Secs)

Output

Power
DRP012V015W1AZ

12Vdc

 1.25A 1.87A 15W
DRP012V030W1AZ

12Vdc

 2.5A 3.75A 30W
DRP012V060W1AA

12Vdc

 5A 7.5A 60W
DRP012V100W1AA

12Vdc

 8.33A 12.5A 100W

MODEL NUMBER

PBB1P Assembly

Output

Voltage

Output

Current

Power Boost

(3 Secs)

Output

Power
PBB1P-100W-IEC-12V 12Vdc 8.33A 12.5A 100W
Datasheet_DRP012V100W1AA_Delta_Electronics.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant DRP012V015W1AZ 85...264Vac 50/60Hz 12Vdc 1.25A
product variant DRP012V030W1AZ 85...264Vac 50/60Hz 12Vdc 2.5A
product variant DRP012V060W1AA 85...264Vac 50/60Hz 12Vdc 5A
product variant DRP012V100W1AA 85...264Vac 50/60Hz 12Vdc 8.33A
