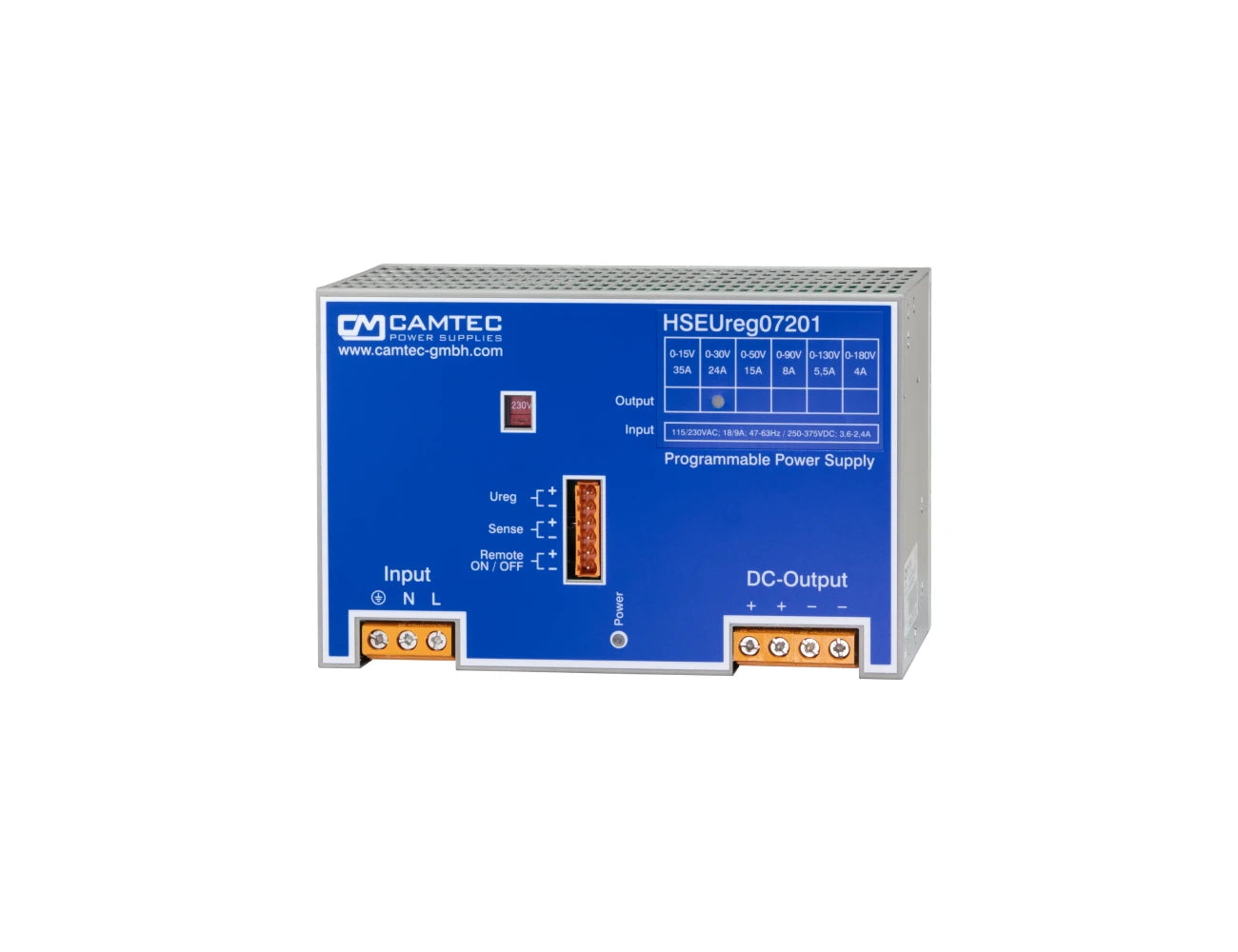

Camtec HSEUIREG07201 SERIES Laboratory Power Supply
The Camtec HSEUiREG07201 Series Laboratory Power Supply is a high-precision, 720W power solution tailored for demanding industrial and laboratory environments. With an efficiency of up to 90%, this German-engineered power supply is ideal for applications requiring real-time voltage and current programming, such as testing automation, research, and precision manufacturing.
Read More
Features
- 720W Programmable Power Supply
- Current and voltage programmable
- Thermal shutdown
- -25°C...+60°C full output power
- Natural convection
- Continuous short circuit protected
Specifications
Selection Table

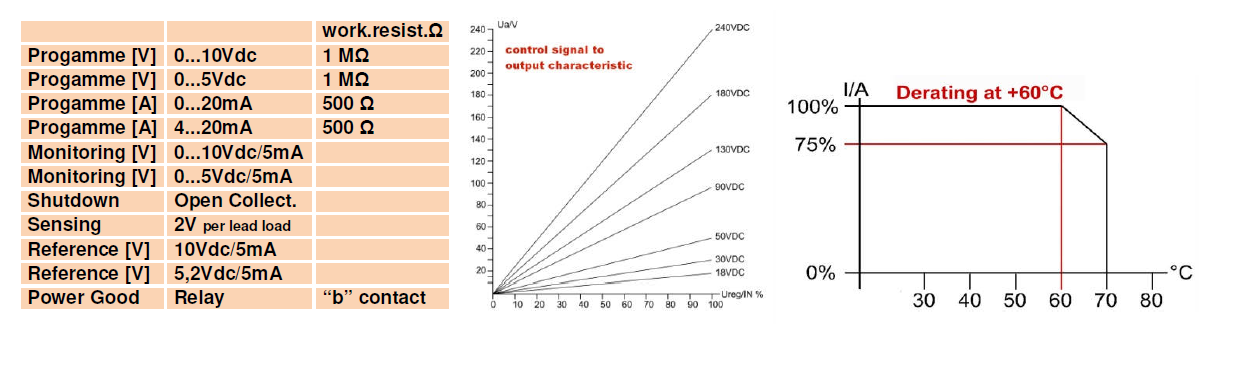

Technical Illustrations
Downloads
| GENERAL | |
|---|---|
| AC Input Voltage | 90~132Vac / 85~265Vac |
| Frequency | 47-63Hz. |
| DC Input Voltage | 250-375Vdc. |
| AC Input Rating | 115Vac<13,2A 230Vac<6,5A |
| DC Input Rating | 250Vdc<3,6A 375Vdc<2,4A |
| Pmax | 720W continuous |
| Operation failure relay | Yes, break contact (fig.4), protective electrical separation ≤60Vdc |
| Sense function | Compensation 2V per lead load, protective electrical separation ≤60Vdc |
| Remote Shutdown | Compensation 2V per lead load, protective electrical separation ≤60Vdc |
| Analogue Interface | Yes, protective electrical separation ≤60Vdc |
| Digital Interface | Yes, available option (incl. Software), protective electrical separation ≤400Vdc |
| Accuracy | < ± 1.5% interface |
| Load regulation | < ± 0.05% 0-100% |
| Slew Rate | 15ms rise time 0V...Umax |
| Response Load Change | <1ms 10-100%, 100-10% |
| Base Load | None |
| Efficiency 230Vac | 90% typical |
| Short Circuit Protection | Continuous |
| Idling-proof | Yes, continuous |
| Temperature Control | Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm) |
| Hold Up Time | >40ms 230Vac |
| Inrush Current | <9,8Aeff < 13.8Apeak (230Vac) active inrush current limiter |
| Softstart | 100ms typical |
| Isolation Path | > 8mm |
| Input / Output | Galvanic insulated 3000Vac |
| Meantime By Failure (MTBF) | 400000h (IEC61709) |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural convection |
| Ambient Operating Temp. | - 25°C…+70°C |
| Derating | +60°C...+70°C 2.5%/°C |
| Ambient Storage Temp. | - 40°C…+85°C |
| Environment | Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| EMI | EN55022 class B |
| EMS | EN61000-6-2,3 |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 130x200x114,5mm |
| Weight | 3000g |
| Screw Terminals (In/Out) | AWG20...AWG6 , 0,5...16mm² |
| MODEL NUMBER | HSEUiREG07201.18T | HSEUiREG07201.30T | HSEUiREG07201.50T | HSEUiREG07201.60T |
|---|---|---|---|---|
| Rated DC Voltage | 0...18V | 0...30V | 0...50V | 0…60V |
| Overvoltage Protection | 22Vdc | 35Vdc | 59Vdc | 70Vdc |
| Max. DC Current -25°C...+60°C | 0...40A | 0...30A | 0...18A | 0…15A |
| Max. DC Current +70°C | 0...30A | 0...22,5A | 0...13,5A | 0…11,2A |
| Ripple Peak 230Vac 20MHz PP | 40mV | 40mV | 100mV | 120mV |
| MODEL NUMBER | HSEUiREG07201.90T | HSEUiREG07201.130T | HSEUiREG07201.180T | HSEUiREG07201.240T |
|---|---|---|---|---|
| Rated DC Voltage | 0...90V | 0...130V | 0...180V | 0...240V |
| Overvoltage Protection | 105Vdc | 150Vdc | 210Vdc | 280Vdc |
| Max. DC Current -25°C...+60°C | 0...10A | 0...7A | 0...5A | 0...3,8A |
| Max. DC Current +70°C | 0...7,5A | 0...5,3A | 0...3.8A | 0...2,9A |
| Ripple Peak 230Vac 20MHz PP | 150mV | 200mV | 300mV | 400mV |
| ORDERING | Options |
|---|---|
| Option | USB 2.0 Interface, UI.Drive Software, XP/W7/W8 ADTW201, DC-repeater PS200 external, 200W Power Sink Wall Mount Kit |
| BUILT-IN 5W POWER SINK | Add "PS" to model number, eg HSEUIreg07201.18TPS |
| GENERAL | |
|---|---|
| AC Input Voltage | 90~132Vac / 85~265Vac |
| Frequency | 47-63Hz. |
| DC Input Voltage | 250-375Vdc. |
| AC Input Rating | 115Vac<13,2A 230Vac<6,5A |
| DC Input Rating | 250Vdc<3,6A 375Vdc<2,4A |
| Pmax | 720W continuous |
| Operation failure relay | Yes, break contact (fig.4), protective electrical separation ≤60Vdc |
| Sense function | Compensation 2V per lead load, protective electrical separation ≤60Vdc |
| Remote Shutdown | Compensation 2V per lead load, protective electrical separation ≤60Vdc |
| Analogue Interface | Yes, protective electrical separation ≤60Vdc |
| Digital Interface | Yes, available option (incl. Software), protective electrical separation ≤400Vdc |
| Accuracy | < ± 1.5% interface |
| Load regulation | < ± 0.05% 0-100% |
| Slew Rate | 15ms rise time 0V...Umax |
| Response Load Change | <1ms 10-100%, 100-10% |
| Base Load | None |
| Efficiency 230Vac | 90% typical |
| Short Circuit Protection | Continuous |
| Idling-proof | Yes, continuous |
| Temperature Control | Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm) |
| Hold Up Time | >40ms 230Vac |
| Inrush Current | <9,8Aeff < 13.8Apeak (230Vac) active inrush current limiter |
| Softstart | 100ms typical |
| Isolation Path | > 8mm |
| Input / Output | Galvanic insulated 3000Vac |
| Meantime By Failure (MTBF) | 400000h (IEC61709) |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural convection |
| Ambient Operating Temp. | - 25°C…+70°C |
| Derating | +60°C...+70°C 2.5%/°C |
| Ambient Storage Temp. | - 40°C…+85°C |
| Environment | Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| EMI | EN55022 class B |
| EMS | EN61000-6-2,3 |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 130x200x114,5mm |
| Weight | 3000g |
| Screw Terminals (In/Out) | AWG20...AWG6 , 0,5...16mm² |
| MODEL NUMBER | HSEUiREG07201.18T | HSEUiREG07201.30T | HSEUiREG07201.50T | HSEUiREG07201.60T |
|---|---|---|---|---|
| Rated DC Voltage | 0...18V | 0...30V | 0...50V | 0…60V |
| Overvoltage Protection | 22Vdc | 35Vdc | 59Vdc | 70Vdc |
| Max. DC Current -25°C...+60°C | 0...40A | 0...30A | 0...18A | 0…15A |
| Max. DC Current +70°C | 0...30A | 0...22,5A | 0...13,5A | 0…11,2A |
| Ripple Peak 230Vac 20MHz PP | 40mV | 40mV | 100mV | 120mV |
| MODEL NUMBER | HSEUiREG07201.90T | HSEUiREG07201.130T | HSEUiREG07201.180T | HSEUiREG07201.240T |
|---|---|---|---|---|
| Rated DC Voltage | 0...90V | 0...130V | 0...180V | 0...240V |
| Overvoltage Protection | 105Vdc | 150Vdc | 210Vdc | 280Vdc |
| Max. DC Current -25°C...+60°C | 0...10A | 0...7A | 0...5A | 0...3,8A |
| Max. DC Current +70°C | 0...7,5A | 0...5,3A | 0...3.8A | 0...2,9A |
| Ripple Peak 230Vac 20MHz PP | 150mV | 200mV | 300mV | 400mV |
| ORDERING | Options |
|---|---|
| Option | USB 2.0 Interface, UI.Drive Software, XP/W7/W8 ADTW201, DC-repeater PS200 external, 200W Power Sink Wall Mount Kit |
| BUILT-IN 5W POWER SINK | Add "PS" to model number, eg HSEUIreg07201.18TPS |
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage Range (Vdc) | Output Current Range (A) | ||
|---|---|---|---|---|---|
|
HSEUiREG07201.018(R2) | 90..132Vac / 184..265Vac | 0 - 18Vdc | 0 - 40A | |
|
|
HSEUiREG07201.030(R2) | 90..132Vac / 184..265Vac | 0 - 30Vdc | 0 - 30A | |
|
|
HSEUiREG07201.050(R2) | 90..132Vac / 184..265Vac | 0 - 50Vdc | 0 - 18A | |
|
|
HSEUiREG07201.060(R2) | 90..132Vac / 184..265Vac | 0 - 60Vdc | 0 - 15A | |
|
|
HSEUiREG07201.090(R2) | 90..132Vac / 184..265Vac | 0 – 90Vdc | 0 - 10A | |
|
|
HSEUiREG07201.130(R2) | 90..132Vac / 184..265Vac | 0 – 130Vdc | 0 - 7A | |
|
|
HSEUiREG07201.180(R2) | 90..132Vac / 184..265Vac | 0 – 180Vdc | 0 - 5A | |
|
|
HSEUiREG07201.240(R2) | 90..132Vac / 184..265Vac | 0 – 240Vdc | 0 - 3.8A | |
|
|
HSEUiREG07201.018PS(R2) | 90..132Vac / 184..265Vac | 0 - 18Vdc | 0 - 40A | |
|
|
HSEUiREG07201.030PS(R2) | 90..132Vac / 184..265Vac | 0 - 30Vdc | 0 - 30A | |
|
|
HSEUiREG07201.050PS(R2) | 90..132Vac / 184..265Vac | 0 - 50Vdc | 0 - 18A | |
|
|
HSEUiREG07201.060PS(R2) | 90..132Vac / 184..265Vac | 0 - 60Vdc | 0 - 15A | |
|
|
HSEUiREG07201.090PS(R2) | 90..132Vac / 184..265Vac | 0 – 90Vdc | 0 - 10A | |
|
|
HSEUiREG07201.130PS(R2) | 90..132Vac / 184..265Vac | 0 – 130Vdc | 0 - 7A | |
|
|
HSEUiREG07201.180PS(R2) | 90..132Vac / 184..265Vac | 0 – 180Vdc | 0 - 5A | |
|
|
HSEUiREG07201.240PS(R2) | 90..132Vac / 184..265Vac | 0 – 240Vdc | 0 - 3.8A |
