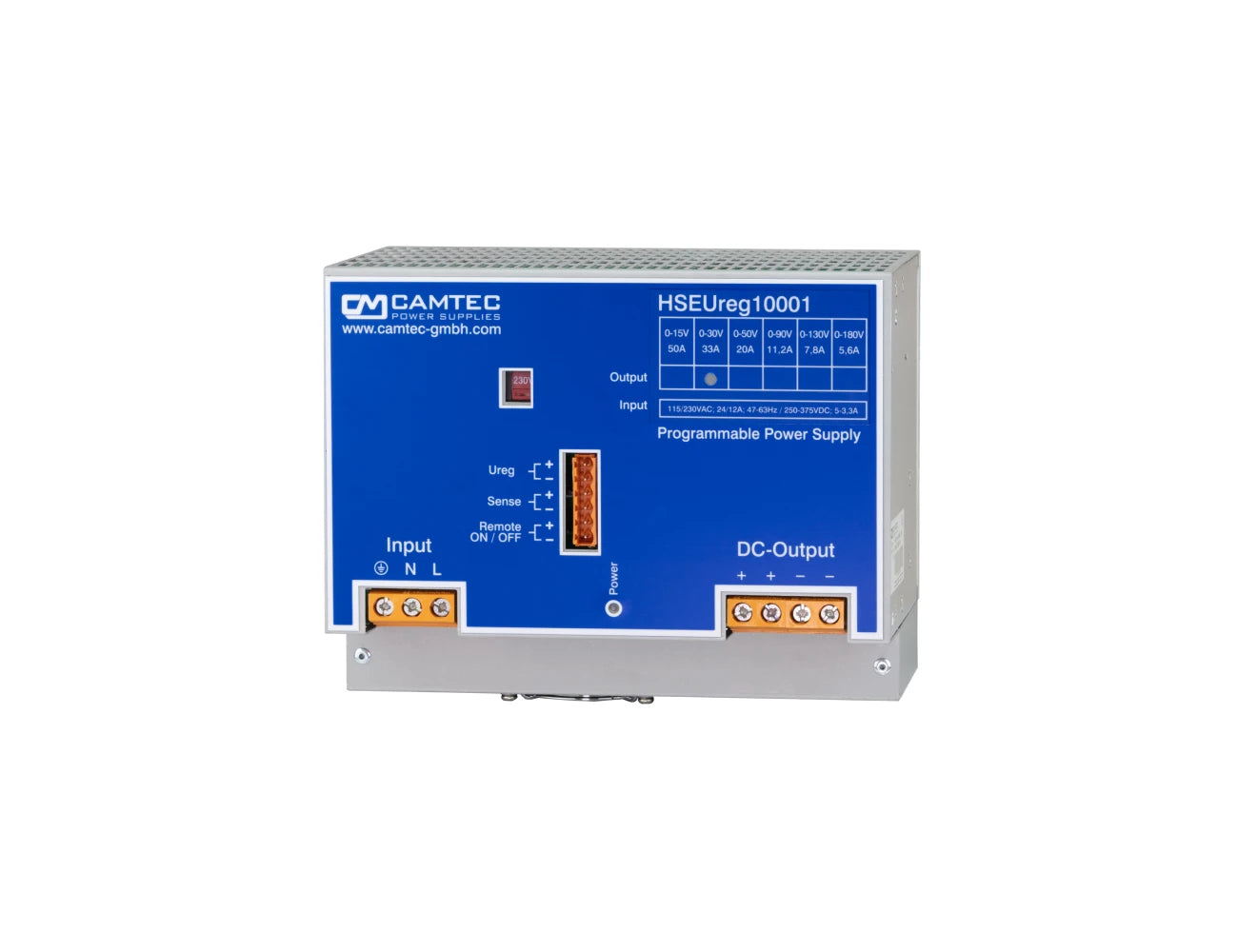

Camtec HSEUREG10001 SERIES Laboratory Power Supply
The Camtec HSEUREG10001 Series Laboratory Power Supply is a versatile, high-performance solution designed for demanding industrial and laboratory applications. Delivering up to 1000W with an energy efficiency of up to 90%, this German-engineered power supply combines precision, reliability, and scalability. It is ideal for complex DC drives, galvanic systems, automated testing, and professional laboratory setups.
Read More
Features
- 1000W voltage 0-Vmax programmable laboratory power supply
- Save 0–Umax programming
- Multi interface 0-10V & 0-20mA
- Sense & Shutdown (remote ON/OFF)
- N+1 parallel operation
- Natural Convection
| GENERAL | |
|---|---|
| Output Voltage | See selection table |
| AC Input Voltage | 90..132Vac / 184..265Vac |
| Frequency | 47-63Hz |
| DC Input Voltage | 250…375Vdc |
| Sense function | Compensation 2V per lead load, protective electrical separation ≤60Vdc |
| Remote Shutdown | Protective electrical separation ≤60Vdc |
| Analogue Interface | Protective electrical separation ≤60Vdc, working impedance = 500Ω |
| Pmax (average) | 1000W continuous and ca. 1059-1118W bower boost for max. 60s (see Power Boost above) |
| Derating | +60°C...+70°C 2.5%/°C |
| Accuracy | < ± 1.5% Interface |

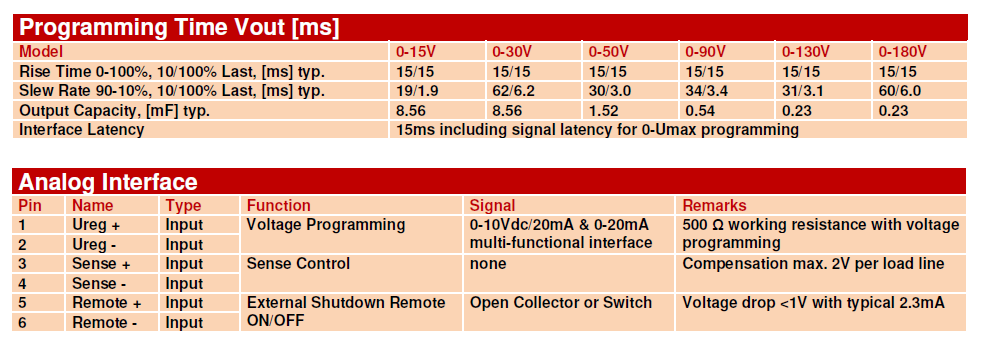

| Latency Interface | 15ms including signal latency for 0-Umax programming |
| Load regulation | < ± 0.2% 0-100% |
| Response Load Change | <1ms 10-100%, 100-10% |
| Base Load | None |
| Efficiency 230Vac | 90% typical |
| Short Circuit Protection | Continuous |
| Idling-proof | Yes |
| Temperature Control | Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm) |
| Hold Up Time | > 40ms 230Vac |
| Inrush Current | < 162A (230Vac) @25°C |
| Miniature Circuit Breaker | 16A curve C (need to connect 1 unit to a single 16A curve-B MCB? use our ESB101.33 limiter!) |
| Soft Start | 100ms typical |
| RELIABILITY | |
|---|---|
| ROHS | 2011/65/EG confirmed |
| REACH | EG No. 1907/2006 confirmed |
| Isolation Path | > 8mm |
| Input / Output | Galvanic insulated |
| MTBF | 400000h (IEC61709) |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural convection |
| Ambient Operating Temp. | - 25°C…+70°C |
| Ambient Storage Temp. | - 40°C…+85°C |
| Environment | Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II |
| STANDARDS AND APPROVALS | |
|---|---|
| EMI | EG No. 1907/2006 confirmed |
| EMS | EN61000-6-2,3 |
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| MECHANICAL | |
|---|---|

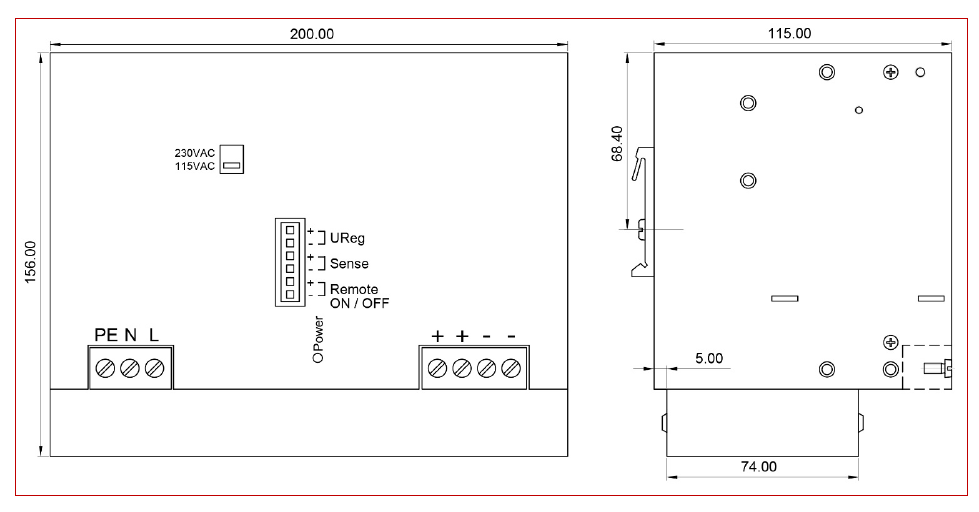

| Dimensions (HxWxD) | 156x200x114,5mm |
| Weight | 3200g |
| Screw Terminals (In/Out) | AWG20...AWG6 , 0.5...16mm² (76A @ 40°C) |
| MODEL | HSEUREG10001.015T | HSEUREG10001.030T | HSEUREG10001.050T |
|---|---|---|---|
| Rated DC Voltage | 0-15V | 0-30V | 0-50V |
| Overvoltage Protection | 18Vdc | 35Vdc | 59Vdc |
| Rated DC Current | 50.0A | 33.0A | 20.0A |
| Power Boost -25...+60°C <1min | 55.0A | 35.3A | 22.0A |
| Max. DC Current +70°C | 37.5A | 24.8A | 15.0A |
| Ripple Peak 230Vac 20MHz | 50mVpp | 50mVpp | 100mVpp |
| MODEL | HSEUREG10001.090T | HSEUREG10001.130T | HSEUREG10001.180T |
|---|---|---|---|
| Rated DC Voltage | 0-90V | 0-130V | 0-180V |
| Overvoltage Protection | 105Vdc | 150Vdc | 210Vdc |
| Rated DC Current | 11.2A | 7.8A | 5.6A |
| Power Boost -25...+60°C <1min | 12.3A | 8.6A | 6.1A |
| Max. DC Current +70°C | 8.4A | 5.9A | 4.2A |
| Ripple Peak 230Vac 20MHz | 200mVpp | 250mVpp | 300mVpp |
Optional Coating (option C): We offer the USEUIreg-series with optional coating. It is to be used in e.g. dusty, dirty, high humidity, or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. It is procured with a robotics varnishing machine. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0 . Ordering Information: ad extension C to the type number: HSEUREG10001.015TC
| GENERAL | |
|---|---|
| Output Voltage | See selection table |
| AC Input Voltage | 90..132Vac / 184..265Vac |
| Frequency | 47-63Hz |
| DC Input Voltage | 250…375Vdc |
| Sense function | Compensation 2V per lead load, protective electrical separation ≤60Vdc |
| Remote Shutdown | Protective electrical separation ≤60Vdc |
| Analogue Interface | Protective electrical separation ≤60Vdc, working impedance = 500Ω |
| Pmax (average) | 1000W continuous and ca. 1059-1118W bower boost for max. 60s (see Power Boost above) |
| Derating | +60°C...+70°C 2.5%/°C |
| Accuracy | < ± 1.5% Interface |
| Latency Interface | 15ms including signal latency for 0-Umax programming |
| Load regulation | < ± 0.2% 0-100% |
| Response Load Change | <1ms 10-100%, 100-10% |
| Base Load | None |
| Efficiency 230Vac | 90% typical |
| Short Circuit Protection | Continuous |
| Idling-proof | Yes |
| Temperature Control | Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm) |
| Hold Up Time | > 40ms 230Vac |
| Inrush Current | < 162A (230Vac) @25°C |
| Miniature Circuit Breaker | 16A curve C (need to connect 1 unit to a single 16A curve-B MCB? use our ESB101.33 limiter!) |
| Soft Start | 100ms typical |
| RELIABILITY | |
|---|---|
| ROHS | 2011/65/EG confirmed |
| REACH | EG No. 1907/2006 confirmed |
| Isolation Path | > 8mm |
| Input / Output | Galvanic insulated |
| MTBF | 400000h (IEC61709) |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural convection |
| Ambient Operating Temp. | - 25°C…+70°C |
| Ambient Storage Temp. | - 40°C…+85°C |
| Environment | Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II |
| STANDARDS AND APPROVALS | |
|---|---|
| EMI | EG No. 1907/2006 confirmed |
| EMS | EN61000-6-2,3 |
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 156x200x114,5mm |
| Weight | 3200g |
| Screw Terminals (In/Out) | AWG20...AWG6 , 0.5...16mm² (76A @ 40°C) |
| MODEL | HSEUREG10001.015T | HSEUREG10001.030T | HSEUREG10001.050T |
|---|---|---|---|
| Rated DC Voltage | 0-15V | 0-30V | 0-50V |
| Overvoltage Protection | 18Vdc | 35Vdc | 59Vdc |
| Rated DC Current | 50.0A | 33.0A | 20.0A |
| Power Boost -25...+60°C <1min | 55.0A | 35.3A | 22.0A |
| Max. DC Current +70°C | 37.5A | 24.8A | 15.0A |
| Ripple Peak 230Vac 20MHz | 50mVpp | 50mVpp | 100mVpp |
| MODEL | HSEUREG10001.090T | HSEUREG10001.130T | HSEUREG10001.180T |
|---|---|---|---|
| Rated DC Voltage | 0-90V | 0-130V | 0-180V |
| Overvoltage Protection | 105Vdc | 150Vdc | 210Vdc |
| Rated DC Current | 11.2A | 7.8A | 5.6A |
| Power Boost -25...+60°C <1min | 12.3A | 8.6A | 6.1A |
| Max. DC Current +70°C | 8.4A | 5.9A | 4.2A |
| Ripple Peak 230Vac 20MHz | 200mVpp | 250mVpp | 300mVpp |
Optional Coating (option C): We offer the USEUIreg-series with optional coating. It is to be used in e.g. dusty, dirty, high humidity, or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. It is procured with a robotics varnishing machine. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0 . Ordering Information: ad extension C to the type number: HSEUREG10001.015TC
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage Range (Vdc) | Output Current Range (A) | ||
|---|---|---|---|---|---|
|
HSEUREG10001.015(R2) | 90..132Vac / 184..265Vac | 0 - 15Vdc | 50A | |
|
|
HSEUREG10001.030(R2) | 90..132Vac / 184..265Vac | 0 - 30Vdc | 33A | |
|
|
HSEUREG10001.050(R2) | 90..132Vac / 184..265Vac | 0 - 50Vdc | 20A | |
|
|
HSEUREG10001.090(R2) | 90..132Vac / 184..265Vac | 0 – 90Vdc | 11.2A | |
|
|
HSEUREG10001.130(R2) | 90..132Vac / 184..265Vac | 0 – 130Vdc | 7.8A | |
|
|
HSEUREG10001.180(R2) | 90..132Vac / 184..265Vac | 0 – 180Vdc | 5.6A |
