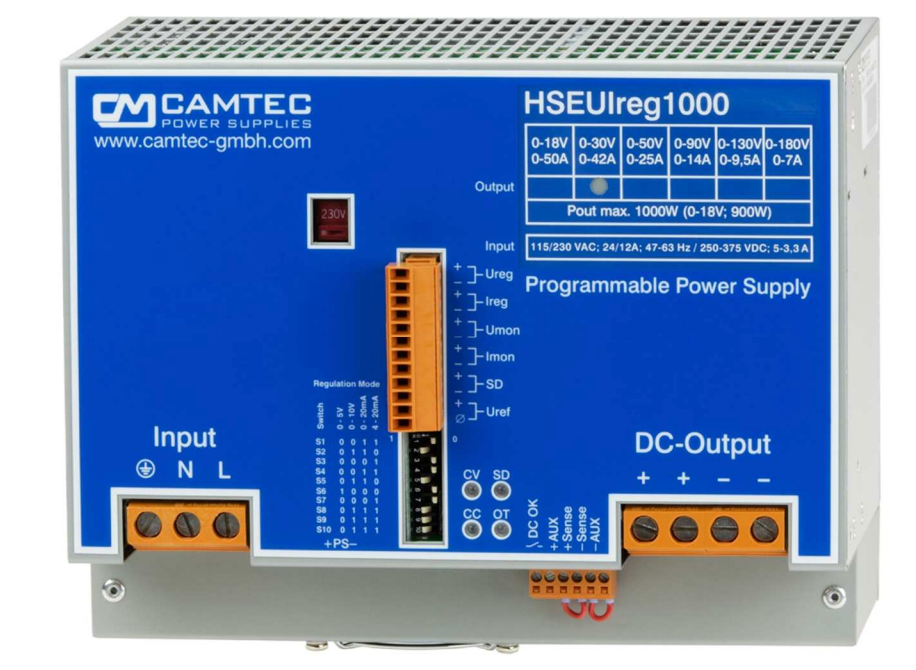

Camtec HSEUIREG10001 SERIES Laboratory Power Supply

The Camtec HSEUiREG10001 Series Laboratory Power Supply is a high-precision, 1000W power solution tailored for demanding industrial and laboratory applications. Designed for advanced testing, automation, and research, this German-engineered power supply ensures stable and reliable performance under variable load conditions. With efficiency rates up to 90%, it combines performance with energy efficiency.

Read More

View Models
Camtec HSEUIREG10001 SERIES Laboratory Power Supply

Features

  • 1000W voltage 0-Vmax programmable laboratory power supply
  • Save 0–Umax programming
  • Multi interface 0-10V & 0-20mA
  • Sense & Shutdown (remote ON/OFF)
  • N+1 parallel operation
  • Precise dynamic response on load change
Specifications
GENERAL
Output Voltage See selection table
AC Input Voltage 90..132Vac / 184..265Vac
Frequency 47-63Hz
DC Input Voltage 250…375Vdc
Pmax 1000W continuous
Operation failure relay Yes, break contact (fig.4), protective electrical separation ≤60Vdc
Sense function Compensation 2V per lead load, protective electrical separation ≤60Vdc
Remote Shutdown Yes, protective electrical separation ≤60Vdc
Analogue Interface Yes, protective electrical separation ≤60Vdc
Digital Interface Yes, available option (incl. Software), protective electrical separation ≤400Vdc
Derating +60°C...+70°C 2.5%/°C
Accuracy < ± 1.5% interface
Load regulation < ± 0.05% 0-100%
Slew Rate 15ms rise time 0V...Umax
Response Load Change <1ms 10-100%, 100-10%
Base Load None
Efficiency 230Vac 90% typical
Short Circuit Protection Continuous
Idling-proof Yes, continuous
Temperature Control Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm)
Hold Up Time >30ms 230Vac
Inrush Current <9,8Aeff < 13.8Apeak (230Vac) active inrush current limiter
Softstart 100ms typical

RELIABILITY
Isolation Path > 8mm
Input / Output Galvanic insulated 3000Vac
MTBF 400000h (IEC61709)
ENVIRONMENTAL
Cooling Controlled Fan from manufacturer EBM Papst (Germany)
Ambient Operating Temp. - 25°C…+70°C
Ambient Storage Temp. - 40°C…+85°C
Environment Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II
STANDARDS AND APPROVALS
EMI EN55022 class B
EMS EN61000-6-2,3
Safety EN60950-1, EN60204-1
Safety class 1(A) VDE0805, VDE0100
MECHANICAL

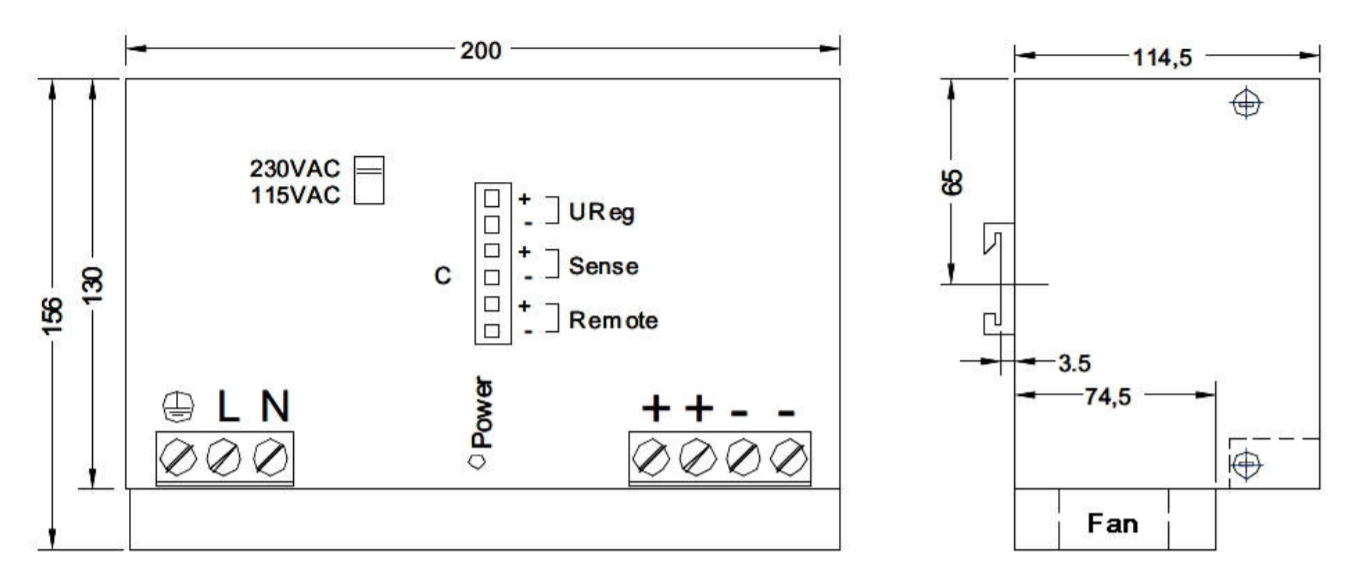

Dimensions (HxWxD) 156x200x114,5mm
Weight 3400g
Screw Terminals (In/Out) AWG20...AWG6 , 0,5...16mm²
Selection Table
MODEL HSEUiREG10001.18T HSEUiREG10001.30T HSEUiREG10001.50T HSEUiREG10001.90T
Rated DC Voltage 0-18V 0-30V 0-50V 0-90V
Overvoltage Protection 22Vdc 35Vdc 59Vdc 105Vdc
Max. DC Current -25°C...+60°C 0 - 50A 0 - 42A 0 - 25A 0 - 14A
Max. DC Current +70°C 0 - 37.5A 0 - 31.5A 0 - 18.8A 0 - 10.5A
Ripple Peak 230Vac 20MHz 40mVpp 40mVpp 120mVpp 150mVpp
MODEL HSEUiREG10001.130T HSEUiREG10001.180T HSEUiREG10001.240T HSEUiREG10001.400T
Rated DC Voltage 150Vdc 210Vdc 280Vdc 450Vdc
Overvoltage Protection 0...9,5A 0...7A 0...5,3A 0...2,4A
Max. DC Current -25°C...+60°C 0...7,1A 0...5,3A 0...4A 0...3,2A
Max. DC Current +70°C 0...7,1A 0...5,3A 0...4A 0...3,2A
Ripple Peak 230Vac 20MHz 200mVpp 300mVpp 400mVpp 400mVpp

Optional Coating (option C): We offer the USEUIreg-series with optional coating. It is to be used in e.g. dusty, dirty, high humidity, or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. It is procured with a robotics varnishing machine. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0 . Ordering Information: ad extension C to the type number: HSEUREG10001.015TC

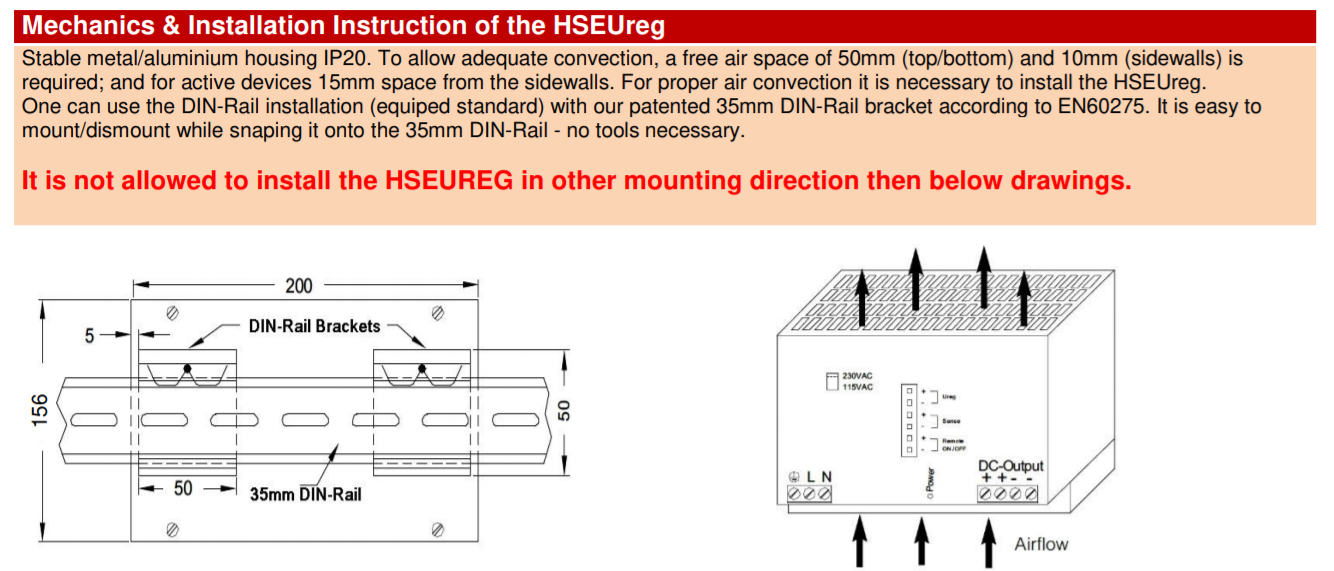

Technical Illustrations
Downloads
camtec-hseuireg10001-datasheet.pdf
GENERAL
Output Voltage See selection table
AC Input Voltage 90..132Vac / 184..265Vac
Frequency 47-63Hz
DC Input Voltage 250…375Vdc
Pmax 1000W continuous
Operation failure relay Yes, break contact (fig.4), protective electrical separation ≤60Vdc
Sense function Compensation 2V per lead load, protective electrical separation ≤60Vdc
Remote Shutdown Yes, protective electrical separation ≤60Vdc
Analogue Interface Yes, protective electrical separation ≤60Vdc
Digital Interface Yes, available option (incl. Software), protective electrical separation ≤400Vdc
Derating +60°C...+70°C 2.5%/°C
Accuracy < ± 1.5% interface
Load regulation < ± 0.05% 0-100%
Slew Rate 15ms rise time 0V...Umax
Response Load Change <1ms 10-100%, 100-10%
Base Load None
Efficiency 230Vac 90% typical
Short Circuit Protection Continuous
Idling-proof Yes, continuous
Temperature Control Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm)
Hold Up Time >30ms 230Vac
Inrush Current <9,8Aeff < 13.8Apeak (230Vac) active inrush current limiter
Softstart 100ms typical

RELIABILITY
Isolation Path > 8mm
Input / Output Galvanic insulated 3000Vac
MTBF 400000h (IEC61709)
ENVIRONMENTAL
Cooling Controlled Fan from manufacturer EBM Papst (Germany)
Ambient Operating Temp. - 25°C…+70°C
Ambient Storage Temp. - 40°C…+85°C
Environment Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II
STANDARDS AND APPROVALS
EMI EN55022 class B
EMS EN61000-6-2,3
Safety EN60950-1, EN60204-1
Safety class 1(A) VDE0805, VDE0100
MECHANICAL
Dimensions (HxWxD) 156x200x114,5mm
Weight 3400g
Screw Terminals (In/Out) AWG20...AWG6 , 0,5...16mm²
MODEL HSEUiREG10001.18T HSEUiREG10001.30T HSEUiREG10001.50T HSEUiREG10001.90T
Rated DC Voltage 0-18V 0-30V 0-50V 0-90V
Overvoltage Protection 22Vdc 35Vdc 59Vdc 105Vdc
Max. DC Current -25°C...+60°C 0 - 50A 0 - 42A 0 - 25A 0 - 14A
Max. DC Current +70°C 0 - 37.5A 0 - 31.5A 0 - 18.8A 0 - 10.5A
Ripple Peak 230Vac 20MHz 40mVpp 40mVpp 120mVpp 150mVpp
MODEL HSEUiREG10001.130T HSEUiREG10001.180T HSEUiREG10001.240T HSEUiREG10001.400T
Rated DC Voltage 150Vdc 210Vdc 280Vdc 450Vdc
Overvoltage Protection 0...9,5A 0...7A 0...5,3A 0...2,4A
Max. DC Current -25°C...+60°C 0...7,1A 0...5,3A 0...4A 0...3,2A
Max. DC Current +70°C 0...7,1A 0...5,3A 0...4A 0...3,2A
Ripple Peak 230Vac 20MHz 200mVpp 300mVpp 400mVpp 400mVpp

Optional Coating (option C): We offer the USEUIreg-series with optional coating. It is to be used in e.g. dusty, dirty, high humidity, or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. It is procured with a robotics varnishing machine. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0 . Ordering Information: ad extension C to the type number: HSEUREG10001.015TC

camtec-hseuireg10001-datasheet.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage Range (Vdc) Output Current Range (A)
product variant HSEUiREG10001.018(R2) 90..132Vac / 184..265Vac 0 - 18Vdc 0 - 50A
product variant HSEUiREG10001.030(R2) 90..132Vac / 184..265Vac 0 - 30Vdc 0 - 42A
product variant HSEUiREG10001.050(R2) 90..132Vac / 184..265Vac 0 - 50Vdc 0 - 25A
product variant HSEUiREG10001.090(R2) 90..132Vac / 184..265Vac 0 – 90Vdc 0 - 14A
product variant HSEUiREG10001.130(R2) 90..132Vac / 184..265Vac 0 – 130Vdc 0 - 9.5A
product variant HSEUiREG10001.180(R2) 90..132Vac / 184..265Vac 0 – 180Vdc 0 - 7A
product variant HSEUiREG10001.240(R2) 90..132Vac / 184..265Vac 0 – 240Vdc 0 - 5.3A
product variant HSEUiREG10001.400(R2) 90..132Vac / 184..265Vac 0 - 400Vdc 0 - 3.2A
product variant HSEUiREG10001.018PS(R2) 90..132Vac / 184..265Vac 0 - 18Vdc 0 - 50A
product variant HSEUiREG10001.030PS(R2) 90..132Vac / 184..265Vac 0 - 30Vdc 0 - 42A
product variant HSEUiREG10001.050PS(R2) 90..132Vac / 184..265Vac 0 - 50Vdc 0 - 25A
product variant HSEUiREG10001.090PS(R2) 90..132Vac / 184..265Vac 0 – 90Vdc 0 - 14A
product variant HSEUiREG10001.130PS(R2) 90..132Vac / 184..265Vac 0 – 130Vdc 0 - 9.5A
product variant HSEUiREG10001.180PS(R2) 90..132Vac / 184..265Vac 0 – 180Vdc 0 - 7A
product variant HSEUiREG10001.240PS(R2) 90..132Vac / 184..265Vac 0 – 240Vdc 0 - 5.3A
product variant HSEUiREG10001.400PS(R2) 90..132Vac / 184..265Vac 0 - 400Vdc 0 - 3.2A
