Camtec HSEUREG07201 SERIES Laboratory Power Supply

The Camtec HSEUREG07201 Series Laboratory Power Supply delivers 720W of precision, reliability, and versatility for demanding industrial and laboratory applications. Designed for automated test benches, galvanic systems, and complex DC-drive environments, this German-engineered power supply combines robust performance with energy efficiency up to 90%.

Read More

View Models

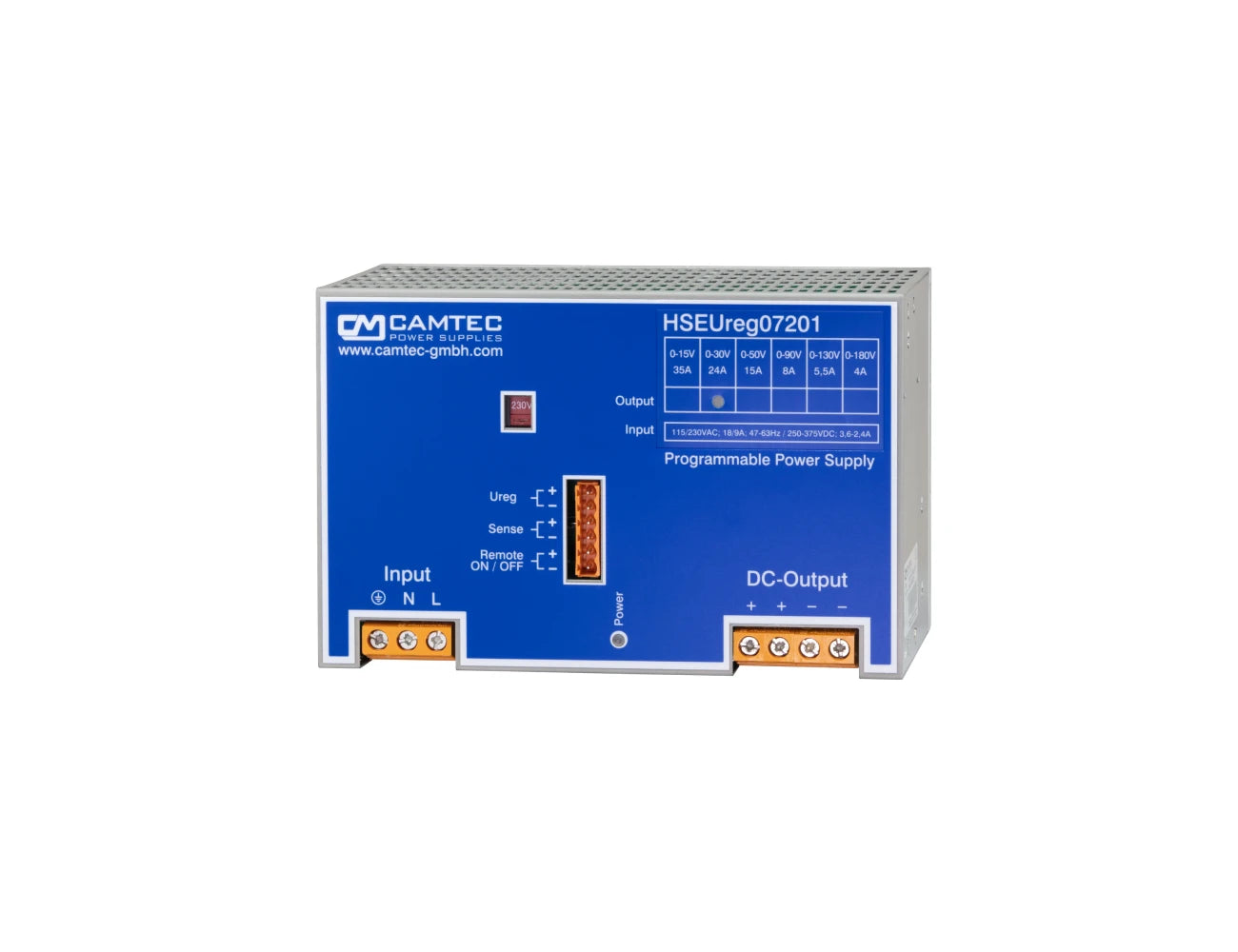

Camtec HSEUREG07201 SERIES Laboratory Power Supply

Features

  • 720W voltage 0-Vmax programmable laboratory power supply
  • Save 0–Umax programming
  • Multi interface 0-10V & 0-20mA
  • Sense & Shutdown (remote ON/OFF)
  • N+1 parallel operation
  • Natural Convection
Specifications
GENERAL
Output Voltage See selection table
AC Input Voltage 90..132Vac / 184..265Vac
Frequency 47-63Hz
DC Input Voltage 250…375Vdc
Sense function Compensation 2V per lead load, protective electrical separation ≤60Vdc
Remote Shutdown protective electrical separation ≤60Vdc

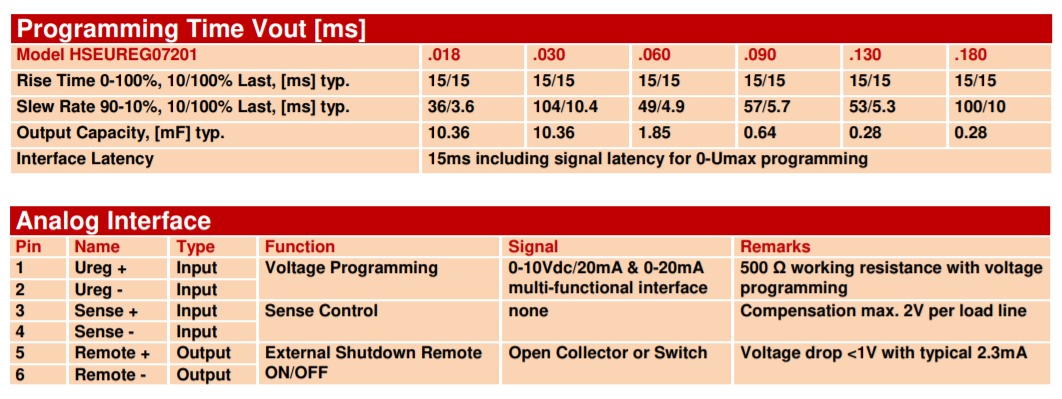

Analogue Interface see table, protective electrical separation ≤60Vdc, working impedance = 500Ω
Pmax (average) 720W continuous and ca. 792-924W power boost for max. 60s (see Power Boost above)
Derating +60°C...+70°C 2.5%/°C
Accuracy < ± 1.5% Interface
Latency Interface 15ms including signal latency for 0-Umax programming
Load regulation < ± 0.2% 0-100%
Response Load Change Response Load Change
Base Load None
Efficiency 230Vac 90% typical
Short Circuit Protection Continuous
Idling-proof Yes
Temperature Control Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm)
Hold Up Time > 40ms 230Vac
Inrush Current < 162A (230Vac) @25°C
MCB (Miniature Circuit Breaker) 16A curve C (need to connect 2 units to a single 16A curve-B MCB? use our ESB101.33 limiter!)
Soft Start 100ms typical
RELIABILITY
Isolation Path > 8mm
Input / Output Galvanic insulated
MTBF 400000h (IEC61709)
ROHS 2011/65/EG confirmed
REACH EG No. 1907/2006 confirmed
ENVIRONMENTAL
Cooling Natural convection
Ambient Operating Temp - 25°C…+70°C
Ambient Storage Temp. - 40°C…+85°C
Environment Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II
STANDARDS AND APPROVALS
EMI EN55022 class B
EMS EN61000-6-2,3
Safety EN60950-1, EN60204-1
Safety class 1(A) VDE0805, VDE0100
MECHANICAL
Dimensions (HxWxD) 130x200x114,5mm
Weight 3000g
Screw Terminals (In/Out) AWG20...AWG6 , 0.5...16mm² (76A @ 40°C)
Selection Table
MODEL HSEUREG07201.015T HSEUREG07201.030T HSEUREG07201.050T
Rated DC Voltage 0-15V 0-30V 0-50V
Overvoltage Protection 18Vdc 35Vdc 59Vdc
Rated DC Current 35.0A 24.0A 15.0A
Rated DC Current 35.0A 24.0A 15.0A
Power Boost -25...+60°C <1min 38.5A 26.4A 16.5A
Max. DC Current +70°C 26.3A 18.0A 11.3A
Ripple Peak 230Vac 20MHz 40mVpp 50mVpp 100mVpp
MODEL HSEUREG07201.090T HSEUREG07201.130T HSEUREG07201.180T
Rated DC Voltage 0-90V 0-130V 0-180V
Overvoltage Protection 105Vdc 150Vdc 210Vdc
Rated DC Current 8.0A 5.5A 4.0A
Power Boost -25...+60°C <1min 8.8A 6.1A 4.4A
Max. DC Current +70°C 6.0A 4.1A 3.0A
Ripple Peak 230Vac 20MHz 150mVpp 200mVpp 300mVpp

Optional Coating (option C): We offer the USEUIreg-series with optional coating. It is to be used in e.g. dusty, dirty, high humidity, or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. It is procured with a robotics varnishing machine. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0 . Ordering Information: ad extension C to the type number: HSEUREG07201.015TC

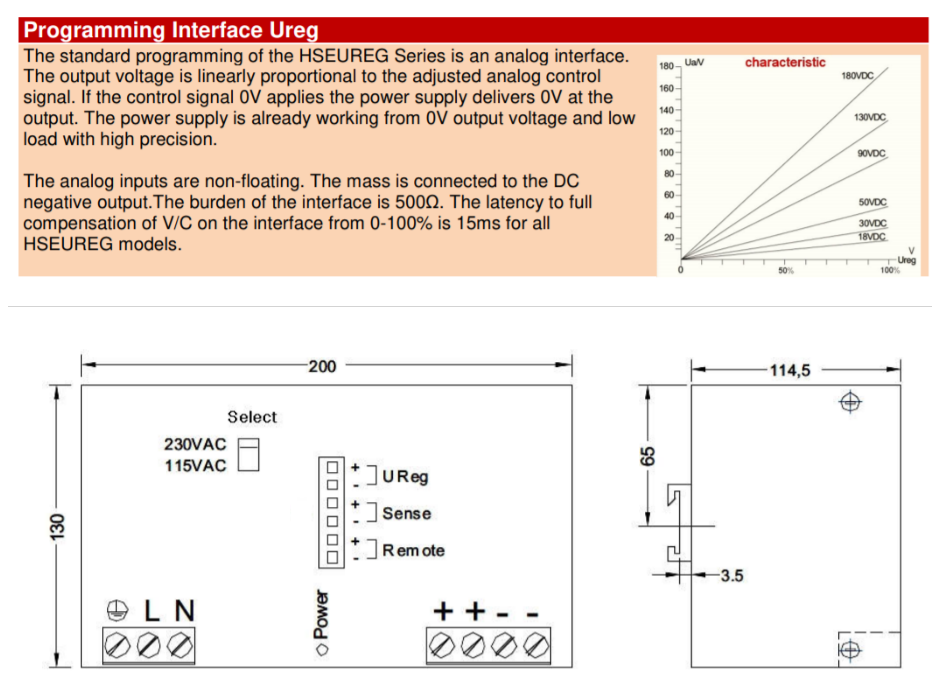

Technical Illustrations
Downloads
camtec-hseureg07201-032022-00-0_datasheet.pdf
GENERAL
Output Voltage See selection table
AC Input Voltage 90..132Vac / 184..265Vac
Frequency 47-63Hz
DC Input Voltage 250…375Vdc
Sense function Compensation 2V per lead load, protective electrical separation ≤60Vdc
Remote Shutdown protective electrical separation ≤60Vdc
Analogue Interface see table, protective electrical separation ≤60Vdc, working impedance = 500Ω
Pmax (average) 720W continuous and ca. 792-924W power boost for max. 60s (see Power Boost above)
Derating +60°C...+70°C 2.5%/°C
Accuracy < ± 1.5% Interface
Latency Interface 15ms including signal latency for 0-Umax programming
Load regulation < ± 0.2% 0-100%
Response Load Change Response Load Change
Base Load None
Efficiency 230Vac 90% typical
Short Circuit Protection Continuous
Idling-proof Yes
Temperature Control Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm)
Hold Up Time > 40ms 230Vac
Inrush Current < 162A (230Vac) @25°C
MCB (Miniature Circuit Breaker) 16A curve C (need to connect 2 units to a single 16A curve-B MCB? use our ESB101.33 limiter!)
Soft Start 100ms typical
RELIABILITY
Isolation Path > 8mm
Input / Output Galvanic insulated
MTBF 400000h (IEC61709)
ROHS 2011/65/EG confirmed
REACH EG No. 1907/2006 confirmed
ENVIRONMENTAL
Cooling Natural convection
Ambient Operating Temp - 25°C…+70°C
Ambient Storage Temp. - 40°C…+85°C
Environment Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II
STANDARDS AND APPROVALS
EMI EN55022 class B
EMS EN61000-6-2,3
Safety EN60950-1, EN60204-1
Safety class 1(A) VDE0805, VDE0100
MECHANICAL
Dimensions (HxWxD) 130x200x114,5mm
Weight 3000g
Screw Terminals (In/Out) AWG20...AWG6 , 0.5...16mm² (76A @ 40°C)
MODEL HSEUREG07201.015T HSEUREG07201.030T HSEUREG07201.050T
Rated DC Voltage 0-15V 0-30V 0-50V
Overvoltage Protection 18Vdc 35Vdc 59Vdc
Rated DC Current 35.0A 24.0A 15.0A
Rated DC Current 35.0A 24.0A 15.0A
Power Boost -25...+60°C <1min 38.5A 26.4A 16.5A
Max. DC Current +70°C 26.3A 18.0A 11.3A
Ripple Peak 230Vac 20MHz 40mVpp 50mVpp 100mVpp
MODEL HSEUREG07201.090T HSEUREG07201.130T HSEUREG07201.180T
Rated DC Voltage 0-90V 0-130V 0-180V
Overvoltage Protection 105Vdc 150Vdc 210Vdc
Rated DC Current 8.0A 5.5A 4.0A
Power Boost -25...+60°C <1min 8.8A 6.1A 4.4A
Max. DC Current +70°C 6.0A 4.1A 3.0A
Ripple Peak 230Vac 20MHz 150mVpp 200mVpp 300mVpp

Optional Coating (option C): We offer the USEUIreg-series with optional coating. It is to be used in e.g. dusty, dirty, high humidity, or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. It is procured with a robotics varnishing machine. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0 . Ordering Information: ad extension C to the type number: HSEUREG07201.015TC

camtec-hseureg07201-032022-00-0_datasheet.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage Range (Vdc) Output Current Range (A)
product variant HSEUREG07201.015(R2) 90..132Vac / 184..265Vac 0 - 15Vdc 35A
product variant HSEUREG07201.030(R2) 90..132Vac / 184..265Vac 0 - 30Vdc 24A
product variant HSEUREG07201.050(R2) 90..132Vac / 184..265Vac 0 - 50Vdc 15A
product variant HSEUREG07201.090(R2) 90..132Vac / 184..265Vac 0 – 90Vdc 8A
product variant HSEUREG07201.130(R2) 90..132Vac / 184..265Vac 0 – 130Vdc 5.5A
product variant HSEUREG07201.180(R2) 90..132Vac / 184..265Vac 0 – 180Vdc 4A
