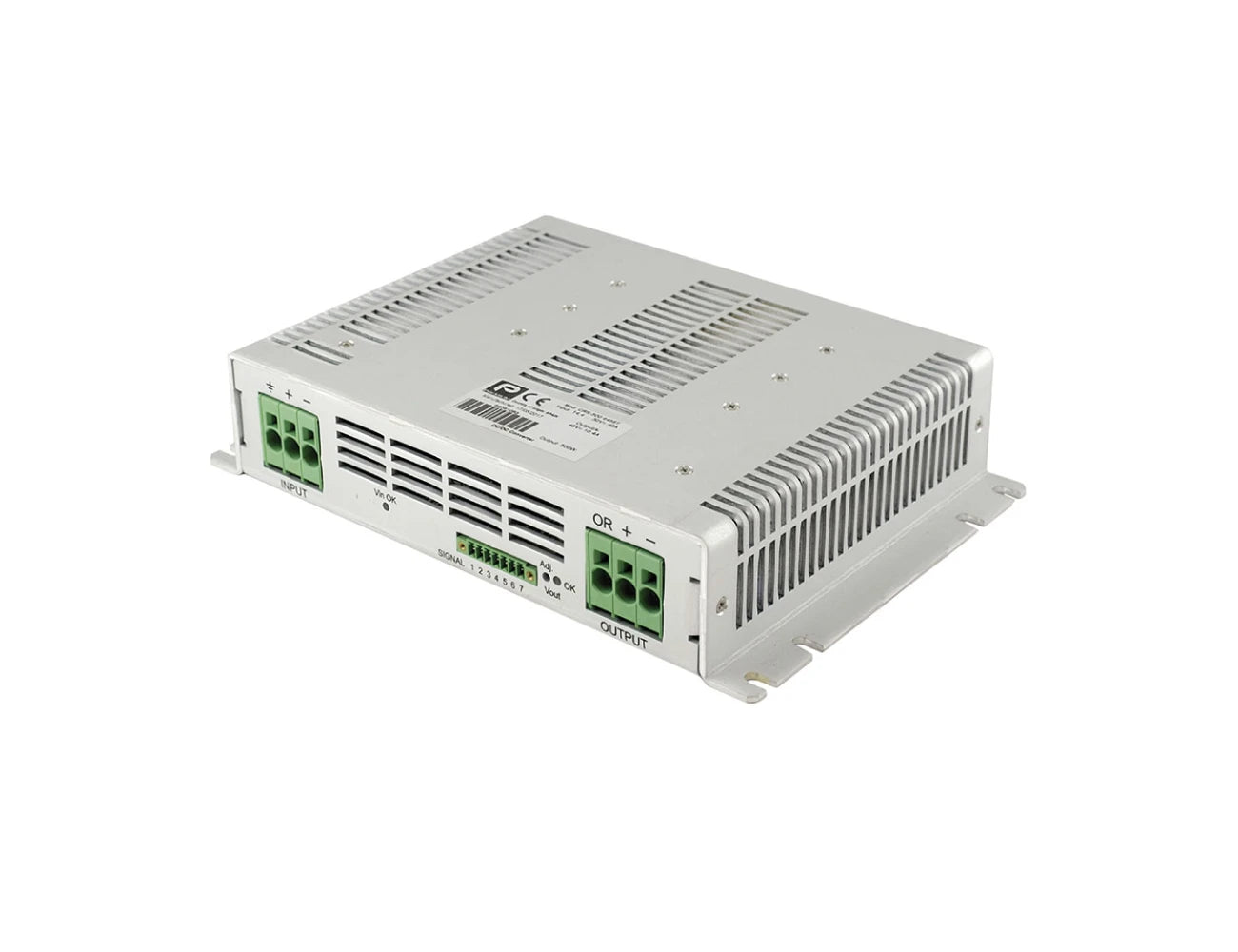

Premium CRS-500 SERIES DC/DC Converter

The Premium CRS-500 Series DC/DC Converter is a high-efficiency power solution designed for industrial and railway applications. Delivering up to 500W of continuous output, it offers reliable and adaptable power conversion to meet the demands of critical systems.

Read More

View Models
Premium CRS-500 SERIES DC/DC Converter

Features

  • Designed according to EN50155
  • Fire and smoke: EN45545-2 approved
  • High input-output isolation
  • Adjustable output voltage
  • Remote inhibit
  • Remote sensing
Specifications
INPUT
Voltage See selection table
Undervoltage shutdown 55% to 60% Vi nom
Max input ripple 15% Vin nom (EN50155)
OUTPUT
Output Voltage See selection table.
Output voltage adjustment:
Vimin>60% Vi nom
Vimin>70% Vi nom
-10 % ... +0 % Vo nom
-10 % ... +15 % Vo nom
Line regulation (Io = nom) < 0,2 %
Load regulation ( (Vin = nom Io: 0…100%) < 0,2 %, 2.5 % for ORing FET option
Ripple < 50 mVpp
Noise (BW = 20MHz) < 100 mVpp
Maximum overvoltage protection < 140% Vout nom
Maximum remote sense 0.3V / pole
ENVIRONMENTAL
StorageTemperature -40oC ... 85°C

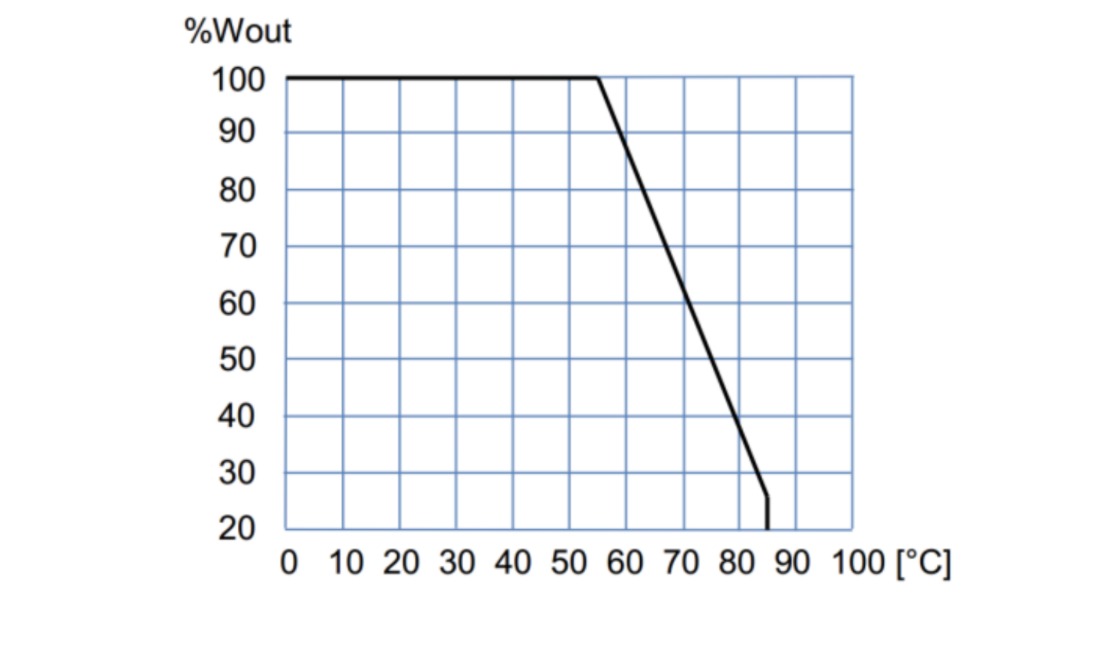

Operating temperature at Full load -25ºC ... 55ºC(-40°C … 55ºC, see note-1)
Operating temperature at 75% load -25ºC ... 70ºC(-40°C … 70ºC, see note-1)
Cooling Natural convection
Maximum Relative humidity 95% with no condensation
Shock and vibration EN61373 Category 1 class B body mounted
MTBF 400.000h @ 40°C according to IEC61709
EMC
Emission EN61000-6-4, EN50121-3-2
Immunity EN61000-6-2, EN50121-3-2
SAFETY
Safety EN60950-1, EN62368-1
Dielectric strength Input/Output 3000Vac, 4200Vdc 1min
Dielectric strength Input / Earth 1500Vac, 2100Vdc 1min
Dielectric strength Output / Earth 1500Vac, 2100Vdc 1min
Fire and smoke EN45545-2:2013 +A1:2015

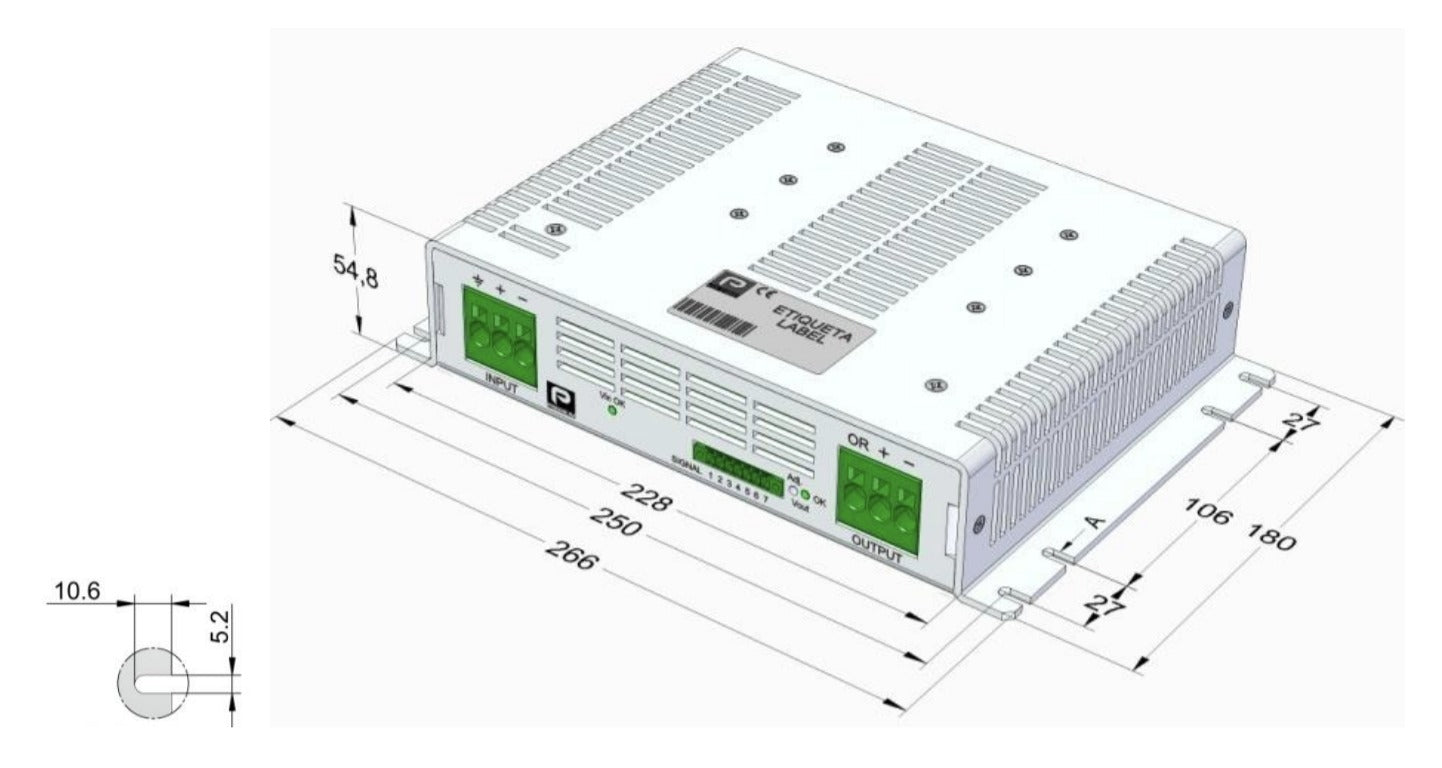

MECHANICAL
Approximate weight 1800g
CONTROL
Remote inhibit range 16.8 … 143 Vdc
Alarm contacts 1A @ 24Vdc, 0.3A @ 150Vdc, 1A @ 125Vac
Local: Input OK, Output OK Green LEDs
PROTECTIONS

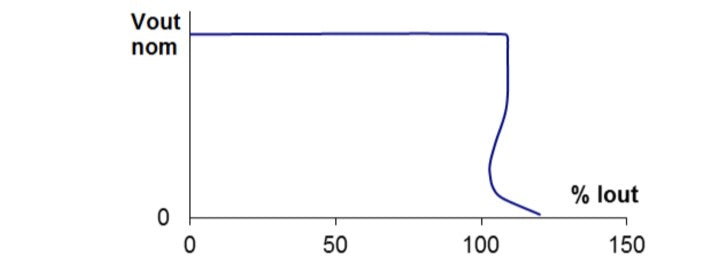

Against overloads and short-circuits Current limiting
Against output over-voltages Shutdown (reset by input switch off)
Against reverse input voltage Input fuse (Active protection with option H)
Against input under-voltage Under-voltage lock-out
Against Input over-currents Input fuse
Selection Table
PART NUMBER POWER (W) INPUT (V) INPUT RANGE (V) OUTPUT (V) OUTPUT CURRENT (A) EFFICIENCY(%)
CRS-500-6455 500 24 14,4 - 30 24 20,8 88
CRS-500-6456 500 24 14,4 - 30 48 10,4 89
CRS-500-6457 500 24 14,4 - 30 110 4,54 90
CRS-500-6467 500 36 21,6 - 47 24 20,8 90
CRS-500-6468 500 36 21,6 - 47 48 10,4 90
CRS-500-6458 500 48 28,8 - 60 24 20,8 91
CRS-500-6459 500 48 28,8 - 60 48 10,4 91
CRS-500-6461 500 72 43,2 - 90 24 20,8 91
CRS-500-6462 500 72 43,2 - 90 48 10,4 91
CRS-500-6464 500 110 66 - 144 24 20,8 91
CRS-500-6465 500 110 66 - 144 48 10,4 92

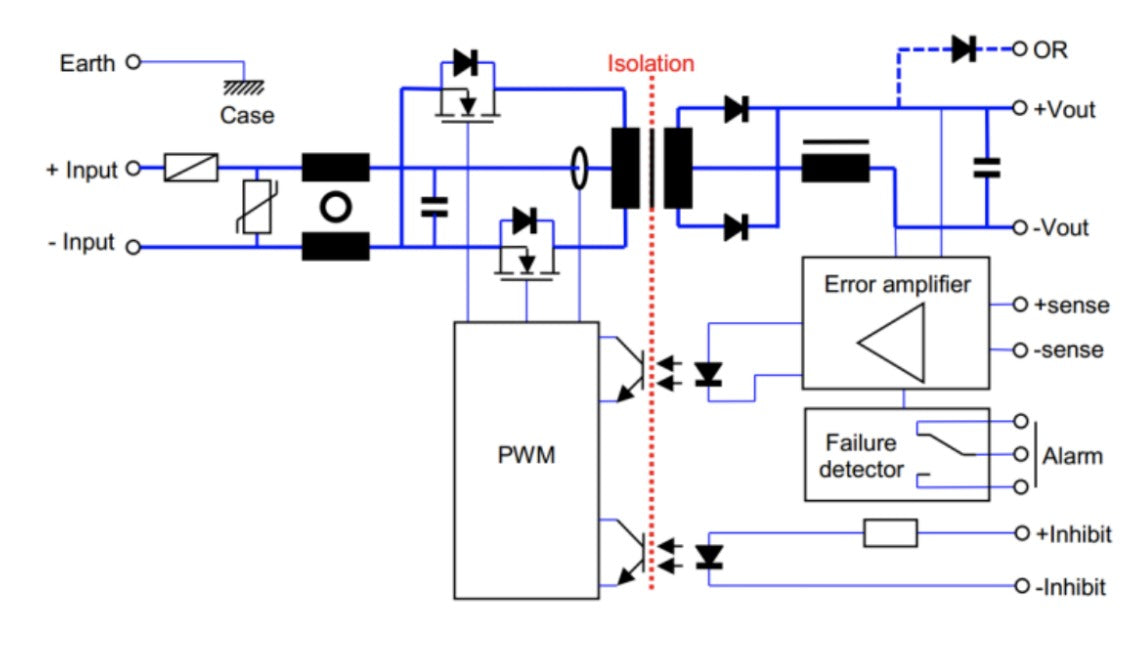

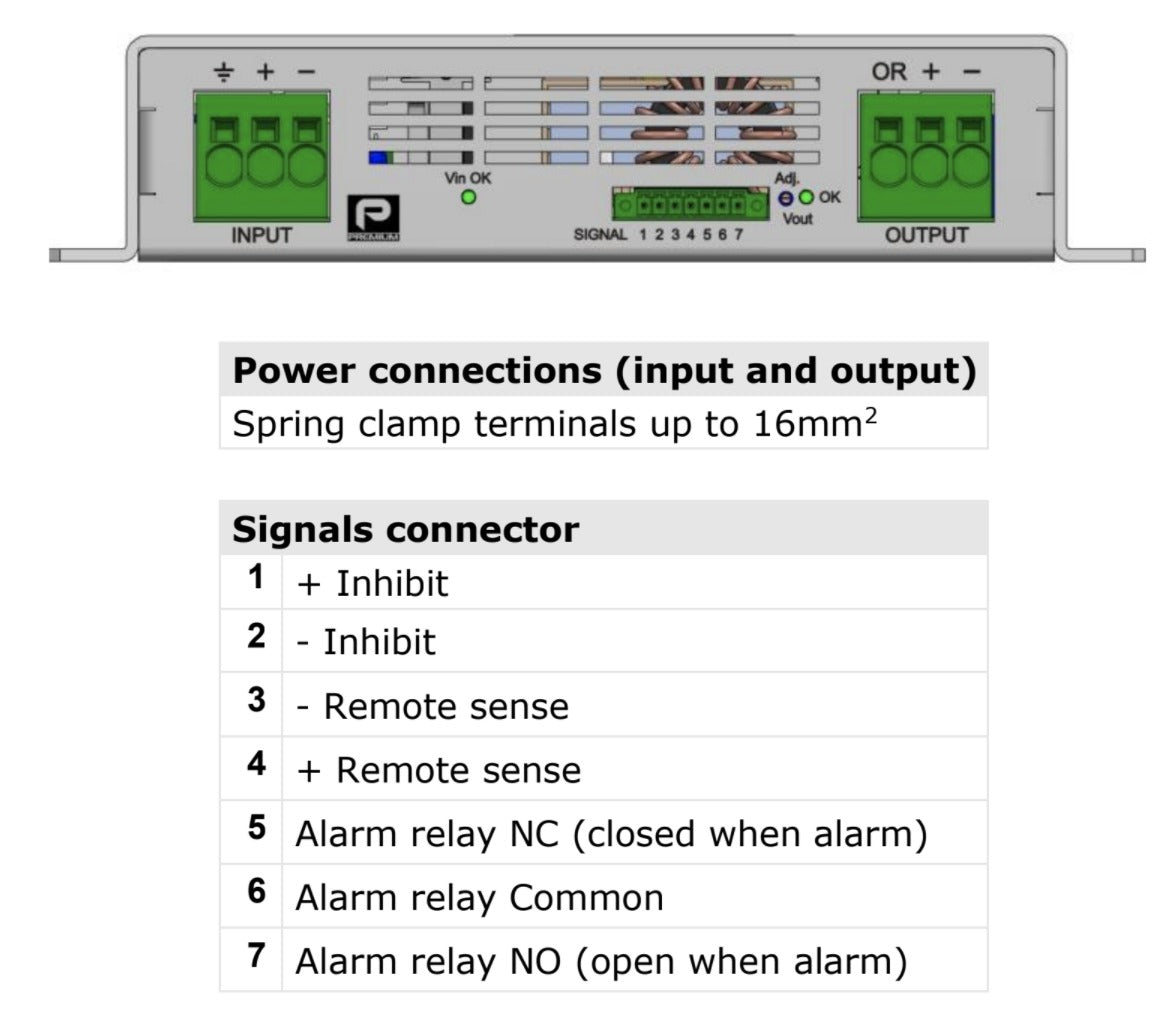

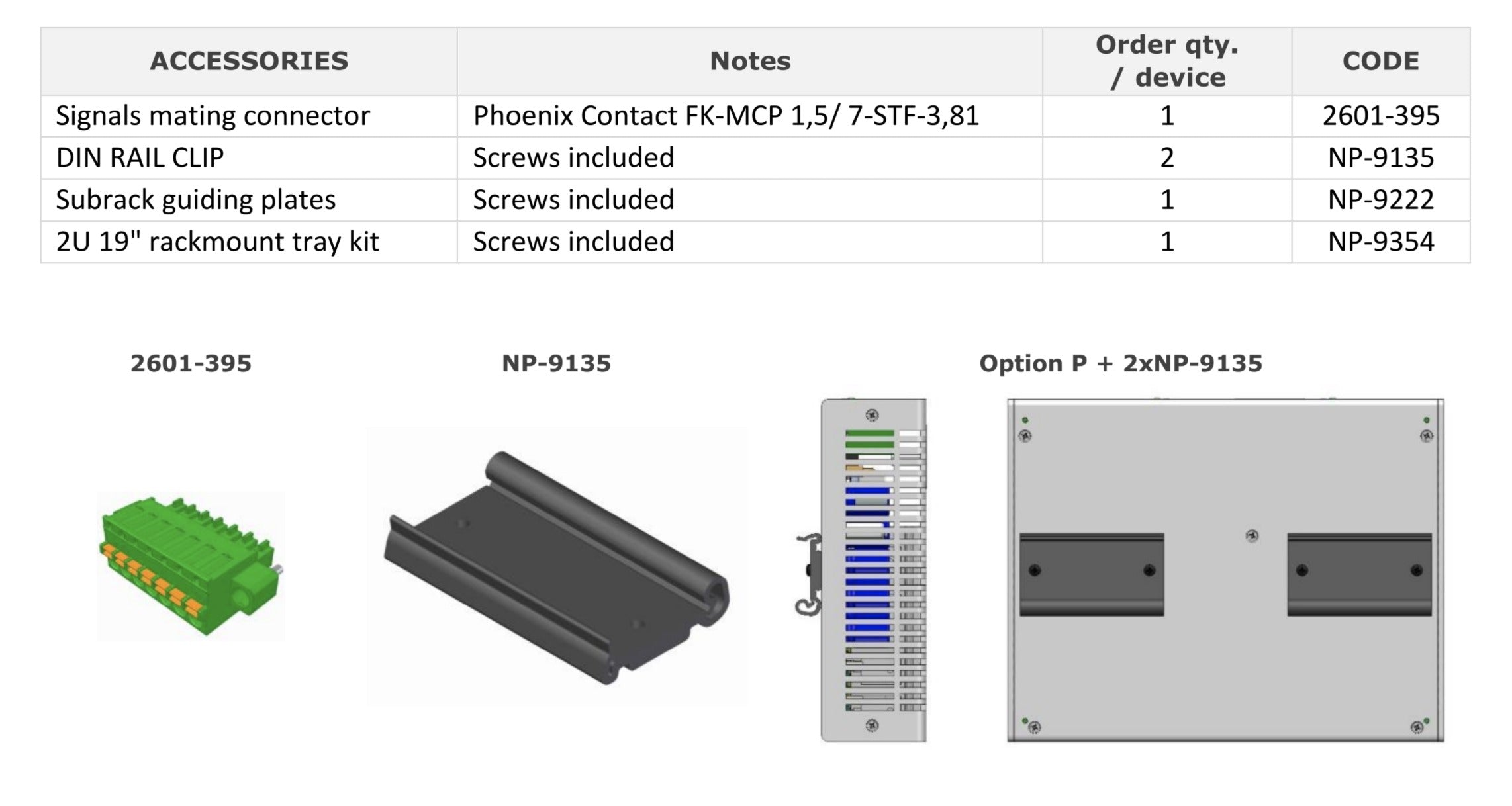

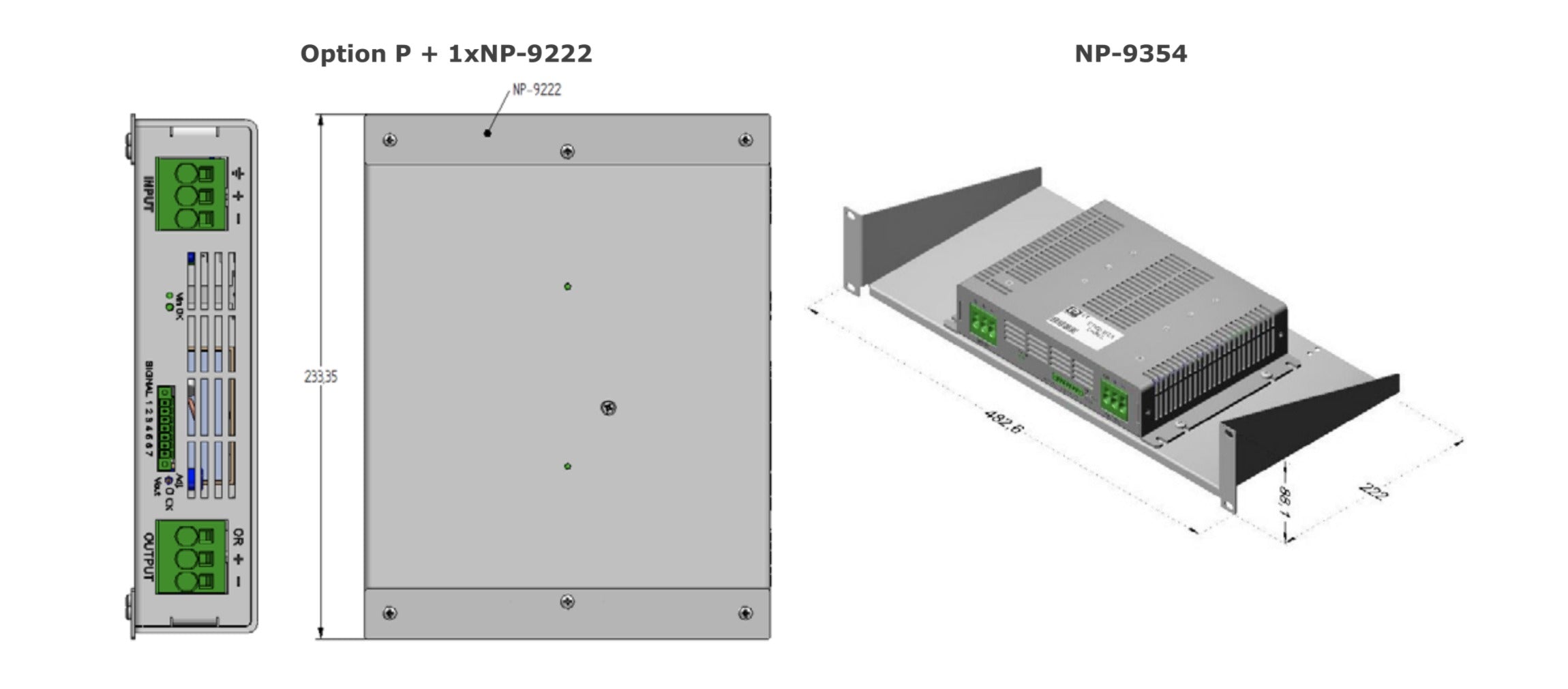

Technical Illustrations
Downloads
CRS-500_Datasheet.pdf
INPUT
Voltage See selection table
Undervoltage shutdown 55% to 60% Vi nom
Max input ripple 15% Vin nom (EN50155)
OUTPUT
Output Voltage See selection table.
Output voltage adjustment:
Vimin>60% Vi nom
Vimin>70% Vi nom
-10 % ... +0 % Vo nom
-10 % ... +15 % Vo nom
Line regulation (Io = nom) < 0,2 %
Load regulation ( (Vin = nom Io: 0…100%) < 0,2 %, 2.5 % for ORing FET option
Ripple < 50 mVpp
Noise (BW = 20MHz) < 100 mVpp
Maximum overvoltage protection < 140% Vout nom
Maximum remote sense 0.3V / pole
ENVIRONMENTAL
StorageTemperature -40oC ... 85°C
Operating temperature at Full load -25ºC ... 55ºC(-40°C … 55ºC, see note-1)
Operating temperature at 75% load -25ºC ... 70ºC(-40°C … 70ºC, see note-1)
Cooling Natural convection
Maximum Relative humidity 95% with no condensation
Shock and vibration EN61373 Category 1 class B body mounted
MTBF 400.000h @ 40°C according to IEC61709
EMC
Emission EN61000-6-4, EN50121-3-2
Immunity EN61000-6-2, EN50121-3-2
SAFETY
Safety EN60950-1, EN62368-1
Dielectric strength Input/Output 3000Vac, 4200Vdc 1min
Dielectric strength Input / Earth 1500Vac, 2100Vdc 1min
Dielectric strength Output / Earth 1500Vac, 2100Vdc 1min
Fire and smoke EN45545-2:2013 +A1:2015
MECHANICAL
Approximate weight 1800g
CONTROL
Remote inhibit range 16.8 … 143 Vdc
Alarm contacts 1A @ 24Vdc, 0.3A @ 150Vdc, 1A @ 125Vac
Local: Input OK, Output OK Green LEDs
PROTECTIONS
Against overloads and short-circuits Current limiting
Against output over-voltages Shutdown (reset by input switch off)
Against reverse input voltage Input fuse (Active protection with option H)
Against input under-voltage Under-voltage lock-out
Against Input over-currents Input fuse
PART NUMBER POWER (W) INPUT (V) INPUT RANGE (V) OUTPUT (V) OUTPUT CURRENT (A) EFFICIENCY(%)
CRS-500-6455 500 24 14,4 - 30 24 20,8 88
CRS-500-6456 500 24 14,4 - 30 48 10,4 89
CRS-500-6457 500 24 14,4 - 30 110 4,54 90
CRS-500-6467 500 36 21,6 - 47 24 20,8 90
CRS-500-6468 500 36 21,6 - 47 48 10,4 90
CRS-500-6458 500 48 28,8 - 60 24 20,8 91
CRS-500-6459 500 48 28,8 - 60 48 10,4 91
CRS-500-6461 500 72 43,2 - 90 24 20,8 91
CRS-500-6462 500 72 43,2 - 90 48 10,4 91
CRS-500-6464 500 110 66 - 144 24 20,8 91
CRS-500-6465 500 110 66 - 144 48 10,4 92
CRS-500_Datasheet.pdf

Find the Right Model

Model Number Input Voltage (Vdc) Output Voltage (Vdc) Output Current (A)
product variant CRS-500-6455 24Vdc: 14.4...30Vdc 24Vdc 20.8A
product variant CRS-500-6456 24Vdc: 14.4...30Vdc 48Vdc 10.4A
product variant CRS-500-6457 24Vdc: 14.4...30Vdc 110Vdc 4.54A
product variant CRS-500-6467 36Vdc: 21.6...47Vdc 24Vdc 20.8A
product variant CRS-500-6468 36Vdc: 21.6...47Vdc 48Vdc 10.4A
product variant CRS-500-6458* 48Vdc: 28.8...60Vdc 24Vdc 20.8A
product variant CRS-500-6459 48Vdc: 28.8...60Vdc 48Vdc 10.4A
product variant CRS-500-6461 72Vdc: 43.2...90Vdc 24Vdc 20.8A
product variant CRS-500-6462 72Vdc: 43.2...90Vdc 48Vdc 10.4A
product variant CRS-500-6464 110Vdc: 66...144Vdc 24Vdc 20.8A
product variant CRS-500-6465 110Vdc: 66...144Vdc 48Vdc 10.4A
product variant CRS-500-6466 110Vdc: 66...144Vdc 110Vdc 4.54A

Need help finding the right product model?
