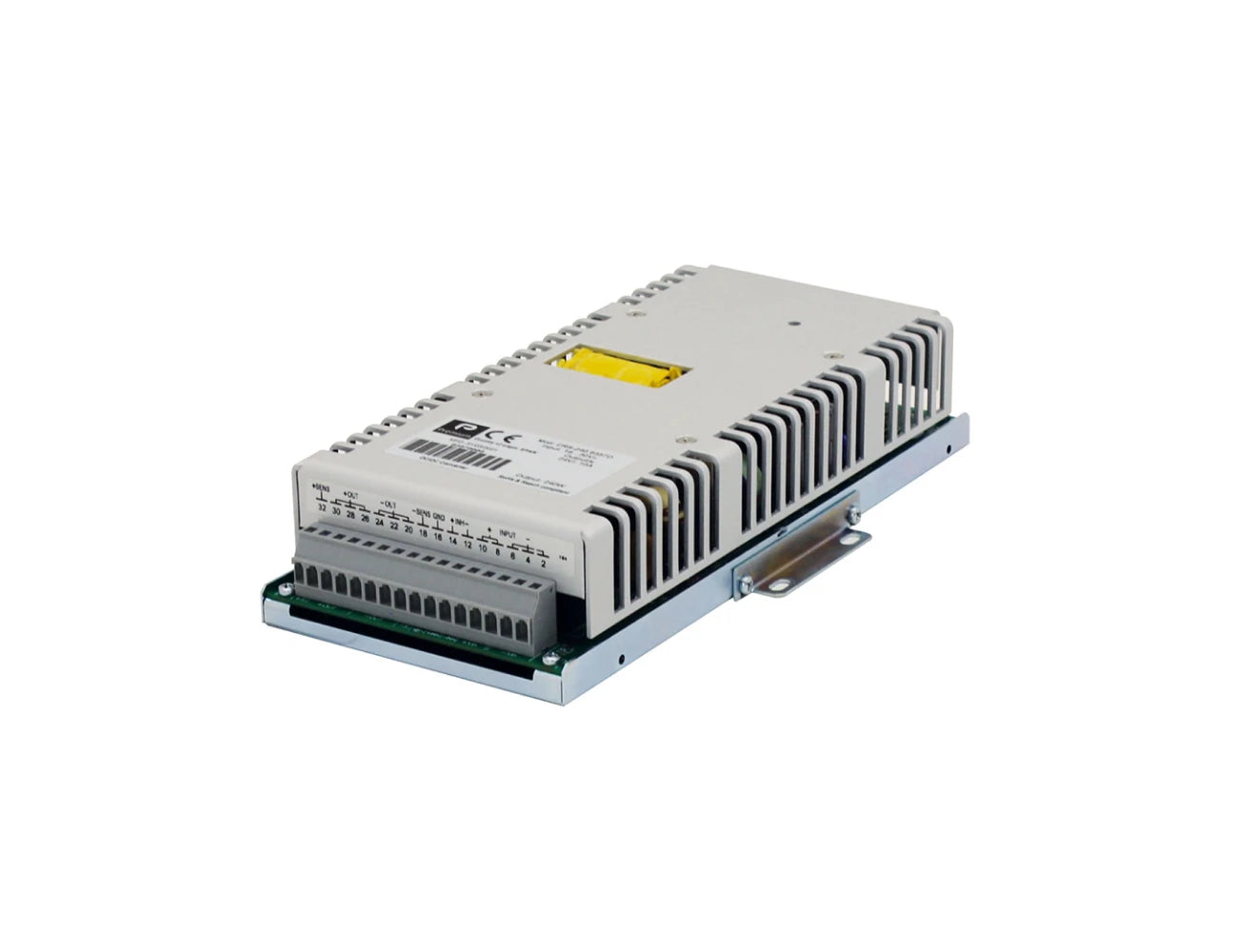

Premium CRS-240 SERIES DC/DC Converter
The Premium CRS-240 Series DC/DC Converter is a reliable and high-efficiency power solution tailored for industrial and railway applications. Delivering up to 280W of continuous power, it offers precise and stable performance, ensuring seamless operation in demanding environments.
Read More
Features
- High input-output isolation
- Adjustable output voltage
- Remote sensing
- Input voltage OK LED
- Output voltage presence LED
- Remote inhibit
Specifications
Selection Table

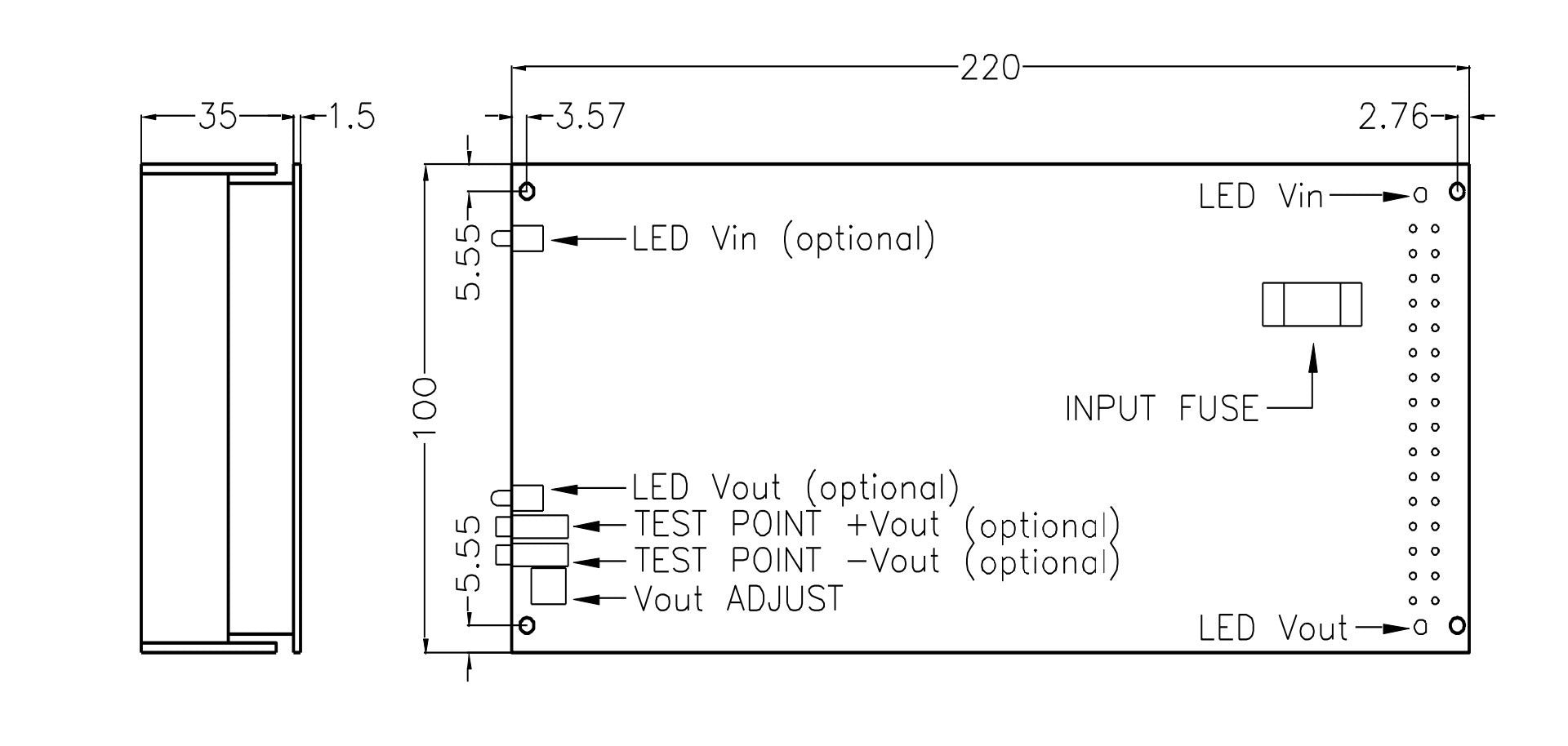

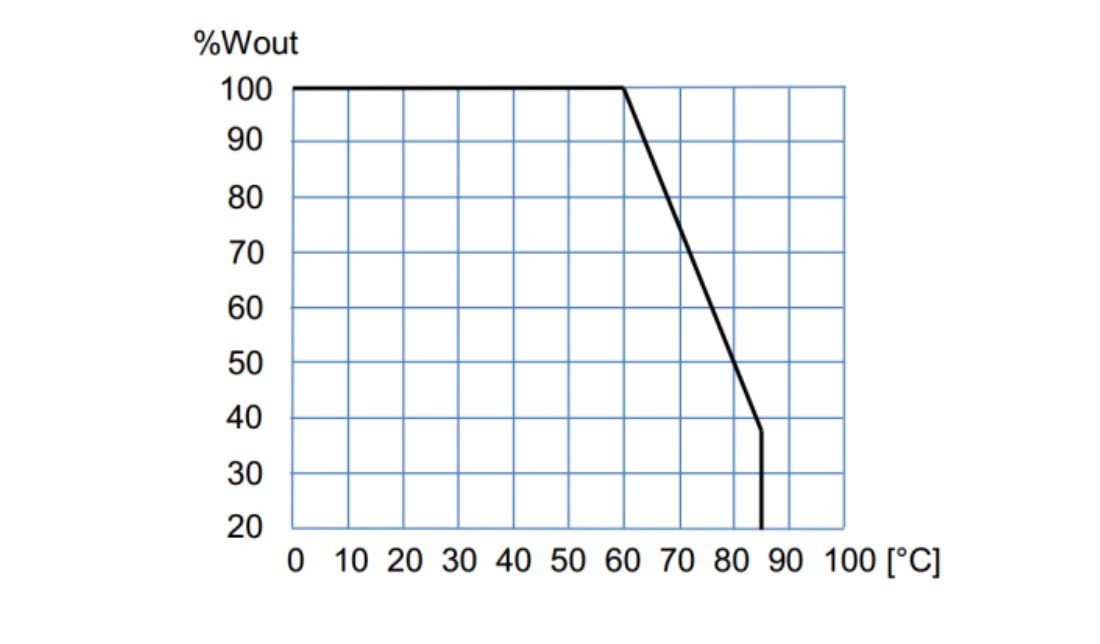

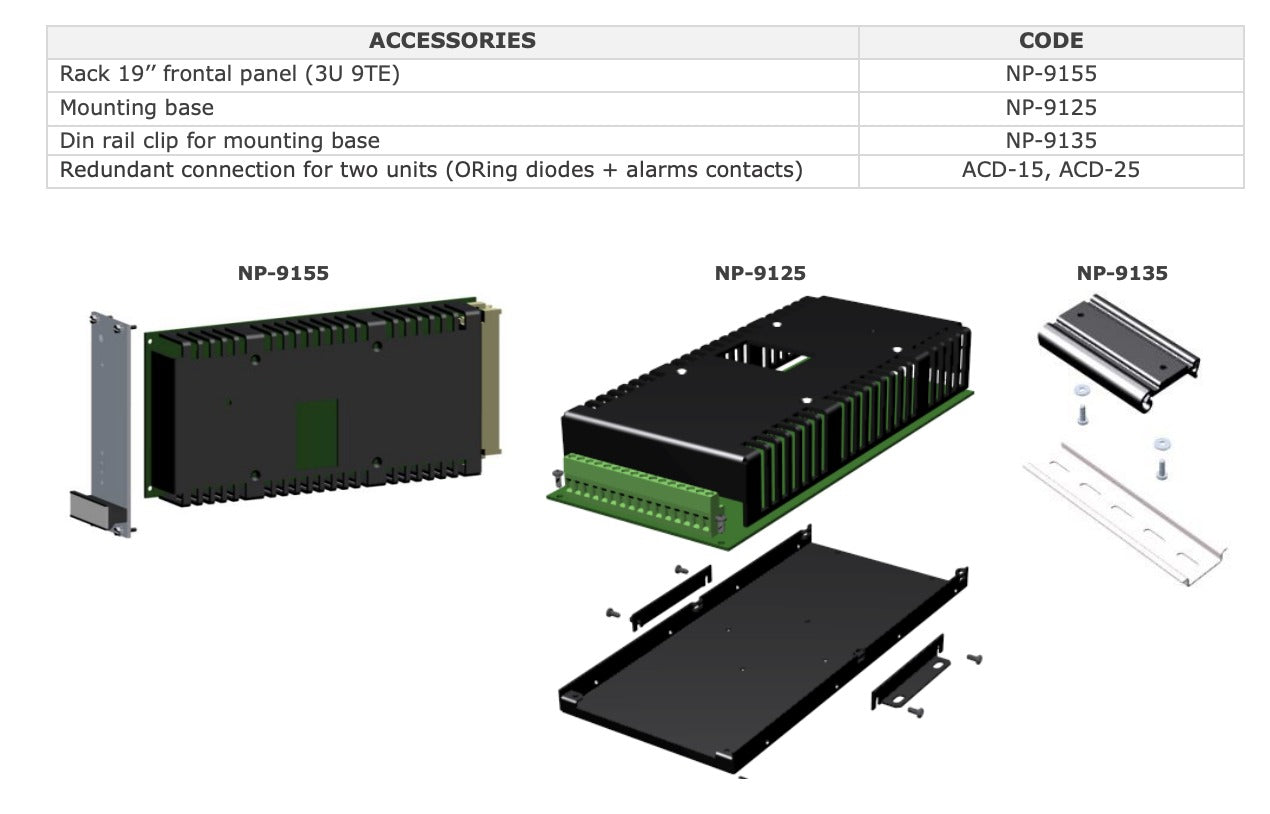

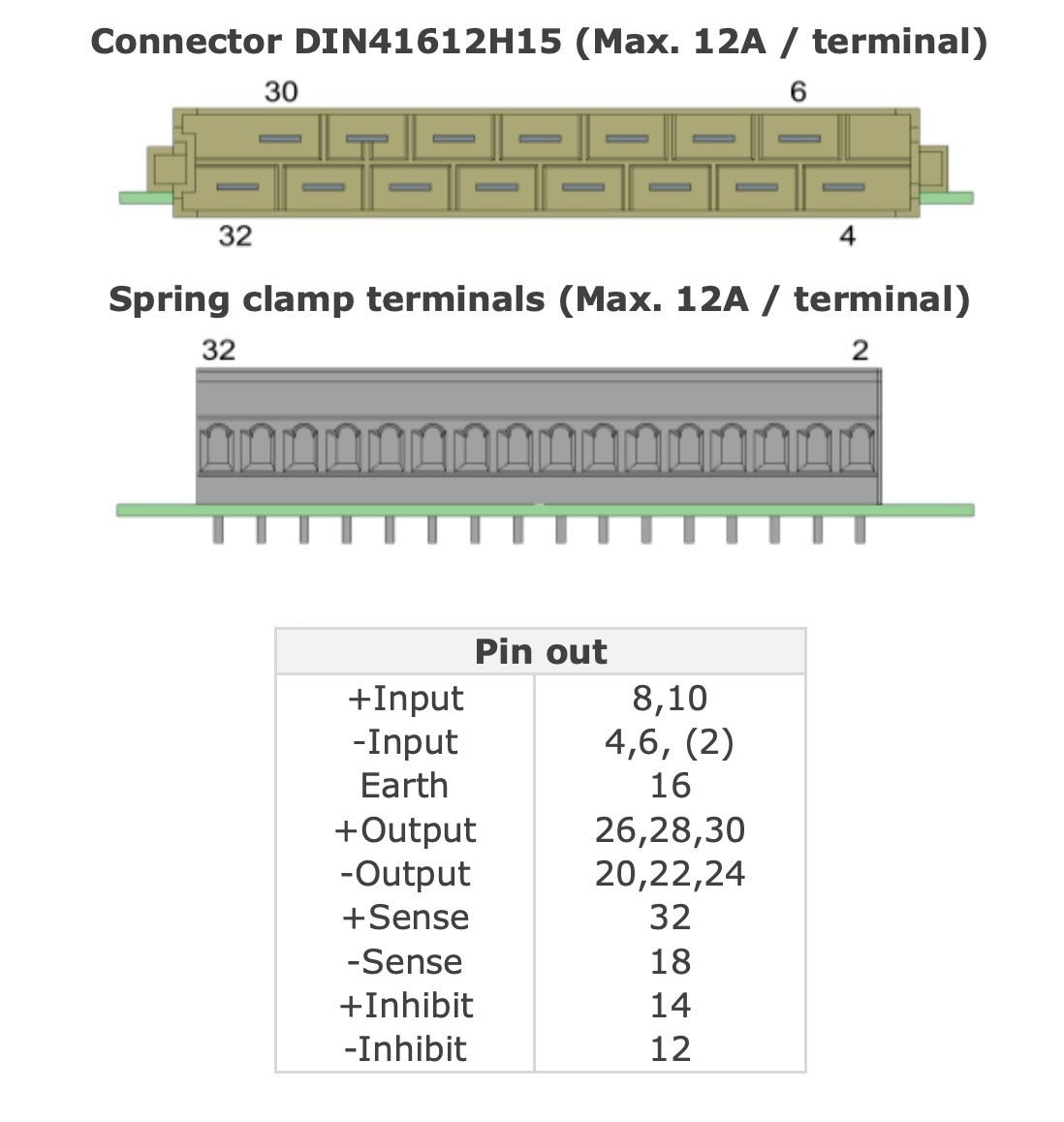

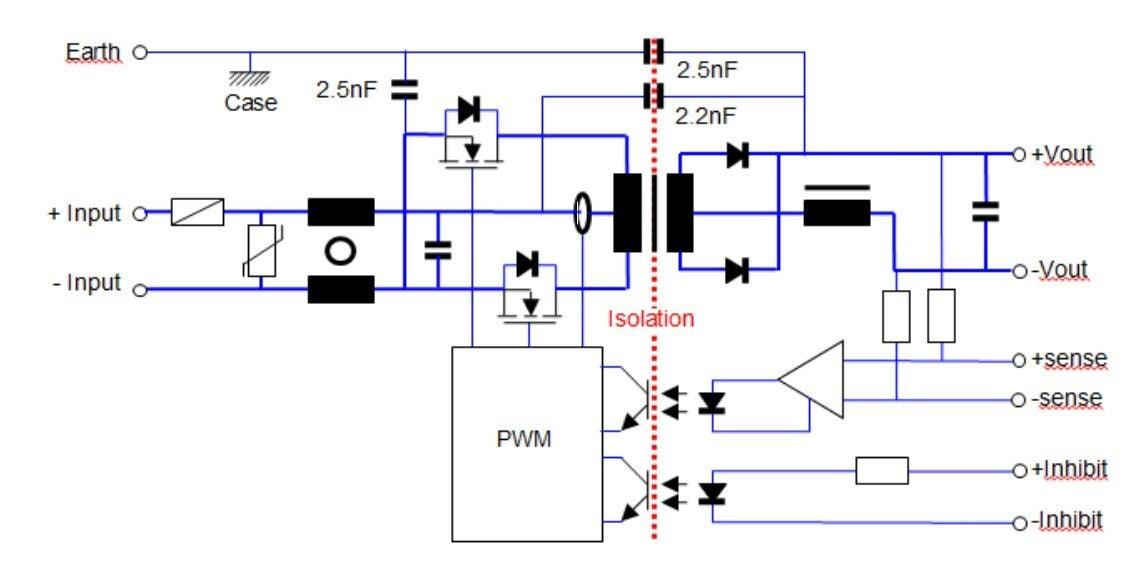

Technical Illustrations
Downloads
| INPUT | |
|---|---|
| Voltage | See table |
| Undervoltage shutdown | 55% to 60% Vi nom |
| Max allowed input ripple | 15% Vin nom (EN50155) |
| OUTPUT | |
|---|---|
| Output Voltage | See selection table. |
| Voltage Adjustment | -10% ... +15% Vo nom |
| Line regulation (Io = nom) | < 0,2 % (Io = nom) |
| Load regulation (Vin = nom) | < 0,2 % (Vin = nom; Io: 0...100%) |
| Ripple | < 50 mVpp |
| Noise (BW = 20MHz) | < 100 mVpp |
| ENVIRONMENTAL | |
|---|---|
| StorageTemperature | -40°C ... 85°C |
| Operating temperature range at Io= 100% | -25°C ... 60°C (-40°C ... 60°C see note-1 below) |
| Operating temperature range at Io= 50% | -25°C ... 80°C (-40°C ... 80°C, see note-1) |
| Maximum Relative humidity | 95% with no condensation |
| MTBF | 400.000h @ 40°C according to IEC61709 |
| EMC | |
|---|---|
| Emission | EN61000-6-3 |
| Immunity | EN61000-6-2 |
| SAFETY | |
|---|---|
| Safety | EN60950-1, EN62368-1 |
| Dielectric strength Input-Output | 3000Vac, 4200Vdc 1min. |
| Dielectric strength Input-GND | 1500Vac, 2100Vdc 1min. |
| Dielectric strength Output-GND | 1500Vac, 2100Vdc 1min. |
| MECHANICAL | |
|---|---|
| Approximate weight | 640g |
| Dimensions | 100 x 220 x 38.5mm |
| CONTROL | |
|---|---|
| Remote inhibit range | 5V ... 24V |
| Remote sense | < 0.3V per pole |
| PROTECTIONS | |
|---|---|
| Against overloads and short-circuits | Current limiting |
| Against reverse input voltage | Input fuse |
| Against input under-voltage | Under-voltage lock-out |
| Against Input over-currents | Input fuse |
| PART NUMBER | POWER (W) | INPUT (V) | INPUT RANGE (V) | OUTPUT (V) | OUTPUT CURRENT (A) | EFFICIENCY(%) |
|---|---|---|---|---|---|---|
| CRS-240-6351 | 180 | 12 | 9- 15 | 5 | 36 | 79 |
| CRS-240-6352 | 180 | 12 | 9 - 15 | 12 | 15 | 80 |
| CRS-240-6353 | 200 | 12 | 9 - 15 | 24 | 8,33 | 82 |
| CRS-240-6354 | 200 | 12 | 9 - 15 | 48 | 4,17 | 82 |
| CRS-240-6355 | 180 | 24 | 18 - 30 | 5 | 36 | 80 |
| CRS-240-6356 | 240 | 24 | 18 - 30 | 12 | 20 | 83 |
| CRS-240-6357 | 240 | 24 | 18 - 30 | 24 | 10 | 87 |
| CRS-240-6358 | 240 | 24 | 18 - 30 | 48 | 5 | 88 |
| CRS-240-6359 | 180 | 48 | 36 - 72 | 5 | 36 | 80 |
| CRS-240-6360 | 240 | 48 | 36 - 72 | 12 | 20 | 84 |
| CRS-240-6361 | 280 | 48 | 36 - 72 | 24 | 11,7 | 88 |
| CRS-240-6362 | 280 | 48 | 36 - 72 | 48 | 5,8 | 89 |
| CRS-240-6363 | 180 | 72 | 50,4 - 90 | 5 | 36 | 81 |
| CRS-240-6364 | 240 | 72 | 50,4 - 90 | 12 | 20 | 88 |
| CRS-240-6365 | 280 | 72 | 50,4 - 90 | 24 | 11,7 | 90 |
| CRS-240-6366 | 280 | 72 | 50,4 - 90 | 48 | 5,8 | 90 |
| CRS-240-6367 | 180 | 110 | 77 - 144 | 5 | 36 | 81 |
| CRS-240-6368 | 240 | 110 | 77 - 144 | 12 | 20 | 88 |
| CRS-240-6369 | 280 | 110 | 77 - 144 | 24 | 11,7 | 91 |
| CRS-240-6370 | 280 | 110 | 77 - 144 | 48 | 5,8 | 92 |
| CRS-240-6371 | 180 | 220 | 165 - 275 | 5 | 36 | 81 |
| CRS-240-6372 | 240 | 220 | 165 - 275 | 12 | 20 | 88 |
| CRS-240-6373 | 280 | 220 | 165 - 275 | 24 | 11,7 | 91 |
| CRS-240-6374 | 280 | 220 | 165 - 275 | 48 | 5,8 | 92 |
| INPUT | |
|---|---|
| Voltage | See table |
| Undervoltage shutdown | 55% to 60% Vi nom |
| Max allowed input ripple | 15% Vin nom (EN50155) |
| OUTPUT | |
|---|---|
| Output Voltage | See selection table. |
| Voltage Adjustment | -10% ... +15% Vo nom |
| Line regulation (Io = nom) | < 0,2 % (Io = nom) |
| Load regulation (Vin = nom) | < 0,2 % (Vin = nom; Io: 0...100%) |
| Ripple | < 50 mVpp |
| Noise (BW = 20MHz) | < 100 mVpp |
| ENVIRONMENTAL | |
|---|---|
| StorageTemperature | -40°C ... 85°C |
| Operating temperature range at Io= 100% | -25°C ... 60°C (-40°C ... 60°C see note-1 below) |
| Operating temperature range at Io= 50% | -25°C ... 80°C (-40°C ... 80°C, see note-1) |
| Maximum Relative humidity | 95% with no condensation |
| MTBF | 400.000h @ 40°C according to IEC61709 |
| EMC | |
|---|---|
| Emission | EN61000-6-3 |
| Immunity | EN61000-6-2 |
| SAFETY | |
|---|---|
| Safety | EN60950-1, EN62368-1 |
| Dielectric strength Input-Output | 3000Vac, 4200Vdc 1min. |
| Dielectric strength Input-GND | 1500Vac, 2100Vdc 1min. |
| Dielectric strength Output-GND | 1500Vac, 2100Vdc 1min. |
| MECHANICAL | |
|---|---|
| Approximate weight | 640g |
| Dimensions | 100 x 220 x 38.5mm |
| CONTROL | |
|---|---|
| Remote inhibit range | 5V ... 24V |
| Remote sense | < 0.3V per pole |
| PROTECTIONS | |
|---|---|
| Against overloads and short-circuits | Current limiting |
| Against reverse input voltage | Input fuse |
| Against input under-voltage | Under-voltage lock-out |
| Against Input over-currents | Input fuse |
| PART NUMBER | POWER (W) | INPUT (V) | INPUT RANGE (V) | OUTPUT (V) | OUTPUT CURRENT (A) | EFFICIENCY(%) |
|---|---|---|---|---|---|---|
| CRS-240-6351 | 180 | 12 | 9- 15 | 5 | 36 | 79 |
| CRS-240-6352 | 180 | 12 | 9 - 15 | 12 | 15 | 80 |
| CRS-240-6353 | 200 | 12 | 9 - 15 | 24 | 8,33 | 82 |
| CRS-240-6354 | 200 | 12 | 9 - 15 | 48 | 4,17 | 82 |
| CRS-240-6355 | 180 | 24 | 18 - 30 | 5 | 36 | 80 |
| CRS-240-6356 | 240 | 24 | 18 - 30 | 12 | 20 | 83 |
| CRS-240-6357 | 240 | 24 | 18 - 30 | 24 | 10 | 87 |
| CRS-240-6358 | 240 | 24 | 18 - 30 | 48 | 5 | 88 |
| CRS-240-6359 | 180 | 48 | 36 - 72 | 5 | 36 | 80 |
| CRS-240-6360 | 240 | 48 | 36 - 72 | 12 | 20 | 84 |
| CRS-240-6361 | 280 | 48 | 36 - 72 | 24 | 11,7 | 88 |
| CRS-240-6362 | 280 | 48 | 36 - 72 | 48 | 5,8 | 89 |
| CRS-240-6363 | 180 | 72 | 50,4 - 90 | 5 | 36 | 81 |
| CRS-240-6364 | 240 | 72 | 50,4 - 90 | 12 | 20 | 88 |
| CRS-240-6365 | 280 | 72 | 50,4 - 90 | 24 | 11,7 | 90 |
| CRS-240-6366 | 280 | 72 | 50,4 - 90 | 48 | 5,8 | 90 |
| CRS-240-6367 | 180 | 110 | 77 - 144 | 5 | 36 | 81 |
| CRS-240-6368 | 240 | 110 | 77 - 144 | 12 | 20 | 88 |
| CRS-240-6369 | 280 | 110 | 77 - 144 | 24 | 11,7 | 91 |
| CRS-240-6370 | 280 | 110 | 77 - 144 | 48 | 5,8 | 92 |
| CRS-240-6371 | 180 | 220 | 165 - 275 | 5 | 36 | 81 |
| CRS-240-6372 | 240 | 220 | 165 - 275 | 12 | 20 | 88 |
| CRS-240-6373 | 280 | 220 | 165 - 275 | 24 | 11,7 | 91 |
| CRS-240-6374 | 280 | 220 | 165 - 275 | 48 | 5,8 | 92 |
Find the Right Model
| Model Number | Input Voltage (Vdc) | Output Voltage (Vdc) | Output Current (A) | ||
|---|---|---|---|---|---|
|
CRS-240-6351 | 12Vdc: 9...15Vdc | 5Vdc | 36A | |
|
|
CRS-240-6352 | 12Vdc: 9...15Vdc | 12Vdc | 15A | |
|
|
CRS-240-6353 | 12Vdc: 9...15Vdc | 24Vdc | 8.33A | |
|
|
CRS-240-6354 | 12Vdc: 9...15Vdc | 48Vdc | 4.17A | |
|
|
CRS-240-6355 | 24Vdc: 14.4...30Vdc | 5Vdc | 36A | |
|
|
CRS-240-6356 | 24Vdc: 14.4...30Vdc | 12Vdc | 20A | |
|
|
CRS-240-6357 | 24Vdc: 14.4...30Vdc | 24Vdc | 10A | |
|
|
CRS-240-6358 | 24Vdc: 14.4...30Vdc | 48Vdc | 5A | |
|
|
CRS-240-6359 | 48Vdc: 28.8...60Vdc | 5Vdc | 36A | |
|
|
CRS-240-6360 | 48Vdc: 28.8...60Vdc | 12Vdc | 20A | |
|
|
CRS-240-6361 | 48Vdc: 28.8...60Vdc | 24Vdc | 11.7A | |
|
|
CRS-240-6362 | 48Vdc: 28.8...60Vdc | 48Vdc | 5.8A | |
|
|
CRS-240-6363 | 72Vdc: 43.2...90Vdc | 5Vdc | 36A | |
|
|
CRS-240-6364 | 72Vdc: 43.2...90Vdc | 12Vdc | 20A | |
|
|
CRS-240-6365 | 72Vdc: 43.2...90Vdc | 24Vdc | 11.7A | |
|
|
CRS-240-6366 | 72Vdc: 43.2...90Vdc | 48Vdc | 5.8A | |
|
|
CRS-240-6367 | 110Vdc: 66...144Vdc | 5Vdc | 36A | |
|
|
CRS-240-6368 | 110Vdc: 66...144Vdc | 12Vdc | 20A | |
|
|
CRS-240-6369 | 110Vdc: 66...144Vdc | 24Vdc | 11.7A | |
|
|
CRS-240-6370 | 110Vdc: 66...144Vdc | 48Vdc | 5.8A | |
|
|
CRS-240-6371 | 220Vdc: 156...275Vdc | 5Vdc | 36A | |
|
|
CRS-240-6372 | 220Vdc: 156...275Vdc | 12Vdc | 20A | |
|
|
CRS-240-6373 | 220Vdc: 156...275Vdc | 24Vdc | 11.7A | |
|
|
CRS-240-6374 | 220Vdc: 156...275Vdc | 48Vdc | 5.8A |
