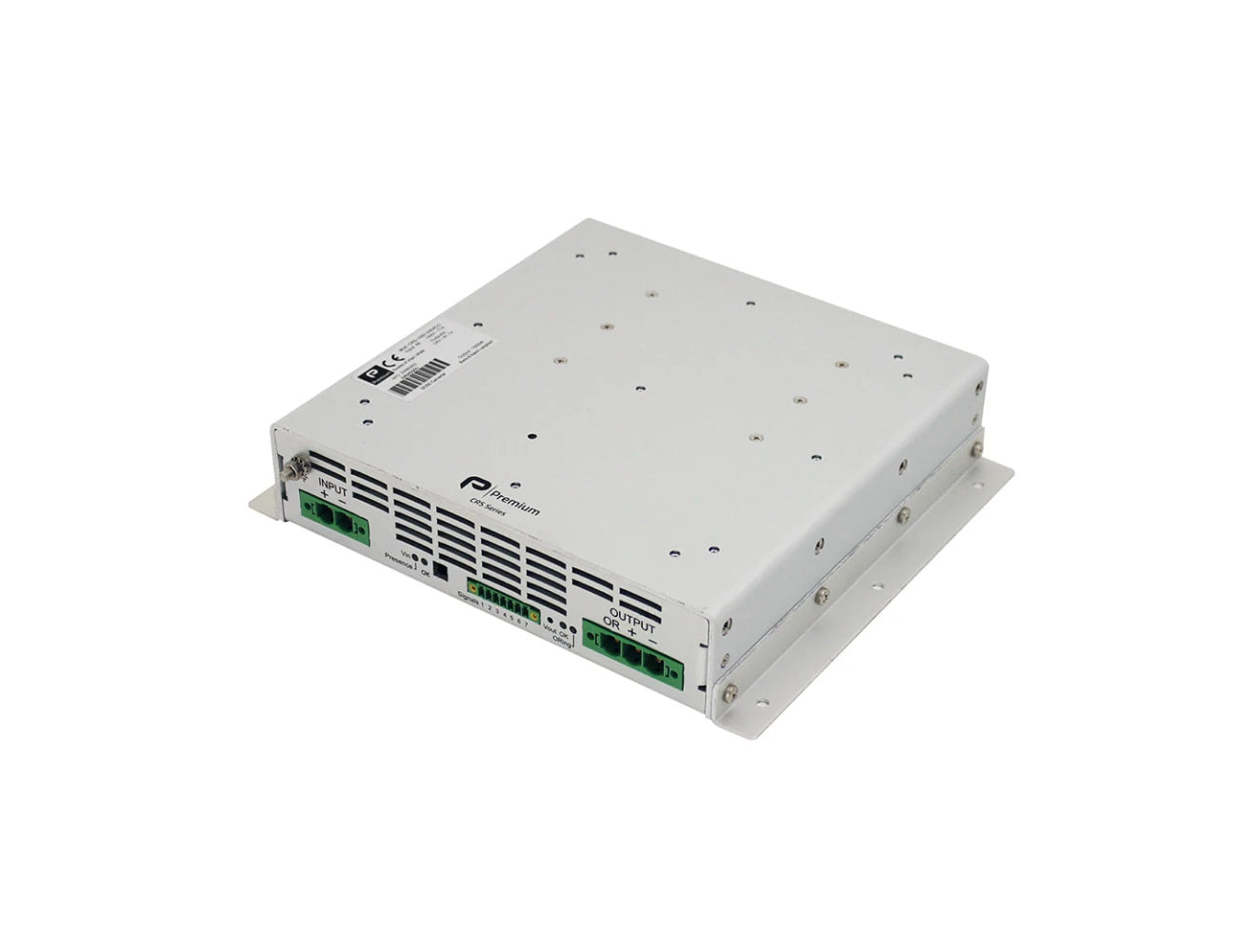

Premium CRS-1000 SERIES DC/DC Converter

The Premium CRS-1000 Series DC/DC Converter is a high-efficiency power solution engineered for industrial and railway applications. Delivering up to 1000W of continuous power, it offers superior performance and reliability for critical systems operating in demanding environments.

Read More

View Models
Premium CRS-1000 SERIES DC/DC Converter

Features

  • Designed according to EN50155
  • Fire and smoke: EN45545-2 approved
  • High input-output isolation
  • Adjustable output voltage
  • Remote inhibit
  • Remote sensing
Specifications
INPUT
Voltage See selection table
Undervoltage shutdown 55% to 60% Vi nom
Max input ripple 15% Vin nom (EN50155)
OUTPUT
Output Voltage See selection table.
Output voltage adjustment range: Vimin>60% Vi nomVimin>70% Vi nom -10 % ... +0 % Vo nom-10 % ... +15 % Vo nom
Line regulation (Io = nom) < 0,2 %
Load regulation (Vin = nom) < 0,2 %, 2.5% for ORing FET option
Ripple < 50 mVpp
Noise (BW = 20MHz) < 100 mVpp
Max. overvoltage protection < 140% Vout nom
Maximum remote sense 0.3V / pole
ENVIRONMENTAL
StorageTemperature -40oC ... 85°C
Operating temperature at Full load -25ºC ... 55ºC (-40°C … 55ºC, see note-1)
Operating temperature at 75% load -25ºC ... 70ºC (-40°C … 70ºC, see note-1)
Cooling Natural convection
Maximum Relative humidity 95% with no condensation
Shock and vibration EN61373 Category 1 class B body mounted
MTBF (at 40°C and 75% load) 350.000h acc. to IEC61709 Cooling options R, V, D 250.000h acc. to IEC61709 Cooling option C
Service life (at 40°C and 75% load) 20 years (Option C fan maintenance at 10 years is required)
EMC
Emission EN61000-6-4, EN50121-3-2
Immunity EN61000-6-2, EN50121-3-2
SAFETY
Safety EN60950, EN50155
Dielectric strength Input/Output 3000Vac, 4200Vdc 1min
Dielectric strength Input / Earth 1500Vac, 2100Vdc 1min
Dielectric strength Output / Earth 1500Vac, 2100Vdc 1min
Fire and smoke EN45545-2:2013 +A1:2015
MECHANICAL
Approximate weight 2500g
CONTROL
Remote inhibit range Logic: 1=OFF, Range: 15 … 143 Vdc, Impedance > 27kΩ
Alarm contacts 1A @ 24Vdc, 0.3A @ 150Vdc, 1A @ 125Vac
Local: Input OK, Output OK Green LEDs
PROTECTIONS
Against overloads and short-circuits Current limiting
Against output over-voltages Shutdown (reset by input switch off)
Against over-temperature Shutdown with self-recovery
Against reverse input voltage. Input fuse (Active protection with option H)
Against input under-voltage Under-voltage lock-out
Against Input over-currents Input fuse

Note-1: The unit can start up and work at an ambient temperature of -40°C with the following restrictions:

1) Do not handle the connection terminals below -25°C.

2) The output ripple can rise up to 150mVpp at -40°C

Selection Table
PART NUMBER POWER (W) INPUT (V) INPUT RANGE (V) MAX INPUT CURRENT (A) OUTPUT VOLTAGE (V) OUTPUT CURRENT (A) EFFICIENCY (%)
CRS-1000-6475 1000 24 14,4 - 30 78,9 24 41,6 88
CRS-1000-6476 1000 24 14,4 - 30 78,0 48 20,8 89
CRS-1000-6490 1000 24 14,4 - 30 77,2 72 13,9 90
CRS-1000-6492 1000 24 14,4 - 30 77,2 110 9,8 90
CRS-1000-6487 1000 36 21,6 - 47 51,4 24 41,6 90
CRS-1000-6488 1000 36 21,6 - 47 51,4 48 20,8 90
CRS-1000-6491 1000 36 21,6 - 47 50,9 72 13,9 91
CRS-1000-6478 1000 48 28,8 - 60 38,2 24 41,6 91
CRS-1000-6479 1000 48 28,8 - 60 37,7 48 20,8 92
CRS-1000-6481 1000 72 43,2 - 90 25,4 24 41,6 91
CRS-1000-6482 1000 72 43,2 - 90 25,2 48 20,8 92
CRS-1000-6484 1000 110 66 - 144 16,5 24 41,6 92
CRS-1000-6485 1000 110 66 - 144 16,3 48 20,8 93
CRS-1000-6493 1000 110 66 - 144 16,1 110 9,8 94

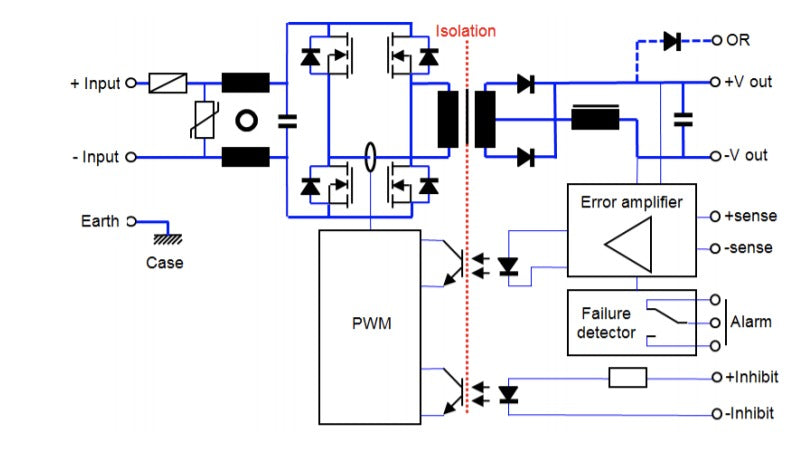

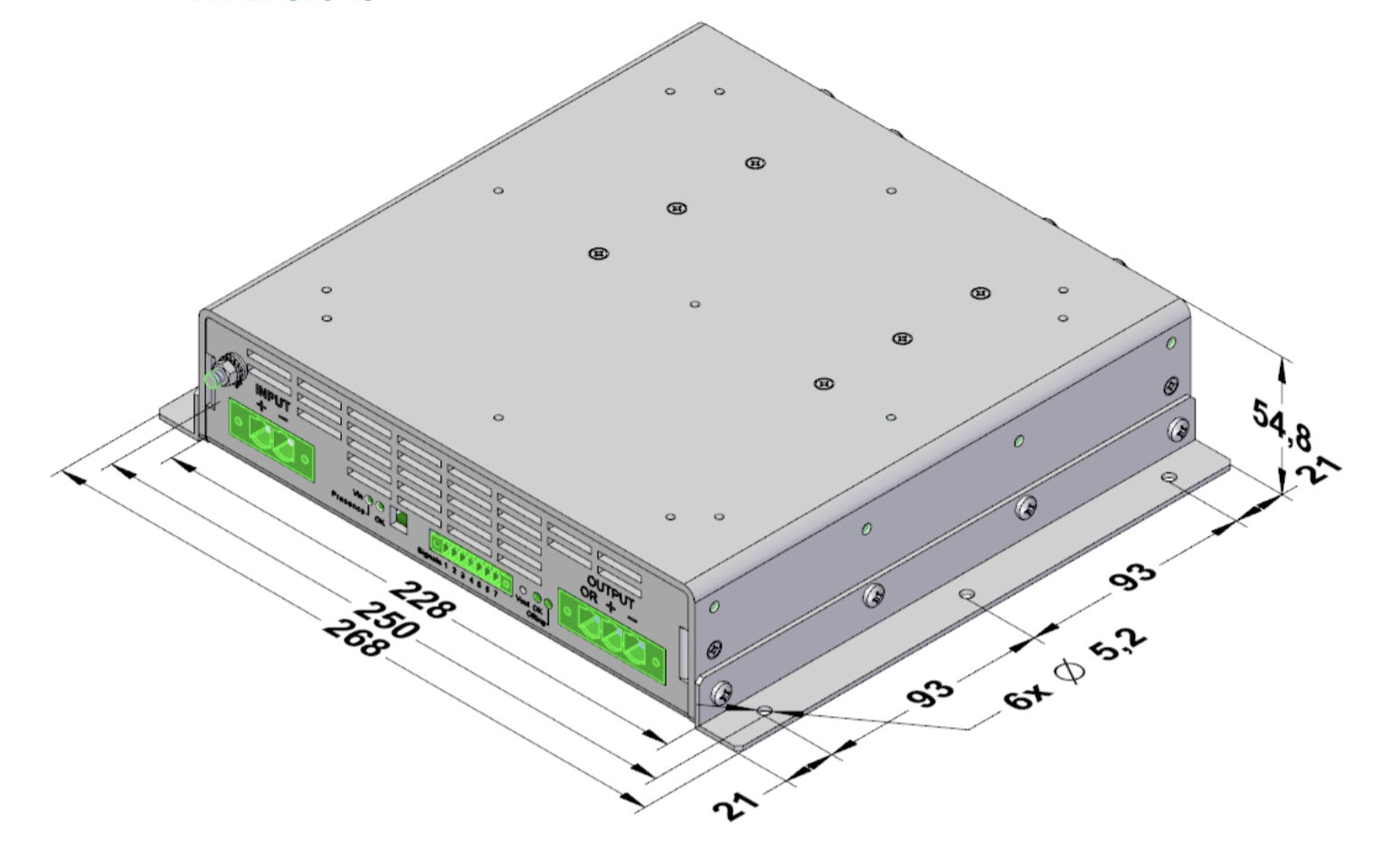

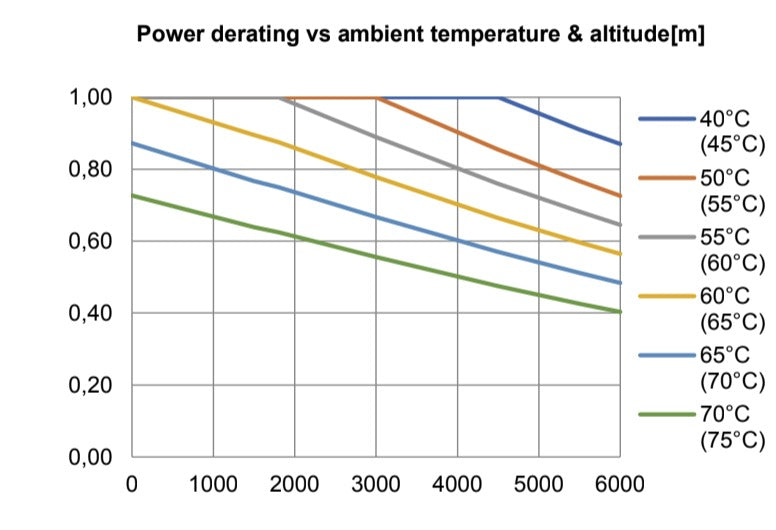

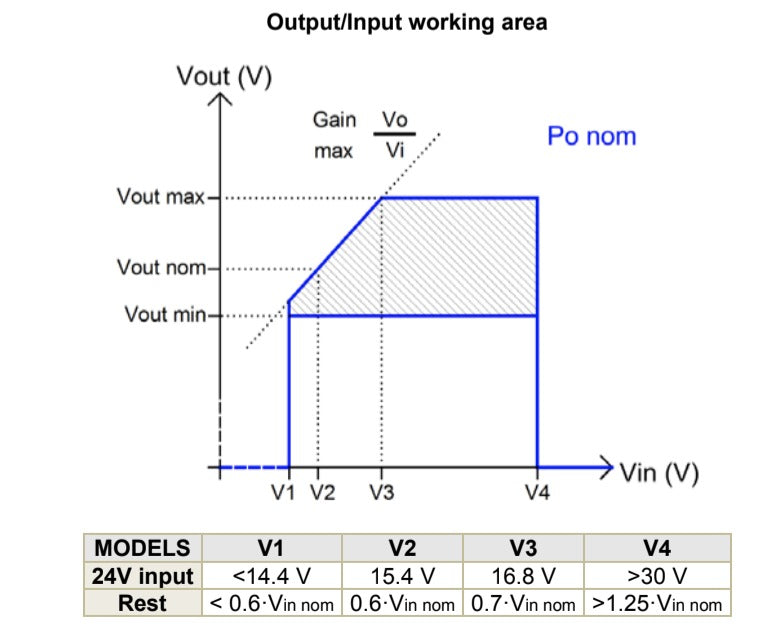

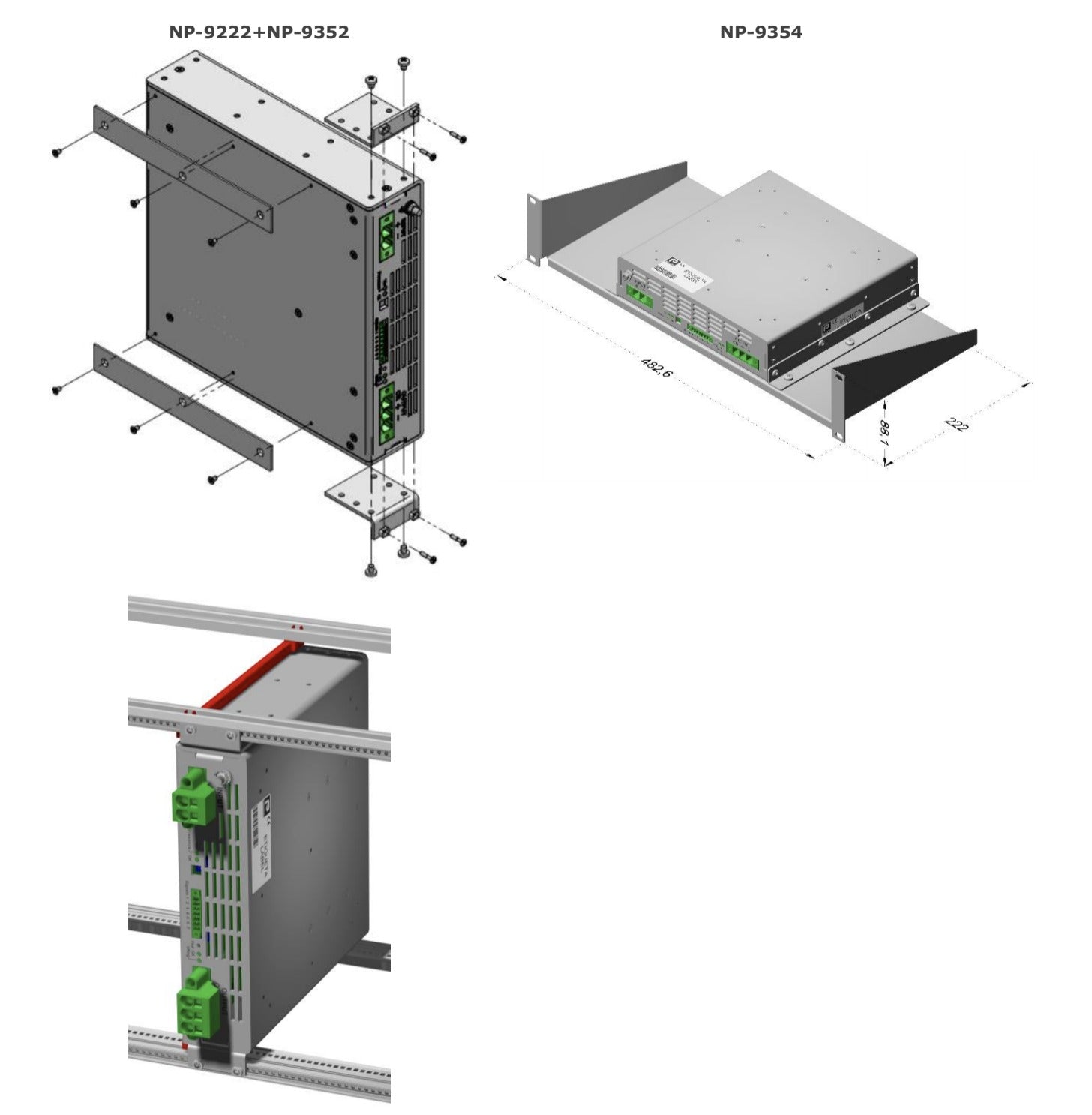

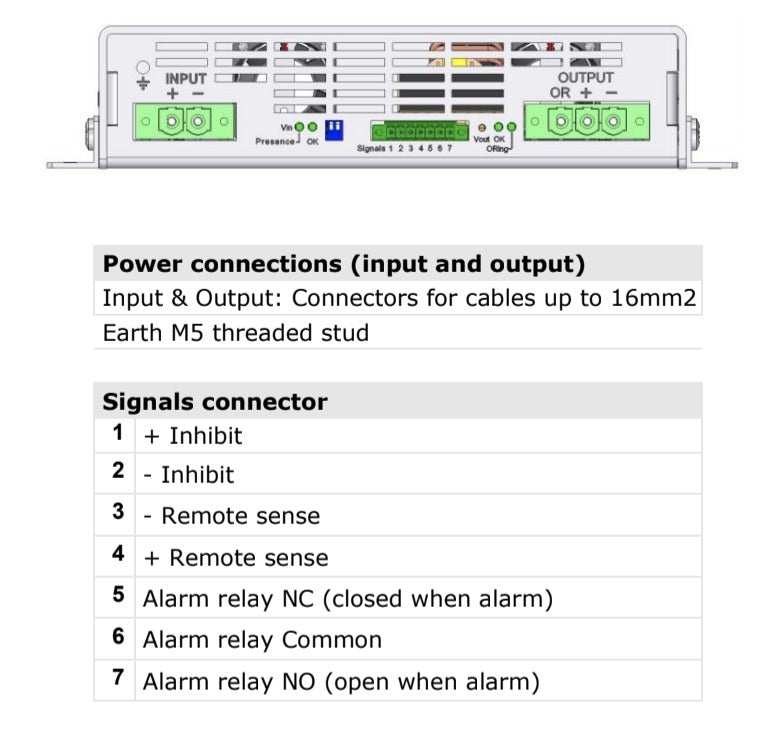

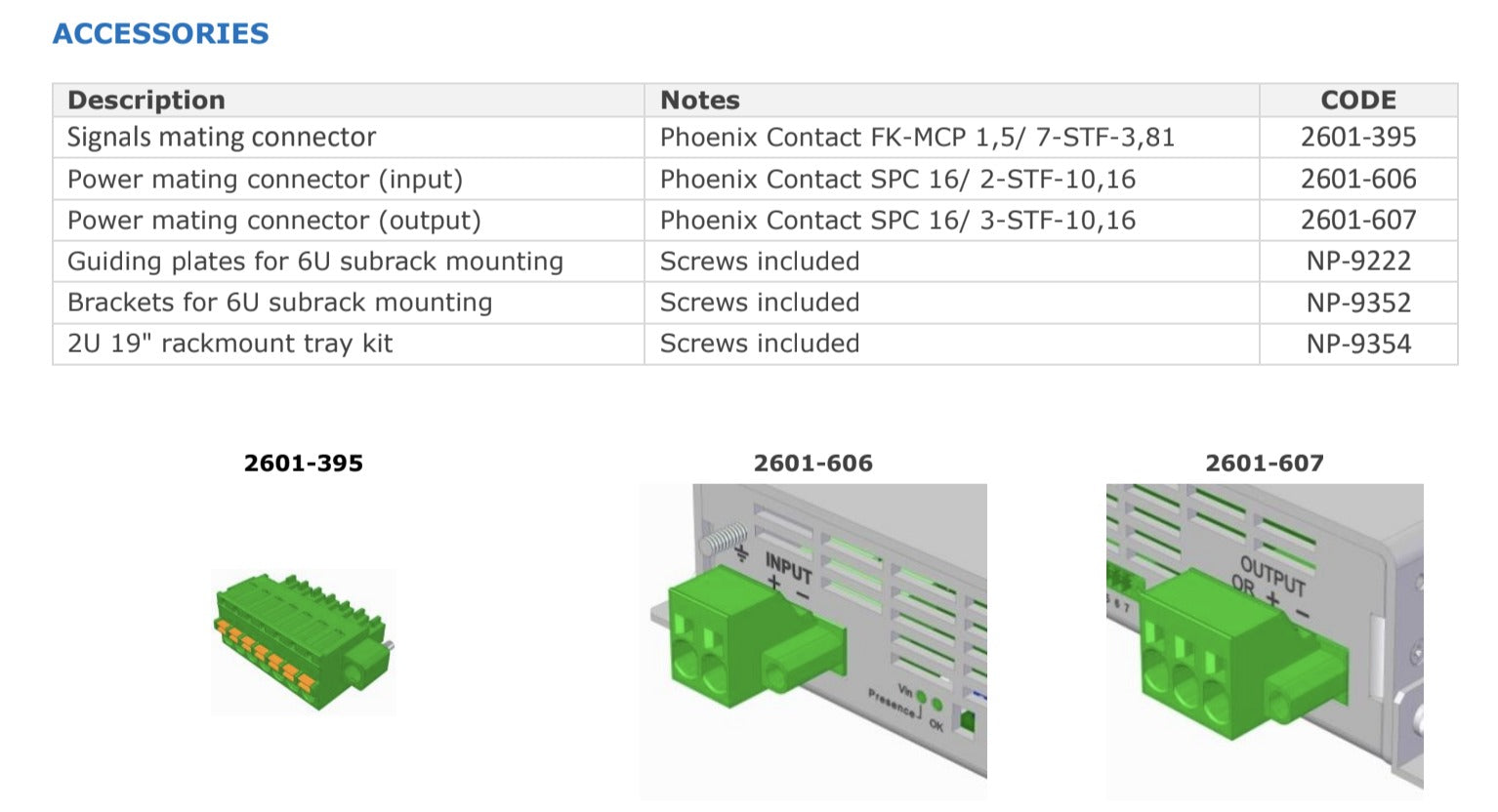

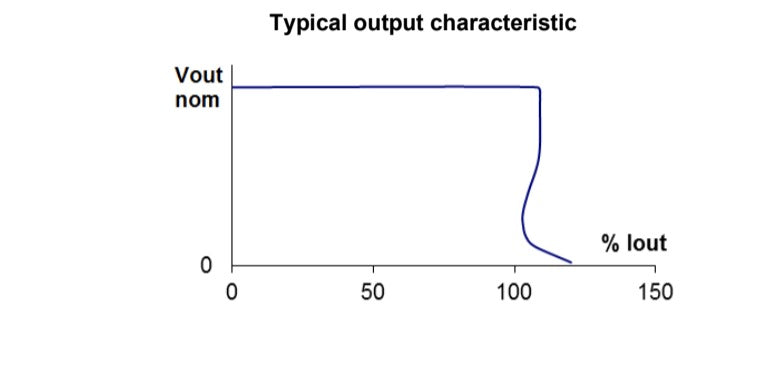

Technical Illustrations
Downloads
CRS-1000_Datasheet.pdf
INPUT
Voltage See selection table
Undervoltage shutdown 55% to 60% Vi nom
Max input ripple 15% Vin nom (EN50155)
OUTPUT
Output Voltage See selection table.
Output voltage adjustment range: Vimin>60% Vi nomVimin>70% Vi nom -10 % ... +0 % Vo nom-10 % ... +15 % Vo nom
Line regulation (Io = nom) < 0,2 %
Load regulation (Vin = nom) < 0,2 %, 2.5% for ORing FET option
Ripple < 50 mVpp
Noise (BW = 20MHz) < 100 mVpp
Max. overvoltage protection < 140% Vout nom
Maximum remote sense 0.3V / pole
ENVIRONMENTAL
StorageTemperature -40oC ... 85°C
Operating temperature at Full load -25ºC ... 55ºC (-40°C … 55ºC, see note-1)
Operating temperature at 75% load -25ºC ... 70ºC (-40°C … 70ºC, see note-1)
Cooling Natural convection
Maximum Relative humidity 95% with no condensation
Shock and vibration EN61373 Category 1 class B body mounted
MTBF (at 40°C and 75% load) 350.000h acc. to IEC61709 Cooling options R, V, D 250.000h acc. to IEC61709 Cooling option C
Service life (at 40°C and 75% load) 20 years (Option C fan maintenance at 10 years is required)
EMC
Emission EN61000-6-4, EN50121-3-2
Immunity EN61000-6-2, EN50121-3-2
SAFETY
Safety EN60950, EN50155
Dielectric strength Input/Output 3000Vac, 4200Vdc 1min
Dielectric strength Input / Earth 1500Vac, 2100Vdc 1min
Dielectric strength Output / Earth 1500Vac, 2100Vdc 1min
Fire and smoke EN45545-2:2013 +A1:2015
MECHANICAL
Approximate weight 2500g
CONTROL
Remote inhibit range Logic: 1=OFF, Range: 15 … 143 Vdc, Impedance > 27kΩ
Alarm contacts 1A @ 24Vdc, 0.3A @ 150Vdc, 1A @ 125Vac
Local: Input OK, Output OK Green LEDs
PROTECTIONS
Against overloads and short-circuits Current limiting
Against output over-voltages Shutdown (reset by input switch off)
Against over-temperature Shutdown with self-recovery
Against reverse input voltage. Input fuse (Active protection with option H)
Against input under-voltage Under-voltage lock-out
Against Input over-currents Input fuse

Note-1: The unit can start up and work at an ambient temperature of -40°C with the following restrictions:

1) Do not handle the connection terminals below -25°C.

2) The output ripple can rise up to 150mVpp at -40°C

PART NUMBER POWER (W) INPUT (V) INPUT RANGE (V) MAX INPUT CURRENT (A) OUTPUT VOLTAGE (V) OUTPUT CURRENT (A) EFFICIENCY (%)
CRS-1000-6475 1000 24 14,4 - 30 78,9 24 41,6 88
CRS-1000-6476 1000 24 14,4 - 30 78,0 48 20,8 89
CRS-1000-6490 1000 24 14,4 - 30 77,2 72 13,9 90
CRS-1000-6492 1000 24 14,4 - 30 77,2 110 9,8 90
CRS-1000-6487 1000 36 21,6 - 47 51,4 24 41,6 90
CRS-1000-6488 1000 36 21,6 - 47 51,4 48 20,8 90
CRS-1000-6491 1000 36 21,6 - 47 50,9 72 13,9 91
CRS-1000-6478 1000 48 28,8 - 60 38,2 24 41,6 91
CRS-1000-6479 1000 48 28,8 - 60 37,7 48 20,8 92
CRS-1000-6481 1000 72 43,2 - 90 25,4 24 41,6 91
CRS-1000-6482 1000 72 43,2 - 90 25,2 48 20,8 92
CRS-1000-6484 1000 110 66 - 144 16,5 24 41,6 92
CRS-1000-6485 1000 110 66 - 144 16,3 48 20,8 93
CRS-1000-6493 1000 110 66 - 144 16,1 110 9,8 94
CRS-1000_Datasheet.pdf

Find the Right Model

*References subject to special MOQs and lead times
Model Number Input Voltage (Vdc) Output Voltage (Vdc) Output Current (A)
product variant CRS-1000-6475 24Vdc: 14.4...30Vdc 24Vdc 41.6A
product variant CRS-1000-6476* 24Vdc: 14.4...30Vdc 48Vdc 20.8A
product variant CRS-1000-6490 24Vdc: 14.4...30Vdc 72Vdc 13.9A
product variant CRS-1000-6492 24Vdc: 14.4...30Vdc 110Vdc 9.8A
product variant CRS-1000-6487 36Vdc: 21.6...47Vdc 24Vdc 41.6A
product variant CRS-1000-6488* 36Vdc: 21.6...47Vdc 48Vdc 20.8A
product variant CRS-1000-6491 36Vdc: 21.6...47Vdc 72Vdc 13.9A
product variant CRS-1000-6478 48Vdc: 28.8...60Vdc 24Vdc 41.6A
product variant CRS-1000-6479* 48Vdc: 28.8...60Vdc 48Vdc 20.8A
product variant CRS-1000-6481 72Vdc: 43.2...90Vdc 24Vdc 41.6A
product variant CRS-1000-6482 72Vdc: 43.2...90Vdc 48Vdc 20.8A
product variant CRS-1000-6484 110Vdc: 66...144Vdc 24Vdc 41.6A
product variant CRS-1000-6485 110Vdc: 66...144Vdc 48Vdc 20.8A
product variant CRS-1000-6494 110Vdc: 66...144Vdc 72Vdc 13.9A
product variant CRS-1000-6493 110Vdc: 66...144Vdc 110Vdc 9.8A
