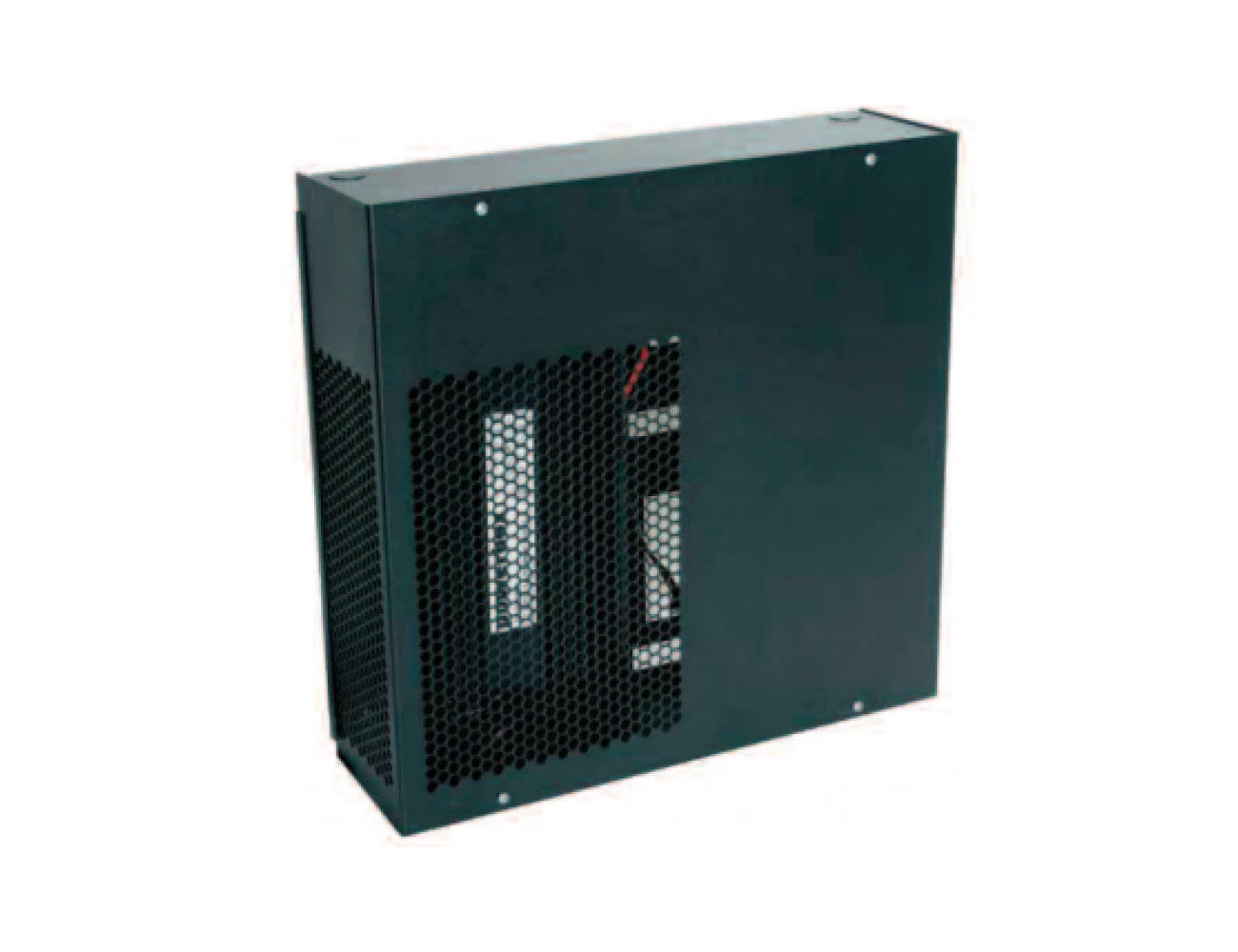

Powerbox WMBB C-S-D Wall Box / Security Enclosure
Ensure the safety of your battery chargers with the WMBB-C-S Enclosure - a robust security cabinet designed for industrial applications. This wall-mountable enclosure boasts a vented design, tamper switch, and flexible GPO cutouts, accommodating chargers like PBB2S, PB256, and PB251A, along with batteries ranging from 7Ah to 17Ah. With dimension...
Read MoreEnsure the safety of your battery chargers with the WMBB-C-S Enclosure - a robust security cabinet designed for industrial applications. This wall-mountable enclosure boasts a vented design, tamper switch, and flexible GPO cutouts, accommodating chargers like PBB2S, PB256, and PB251A, along with batteries ranging from 7Ah to 17Ah. With dimensions of 375 x 362 x 111.5mm, it offers ample space for secure storage. Explore its specifications for seamless integration into your setup and trust in its sturdy construction to safeguard your critical equipment.
Show Less
Features
- Wall-mounted security enclosure for 12V and 24V battery systems.
- Supports PBB2S, PB256, PB356 and PB251A DC-UPS / Offline Battery Charger Series.
- Pre-fitted dual tamper switches for enhanced intrusion protection.
- Compatible with 7Ah to 17Ah batteries, including dual 7Ah setup.
- Includes 2 x GPO cut-outs, DIN rail for mounting Jackfuse PDU, and flexible power supply brackets.
- Compact powder coated steel cabinet, 375 x 362 x 111.5 mm, with venting.
Specifications
| MECHANICAL | |||
|---|---|---|---|
| Power Supply | Includes mounting brackets suitable for Powerbox's range of specialised security DC-UPS / Battery Chargers including: PBB2S, PB256, PB356 and PB251A / -H Series | ||
| Battery Configurations |
Enclosure designed to support the following battery configurations: 1 x 12V 7Ah (150x65x101mm); 1 x 12V 12Ah (155x98x101mm); 1 x 12V 17Ah (181x76x176mm); 2 x 12V 7Ah (150x65x101mm) |
||
| Battery Cable |
Includes wiring harness for installation of 1 x 7Ah 12V battery |
||
| Din Rail |
Pre-drilled mounting holes & din rail provided for load distribution & equipment (suitable for Jackfuse Power Distribution Modules) |
||
| GPO Cutouts |
Flexible installation via 2 x GPO Cutouts (138 x 85mm) |
||
| Tamper Switch |
Tamper switch (pn. 29-1001-01) included (x2). |
||
| Dimensions | 375 x 362 x 115.5mm (LxWxH) | ||
| Weight | <3.5 Kg | ||
| Mounting | Wall Mounting (via 4 x 5.0mm Diameter Mounting Holes) | ||
