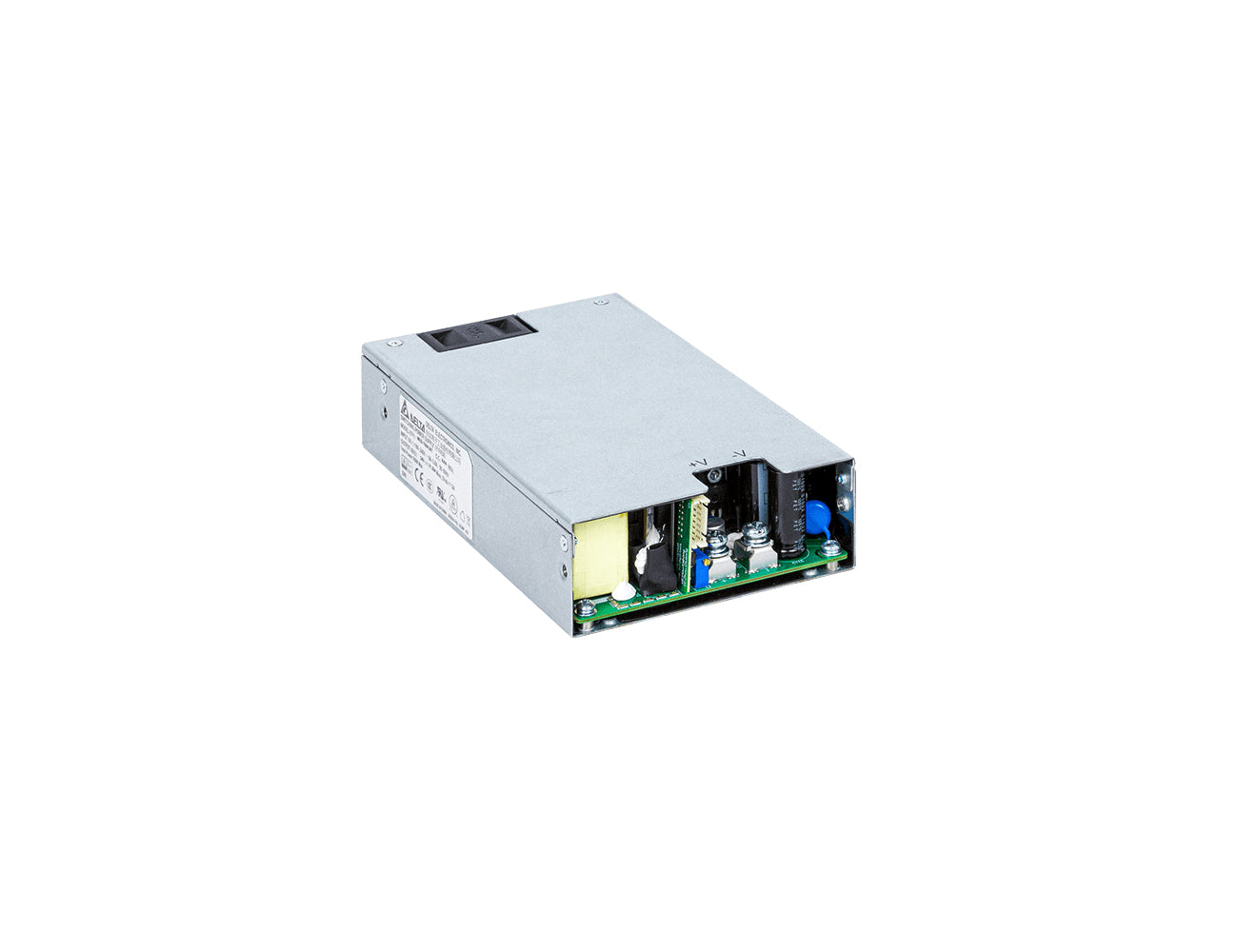

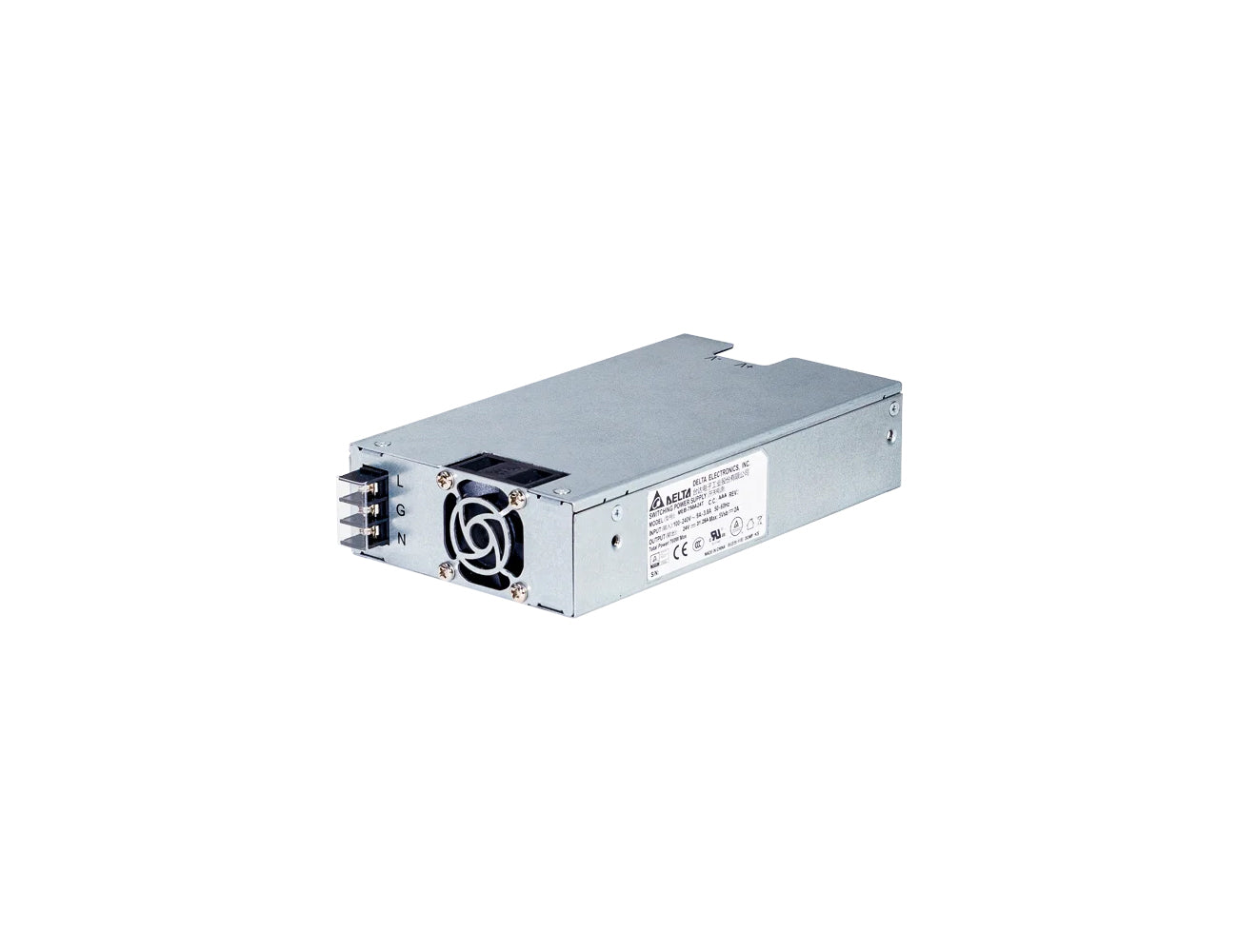

Delta Electronics MEB-750A Series Medical / Industrial AC/DC Power Supply

The Delta Electronics MEB-750A series are enclosed AC/DC power supplies designed for medical and industrial applications requiring high-density, high-power output with a dedicated 5 V / 2 A standby rail. Available in 12 Vdc, 24 Vdc and 48 Vdc output configurations, the series delivers up to 750 W continuous power (700 W for 12 V models) and up to 1200 W peak on the 48 V model — all within a compact 177.8 × 101.6 × 40 mm (7" × 4" × 1.575") enclosed package.

View Models

Features

Input voltage range: 85-264Vac nominal operation.
Output voltage: main 24Vdc output with 5V / 2A standby output.
Output current: main output 0-31.25A, standby output 2A.
Output power: 750W maximum.
Efficiency: 92% typ. at 115Vac and 94% typ. at 230Vac for the 24V model.
2 x MOPP isolation and suited for Type BF medical products.

Specifications

INPUT RATINGS/CHARACTERISTICS
Nominal Input Voltage		100-240 Vac
Input Voltage Range		85-264 Vac
Nominal Input Frequency		50-60 Hz
Input Frequency Range		47-63 Hz
Input Current (max)		9 A
Full load Efficiency (typ.) (Exclude fan power)	For 12 V output Model For 24 V output Model For 48 V output Model	88% @ 115 Vac / 60 Hz 90.5% @ 230 Vac / 50 Hz, Reference Fig. 1 92% @ 115 Vac / 60 Hz 94% @ 230 Vac / 50 Hz Reference Fig. 2 91.5% @ 115 Vac / 60 Hz 94% @ 230 Vac / 50 Hz Reference Fig. 3
Inrush Current (max)		40 A @ 264 Vac, cold start
Input-PE (protective earth) leakage current (typ.)		0.3 mA @ NC, 1 mA @ SFC¹
Output-PE (protective earth) leakage current for Type BF application (max)		0.1 mA @ NC, 0.5 mA @ SFC¹
Power Factor (min)		0.95 @ 115 V / 50 Hz, 230 V / 50 Hz, full load
1. NC: normal condition, SFC: single fault condition

LEAKAGE CURRENT
Input-PE Leakage Current	100 Vac/60 Hz(Typ)	264 Vac/60 Hz(Typ)	Delta Limit	IEC60601-1 Limit
Normal Condition	108.5 uA	289.3 uA	300 uA max	5000 uA max
Single Fault Condition	211.4 uA	561.3 uA	1000 uA max	10000 uA max
Output-PE Leakage Current for Type BF application	-
Normal Condition	34 uA	89 uA	100 uA max	100 uA max
Single Fault Condition	70 uA	185 uA	500 uA max	500 uA max

OUTPUT RATINGS/CHARACTERISTICS
Total Regulation		± 3%
Output Power (max)	For 12 V output Model For 24 V/ 48 V output Model For 48 V output Model	700 W 750 W 1200 W peak for 0.5 sec, 0-25 A, Slew rate 0.1 A/ms, above 100 Vac
Line Regulation (max)		1%
Load Regulation (max)		2%
Ripple & Noise (typ.)		1% pk-pk Vrated@ rated load, Reference Fig. 4
Voltage Trimming Range	For 12 V output Model For 24 V/ 48 V output Model	12-14V ± 10% Vrated
Dynamic Response (Overshoot & Undershoot O/P Voltage)		± 5% @ with 50% load change
Start-up Time (max)		2000 ms with AC turn on
Hold-up Time (min)		12 ms@ 100% load, with nominal input range
Capacitive load (max)		6000 uF
Rise time (max)		<50 ms
Remote Sense		Up to 500 mV compensation for voltage drop across external wire connections to load. Short and reverse connection protected.
Nominal Output Voltage of standby output (Vrated)¹		5 V
Nominal Output Current of standby output		2 A
Total Regulation of standby output		± 3%
Ripple & Noise of standby output		100 mV max
1) 5V standby output is always on when AC is present

MECHANICAL
Package	Enclosed

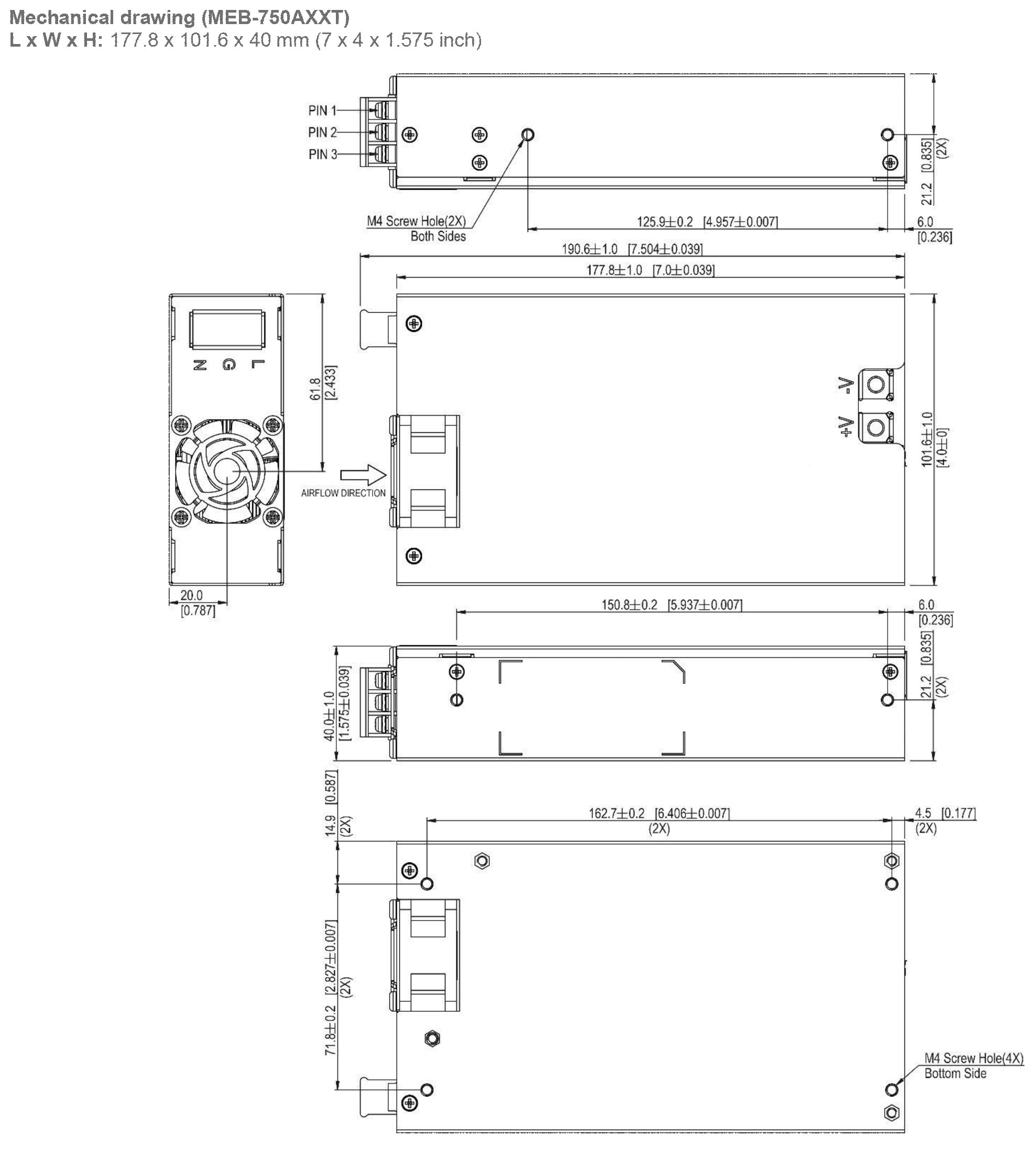

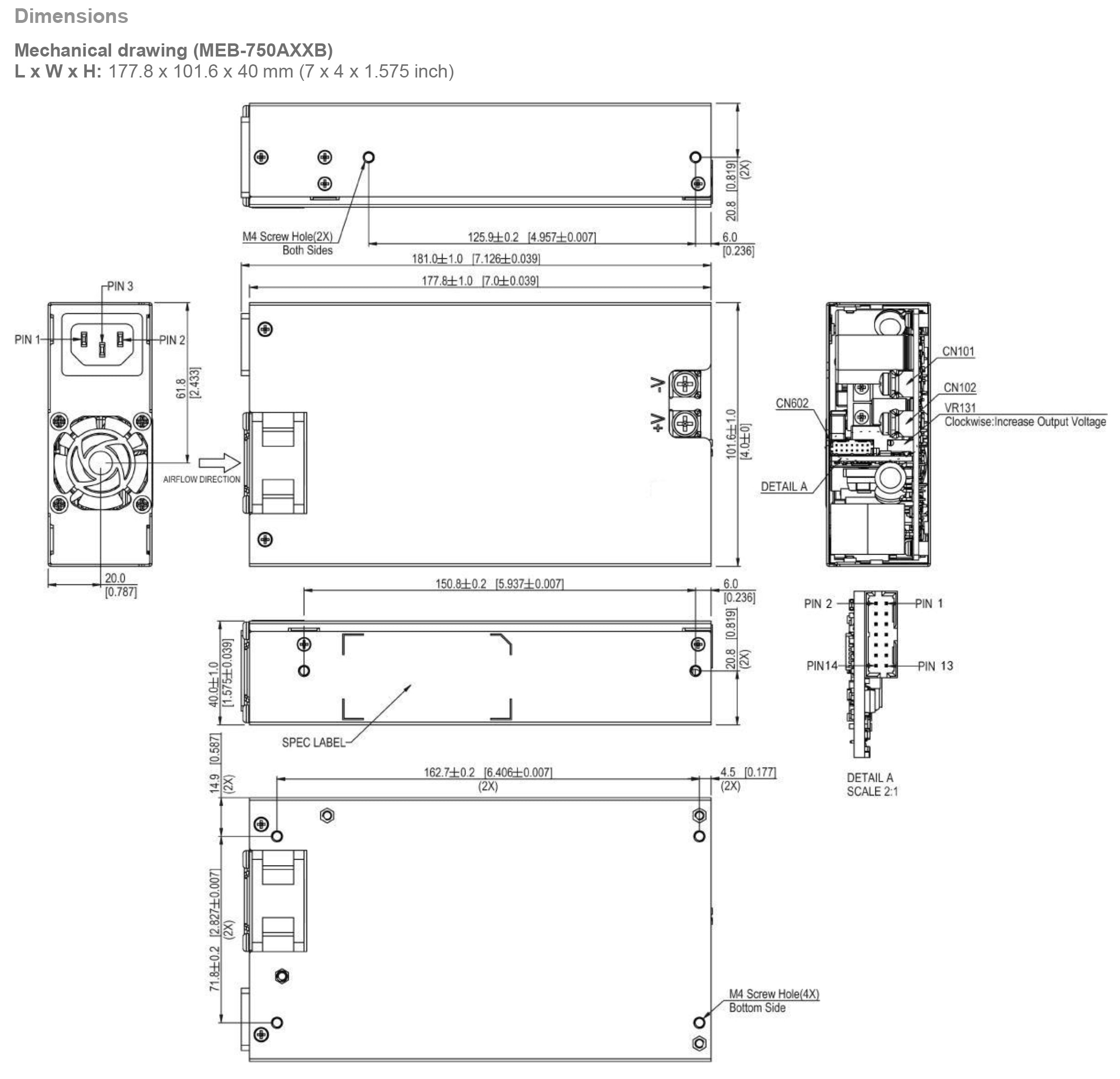

Dimensions (L x W x H)	177.8 x 101.6 x 40 mm (7 x 4 x 1.575 inch)
Unit Weight	1.1 kg (2.4 lb)

ENVIRONMENT
Surrounding Air Temperature	Operating Storage	Absolute Maximum/Minimum Rating. -20°C to +70°C. Linear power derate from 100% load at 50°C, to 50% load at 70°C Note: see power de-rating curves below -40°C to +85°C
Operating Humidity		5-95% RH (Non-Condensing)
Operating Altitude		Up to 5,000 meters (up to 16,400 feet or 106-54 kPa)
Non-Operating Altitude		Up to 5,575 meters (up to 18,290 feet or 106-50 kPa)
Shock Test (Non-Operating)		50 G, 11 ms, 3 shocks for each direction
Vibration (Non-Operating)		5-500 Hz, 2 Grms, 15 minute for each three axis
Acoustic Noise (Typical)		45 dB test with 80% of rated load under 30°C²
2) Acoustic Noise test set up according to ISO-7779

PROTECTIONS (For both main output and 5 Volt Standby outputs, unless otherwise indicated)
Overvoltage (max)	Main output 145% of rated normal voltage, Latch Mode Standby 125% of rated voltage, Latch Mode
Over load / Over current (max)	Main output 130% max of rated current for over 750 ms max Standby 3.2 A max with Hiccup Mode(Non-Latching, Auto-Recovery)
Over Temperature	Latch Mode for Main output
Short Circuit	Hiccup Mode for Main output and Standby (Non-Latching, Auto-Recovery)

RELIABILITY DATA
MTBF (Minimum) at 115 Vac, 750 W (700 W for 12 V) , 35 °C	500 Khrs based on Telecordia SR-332
Operating life(Minimum) at 115 Vac, 750 W (700 W for 12 V), 25°C	26,280 hrs

SAFETY STANDARDS/DIRECTIVES
Medical Safety		IEC 60601-1 CB report TUV EN 60601-1 ANSI/AAMI ES 60601-1+CAN/CSA-C22.2 No.60601-1
ITE Safety		IEC 60950-1 CB report IEC 62368-1 CB report TUV EN 62368-1 TUV EN 60950-1 UL 62368-1 and CAN/CSA C22.2 No. 62368-1 CCC GB 17625.1; GB 4943.1; GB/T 9254.1 (for 24 V / 48 V model) KC/KCC (for 24V)
Home Appliance		IEC 60335-1 CB report (for 12 V / 24 V model) IEC 61558-1 CB report (for 12 V / 24 V model) IEC 61558-2-16 CB report (for 12 V / 24 V model) TUV EN 60335-1 (for 12 V / 24 V model) TUV EN 61558-1 (for 12 V / 24 V model) TUV EN 61558-2-16 (for 12 V / 24 V model)
CE		In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015
UKCA		In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002)
Galvanic Isolation	Input to/Output (2XMOPP) Input to/Ground (1XMOPP) Output to/Ground (1XMOPP)	4000 Vac 1500 Vac 1500 Vac (Type BF application rated)

EMC
EMC / Emissions		EN/BS EN 55011/EN/BS EN 55032: Class B
Harmonic Current Emissions	IEC 61000-3-2	Meet Class D limit
Voltage Flicker	IEC 61000-3-3
Immunity to
Electrostatic Discharge	IEC 61000-4-2	Level 4 Criteria A¹⁾ ⁵⁾ Air Discharge: 15 kV Contact Discharge: 8 kV
Radiated Field	IEC 61000-4-3	Criteria A¹⁾ 80 MHz-2700 MHz, 10 V/m AM modulation Level 2 Criteria A ¹⁾ ⁵⁾ 385 MHz-5785 MHz, 28 V/m Pulse mode and other modulation
Electrical Fast Transient / Burst	IEC 61000-4-4	Level 3 Criteria A¹⁾ 2 kV
Surge	IEC 61000-4-5	Level 3 Criteria A¹⁾ ⁵⁾ Common Mode³⁾: 2 kV Differential Mode⁴⁾: 1 kV
Conducted	IEC 61000-4-6	Level 2 Criteria A¹⁾ ⁵⁾ 150 kHz-80 MHz, 3 Vrms, 6 Vrms, 20 Vrms at ISM bands and Amateur radio bands
Power Frequency Magnetic Fields	IEC 61000-4-8	Criteria A¹⁾ ⁵⁾ Magnetic field strength 30 A/m
Voltage Dips	IEC 61000-4-11	30% 10 ms Criteria A¹⁾ 60% 100 ms Criteria B²⁾ 100% 5000 ms Criteria B²⁾
Voltage Dips ⁵⁾	IEC 60601-1-2	Criteria A ¹⁾ @ 650 W 0% UT, 0.5 cycle (10 ms) (0°,45°,90°,135°,180°,225°,270°,315°,360°) Criteria B ²⁾,can meet Criteria A with 400 W or lower load 0% UT, 1 cycle (20 ms), 0° Criteria B ²⁾ Can meet Criteria A with 500 W or lower load 70% U T, 25 cycle (500 ms) , 0° Criteria B ²⁾ 0% U T, 250 cycle (5000 ms) , 0°
1) Criteria A: Normal performance within the specification limits 2) Criteria B: Output out of regulation, or shuts down during test. Automatically restored to normal operation after test. 3) Asymmetrical: Common mode (Line to earth) 4) Symmetrical: Differential mode (Line to line) 5) Compliant with IEC60601-1-2 4th Edition

Selection Table

MODEL NUMBER	INPUT VOLTAGE	OUTPUT VOLTAGE	OUTPUT CURRENT
MEB-750A12B MEB-750A12T	85 Vac 90-264 Vac	12 Vdc	0-52.08 A 0-58.4 A
MEB-750A24B MEB-750A24T	85 Vac 90-264 Vac	24 Vdc	0-26.04 A 0-31.25 A
MEB-750A48B MEB-750A48T	85 Vac 90-264 Vac	48 Vdc	0-13.02 A 0-15.63 A

Technical Illustrations

Downloads

Datasheet_MEB-750A.pdf
