Delta Electronics MEA-300A24C HAA Medical AC/DC Adapter

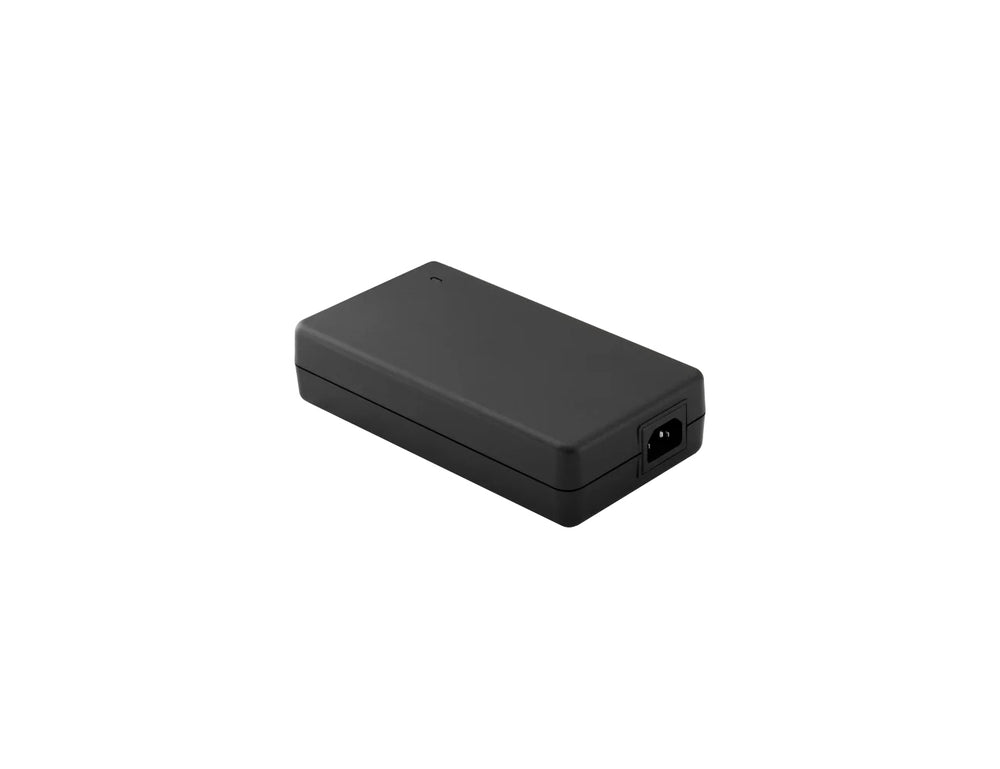

The Delta MEA-300A24C HAA is a medical AC-DC desktop adapter designed for systems that require a regulated 24Vdc output at up to 12.5A. It provides 300W output power from a universal 90-264Vac input range and uses an IEC 60320 C14 input socket, making it suitable for equipment deployed across different regions and power environments.This model c...
Read MoreThe Delta MEA-300A24C HAA is a medical AC-DC desktop adapter designed for systems that require a regulated 24Vdc output at up to 12.5A. It provides 300W output power from a universal 90-264Vac input range and uses an IEC 60320 C14 input socket, making it suitable for equipment deployed across different regions and power environments.
This model combines 91% typical average efficiency with 2 × MOPP isolation, IP22 ingress protection, and Class I protection against shock. It is approved to IEC 60601-1 and IEC 62368-1 and complies with IEC 60601-1-2 4th edition EMC requirements. Electrical performance includes 50A / 100A typical inrush current at 115Vac / 230Vac, 0.3W maximum standby power, and overload and short-circuit protection with auto-recovery.
The MEA-300A24C HAA is housed in a 100.0 × 200.0 × 43.0 mm desktop enclosure with green LED indication, a 1.2 m output cable, and a MOLEX 39-01-2060 output connector. It operates from -10°C to +60°C, supports installation up to 5,000 meters altitude, and is well suited to medical and information technology equipment requiring a robust external 24Vdc power source.
Show Lessor send a quick enquiry about this product only
Features
- Input voltage range: 90-264Vac universal input.
- Output voltage: 24Vdc.
- Output current: 12.5A.
- Output power: 300W.
- Average efficiency: 91% typical.
- Safety approvals to IEC 60601-1 and IEC 62368-1.
- Compliant with IEC 60601-1-2 4th edition requirements.
- IP22 ingress protection rating.
- 2 × MOPP isolation.
- Low touch current: <0.1mA normal and 0.3mA single fault.
- IEC 60320 C14 input socket.
- MOLEX 39-01-2060 output connector.
Specifications
| INPUT RATINGS/CHARACTERISTICS | |
|---|---|
| Parameter | Value |
| Nominal Input Voltage | 100-240 Vac |
| Input Voltage Range | 90-264 Vac |
| Nominal Input Frequency | 50-60 Hz |
| Input Frequency Range | 47-63 Hz |
| Input Current (max.) | 4A @ 115 Vac, 2A @ 230 Vac |
| Average Efficiency (typ.) | 91% |
| Standby Power (max.) | 0.3 W @ 115 Vac & 230 Vac |
| Inrush Current (typ.) | 50A @ 115 Vac and 100A @ 230 Vac |
| Touch Current (max.) | <0.1 mA @ 264 Vac NC¹, 0.3 mA @ 264 Vac SFC² |
| Earth Leakage Current (max.) | <0.2 mA @ 264 Vac NC¹, 0.3 mA @ 264 Vac SFC² |
| Power Factor (typ.) | 0.95 @ 115 Vac / 60 Hz, full load 0.90 @ 230 Vac / 50 Hz, full load |
| 1) NC: Normal condition 2) SFC: Single fault condition | |
| OUTPUT RATINGS/CHARACTERISTICS | |
|---|---|
| Parameter | Value |
| Nominal Output Voltage | 24 Vdc |
| Nominal Output Current | 12.5 A |
| Output Power | 300 W |
| Line Regulation | ± 0.5% |
| Load Regulation | ± 4.5% |
| PARD* | 240 mVpk-pk @ Rated load |
| Rise Time (max.) | 50 ms @ 115 Vac & 230 Vac |
| Start-up Time (max.) | 1500 ms @ 115 Vac & 230 Vac |
| Hold-up Time (typ.) | 25 ms @ 115 Vac |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | 21.6-25.2 V @ 0-50% & 50-100% load; Slew rate 0.25 A/µs (@ 50 Hz / 1 KHz, 50% Duty Cycle) |
| *PARD: AC coupling, 0.1µF ceramic & 10µF electrolytic at end terminal. Burn in >5 min before test. | |
| MECHANICAL | |
|---|---|
| Parameter | Value |
| Case Chassis / Cover | PC |
| Dimensions (W x L x H) | 100.0 x 200.0 x 43.0 mm (3.94 x 7.87 x 1.69 inch) |
| Unit Weight | 1.06 ± 0.1 kg (2.34 ± 0.22 lb) |
| Cable Length | 1200 mm |
| Indicator | Green LED |
| Terminal Input | IEC 60320 C14 socket |
| Terminal Output | MOLEX 39-01-2060 |
| ENVIRONMENT | ||
|---|---|---|
| Surrounding Air Temperature | Operating | -10°C to +60°C |
| Storage | -40°C to +85°C | |
| Power De-rating | > 40°C de-rate power by 2.5% / °C | |
| Operating Humidity | 10-95% RH (Non-Condensing) | |
| Operating Altitude | Up to 5,000 meters (up to 16,400 feet or 106-54 kPa) | |
| Shock Test | Non-Operating | Half-Sine Wave 50G, 11 ms, 3 shocks for each direction |
| Vibration | Non-Operating | Random 5-500 Hz, 2.09 Grms, 20 minutes for each three axis |
| PROTECTIONS | |
|---|---|
| Parameter | Value |
| Overvoltage (max.) | 130% max of rated output voltage, Latch Mode |
| Overload / Overcurrent (max.) | 160% max of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery) |
| Over Temperature | Latch |
| Short Circuit | Hiccup Mode, (Non-Latching, Auto-Recovery) |
| Degree of Protection | IP22 |
| Protection Against Shock | Class I |
| RELIABILITY DATA | |
|---|---|
| Parameter | Value |
| MTBF (typ.) | 500K Hours based on Telecordia SR-332 (at 100 Vac, Max. load and 25°C Ambient) |
| Expected Cap Life Time³ | 5 Years (115 Vac, 100% load @ 25°C) |
| 3) Estimated lifetime when 8 hours operating a day. | |
| SAFETY STANDARDS/DIRECTIVES | ||
|---|---|---|
| Medical Safety | IEC 60601-1 CB Report, EN 60601-1 ANSI/AAMI ES60601 CAN/CSA-C22.2 No. 60601-1 | |
| ITE Safety | EN IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368 PSE J 62368-1, GB 4943.1, GB/T 9254.1, GB 17625.1 BSMI CNS 15598-1 KC 62368-1 IS 13252 (Part 1) | |
| CE | In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A1: 2013 + A2: 2021 & EN 60601-1-2: 2015+ A1:2021 | |
| UKCA | In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002) | |
| Galvanic Isolation | Input to Output (2 X MOPP) Input to PE (1 X MOPP) Output to PE (1 X MOPP) | 4000 Vac 1500 Vac 500 Vac |
| EMC | ||
|---|---|---|
| EMC / Emissions | EN/ BS EN 55011, EN/ BS EN 55032 : Class B CISPR 11, CISPR 32 : Class B KS C 9832 Compliance to FCC Title 47, Class B |
|
| Harmonic Current Emissions | IEC 61000-3-2 | Meet Class A and Class D limit |
| Voltage Flicker | IEC 61000-3-3 | |
| Immunity | ||
| Electrostatic Discharge | IEC 61000-4-2 | Level 4 Criteria A³ Air Discharge: 15 kV Contact Discharge: 8 kV |
| Radiated Field | IEC 61000-4-3 | Criteria A³ 80 MHz-2700 MHz, 10 V/m AM modulation 385 MHz-5785 MHz, 28 V/m Pulse mode and other modulation |
| Electrical Fast Transient / Burst | IEC 61000-4-4 | Level 3 Criteria A³: 2 kV |
| Surge | IEC 61000-4-5 | Level 3 Criteria A³ Common Mode&sup5;: 2 kV Differential Mode&sup6;: 1 kV |
| Conducted | IEC 61000-4-6 | Level 2 Criteria A³ 150 kHz-80 MHz, 3 Vrms, 6 Vrms at ISM bands and Amateur radio bands |
| Power Frequency Magnetic Fields | IEC 61000-4-8 | Criteria A³ Magnetic field strength 30 A/m |
| Voltage Dips | IEC 61000-4-11 | Criteria A³ 0% UT, 0.5 cycle (10 ms), 0°/45°/90°/135°/180°/225°/270°/315°/360° Criteria A&sup4; 0% UT, 1 cycle (20 ms), 0° Criteria A&sup4; 70% UT, 25 cycle (500 ms), 0° Criteria B&sup4; 0% UT, 250 cycle (5000 ms), 0° |
| 3) Criteria A: Normal performance within the specification limits 4) Criteria B: Output out of regulation, or shuts down during test. Automatically restore to normal operation after test. 5) Asymmetrical: Common mode (Line to earth) 6) Symmetrical: Differential mode (Line to line) |
||

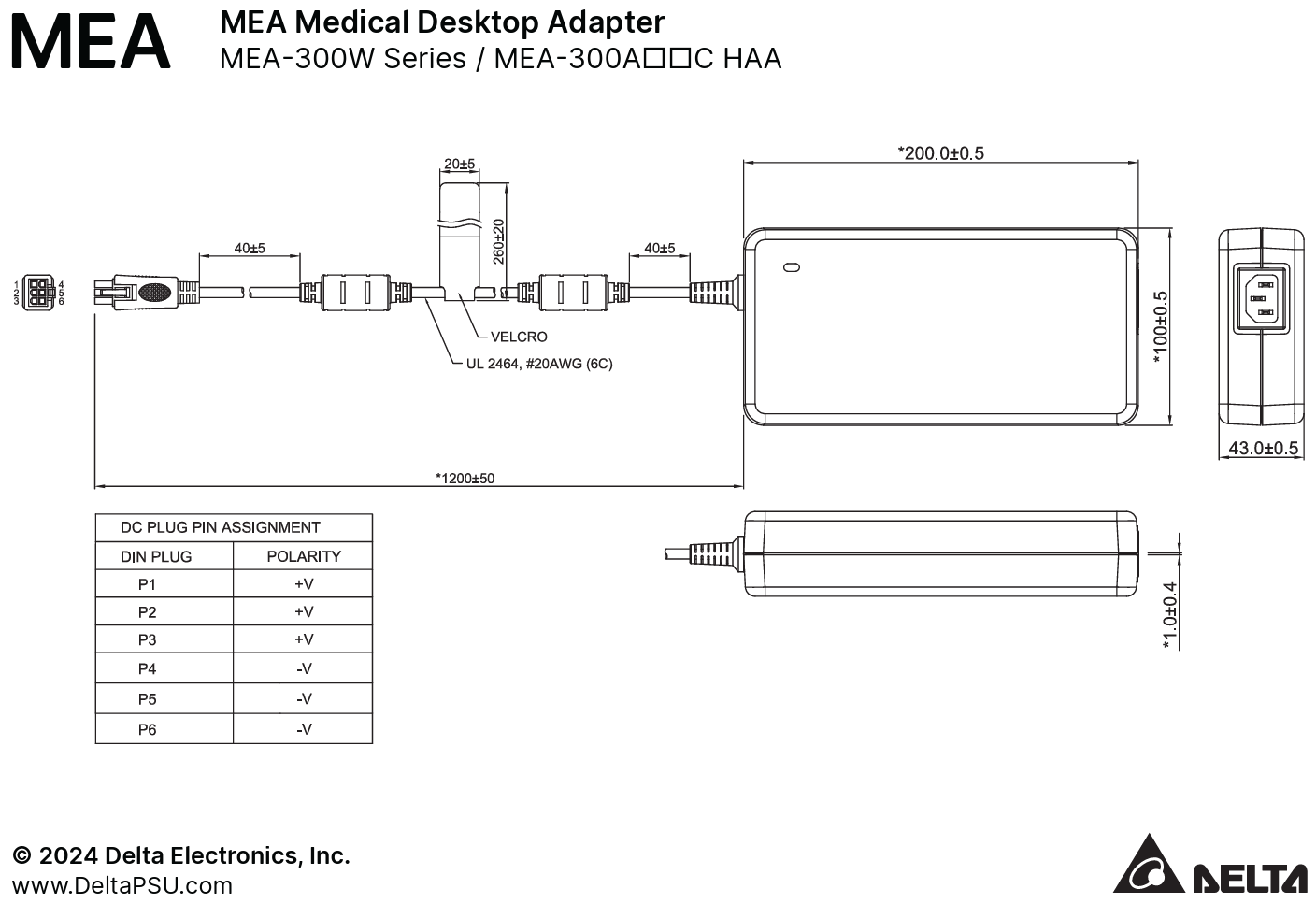

Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
FAQs
The MEA-300A24C HAA delivers 24Vdc at 12.5A (300W) — the highest-power model in the Delta MEA medical adapter series. It accepts a universal 90–264Vac input via a C8 (figure-8, non-earthed) input socket and is designed for medical devices requiring a high-power external adapter without a protective earth connection.
Certified to IEC 60601-1 for medical electrical equipment safety with 2×MOPP (Means of Patient Protection) input-to-output isolation — qualifying it for patient care environment use and meeting IEC60601-1 3rd edition leakage current requirements.
The C8 connector is a 2-pin unearthed (Class II) IEC mains inlet — the same figure-8 connector found on many laptops and AV devices. Unlike a C14 connector, it does not provide a protective earth connection. This is appropriate for equipment that achieves its safety through double/reinforced insulation (Class II), eliminating the need for an earth wire while maintaining IEC60601-1 compliance via 2×MOPP isolation.
The adapter achieves DOE Efficiency Level VI — meeting the highest tier of external power supply energy efficiency standards. This reduces standby losses and heat generation in continuously energised medical equipment applications.
Both are 24Vdc medical-grade external adapters from Delta's MEA series, but differ in connector type and power rating. The MEA-300A24C HAA delivers 300W at 12.5A via a C8 unearthed input; the MEA-250A24C H-A delivers 250W at 10.42A via a C14 earthed input. Select the MEA-300A24C HAA when the equipment design uses Class II insulation and requires 300W of 24Vdc.
High-power medical equipment requiring an externally mounted, hospital-approved 24Vdc power adapter — including medical imaging, patient monitoring, surgical, dental, and laboratory devices. The Class II (unearthed) construction is appropriate for equipment relying on double insulation for primary safety. Contact Powerbox at sales@powerbox.com.au for compliance documentation and stock availability.
