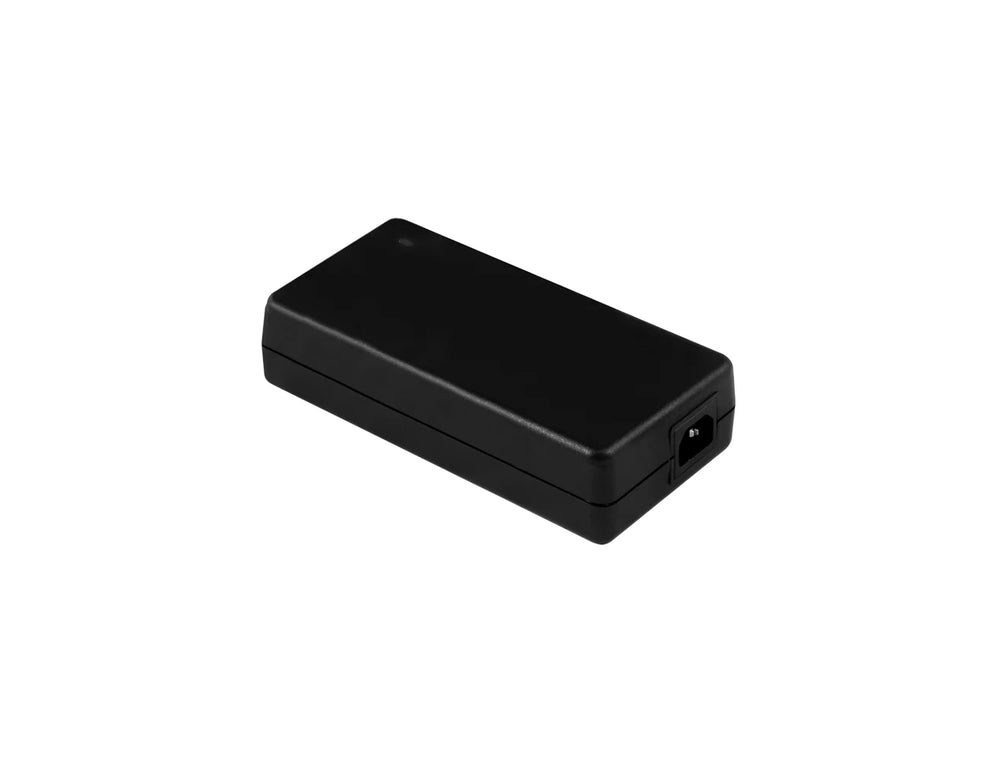

Delta Electronics MEA-250A24C H-A 24V 250W Medical AC/DC Adapter
The Delta MEA-250A24C H-A is a medical AC-DC desktop adapter with universal 90-264Vac input, 24Vdc output, 10.42A rated output current, and 250W output power. It uses an IEC 60320 C14 input socket and a MOLEX 39-01-2060 output connector in a compact external housing. The Delta MEA-250A24C H-A features include 2 × MOPP isolation, IP22 ingress pro...
Read MoreThe Delta MEA-250A24C H-A is a medical AC-DC desktop adapter with universal 90-264Vac input, 24Vdc output, 10.42A rated output current, and 250W output power. It uses an IEC 60320 C14 input socket and a MOLEX 39-01-2060 output connector in a compact external housing.
The Delta MEA-250A24C H-A features include 2 × MOPP isolation, IP22 ingress protection, suitability for Type BF medical products, IEC 60601-1 and IEC 62368-1 safety approvals, IEC 60601-1-2 3rd and 4th edition EMC compliance, Class I protection against shock, and Efficiency Level VI performance.
Show Less
Features
- Input voltage range: 90-264Vac universal input.
- Output voltage: 24Vdc.
- Output current: 10.42A.
- Output power: 250W.
- Average efficiency: 90% typical.
- Safety approvals to IEC 60601-1 and IEC 62368-1.
- Compliant with IEC 60601-1-2 3rd and 4th edition requirements.
- IP22 ingress protection rating.
- 2 × MOPP isolation.
- Suited for Type BF medical products.
- IEC 60320 C14 input socket.
- MOLEX 39-01-2060 output connector.
Specifications
| INPUT RATINGS/CHARACTERISTICS | |
|---|---|
| Nominal Input Voltage | 100-240 Vac |
| Input Voltage Range | 90-264 Vac |
| Nominal Input Frequency | 50-60 Hz |
| Input Frequency Range | 47-63 Hz |
| Input Current (max.) | 4 A @ 115 Vac, 2 A @ 230 Vac |
| Average Efficiency (typ.) | 90% |
| Standby Power (max.) | 0.3 W @ 115 Vac & 230 Vac |
| Inrush Current (typ.) | 50 A @ 115 Vac and 100 A @ 230 Vac |
| Touch Current (max.) | 0.1 mA @ 264 Vac NC¹, 0.3 mA @ 264 Vac SFC² |
| Earth Leakage Current (max.) | 0.2 mA @ 264 Vac NC¹, 0.5 mA @ 264 Vac SFC² |
| 1) NC: Normal condition 2) SFC: Single fault condition | |
| OUTPUT RATINGS/CHARACTERISTICS | |
|---|---|
| Nominal Output Voltage | 24 Vdc |
| Output Total Regulation | ± 5% |
| Output Current | 10.42 A |
| Output Power | 250 W |
| Line Regulation | ± 0.5% |
| Load Regulation | ± 4.5% |
| Ripple & Noise (max.) | 240 mVpk-pk @ Rated load |
| Start-up Time (max.) | 3000 ms @ 115 Vac |
| Hold-up Time (min.) | 10 ms @ 100 Vac |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 10% @ 0-50% & 50-100% load; Slew rate 0.25 A/µs (@ 100 Hz, 50% Duty Cycle) |
| Ripple & Noise measurement circuit with 20MHz BW | |
| MECHANICAL | |
|---|---|
| Case | PC |
| Dimensions (L x W x H) | 200.0 x 100.0 x 43.0 mm (7.87 x 3.94 x 1.69 inch) |
| Unit Weight | 1.05 kg (37.0 ounces) |
| Cable Length | 1500 mm |
| Indicator | YES |
| Cooling System | NA |
| Terminal Input | IEC 60320 C14 socket |
| Terminal Output | MOLEX 39-01-2060 |
| ENVIRONMENT | ||
|---|---|---|
| Surrounding Air Temperature | Operating | 5°C to +60°C |
| Storage | -40°C to +70°C | |
| Power De-rating | > 40°C de-rate power by 2.5% / °C | |
| Operating Humidity | 10-95% RH (Non-Condensing) | |
| Operating Altitude | 5,000 meters (16,400 feet) | |
| Shock Test | Non-Operating | 50 G, 11 ms, 3 shocks for each direction |
| Vibration | Non-Operating | 5-500 Hz, 2.09 Grms, 20 minute for each three axis |
| PROTECTIONS | |
|---|---|
| Overvoltage (max.) | 120%, Latch Mode |
| Overload / Overcurrent (max.) | 200% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery) |
| Over Temperature | Hiccup Mode, (Non-Latching, Auto-Recovery) |
| Short Circuit | Hiccup Mode, (Non-Latching, Auto-Recovery) |
| Degree of Protection | IP22 |
| Protection Against Shock | Class I |
| RELIABILITY DATA | |
|---|---|
| MTBF (typ.) | 500K Hours based on Telecordia SR-332 (at 115 Vac, Max. load and 25°C Ambient) |
| Expected Cap Life Time¹ | 5 Years (115 Vac, 100% load @ 25°C) |
| 1) Estimated lifetime when 8 hours operating a day. | |
| SAFETY STANDARDS/DIRECTIVES | ||
|---|---|---|
| Medical Safety | IEC 60601-1 CB report EN 60601-1 CAN/CSA-C22.2 No. 60601-1 ANSI/AAMI ES 60601-1 UL 60601-1 |
|
| ITE Safety | IEC 60950-1, GB 4943.1, GB 9254 IEC 62368-1, GB 17625.1, J 60950-1 (H29) UL 60950-1 AS/NZS 60950-1 |
|
| CE | In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015 |
|
| UKCA | In conformance with Electrical Equipment (Safety) Regulations 2016, and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002) |
|
| Galvanic Isolation | Input to Output (2XMOPP) Input to PE (1XMOPP) Output to PE (1XMOPP) |
4000 Vac 1500 Vac 1500 Vac (Type BF application rated) |
| EMC (Compliant with IEC 60601-1-2 4th Ed. Requirements) | ||
|---|---|---|
| EMC / Emissions | EN/BS EN 55011, EN/BS EN 55032, Compliance to FCC Title 47: Class B |
|
| Harmonic Current Emissions | IEC 61000-3-2 | Meet Class A and Class D limit |
| Voltage Flicker | IEC 61000-3-3 | |
| Immunity | ||
| Electrostatic Discharge | IEC 61000-4-2 | Level 4 Criteria A¹ Air Discharge: 15 kV Contact Discharge: 8 kV |
| Radiated Field | IEC 61000-4-3 | Criteria A¹ 80 MHz-2700 MHz, 10 V/m AM modulation 385 MHz-5785 MHz, 28 V/m Pulse mode and other modulation |
| Electrical Fast Transient / Burst | IEC 61000-4-4 | Level 3 Criteria A¹: 2 kV |
| Surge | IEC 61000-4-5 | Level 3 Criteria A¹ Common Mode³: 2 kV Differential Mode&sup4;: 1 kV |
| Conducted | IEC 61000-4-6 | Level 2 Criteria A¹ 150 kHz-80 MHz, 3 Vrms, 6 Vrms at ISM bands and Amateur radio bands |
| Power Frequency Magnetic Fields | IEC 61000-4-8 | Criteria A¹ Magnetic field strength 30 A/m |
| Voltage Dips | IEC 61000-4-11 | Criteria A¹ 0% UT, 0.5 cycle (10 ms), 0°/45°/90°/135°/180°/225°/270°/315°/360° Criteria A¹ 0% UT, 1 cycle (20 ms), 0° Criteria B² 70% UT, 25 cycle (500 ms), 0° Criteria B² 0% UT, 250 cycle (5000 ms), 0° |
| 1) Criteria A: Normal performance within the specification limits 2) Criteria B: Output out of regulation, or shuts down during test. Automatically restore to normal operation after test. 3) Asymmetrical: Common mode (Line to earth) 4) Symmetrical: Differential mode (Line to line) |
||

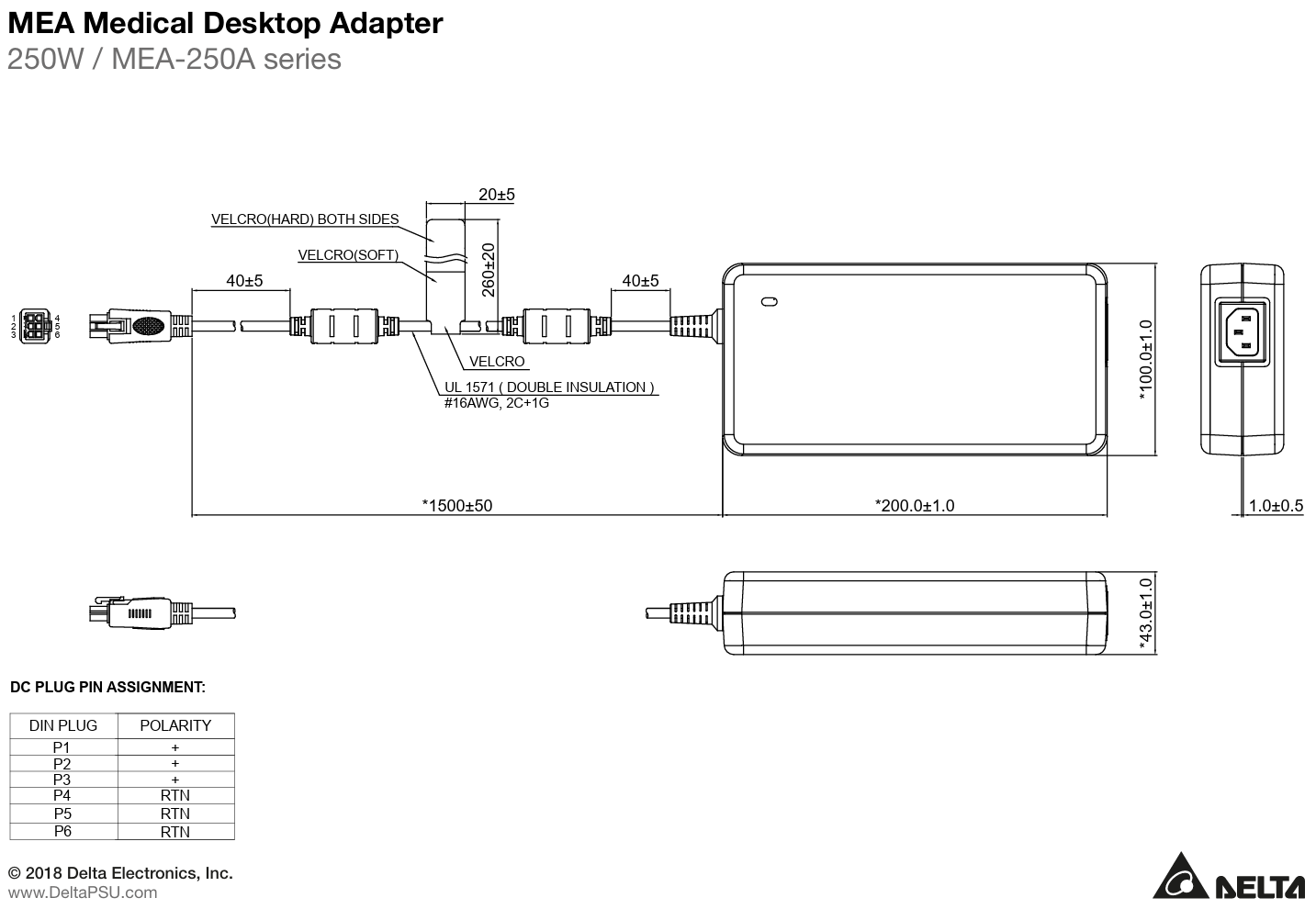

Technical Drawings
