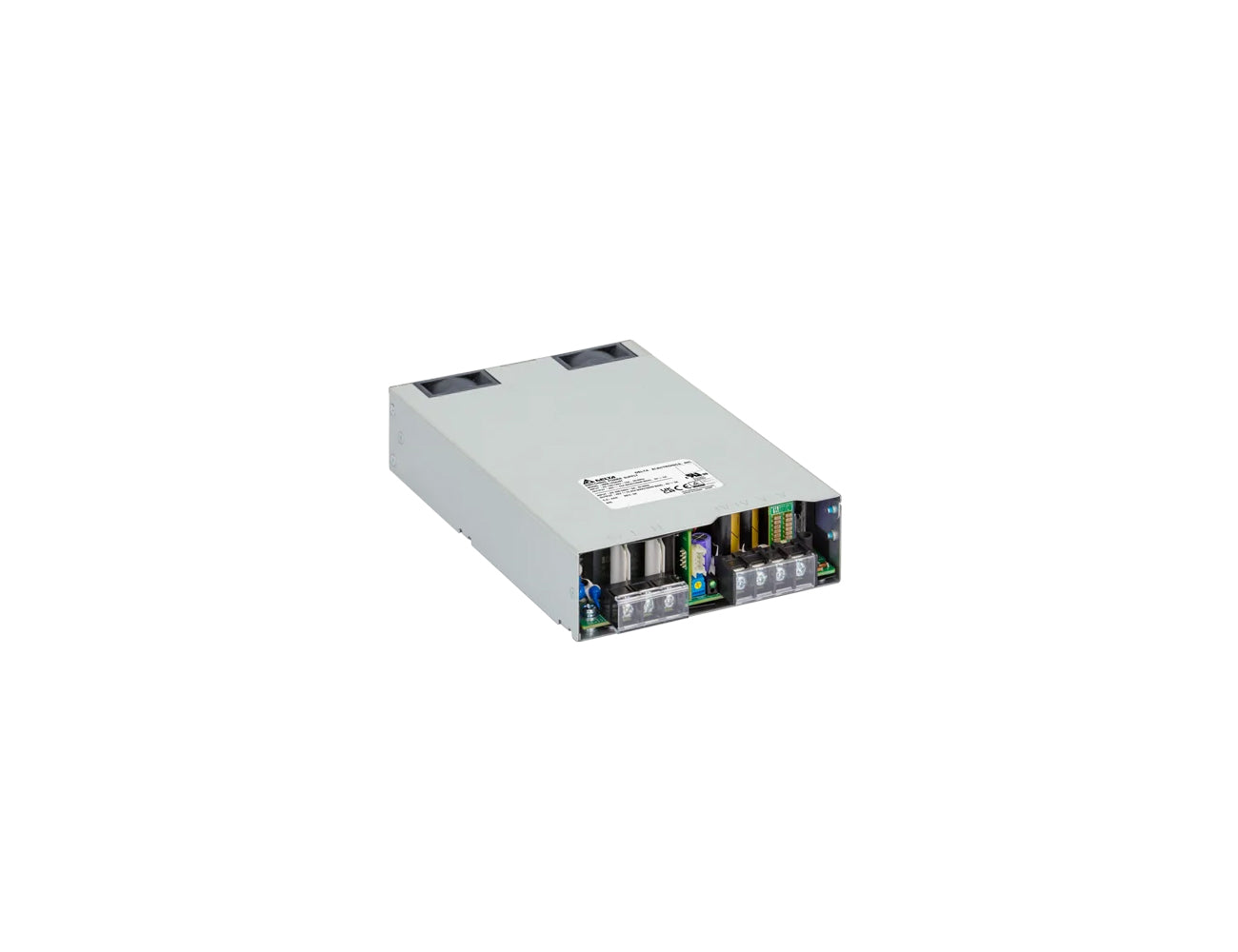

Delta Electronics MEB-1K5A Series 1500W Medical / Industrial AC/DC Power Supply

The Delta MEB-1K5A series is an enclosed medical and industrial AC/DC power supply family with up to 1500 W output power and a built-in 5 V / 2 A standby output. The series accepts 90–264 Vac input and includes 24 Vdc and 48 Vdc terminal-input variants for high-power system applications.

View Models

Features

Input voltage range: 90-264Vac.
Output voltage: available in 24Vdc and 48Vdc variants, with 5V / 2A standby output.
Output current: 24V model 50.0A @ 115Vac / 62.5A @ 230Vac; 48V model 25.0A @ 115Vac / 31.25A @ 230Vac.
Output power: 1200W @ 115Vac and 1500W @ 230Vac.
Efficiency: 24V model 88% @ 115Vac and 91% @ 230Vac; 48V model 89% @ 115Vac and 92% @ 230Vac.
Current sharing supported for up to six power supplies in parallel.

Specifications

INPUT RATINGS/CHARACTERISTICS
Model Number		MEB-1K5A24T AAA	MEB-1K5A48T AAA
Nominal Input Voltage		100-240 Vac
Input Voltage Range		90-264 Vac
Nominal Input Frequency		50-60 Hz
Input Frequency Range		47-63 Hz
Input Current (max)		15 A
Input Surge Voltage (max)		300 Vac for 500 ms
Efficiency (typ)	115 Vac 230 Vac	88% 91%	89% 92%
Inrush Current (typ)		40 A @ 264 Vac, cold start
Earth Leakage Current (Input to PE) (max)		0.5 mA @ NC, 1.0 mA @ SFC⁽⁵⁾ 0.2 mA @ NC, 0.4 mA @ SFC⁽⁶⁾	0.5 mA @ NC, 1.0 mA @ SFC⁽⁵⁾ 0.15 mA @ NC, 0.30 mA @ SFC⁽⁶⁾
Touch Current (Output to PE) (max)		0.1 mA @ NC, 0.5 mA @ SFC⁽⁵⁾ 0.1 mA @ NC, 0.2 mA @ SFC⁽⁶⁾
Power Factor (typ)		0.99 @ 115 V/60 Hz, full load 0.98@ 230 V/50 Hz, full load
(5) NC: normal condition, SFC: single fault condition, Label Rev.00 (6) NC: normal condition, SFC: single fault condition, Label Rev.01 and above

OUTPUT RATINGS/CHARACTERISTICS
Total Regulation		± 3%
Output Power (max)	115 Vac 230 Vac	1200 W 1500 W
Peak Power ( for MEB-1K5A48T AAA )		Output voltage >45 V @ 2200 W power boost for 300ms (Slew rate 0.1 A/ms, load change 1 A-45.83 A@ 230 Vac)
Line Regulation (max)		1%
Load Regulation (max)		2%
Ripple & Noise (typ.)	25°C	1% pk-pk Vrated@ rated load
Voltage Trimming		± 10% Vrated
Dynamic Response (Overshoot & Undershoot O/P Voltage)		± 10% @ with 5-100% load change
Start-up Time (typ)		1000 ms @ 115 Vac 500 ms @ 230 Vac
Hold-up Time (min)		16 ms @ 1200 W load, 115 Vac 12 ms @ 1500 W load, 230 Vac
Capacitive load (max)		6000 uF
Rise time (max)		<50 ms
Nominal Output Voltage of standby output (Vrated)		5 V
Nominal Output Current of standby output		2 A
Total Regulation of standby output		± 5%
Ripple & Noise of standby output		100 mV max

MECHANICAL
Package		Enclosed
Dimensions (W x L x H)		127 x 204 x 40.5 mm (5x8.03x1.59 inch)
Unit Weight		1.5 kg±0.2 kg (3.3 ±0.44 lb)
Indicator		Green LED
Terminal	INPUT OUTPUT	M4.0 x 3 Pins (Rated 300 V/25 A) M3.5 x 4 Pins (Rated 300 V/32 A)
Wire		10 ~ 12 AWG⁽⁷⁾ (2X) (FOR 48 V model) 8 AWG * (2X) (FOR 24 V model)
(7) Only use wire that can withstand operating temperature of more than 105°C.

ENVIRONMENT
Surrounding Air Temperature	Operating Storage	Absolute Maximum/Minimum Rating. -20°C to +70°C. Linear power derate from 100% load at 50°C, to 50% load at 70°C Note: see power de-rating curves below -40°C to +85°C
Operating Humidity		20-90% RH (Non-Condensing)
Operating Altitude		Up to 5,000 meters (up to 16,400 feet or 106-54 kPa)
Non-Operating Altitude		Up to 5,575 meters (up to 18,290 feet or 106-50 kPa)
Shock Test (Non-Operating)		50 G, 11 ms, 3 shocks for each direction
Vibration (Operating)		5-500 Hz, 2 Grms, 15 minute for each three axis
Acoustic Noise⁽⁸⁾ (typ) @ 10% load, 25°C Acoustic Noise (typ) @ 80% load, 25°C		30 dB 45 dB
(8) Acoustic Noise test set up according to ISO-7779

PROTECTIONS (For both main output and 5 Volt Standby outputs, unless otherwise indicated)
Overvoltage (max)	Main output 145% of rated normal voltage, Latch Mode
Over load / Over current (max)	Main output 135% of rated current, constant current (for 24 V) Main output 145% of rated current (for 48V) Standby 4.0 A max with Hiccup Mode (Non-Latching, Auto-Recovery)
Over Temperature	Latch Mode for Main output
Short Circuit	Hiccup Mode for Main output and Standby (Non-Latching, Auto-Recovery)

RELIABILITY DATA
MTBF (Minimum) at 115 Vac, 1200 W, 35 °C	500 Khrs based on Telecordia SR-332
Operating life(Minimum) at 115 Vac, 1000 W, 25°C	26,280 hrs

SAFETY STANDARDS/DIRECTIVES
Medical Safety	CB scheme TUV Bauart UL/cUL	IEC60601-1 3rd+A1+A2 edition CB report EN/ BS EN 60601-1:2006 ANSI/AAMI ES 60601-1+CAN/CSA-C22.2 No.60601-1: (Ed.3.2005)
ITE Safety	CB scheme CB scheme TUV Bauart UL/cUL CCC	IEC62368-1 CB report IEC60950-1 CB report EN/ BS EN 62368-1 UL62368-1+CAN/CSA62368-1 GB4943.1-2022, GB9254-2021, GB17625.1-2012
Household (for MEB-1K5A24T AAA)	CB scheme TUV Bauart	IEC 60335-1 CB report IEC 61558-1/ -2-16 CB report EN/ BS EN 60335-1 EN/ BS EN 61558-1 / -2-16
CE		In conformance with EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014& EN 60601-1-2: 2015
UKCA		In conformance with Electromagnetic Compatibility Regulations 2016 and Medical Devices Regulations 2002 (UK MDR 2002)
Galvanic Isolation	Input to/Output Input to/Ground Output to/Ground	4000 Vac 1500 Vac 1500 Vac

EMC
EMC / Emissions		EN / BS EN 55011, BS EN / EN/ BS EN 55032 : Class B EN/ BS EN 55014-1 ( for MEB-1K5A24T AAA) CISPR 11, CISPR 32 : Class B KS C 9832 Compliance to FCC Title 47 Class
Immunity to		BS EN / EN 55035, KS C 9835, EN/ BS EN 55014-2 ( for MEB-1K5A24T AAA)
Electrostatic Discharge	IEC 61000-4-2	Level 4 Criteria A⁽⁹⁾⁽¹³⁾ Air Discharge: 15 kV Contact Discharge: 8 kV
Radiated Field	IEC 61000-4-3	Criteria A⁽⁹⁾ 80 MHz-2700 MHz, 10 V/m AM modulation Level 2 Criteria A ⁽⁹⁾⁽¹³⁾ 385 MHz-5785 MHz, 28 V/m Pulse mode and other Modulation
Electrical Fast Transient / Burst	IEC 61000-4-4	Level 3 Criteria A⁽⁹⁾ 2 kV
Surge	IEC 61000-4-5	Level 3 Criteria A⁽⁹⁾⁽¹³⁾ Common Mode⁽¹¹⁾: 2 kV Differential Mode⁽¹²⁾: 1 kV
Conducted	IEC 61000-4-6	Level 2 Criteria A⁽⁹⁾⁽¹³⁾ 150 kHz-80 MHz, 3 Vrms, 6 Vrms, 20 Vrms at ISM bands and Amateur radio bands
Power Frequency Magnetic Fields	IEC 61000-4-8	Criteria A⁽⁹⁾⁽¹³⁾ Magnetic field strength 30 A/m
Voltage Dips	IEC 61000-4-11	30% 10 ms Criteria A⁽⁹⁾ 60% 100 ms Criteria B⁽¹⁰⁾ 100% 5000 ms Criteria B⁽¹⁰⁾
Voltage Dips ⁵⁾	IEC 60601-1-2	Criteria A⁽⁹⁾ @1200 W 0% UT, 0.5 cycle(10 ms) (0°,45°,90°,135°,180°,225°,270°,315°,360°) Criteria B⁽¹⁰⁾,can meet Criteria A with 1000 W or lower load 0% UT, 1 cycle (20 ms), 0° Criteria B⁽¹⁰⁾ 70% U T, 25 cycle (500 ms) , 0° Criteria B⁽¹⁰⁾ 0% U T, 250 cycle (5000 ms), 0° Criteria B⁽¹⁰⁾
Harmonic Current Emissions	IEC/EN/BS EN 61000-3-2	Meet Class A limit
Voltage Fluctuation and Flicker	IEC/EN/BS EN 61000-3-3
(9) Criteria A: Normal performance within the specification limits (10) Criteria B: Output out of regulation, or shuts down during test. Automatically restored to normal operation after test. (11) Asymmetrical: Common mode (Line to earth) (12) Symmetrical: Differential mode (Line to line) (13) Compliant with IEC60601-1-2 4th Edition

Selection Table

MODEL NUMBER	INPUT VOLTAGE	OUTPUT VOLTAGE	OUTPUT CURRENT
MEB-1K5A24T	90-264 Vac⁽⁴⁾	24 Vdc	62.5 A
MEB-1K5A48T	90-264 Vac⁽⁴⁾	48 Vdc	31.25 A
(4) Derating is needed under low AC input, please refer to derating curve for more details.

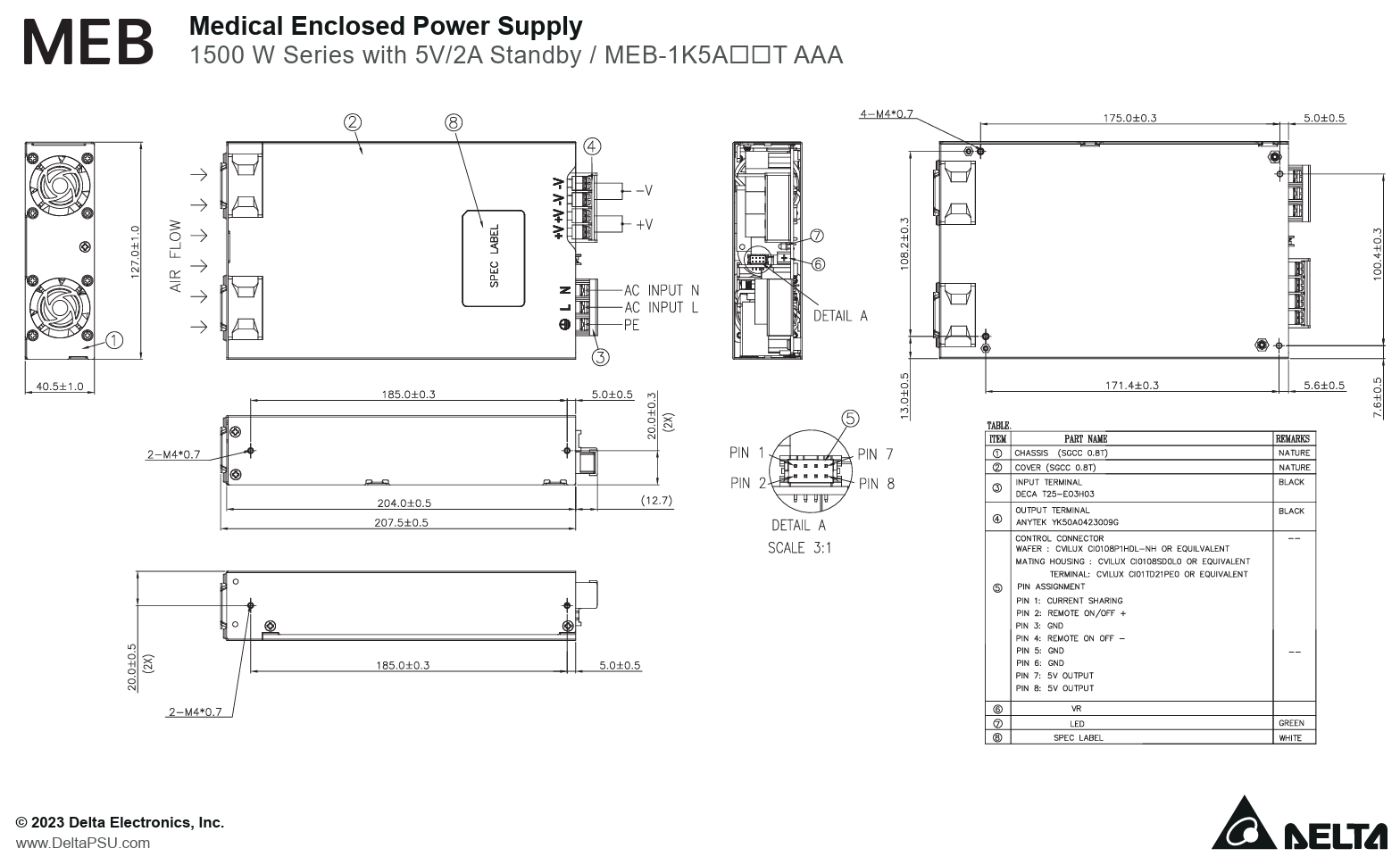

Technical Illustrations

Downloads

Datasheet_MEB-1K5A.pdf

INPUT RATINGS/CHARACTERISTICS
Model Number		MEB-1K5A24T AAA	MEB-1K5A48T AAA
Nominal Input Voltage		100-240 Vac
Input Voltage Range		90-264 Vac
Nominal Input Frequency		50-60 Hz
Input Frequency Range		47-63 Hz
Input Current (max)		15 A
Input Surge Voltage (max)		300 Vac for 500 ms
Efficiency (typ)	115 Vac 230 Vac	88% 91%	89% 92%
Inrush Current (typ)		40 A @ 264 Vac, cold start
Earth Leakage Current (Input to PE) (max)		0.5 mA @ NC, 1.0 mA @ SFC⁽⁵⁾ 0.2 mA @ NC, 0.4 mA @ SFC⁽⁶⁾	0.5 mA @ NC, 1.0 mA @ SFC⁽⁵⁾ 0.15 mA @ NC, 0.30 mA @ SFC⁽⁶⁾
Touch Current (Output to PE) (max)		0.1 mA @ NC, 0.5 mA @ SFC⁽⁵⁾ 0.1 mA @ NC, 0.2 mA @ SFC⁽⁶⁾
Power Factor (typ)		0.99 @ 115 V/60 Hz, full load 0.98@ 230 V/50 Hz, full load
(5) NC: normal condition, SFC: single fault condition, Label Rev.00 (6) NC: normal condition, SFC: single fault condition, Label Rev.01 and above

OUTPUT RATINGS/CHARACTERISTICS
Total Regulation		± 3%
Output Power (max)	115 Vac 230 Vac	1200 W 1500 W
Peak Power ( for MEB-1K5A48T AAA )		Output voltage >45 V @ 2200 W power boost for 300ms (Slew rate 0.1 A/ms, load change 1 A-45.83 A@ 230 Vac)
Line Regulation (max)		1%
Load Regulation (max)		2%
Ripple & Noise (typ.)	25°C	1% pk-pk Vrated@ rated load
Voltage Trimming		± 10% Vrated
Dynamic Response (Overshoot & Undershoot O/P Voltage)		± 10% @ with 5-100% load change
Start-up Time (typ)		1000 ms @ 115 Vac 500 ms @ 230 Vac
Hold-up Time (min)		16 ms @ 1200 W load, 115 Vac 12 ms @ 1500 W load, 230 Vac
Capacitive load (max)		6000 uF
Rise time (max)		<50 ms
Nominal Output Voltage of standby output (Vrated)		5 V
Nominal Output Current of standby output		2 A
Total Regulation of standby output		± 5%
Ripple & Noise of standby output		100 mV max

MECHANICAL
Package		Enclosed
Dimensions (W x L x H)		127 x 204 x 40.5 mm (5x8.03x1.59 inch)
Unit Weight		1.5 kg±0.2 kg (3.3 ±0.44 lb)
Indicator		Green LED
Terminal	INPUT OUTPUT	M4.0 x 3 Pins (Rated 300 V/25 A) M3.5 x 4 Pins (Rated 300 V/32 A)
Wire		10 ~ 12 AWG⁽⁷⁾ (2X) (FOR 48 V model) 8 AWG * (2X) (FOR 24 V model)
(7) Only use wire that can withstand operating temperature of more than 105°C.

ENVIRONMENT
Surrounding Air Temperature	Operating Storage	Absolute Maximum/Minimum Rating. -20°C to +70°C. Linear power derate from 100% load at 50°C, to 50% load at 70°C Note: see power de-rating curves below -40°C to +85°C
Operating Humidity		20-90% RH (Non-Condensing)
Operating Altitude		Up to 5,000 meters (up to 16,400 feet or 106-54 kPa)
Non-Operating Altitude		Up to 5,575 meters (up to 18,290 feet or 106-50 kPa)
Shock Test (Non-Operating)		50 G, 11 ms, 3 shocks for each direction
Vibration (Operating)		5-500 Hz, 2 Grms, 15 minute for each three axis
Acoustic Noise⁽⁸⁾ (typ) @ 10% load, 25°C Acoustic Noise (typ) @ 80% load, 25°C		30 dB 45 dB
(8) Acoustic Noise test set up according to ISO-7779

PROTECTIONS (For both main output and 5 Volt Standby outputs, unless otherwise indicated)
Overvoltage (max)	Main output 145% of rated normal voltage, Latch Mode
Over load / Over current (max)	Main output 135% of rated current, constant current (for 24 V) Main output 145% of rated current (for 48V) Standby 4.0 A max with Hiccup Mode (Non-Latching, Auto-Recovery)
Over Temperature	Latch Mode for Main output
Short Circuit	Hiccup Mode for Main output and Standby (Non-Latching, Auto-Recovery)

RELIABILITY DATA
MTBF (Minimum) at 115 Vac, 1200 W, 35 °C	500 Khrs based on Telecordia SR-332
Operating life(Minimum) at 115 Vac, 1000 W, 25°C	26,280 hrs

SAFETY STANDARDS/DIRECTIVES
Medical Safety	CB scheme TUV Bauart UL/cUL	IEC60601-1 3rd+A1+A2 edition CB report EN/ BS EN 60601-1:2006 ANSI/AAMI ES 60601-1+CAN/CSA-C22.2 No.60601-1: (Ed.3.2005)
ITE Safety	CB scheme CB scheme TUV Bauart UL/cUL CCC	IEC62368-1 CB report IEC60950-1 CB report EN/ BS EN 62368-1 UL62368-1+CAN/CSA62368-1 GB4943.1-2022, GB9254-2021, GB17625.1-2012
Household (for MEB-1K5A24T AAA)	CB scheme TUV Bauart	IEC 60335-1 CB report IEC 61558-1/ -2-16 CB report EN/ BS EN 60335-1 EN/ BS EN 61558-1 / -2-16
CE		In conformance with EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014& EN 60601-1-2: 2015
UKCA		In conformance with Electromagnetic Compatibility Regulations 2016 and Medical Devices Regulations 2002 (UK MDR 2002)
Galvanic Isolation	Input to/Output Input to/Ground Output to/Ground	4000 Vac 1500 Vac 1500 Vac

EMC
EMC / Emissions		EN / BS EN 55011, BS EN / EN/ BS EN 55032 : Class B EN/ BS EN 55014-1 ( for MEB-1K5A24T AAA) CISPR 11, CISPR 32 : Class B KS C 9832 Compliance to FCC Title 47 Class
Immunity to		BS EN / EN 55035, KS C 9835, EN/ BS EN 55014-2 ( for MEB-1K5A24T AAA)
Electrostatic Discharge	IEC 61000-4-2	Level 4 Criteria A⁽⁹⁾⁽¹³⁾ Air Discharge: 15 kV Contact Discharge: 8 kV
Radiated Field	IEC 61000-4-3	Criteria A⁽⁹⁾ 80 MHz-2700 MHz, 10 V/m AM modulation Level 2 Criteria A ⁽⁹⁾⁽¹³⁾ 385 MHz-5785 MHz, 28 V/m Pulse mode and other Modulation
Electrical Fast Transient / Burst	IEC 61000-4-4	Level 3 Criteria A⁽⁹⁾ 2 kV
Surge	IEC 61000-4-5	Level 3 Criteria A⁽⁹⁾⁽¹³⁾ Common Mode⁽¹¹⁾: 2 kV Differential Mode⁽¹²⁾: 1 kV
Conducted	IEC 61000-4-6	Level 2 Criteria A⁽⁹⁾⁽¹³⁾ 150 kHz-80 MHz, 3 Vrms, 6 Vrms, 20 Vrms at ISM bands and Amateur radio bands
Power Frequency Magnetic Fields	IEC 61000-4-8	Criteria A⁽⁹⁾⁽¹³⁾ Magnetic field strength 30 A/m
Voltage Dips	IEC 61000-4-11	30% 10 ms Criteria A⁽⁹⁾ 60% 100 ms Criteria B⁽¹⁰⁾ 100% 5000 ms Criteria B⁽¹⁰⁾
Voltage Dips ⁵⁾	IEC 60601-1-2	Criteria A⁽⁹⁾ @1200 W 0% UT, 0.5 cycle(10 ms) (0°,45°,90°,135°,180°,225°,270°,315°,360°) Criteria B⁽¹⁰⁾,can meet Criteria A with 1000 W or lower load 0% UT, 1 cycle (20 ms), 0° Criteria B⁽¹⁰⁾ 70% U T, 25 cycle (500 ms) , 0° Criteria B⁽¹⁰⁾ 0% U T, 250 cycle (5000 ms), 0° Criteria B⁽¹⁰⁾
Harmonic Current Emissions	IEC/EN/BS EN 61000-3-2	Meet Class A limit
Voltage Fluctuation and Flicker	IEC/EN/BS EN 61000-3-3
(9) Criteria A: Normal performance within the specification limits (10) Criteria B: Output out of regulation, or shuts down during test. Automatically restored to normal operation after test. (11) Asymmetrical: Common mode (Line to earth) (12) Symmetrical: Differential mode (Line to line) (13) Compliant with IEC60601-1-2 4th Edition

MODEL NUMBER	INPUT VOLTAGE	OUTPUT VOLTAGE	OUTPUT CURRENT
MEB-1K5A24T	90-264 Vac⁽⁴⁾	24 Vdc	62.5 A
MEB-1K5A48T	90-264 Vac⁽⁴⁾	48 Vdc	31.25 A
(4) Derating is needed under low AC input, please refer to derating curve for more details.

Datasheet_MEB-1K5A.pdf
