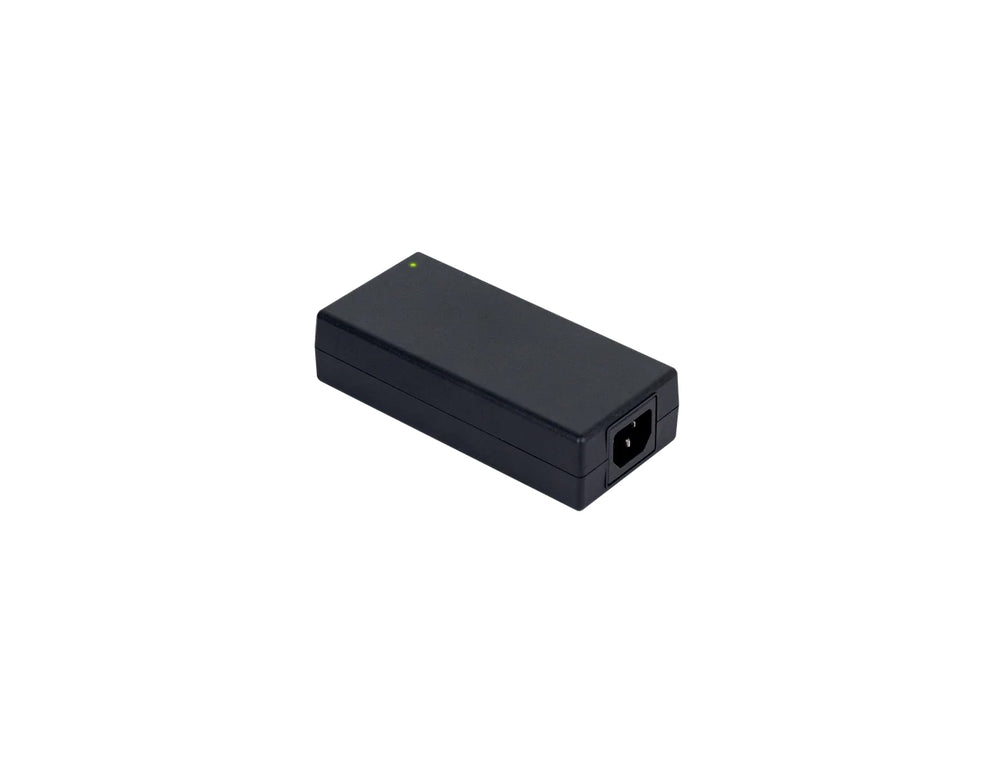

Delta Electronics MEA-160A C14 4 Pin DIN Series Medical AC/DC Adapter

The Delta MEA-160A series is a medical AC-DC desktop adapter family with universal 85-264Vac input, IEC 60320 C14 input connection, and 4 Pin Din output. The series includes 12Vdc, 15Vdc, 19Vdc, and 24Vdc single-output models with rated output current up to 12.5A and output power up to 160W. The Delta MEA-160A features include 2 × MOPP isolation...

The Delta MEA-160A features include 2 × MOPP isolation, low touch current, Efficiency Level VI / VII and CoC Tier 2 compliance, IP22 protection, green LED indication, and medical and ITE safety approvals. The family is intended for medical and information technology equipment requiring compact external power conversion.

Show Less

Select model number

or send a quick enquiry about this product only

Features

Input voltage range: 85-264Vac universal input.
Output voltage: available in 12Vdc, 15Vdc, 19Vdc and 24Vdc variants.
Output current: up to 12.5A, 10.67A, 8.42A or 6.67A depending on model.
Output power: 150W for the 12V model and 160W for the 15V, 19V and 24V models.
Efficiency: meet Efficiency Level VI / VII and CoC Tier 2.
2 × MOPP isolation.
Low touch current: <0.1mA normal and single fault.
IEC 60320 C14 input socket.
4 Pin Din output connector.
Green LED indication.
Protection rating: IP22.
Medical and ITE safety approvals.

Specifications

INPUT RATINGS/CHARACTERISTICS
Nominal Input Voltage	100-240 Vac
Input Voltage Range	85-264 Vac
Nominal Input Frequency	50-60 Hz
Input Frequency Range	47-63 Hz
Input Current (max.)	2.2 A @ 100 Vac, 1 A @ 230 Vac
Efficiency @ 115 Vac (typ.)	MEA-160A12C: 90% MEA-160A15C: 90.5% MEA-160A19C: 91% MEA-160A24C: 91%
Efficiency @ 230 Vac (typ.)	MEA-160A12C: 91% MEA-160A15C: 92.5% MEA-160A19C: 93% MEA-160A24C: 93%
Average Efficiency (min.)	89%
Efficiency @ 10% Load	79%
Standby Power (max.)	0.15 W @ 115 Vac & 230 Vac
Inrush Current (typ.)	50 A @ 115 Vac, 100 A @ 230 Vac
Touch Current (max.)	0.1 mA @ 264 Vac NC¹, 0.1 mA @ 264 Vac SFC²
Earth Leakage Current (max.)	0.1 mA @ 264 Vac NC¹, 0.1 mA @ 264 Vac SFC²
Power Factor (typ.)	0.99 @ 115 Vac; 0.95 @ 230 Vac
1) NC: Normal condition 2) SFC: Single fault condition

OUTPUT RATINGS/CHARACTERISTICS
Parameter	MEA-160A12C	MEA-160A15C	MEA-160A19C	MEA-160A24C
Nominal Output Voltage	12 Vdc	15 Vdc	19 Vdc	24 Vdc
Nominal Output Current	12.5 A	10.67 A	8.42 A	6.67 A
Output Power	150 W	160 W	160 W	160 W
Line Regulation	± 0.5%
Load Regulation	± 6.5%	± 5%	± 5%	± 4%
PARD³ (20 MHz) @ 25°C to 40°C	150 mVp-p	150 mVp-p	190 mVp-p	240 mVp-p
PARD³ (20 MHz) @ -20°C to 0°C	< 360 mVp-p	< 450 mVp-p	< 570 mVp-p	< 720 mVp-p
Rise Time	< 50 ms @ 115 Vac & 230 Vac
Start-up Time	350 ms (typ.) @ 115 Vac & 230 Vac
Hold-up Time	28 ms typ. @ 115 Vac
E-Cap Load	6000 uF
Dynamic Response (Overshoot & Undershoot O/P Voltage)	± 10% @ 5-100% load; Slew rate 0.1A/µs (@ 100 Hz, 50% Duty Cycle)
3) PARD: AC coupling mode, 0.1µF ceramic & 47µF electrolytic at end terminal. Burn in >5 min when AMB ≤ 0°C

MECHANICAL
Case Chassis / Cover	PC
Dimensions (W x L x H)	65.0 x 150.0 x 32.0 mm (2.56 x 5.90 x 1.26 inch)
Unit Weight	450 grams (0.992 lb)
Cable Length	1200 mm
Indicator	Green LED
Terminal Input	IEC 60320 C14 socket
Terminal Output	4 Pin Din

ENVIRONMENT
Surrounding Air Temperature	Operating	-20°C to +60°C
	Storage	-40°C to +85°C
Power De-rating		> 40°C de-rate power by 2.5% / °C
Line De-rating		< 100 Vac de-rate power by 1% / Vac
Operating Humidity		20-90% RH (Non-Condensing)
Operating Altitude		Up to 5,000 meters (up to 16,400 feet or 106-54kPa)
Shock Test	Non-Operating	50 G, 11 ms, 3 shocks for each direction
Vibration	Non-Operating	5-500 Hz, 2.09 Grms, 20 minutes for each three axis

PROTECTIONS
Overvoltage (max.)	150% max, Latch Mode
Overload / Overcurrent (max.)	180% max of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)
Over Temperature	Latch Mode
Short Circuit	Hiccup Mode, (Non-Latching, Auto-Recovery)
Degree of Protection	IP22
Protection Against Shock	Class I

RELIABILITY DATA
MTBF (typ.)	500K Hours based on Telecordia SR-332 (at 115 Vac, Max. load and 25°C Ambient)
Expected E-cap Life Time&sup4;	3 years (115 Vac, 100% load @ 25°C Ambient)
4) The expected E-cap life is based on 12 hours of operation per day.

SAFETY STANDARDS/DIRECTIVES
Medical Safety		IEC 60601-1 CB Report, EN 60601-1 CAN/CSA-C22.2 No.60601-1 ANSI/AAMI ES 60601-1
ITE Safety		IEC 62368-1, UL 62368-1 PSE J 62368-1 CCC GB 4943.1, GB/T 9254.1, GB 17625.1
CE		In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A1: 2013 + A12: 2014+ A2: 2021 & EN 60601-1-2: 2015 + A1: 2021
UKCA		In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002)
Galvanic Isolation	Input to Output Input to PE Output to PE	4000 Vac 1500 Vac 500 Vac

EMC
EMC / Emissions		EN/BS EN 55011, EN/BS EN 55032 : Class B CISPR 11, CISPR 32 : Class B Compliance to FCC Title 47: Class B
Harmonic Current Emissions	IEC 61000-3-2	Meet Class A
Voltage Flicker	IEC 61000-3-3
Immunity
Electrostatic Discharge	IEC 61000-4-2	Level 4 Criteria A&sup5; Air Discharge: 15 kV Contact Discharge: 8 kV
Radiated Field	IEC 61000-4-3	Criteria A&sup5; 80 MHz-2700 MHz, 10 V/m AM modulation 385 MHz-5785 MHz, 28 V/m Pulse mode and other modulation
Electrical Fast Transient / Burst	IEC 61000-4-4	Level 3 Criteria A&sup5;: 2 kV
Surge	IEC 61000-4-5	Level 3 Criteria A&sup5; Common Mode&sup7;: 2 kV Differential Mode&sup8;: 1 kV
Conducted	IEC 61000-4-6	Level 2 Criteria A&sup5; 150 kHz-80 MHz, 3 Vrms, 6 Vrms at ISM bands and Amateur radio bands
Power Frequency Magnetic Fields	IEC 61000-4-8	Criteria A&sup5; Magnetic field strength 30 A/m
Voltage Dips	IEC 61000-4-11	Criteria A&sup5; 0% UT, 0.5 cycle (10 ms), 0°/45°/90°/135°/180°/225°/270°/315°/360° Criteria A&sup5; 0% UT, 1 cycle (20 ms), 0° Criteria B&sup6; 70% UT, 25 cycle (500 ms), 0° Criteria B&sup6; 0% UT, 250 cycle (5000 ms), 0°
5) Criteria A: Normal performance within the specification limits 6) Criteria B: Output out of regulation, or shuts down during test. Automatically restore to normal operation after test. 7) Asymmetrical: Common mode (Line to earth) 8) Symmetrical: Differential mode (Line to line)

Selection Table

Model Number	Input Voltage	Output Voltage	Output Current
MEA-160A12C GAA	85-264 Vac	12 Vdc	12.5 A
MEA-160A15C GAA		15 Vdc	10.67 A
MEA-160A19C GAA		19 Vdc	8.42 A
MEA-160A24C GAA		24 Vdc	6.67 A

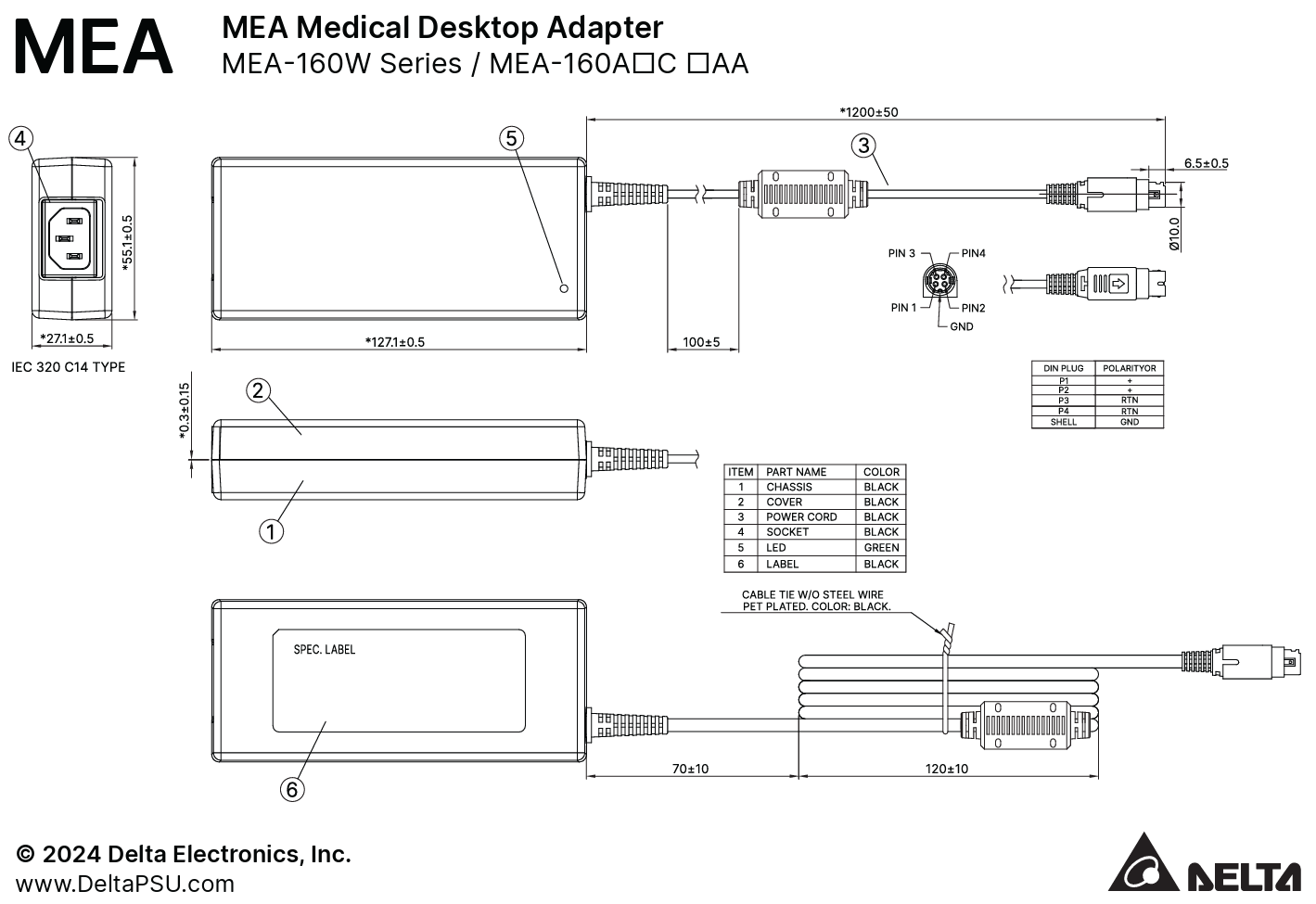

Technical Drawings

Downloads

Datasheet_MEA-160AXXC.pdf

Warranty & Returns

Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.

FAQs

What is the Delta MEA-160A C14 4 Pin DIN Series?

The MEA-160A is a 160W medical-grade AC/DC adapter with a C14 (IEC) input connector and a 4-pin DIN output connector, designed for medical devices requiring a detachable, certified power adapter.

What is the advantage of a C14 IEC input connector on a medical adapter?

The C14 connector allows a standard IEC mains cable to be used, making it straightforward to replace the mains lead for different regional plugs (Australian, UK, European, etc.) without replacing the adapter.

What is the 4-pin DIN output connector used for?

The 4-pin DIN connector is a common output format on medical adapters, providing a keyed, locking connection to the medical device to prevent accidental disconnection and ensure polarity safety.

What medical certifications does the MEA-160A hold?

Certified to IEC 60601-1 for medical electrical equipment safety, with 2×MOPP (Means of Patient Protection) input-to-output isolation — qualifying it for use in equipment operating in patient care environments and meeting IEC 60601-1 3rd edition leakage current requirements. DOE Efficiency Level VI compliant.

What input voltage does the MEA-160A accept?

Universal 90–264Vac (47–63Hz) single-phase input via the C14 IEC connector, covering Australian 230Vac mains and international 115Vac without manual switching.

How does the MEA-160A compare to the MEA-250A and MEA-300A?

The MEA-160A (160W) is the lower-power medical adapter; the MEA-250A (250W) and MEA-300A (300W) are for higher-power devices. All share the IEC 60601-1 medical certification.
